In the world of precision machining, few tools are as specialized—or as easily misunderstood—as the slitting saw. While milling machines, lathes, and drill presses often take center stage in a machine shop, the humble slitting saw quietly performs one of the most delicate and demanding operations: cutting narrow slots and thin sections with exceptional accuracy. Whether you are working with stainless steel shims, brass components, or advanced composites, slitting saws offer a unique combination of thin kerf, clean cutting action, and repeatability. However, their very thinness, which is their primary advantage, also makes them prone to deflection, vibration, and premature failure if not used correctly. Understanding the design, materials, applications, and setup requirements of slitting saws is essential for any machinist looking to achieve burr-free, dimensionally precise cuts in thin materials.

What Are Slitting Saws?

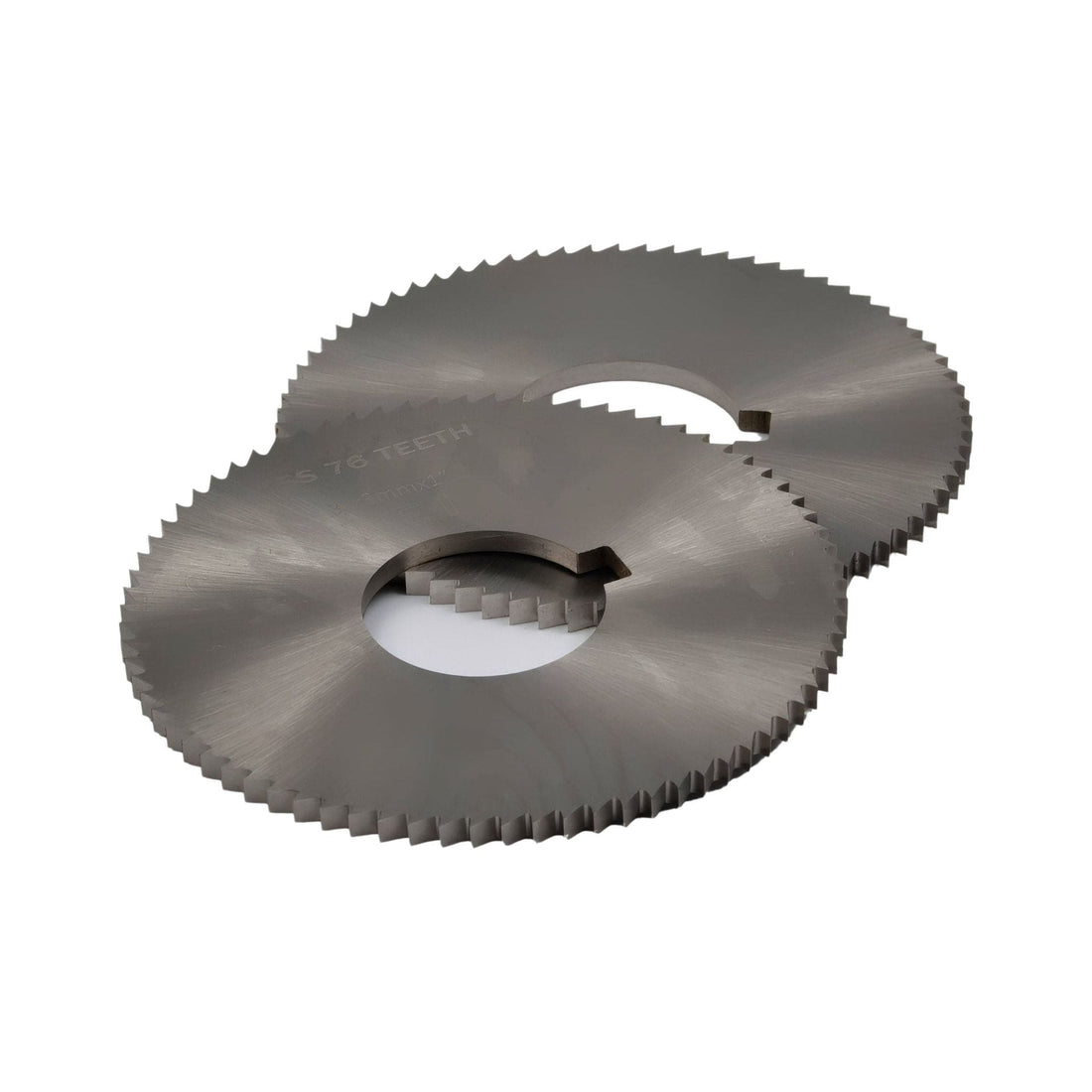

At their core, slitting saws are thin, circular blades with multiple teeth arranged around their periphery. Unlike a standard milling cutter, which is designed for heavy material removal, a slitting saw is optimized for parting-off, slotting, and grooving operations where the width of the cut (kerf) must be kept to an absolute minimum. These saws resemble miniature versions of circular saw blades used in woodworking, but they are engineered to withstand the high spindle speeds, cutting forces, and thermal stresses of metalworking.

Slitting saws are available in a wide range of diameters, typically from as small as 1 inch (25 mm) up to 6 inches (150 mm) or more, with thicknesses often measured in thousandths of an inch. A common slitting saw might be 0.020 inches thick, allowing it to cut a slot just 0.022 inches wide after accounting for tooth set or clearance. This extreme thinness is what enables machinists to create intricate features such as retaining ring grooves, expansion slots in bushings, or precisely spaced gaps in electronic shielding.

Key Features and Design Considerations

The defining characteristic of a slitting saw is its high ratio of diameter to thickness. This gives the blade a large cutting circumference relative to its body strength. To maintain rigidity despite this thin profile, manufacturers employ several design strategies.

First, the teeth are typically staggered or alternated (a feature known as "set") to provide side clearance. Without adequate set, the body of the saw would rub against the walls of the cut, generating friction, heat, and almost certain binding. Second, the number of teeth varies depending on the intended material. Fine-tooth saws (with more teeth per inch) are used for hard, brittle materials like hardened tool steel or carbide, where chip size must be minimized. Coarse-tooth saws (fewer teeth per inch) are better for soft, gummy materials like aluminum or copper, as they provide larger chip gullets to prevent packing.

Third, slitting saws are available in two primary material grades: High-Speed Steel (HSS) and carbide. HSS slitting saws are the most common choice for general-purpose work. They offer excellent toughness, are resistant to shock and vibration, and can be resharpened easily. HSS is ideal for cutting mild steel, stainless steel, brass, and plastics. Carbide slitting saws, on the other hand, are significantly harder and more wear-resistant. They can run at much higher surface speeds and maintain their edge for far longer than HSS. However, carbide is also more brittle and susceptible to chipping or shattering if the setup lacks rigidity or if the tool experiences sudden impact. Carbide slitting saws are preferred for production runs of abrasive materials, hardened steels, and high-temperature alloys like Inconel.

Precision and Burr-Free Cutting

One of the most valued attributes of a properly used slitting saw is its ability to produce high-precision cuts with minimal burr formation. Unlike abrasive cutting wheels, which generate heat and leave a rough, melted edge, or shearing methods (like tin snips), which deform the material, a sharp slitting saw shears each chip cleanly. The result is a slot with straight, parallel walls and a surface finish often measured in microinches.

Minimal burr formation is critical in applications like medical device manufacturing, aerospace components, and precision dies. A burr that is even 0.001 inch high can interfere with a sliding fit, cause a seal to leak, or create a stress riser that leads to premature fatigue failure. When slitting saws are run with the correct feed rate, spindle speed, and coolant, the resulting edge may require little to no secondary deburring.

Common Applications

Slitting saws are found in virtually every industry that requires precision metal cutting. In traditional machining, they are used for metal slitting (parting off thin workpieces), cutting grooves and keyways in shafts, and creating slots for retaining rings or snap rings. For example, when manufacturing a custom gear, a slitting saw might be used to cut the keyway inside the gear bore. In tool and die making, slitting saws are indispensable for cutting narrow relief slots in punches, dies, and mold inserts.

Another major application is cutting thin steel or aluminum sheets. While a laser or waterjet might be overkill for a small prototype run, a slitting saw mounted in a vertical milling machine can quickly and accurately cut thin sheet stock into precise strips or shapes. The saw's thin kerf minimizes material waste—a critical advantage when working with expensive alloys like titanium or phosphor bronze.

Finally, slitting saws are used to produce precision components for tooling and fixturing. Jigs, fixtures, and assembly aids often require narrow, deep slots to locate parts or allow for clamping. A slitting saw can cut these slots in a single pass, maintaining parallelism and depth accuracy that would be difficult to achieve with an end mill.

The Critical Importance of Proper Setup and Alignment

If there is one takeaway for any machinist new to slitting saws, it is this: proper setup and alignment are not optional—they are critical. Because the blade is so thin relative to its diameter, it has very little lateral stiffness. Any misalignment, runout, or excessive cutting force will cause the blade to deflect. Blade deflection leads to a host of problems: the cut will wander, producing a slot that is not straight or perpendicular; the saw may bind in the cut, generating heat and leading to rapid tooth wear; and in worst-case scenarios, the saw can shatter, sending sharp fragments flying.

To prevent deflection, the saw must be mounted on an arbor that is perfectly concentric and free of wobble. The arbor should be as short and stout as possible to minimize overhang. The workpiece must be clamped securely, with support directly beneath the cut to prevent the material from flexing away from the blade. Additionally, the depth of cut should be limited; multiple shallow passes are far safer and more accurate than a single deep plunge.

Alignment also involves ensuring that the saw is running exactly perpendicular to the workpiece feed direction. Even a slight angular error will cause one side of the blade to rub, generating friction and premature dulling. Using a dial test indicator to check runout at the blade's periphery and side faces is a best practice before every critical slitting operation.

Finally, chip evacuation and cooling are paramount. Slitting saws produce long, stringy chips that can pack into the gullets and wedge the blade. A steady stream of coolant (or at least compressed air with mist) helps flush chips away and dissipates heat, maintaining dimensional accuracy and tool life.

Slitting saws are a testament to the idea that precision is not about size but about control. These thin circular blades, whether HSS or carbide, allow machinists to perform operations that are simply impossible with any other tool: cutting narrow slots, parting thin sections, and creating intricate grooves with minimal burr and exceptional accuracy. From metal slitting and keyway cutting to the production of precision tooling and dies, the slitting saw remains an indispensable asset. However, its very thinness demands respect. Without careful setup, rigid workholding, and proper alignment, the same blade that delivers clean, accurate cuts will deflect, wander, or fail. For those who take the time to master its quirks, the slitting saw rewards with precision that is both reliable and repeatable.
