Face milling is one of the most widely used machining processes in modern manufacturing, valued for its ability to quickly remove material while producing smooth, flat surfaces. Whether in high-volume production or precision one-off machining, face mills and face milling cutters play a critical role in achieving dimensional accuracy, excellent surface finish, and efficient material removal. From preparing raw stock to finishing critical surfaces, understanding how face milling tools work—and how to use them effectively—can significantly improve machining performance and part quality.

What is Face Milling?

Face milling is a machining operation where the cutting tool rotates perpendicular to the workpiece surface. Unlike peripheral milling, where the cutting occurs along the tool’s side, face milling primarily uses the face of the cutter to remove material. The result is a flat surface that is often used as a reference plane for further machining processes.

This method is particularly effective for machining large, flat areas and is commonly used in industries such as automotive, aerospace, general engineering, and toolmaking. Face milling can be performed on vertical or horizontal milling machines, CNC machining centers, and even some specialized equipment designed for heavy-duty operations.

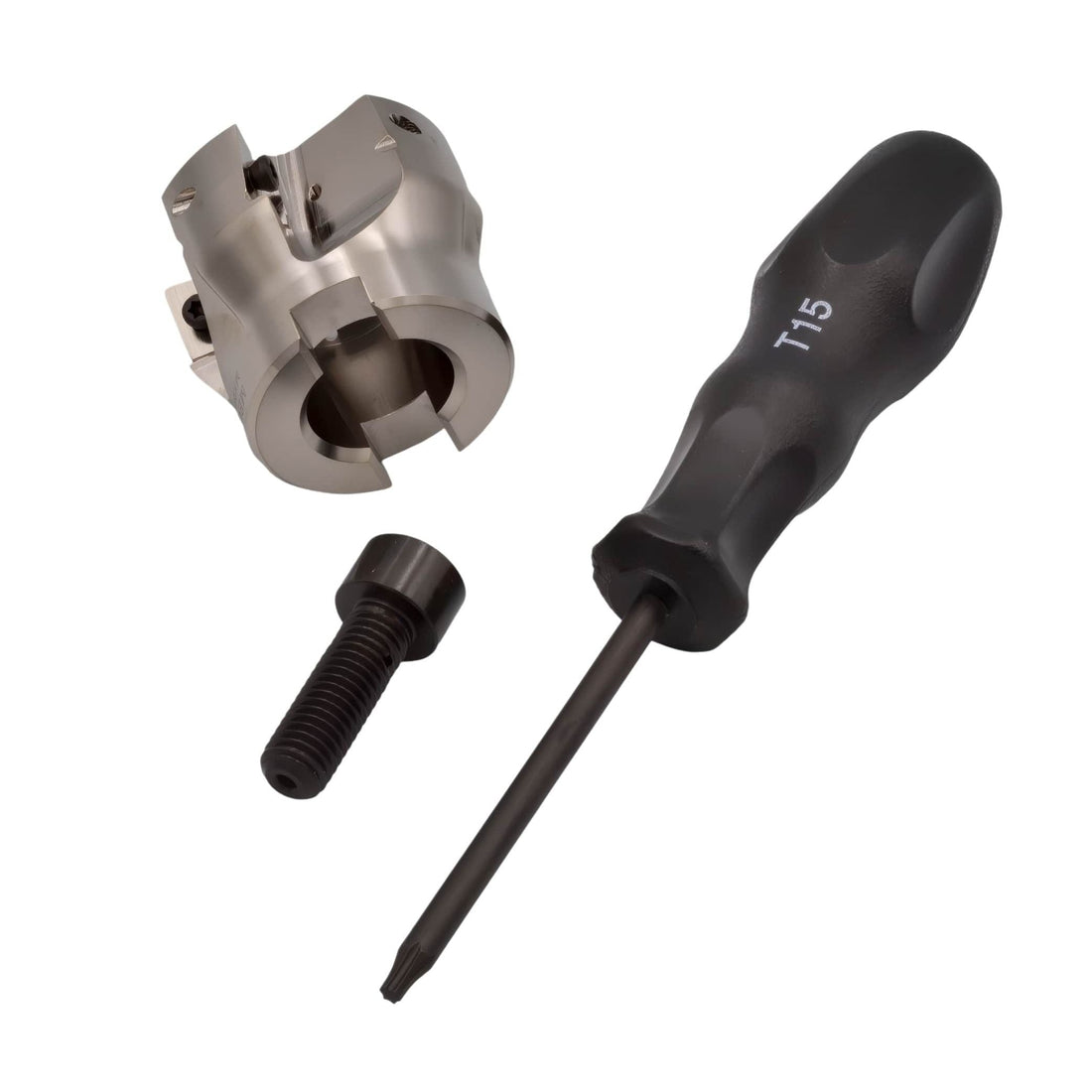

Understanding Face Mills

Face mills are specialized cutting tools designed for surface machining. They typically consist of a cutter body that holds multiple replaceable inserts. These inserts are the actual cutting elements and are strategically positioned around the cutter to distribute cutting forces evenly.

One of the key advantages of face mills is their ability to use multiple inserts simultaneously. This not only increases productivity but also ensures even wear across all cutting edges, extending tool life and reducing downtime. When one edge becomes worn, inserts can often be indexed (rotated) to expose a fresh cutting edge, making them highly cost-effective.

Face mills are available in a wide range of diameters, insert geometries, and mounting styles, allowing machinists to select the right tool for specific applications. Larger diameter face mills are ideal for covering wide surfaces quickly, while smaller ones are better suited for tighter spaces or lighter machines.

Types of Face Milling Cutters

There are several types of face milling cutters, each designed for specific machining requirements:

• High-Feed Face Mills
  These cutters are designed for high-speed, shallow-depth cutting with increased feed rates. They are ideal for roughing operations where rapid material removal is required without compromising tool life.

• 90-Degree Shoulder Face Mills
  These cutters are capable of producing sharp corners and flat surfaces simultaneously. They are often used when both face milling and shoulder milling are required in a single setup.

• Round Insert Face Mills
  Featuring round inserts, these cutters provide strong cutting edges that can handle heavy loads and interrupted cuts. They are well-suited for roughing operations and difficult-to-machine materials.

• Finishing Face Mills
  Designed for achieving superior surface finishes, these cutters use wiper inserts or special geometries to reduce surface roughness and improve flatness.

Each type of cutter offers unique benefits, and selecting the right one depends on factors such as material type, machine capability, and desired surface finish.

Key Applications of Face Milling

Face milling is used across a wide range of machining tasks due to its versatility and efficiency:

• Flattening Large Surfaces
  One of the primary uses of face milling is to create flat surfaces on workpieces. This is essential for components that require tight tolerances and precise alignment.

• Preparing Stock Material
  Before further machining operations, raw material often needs to be squared and flattened. Face milling provides a quick and accurate way to prepare stock for subsequent processes.

• High-Volume Production
  In mass production environments, face milling enables rapid material removal and consistent results. The use of multi-insert cutters ensures high productivity and repeatability.

• Surface Finishing
  Face milling can achieve excellent surface finishes when the correct inserts and cutting parameters are used, making it suitable for final finishing operations.

Selecting the Right Face Mill

Choosing the correct face mill involves several considerations:

• Material of the Workpiece
  Different materials require different insert grades and coatings. For example, carbide inserts are commonly used for steel and cast iron, while specialized coatings may be needed for stainless steel or exotic alloys.

• Insert Geometry
  The shape and geometry of the insert affect cutting performance. Positive rake angles reduce cutting forces and are ideal for softer materials, while negative rake angles provide strength for harder materials.

• Cutter Diameter
  The size of the face mill should match the workpiece and machine capability. Larger cutters can cover more area but require more power and rigidity.

• Machine Capability
  Spindle speed, horsepower, and rigidity all influence tool selection. High-performance machines can take advantage of advanced face milling strategies such as high-speed or high-feed machining.

Optimizing Cutting Parameters

To achieve the best results in face milling, it is essential to optimize cutting parameters:

• Spindle Speed (RPM)
  The spindle speed should be set based on the material and insert type. Higher speeds can improve surface finish but may increase tool wear if not properly controlled.

• Feed Rate
  Adjusting the feed rate affects both productivity and surface finish. High feed rates increase material removal but may compromise finish quality if too aggressive.

• Depth of Cut
  The depth of cut determines how much material is removed in a single pass. Shallow cuts are used for finishing, while deeper cuts are suitable for roughing.

• Coolant Use
  Proper coolant application helps control temperature, reduce tool wear, and improve chip evacuation.

Balancing these parameters is key to maximizing efficiency while maintaining tool life and part quality.

Best Practices for Face Milling

To ensure consistent performance and high-quality results, consider the following best practices:

• Ensure Proper Workholding
  Secure clamping is essential to prevent vibration and movement during machining. Any instability can lead to poor surface finish and tool damage.

• Minimize Tool Overhang
  Keeping the tool as close to the spindle as possible improves rigidity and reduces deflection.

• Use Climb Milling When Possible
  Climb milling (down milling) generally produces better surface finishes and reduces tool wear compared to conventional milling.

• Inspect Inserts Regularly
  Monitoring insert wear and replacing or indexing them as needed ensures consistent cutting performance.

• Optimize Tool Path
  Using proper tool paths, such as overlapping passes and consistent engagement, improves efficiency and surface quality.

Advantages of Face Milling

Face milling offers several advantages over other machining processes:

• High Material Removal Rates
  Multiple cutting edges allow for efficient removal of large amounts of material.

• Excellent Surface Finish
  With the right setup, face milling can produce smooth, flat surfaces with minimal post-processing.

• Versatility
  Suitable for a wide range of materials and applications.

• Cost Efficiency
  Replaceable inserts reduce tooling costs and downtime.

Face mills and face milling cutters are essential tools for achieving efficient surface machining in modern manufacturing. Their ability to combine high material removal rates with excellent surface finish makes them indispensable in a wide range of industries. By selecting the right cutter, optimizing cutting parameters, and following best practices, machinists can maximize productivity while ensuring precision and quality.

Whether you are flattening large workpieces, preparing stock, or finishing critical surfaces, face milling provides a reliable and effective solution. Investing in the right tooling and understanding its application will ultimately lead to better machining outcomes and improved operational efficiency.
