Measuring internal diameters is a critical task in machining, engineering, and quality control. Whether you're working on engine cylinders, hydraulic components, or precision-machined housings, even the smallest deviation can lead to poor fit, reduced performance, or complete part failure. That’s why professionals rely on specialized tools such as bore gauges and telescopic gauges to achieve accurate and repeatable internal measurements.

Unlike external measurements, internal dimensions are more challenging to access and verify. Factors like bore depth, surface finish, alignment, and operator technique all influence accuracy. Using the right gauge not only improves measurement precision but also ensures that components meet strict tolerance requirements, ultimately reducing scrap, rework, and production costs.

Understanding Bore Gauges

Bore gauges are precision instruments designed specifically for measuring the internal diameter of holes with high accuracy. They are commonly used in workshops, inspection rooms, and manufacturing environments where tight tolerances are essential.

Dial Bore Gauges

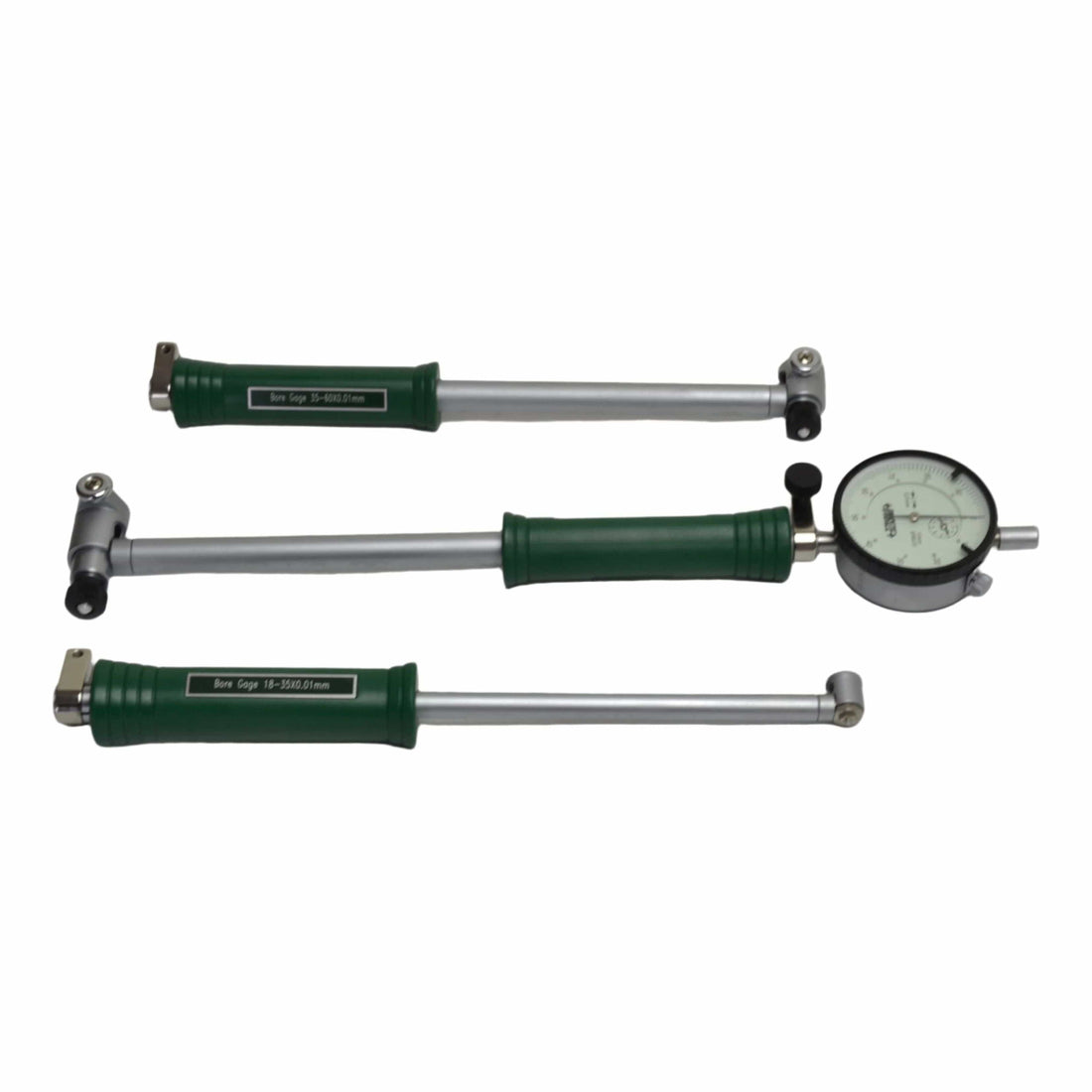

Dial bore gauges are one of the most widely used tools for internal measurement. They feature a dial indicator connected to a measuring head with interchangeable anvils. These gauges do not provide a direct measurement reading; instead, they measure deviation from a preset size, usually set using a micrometer or a setting ring.

The key advantage of dial bore gauges is their excellent repeatability. Once set to a reference dimension, they allow users to quickly check whether a bore is within tolerance. This makes them ideal for batch inspection and quality control processes where consistency is critical.

Dial bore gauges are particularly effective for detecting:

• Out-of-roundness (ovality)

• Taper within a bore

• Variations along the depth of a hole

Because of their sensitivity, they are often used in high-precision industries such as automotive engine building, aerospace machining, and toolmaking.

Digital Bore Gauges

Digital bore gauges offer similar functionality to dial bore gauges but with added convenience and modern features. Instead of an analog dial, they use a digital display to show measurements, making them easier to read and reducing the chance of human error.

These gauges often include:

• Metric and imperial unit conversion

• Data output capabilities for recording measurements

• Preset and zeroing functions

• High-resolution readings for fine tolerances

Digital bore gauges are ideal for environments where data collection and traceability are important. In advanced manufacturing setups, they can be integrated with quality management systems to track measurements in real time.

Telescopic Gauges Explained

Telescopic gauges are simple yet highly effective tools used to measure internal diameters. Unlike bore gauges, they do not provide a direct reading. Instead, they are used in combination with an outside micrometer.

A telescopic gauge consists of two spring-loaded plungers that expand to match the internal diameter of a bore. Once positioned correctly, the gauge is locked in place and removed from the bore. The distance between the plungers is then measured using a micrometer.

Advantages of Telescopic Gauges

• Versatility: Suitable for a wide range of bore sizes

• Cost-effective: More affordable than dial or digital bore gauges

• Compact design: Easy to carry and use in tight spaces

• Durability: Fewer moving parts reduce the risk of damage

While telescopic gauges require more skill and technique to use accurately, they remain a popular choice for machinists who need a reliable and flexible measuring tool.

Applications of Bore and Telescopic Gauges

Both bore gauges and telescopic gauges are essential in various industries where internal dimensions must be controlled with precision.

Engine Cylinders

In automotive and mechanical engineering, measuring engine cylinder bores is crucial. Even slight deviations can affect piston fit, compression, and overall engine performance. Bore gauges are commonly used to check for wear, taper, and ovality in cylinders.

Hydraulic Components

Hydraulic systems rely on tight tolerances to maintain pressure and prevent leaks. Components such as cylinders, valves, and housings must be measured accurately to ensure proper sealing and functionality.

Precision Machined Housings

In manufacturing, housings for bearings, shafts, and assemblies must meet exact specifications. Bore gauges help verify these dimensions, ensuring components fit together seamlessly without excessive play or interference.

Best Practices for Accurate Measurement

To achieve reliable results when using bore gauges or telescopic gauges, it’s important to follow proper measurement techniques.

1. Clean the Bore

Ensure the internal surface is free from dirt, oil, and debris. Even small particles can affect readings and lead to inaccurate measurements.

2. Use the Correct Tool

Select a gauge that matches the size and tolerance requirements of the bore. Using the wrong tool can compromise accuracy.

3. Calibrate Before Use

Always set your bore gauge using a known standard, such as a micrometer or setting ring. This ensures your measurements are referenced correctly.

4. Maintain Consistent Pressure

Apply consistent measuring force to avoid variations. Many gauges are designed with self-centering mechanisms to assist with this.

5. Measure at Multiple Points

Check the bore at different depths and angles to identify any irregularities such as taper or out-of-roundness.

6. Practice Proper Technique

Especially when using telescopic gauges, technique plays a significant role. Rocking the gauge slightly while locking it helps achieve the true diameter.

Bore Gauges vs Telescopic Gauges

Both tools serve the same purpose but differ in accuracy, ease of use, and application.

Bore gauges are ideal for high-precision work and quality control, while telescopic gauges are better suited for general-purpose measurements and fieldwork.

Choosing the Right Tool

Selecting between a bore gauge and a telescopic gauge depends on your specific needs. If you require high accuracy, repeatability, and fast inspection, a dial or digital bore gauge is the better option. On the other hand, if you need a versatile and cost-effective solution, a telescopic gauge paired with a micrometer can deliver reliable results.

For workshops handling a variety of jobs, having both tools available is often the best approach. This ensures flexibility while maintaining the ability to perform precise measurements when required.

Bore gauges and telescopic gauges are indispensable tools for measuring internal diameters in engineering and machining applications. Each tool offers unique advantages, from the high precision and repeatability of bore gauges to the versatility and affordability of telescopic gauges.

By using the correct measuring instrument and following proper techniques, you can ensure accurate internal measurements, maintain tight tolerances, and improve overall product quality. In industries where precision is critical, investing in reliable measurement tools is not just a choice—it’s a necessity.
