In precision machining, accurate measurement is the foundation of quality work. Whether you’re checking the diameter of a turned shaft, verifying part tolerances, or setting up for finishing operations, the analog outside micrometer remains one of the most trusted tools in the trade.

This guide covers best practices for using an analog micrometer effectively—ensuring consistent, reliable results in your engineering or workshop environment.

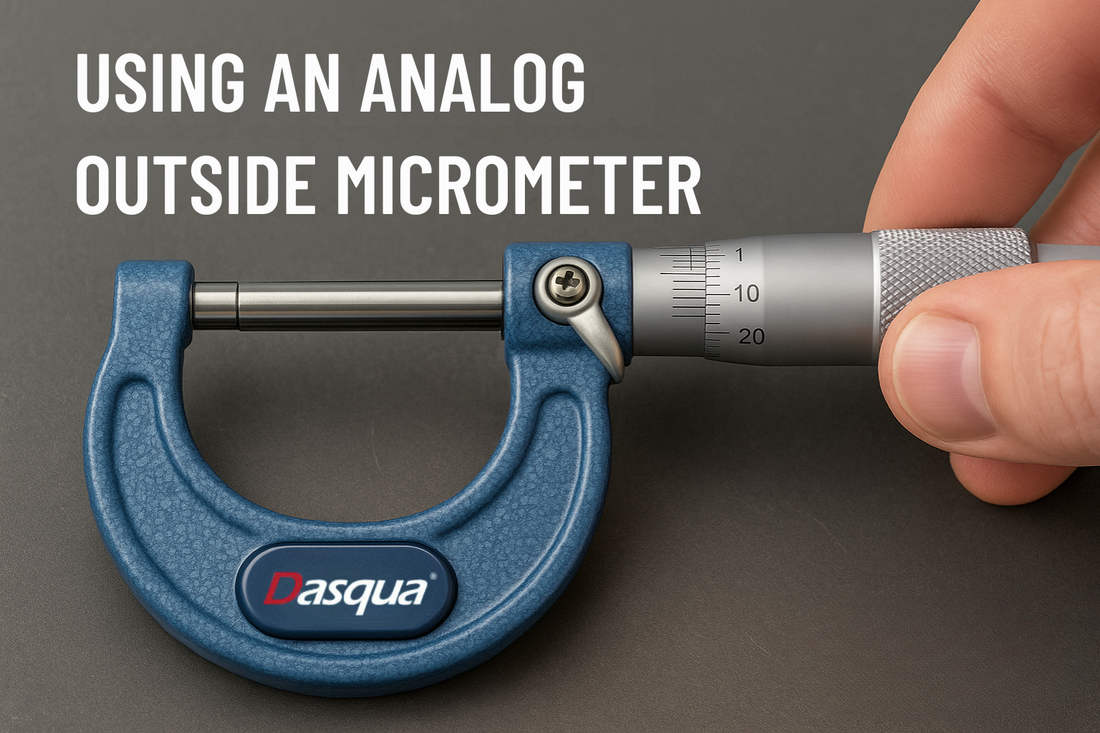

Understanding the Analog Outside Micrometer

An outside micrometer is a precision measuring instrument used to measure the external dimensions of a workpiece—typically to an accuracy of 0.01 mm (0.0001").

It consists of the following key components:

• Frame: Provides rigidity and stability.
• Anvil and Spindle: The measuring faces that contact the part being measured.
• Thimble and Sleeve: Scales used to read the measurement.
• Ratchet Stop or Friction Thimble: Ensures consistent measuring pressure.
• Lock Nut: Holds the spindle position for recording or comparison.

The analog (mechanical) type uses a graduated sleeve and rotating thimble for manual reading—offering tactile feedback and mechanical reliability even in demanding environments.

Preparing for Accurate Measurement

Proper preparation ensures accuracy and repeatability. Follow these steps before using your micrometer:

1. Clean the Measuring Surfaces: Wipe the anvil, spindle, and workpiece using a lint-free cloth. Even a speck of dust or oil can affect precision.
2. Check Zero Setting: Close the micrometer gently until the anvils touch. The reading should be zero. If not, adjust using the supplied spanner wrench.
3. Stabilize the Environment: Temperature changes can alter readings. Always measure at room temperature (around 20°C) for consistency.
4. Hold the Micrometer Correctly: Grip the frame lightly, not the thimble or sleeve. Hand warmth can cause expansion and distort readings.

Correct Measuring Technique

Using the correct method is key to getting repeatable, high-precision results.

1. Position the Workpiece: Place the part between the anvil and spindle, perpendicular to both faces. Misalignment can cause false readings.
2. Apply Measuring Pressure: Turn the ratchet stop until you hear or feel three clicks. This ensures uniform pressure and avoids overtightening.
3. Lock the Spindle (Optional): Use the lock nut to hold the position if you need to record the value or compare multiple components.
4. Take the Reading:
   • Read the main scale on the sleeve first (in mm or inches).
   • Add the thimble scale reading for total measurement.
   • Combine both to achieve the final size (e.g., 12.47 mm).
5. Repeat for Verification: Take at least two measurements at slightly different positions to confirm consistency.

Maintenance and Care

A micrometer is a precision instrument—proper care will extend its lifespan and reliability.

• Clean after every use – Wipe with a clean, dry cloth and lightly oil the spindle.
• Store properly – Keep it in its protective case, away from dust and coolant.
• Avoid dropping – Impacts can damage the spindle alignment and calibration.
• Regular calibration – Verify using gauge blocks or reference standards at set intervals.
• Keep dry – Moisture or coolant can lead to corrosion or stiffness in the mechanism.

Common Mistakes to Avoid

• Applying excessive pressure on the ratchet or spindle.
• Measuring a hot part directly after machining (allow to cool first).
• Using a micrometer with dirty or oily anvils.
• Reading at an angle, which leads to parallax error.
• Ignoring calibration or using a worn micrometer.

Advantages of Analog Micrometers

While digital models have gained popularity, analog micrometers continue to be valued for:

• Durability in workshop environments
• No battery dependency
• Excellent tactile feedback for skilled machinists
• Mechanical precision that withstands long-term use

Conclusion

An analog outside micrometer remains an essential instrument for professional machinists and engineers who demand accuracy, reliability, and control. By following best practices—from setup and handling to maintenance and reading technique—you can ensure every measurement meets the exacting standards of precision engineering.

For workshops, production lines, and training facilities alike, mastering the use of the analog micrometer is a timeless skill that underpins quality craftsmanship.
