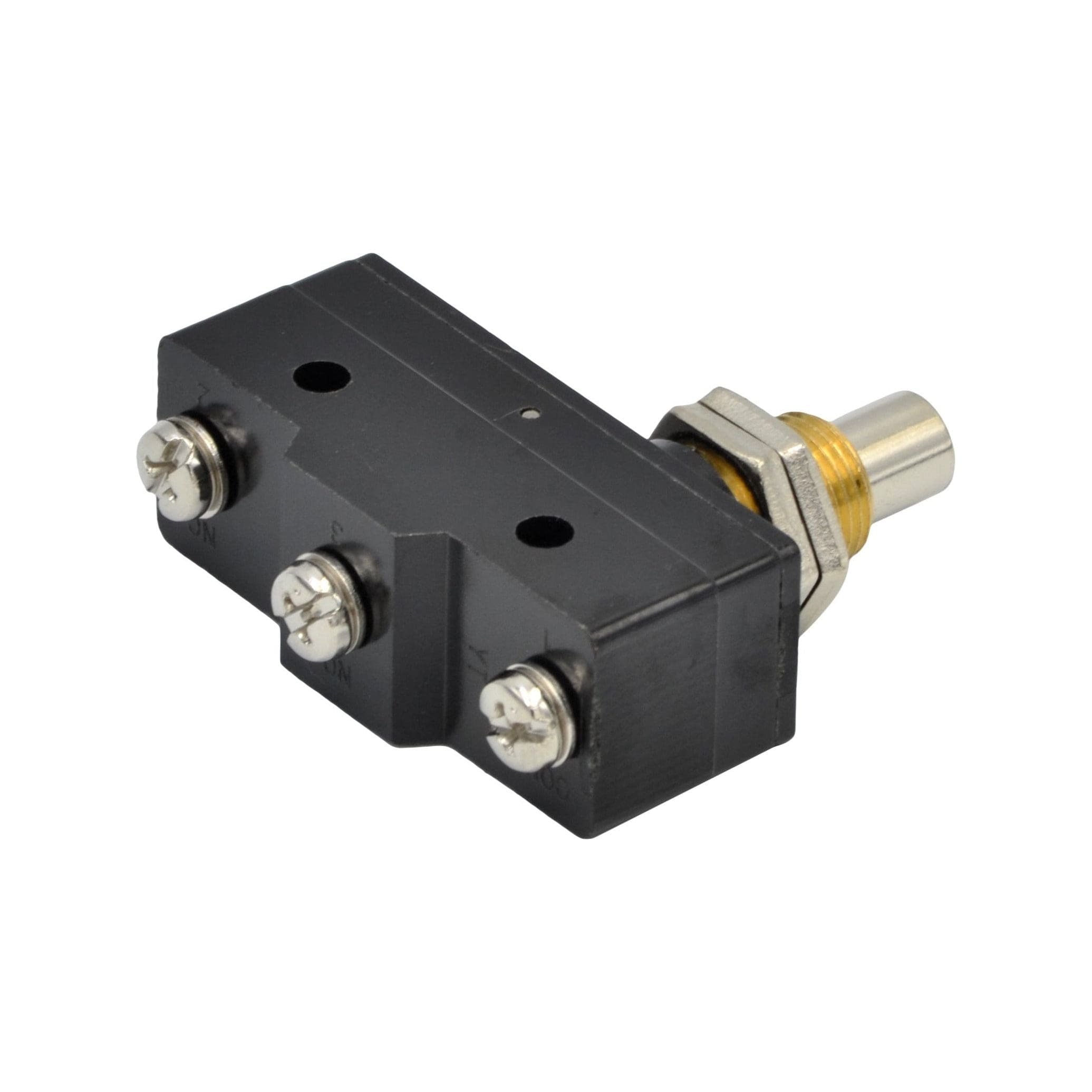

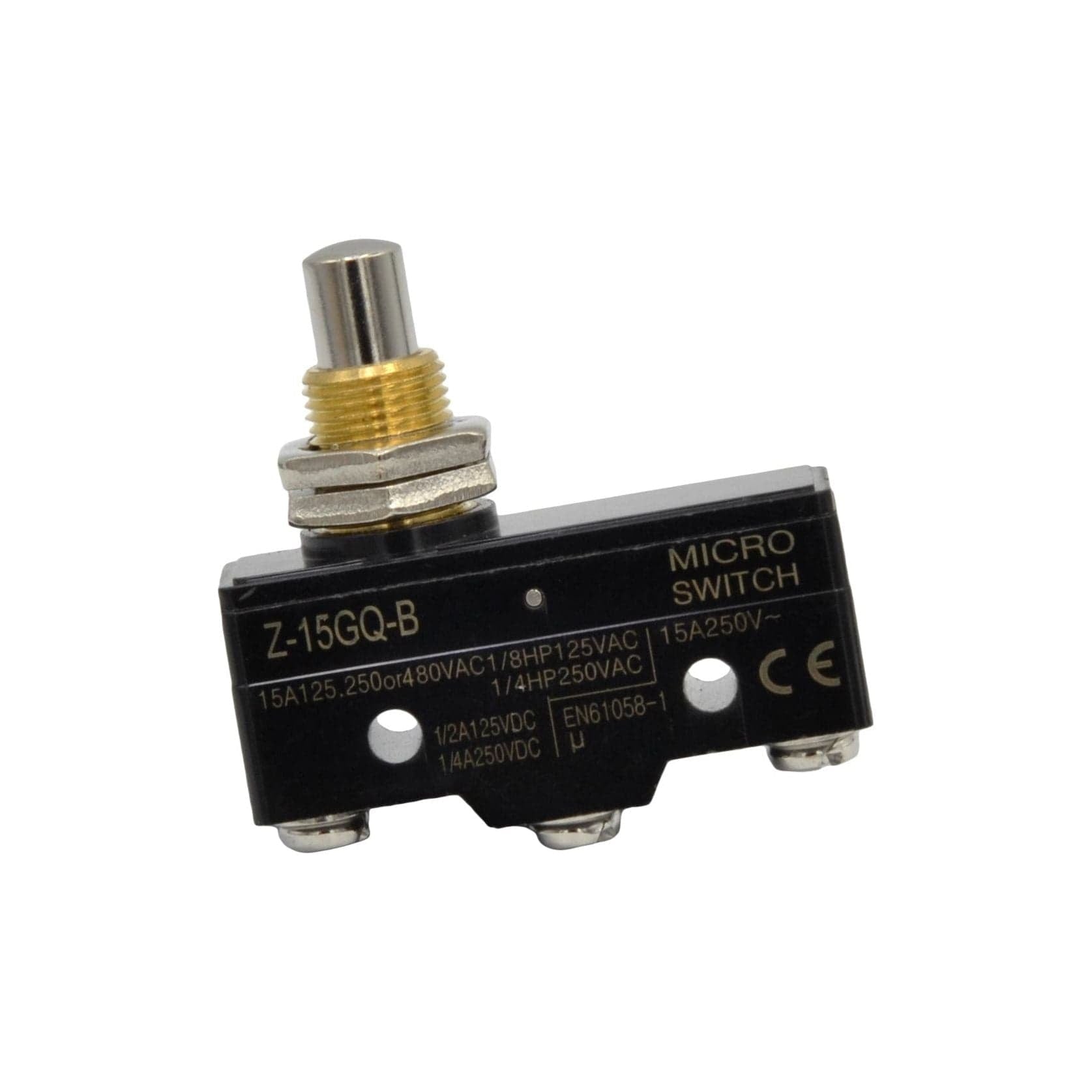

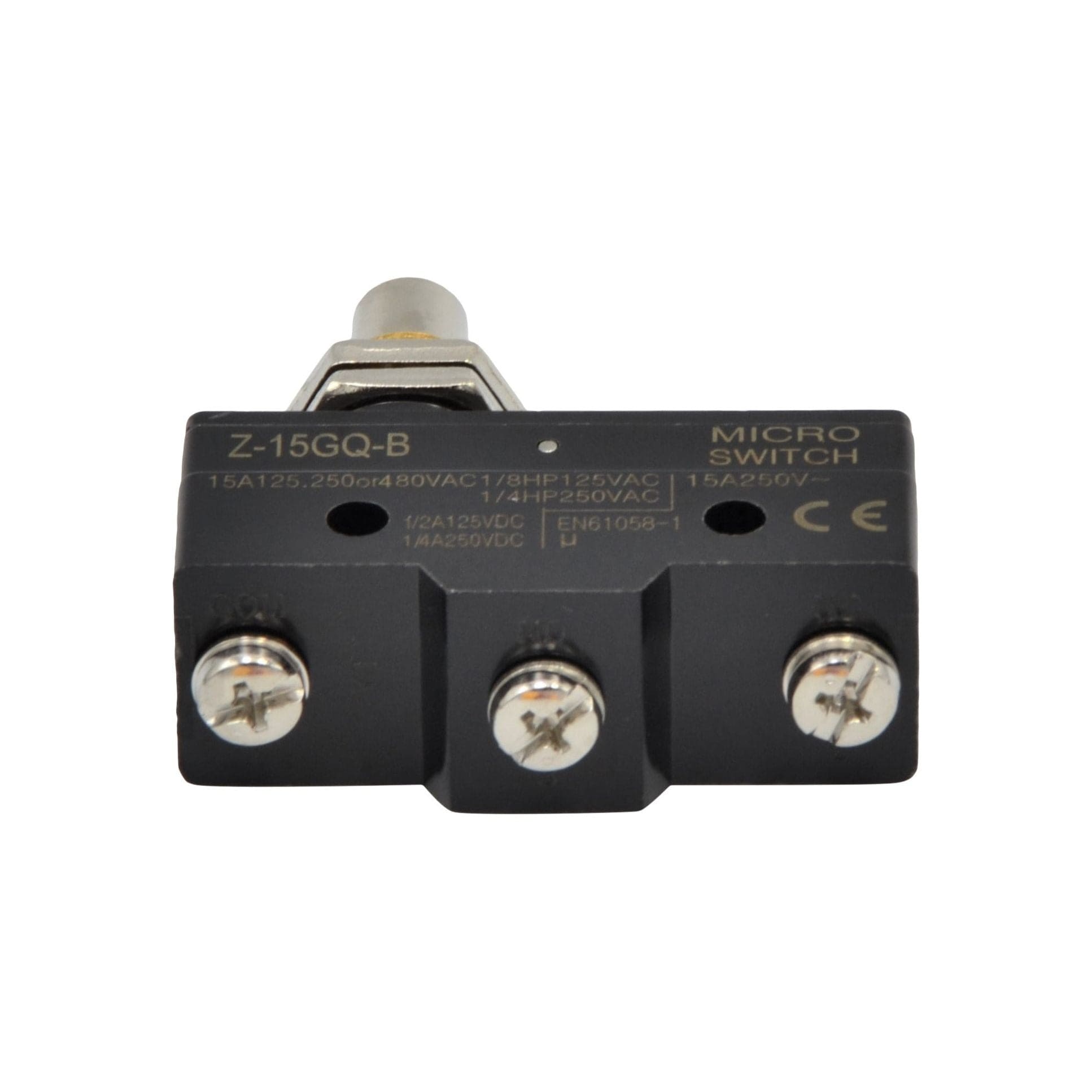

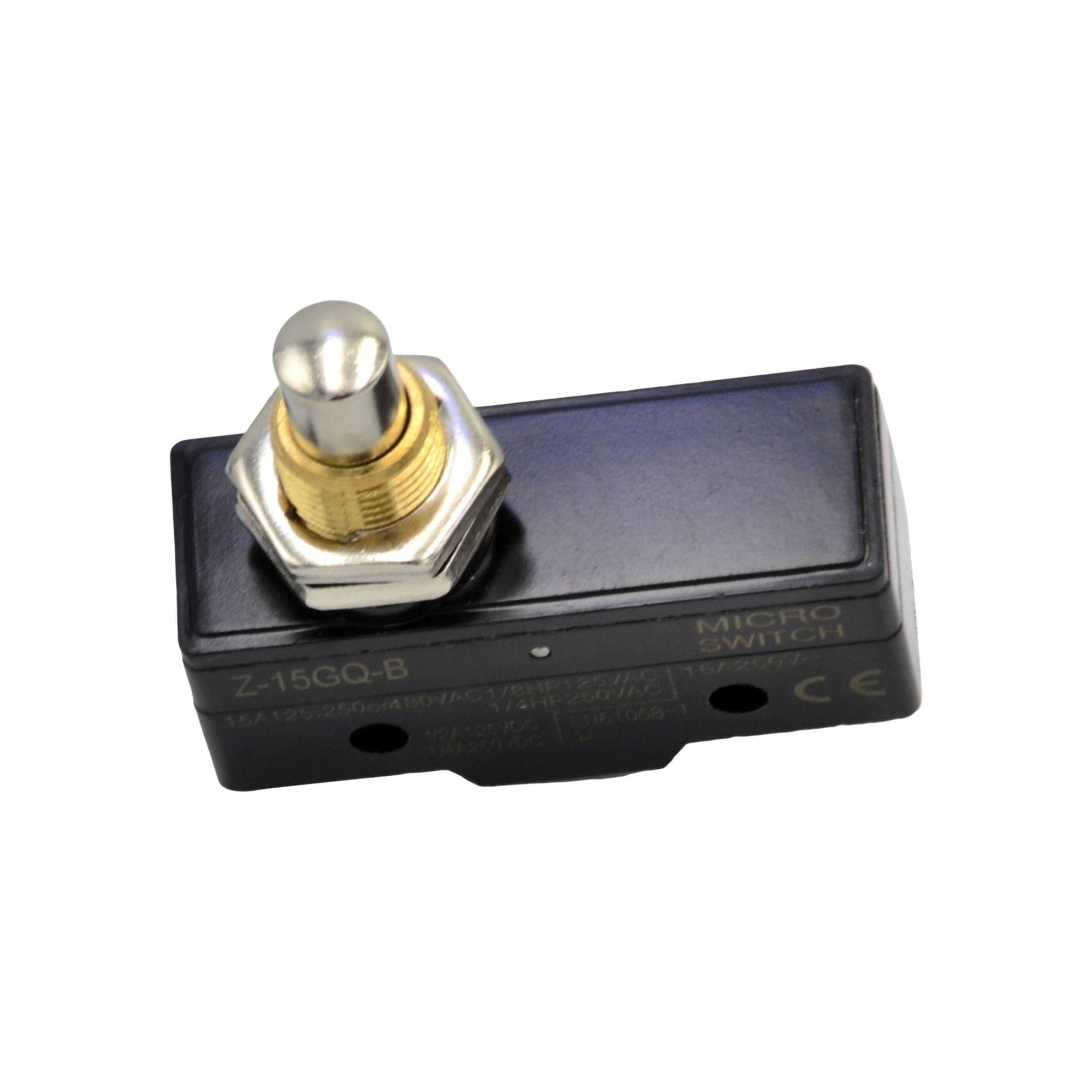

Z-15GQ-B Snap-Action Micro Limit Switch

Features Actuators with adjustable action positions and diversity High switching capacity for both on and off (15A) Outstanding precision Wide array of operational speeds Multiple terminal options: solder terminals, tab...
£17.00
£17.00
(-0%)
Vendor: Tianyi
SKU: Z-15GQ-B
Availability: In Stock
Subtotal: £17.00
Z-15GQ-B Snap-Action Micro Limit Switch

Z-15GQ-B Snap-Action Micro Limit Switch

£17.00

Z-15GQ-B Snap-Action Micro Limit Switch

£17.00

Features

  • Actuators with adjustable action positions and diversity
  • High switching capacity for both on and off (15A)
  • Outstanding precision
  • Wide array of operational speeds
  • Multiple terminal options: solder terminals, tab terminals (labeled as 'C'), or blank choices for screw terminals

Contact Form

  • CloseClose
  • Carry the son togetherOpen

Characteristics

  • Operation speed: 0.01mm~1m/sec
  • Operating Frequency: Mechanical: 240 operations/min Electrical: 20 Operations/min
  • Contact resistance: 15MΩ max.(initial value)
  • Insulation resistance: 100MΩ min.(at500VDC)
  • Dielectric strength: 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
  • 1500VAC, 50M660Hz For 1 minute between current-carrying and non current-carrying metal parts
  • 1500VAC, 50M660Hz For 1 minute between each terminal and ground
  • 10-50Hz,1.5mm double amplitude
  • Shock:Mechanical Durable: 1000m.Sec(about 100G' S)
  • Malfunction: 300m.Sec(about 30G' S)
  • Ambient temperature: General purpose type: -25~+80°C, Sealed type:-15~80°C
  • Humidity General purpose type: 85%RH max, Sealed type: 95%RH max.
  • Life: Mechanical: 20,000,000 operation/min
  • Electrical: 500,000 operation/min
  • Weight: About 22 to 58g
