Somta Series 511 - HSS Straight Flute Short Hand Bottom (Finishing) Tap MF25 x 1.5mm

HSS Metric Fine Tap M25 x 1.5 Bottom – Somta Series 511 The SOMTA 5112503 – M25 x 1.5 Metric Fine Bottom Tap is engineered for precise internal threading near...
£135.00
£135.00
(-0%)
Vendor: SOMTA
SKU: 5112503
Availability: In Stock
Subtotal: £135.00
Somta Series 511 - HSS Straight Flute Short Hand Bottom (Finishing) Tap MF25 x 1.5mm

Somta Series 511 - HSS Straight Flute Short Hand Bottom (Finishing) Tap MF25 x 1.5mm

£135.00

Somta Series 511 - HSS Straight Flute Short Hand Bottom (Finishing) Tap MF25 x 1.5mm

£135.00

HSS Metric Fine Tap M25 x 1.5 Bottom – Somta Series 511

The SOMTA 5112503 – M25 x 1.5 Metric Fine Bottom Tap is engineered for precise internal threading near the base of blind holes. Crafted from high-grade High-Speed Steel (HSS), this tap delivers excellent cutting performance and wear resistance. It features a bottoming chamfer with only 1–2 threads engaged, making it ideal for finishing threads started with taper or intermediate taps. The fine 1.5 mm pitch ensures a tight, high-integrity thread profile suitable for applications that demand enhanced precision and sealing.

Key Features & Benefits

  • Bottoming Chamfer – Designed for full-depth threading in blind holes with minimal lead-in space.
  • Fine Pitch Threading (M25 x 1.5) – Ideal for applications requiring close thread engagement and tight tolerances.
  • HSS Material – Ensures strength, heat resistance, and extended tool life under repeated use.
  • Straight Flute Design – Suitable for short-chipping materials and versatile tapping operations.
  • Short Hand Tap Style – Compact length enhances control and accessibility in confined setups.
  • Right-Hand Thread – Standard cutting direction compatible with most metric systems.

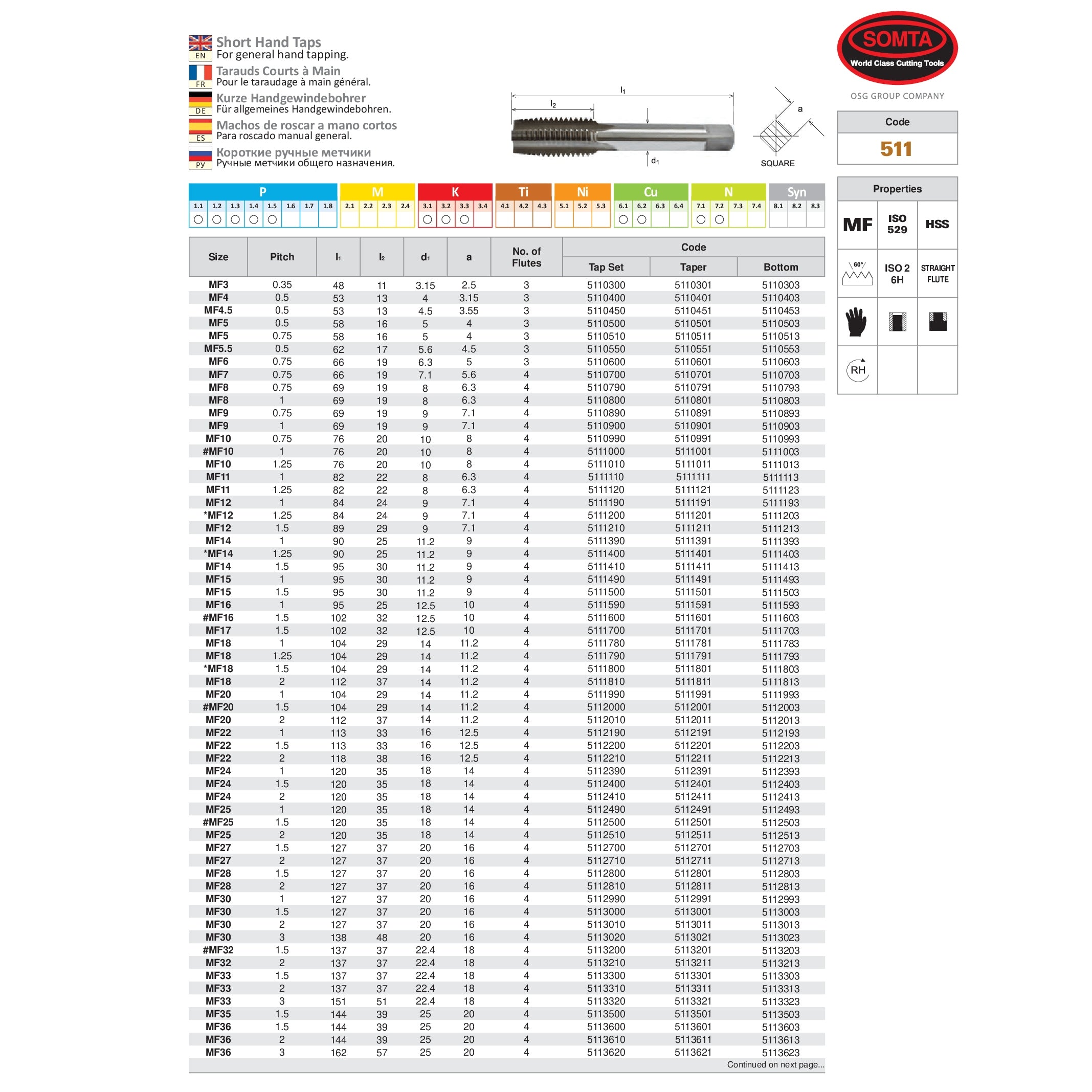

Technical Specifications

  • Part No: 5112503
  • Thread Size: M25 x 1.5 (Metric Fine Pitch)
  • Tap Type: Bottom (Short Hand Tap)
  • Chamfer Type: Bottom – 1 to 2 threads
  • Flute Type: Straight Flute
  • Thread Direction: Right-Hand
  • Material: High-Speed Steel (HSS)
  • Standard: ISO Metric
  • Application: For steel, cast iron, aluminum, and other machinable metals

Why Choose the SOMTA 5112503 Bottom Tap?

  • Optimal for Blind Holes – Bottom chamfer enables full thread profile close to the base of the hole.
  • Fine Thread Control – Delivers enhanced sealing and tight fit in high-spec mechanical assemblies.
  • Durable HSS Build – Maintains cutting performance and resists wear under high loads.
  • Flexible Use – Works well in both hand and machine tapping environments.

The SOMTA 5112503 tap is your go-to tool for finishing blind-hole threading in fine-pitch M25 x 1.5 applications—engineered for accuracy, strength, and industrial-grade reliability.
