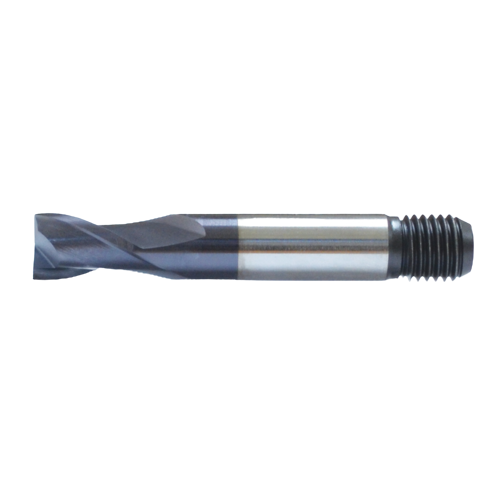

Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill) | 3493175 The SOMTA 3493175 is a precision-ground 1-1/4″ 2-flute slot drill made from premium HSS-Co8 (8% cobalt...
£163.00
£0.00
£163.00
(-0%)
Vendor: SOMTA
SKU: 3493175
Availability: In Stock
Subtotal: £163.00
Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill)

£0.00 £163.00

Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill)

£0.00 £163.00

Somta Series 349 – 1-1/4" HSS-Co8 2 Flute End Mill (Slot Drill) | 3493175

The SOMTA 3493175 is a precision-ground 1-1/4″ 2-flute slot drill made from premium HSS-Co8 (8% cobalt high-speed steel), designed for heavy-duty metal removal with superior accuracy and tool life. Engineered for industrial slotting, keyway, and pocket milling, it ensures smooth chip evacuation and dimensional precision even under high cutting loads.

Key Features & Benefits

  • HSS-Co8 Construction – Provides outstanding red hardness, wear resistance, and durability for demanding applications.
  • 2-Flute Geometry – Optimized flute design promotes excellent chip evacuation and chatter-free operation.
  • Centre-Cutting Capability – Allows for plunge milling, slotting, and contour machining with high precision.
  • DIN 327 Standard – Guarantees dimensional accuracy and uniform tool performance across production runs.
  • Optional TiAlN Coating – Enhances tool life and performance in high-speed or dry cutting conditions.

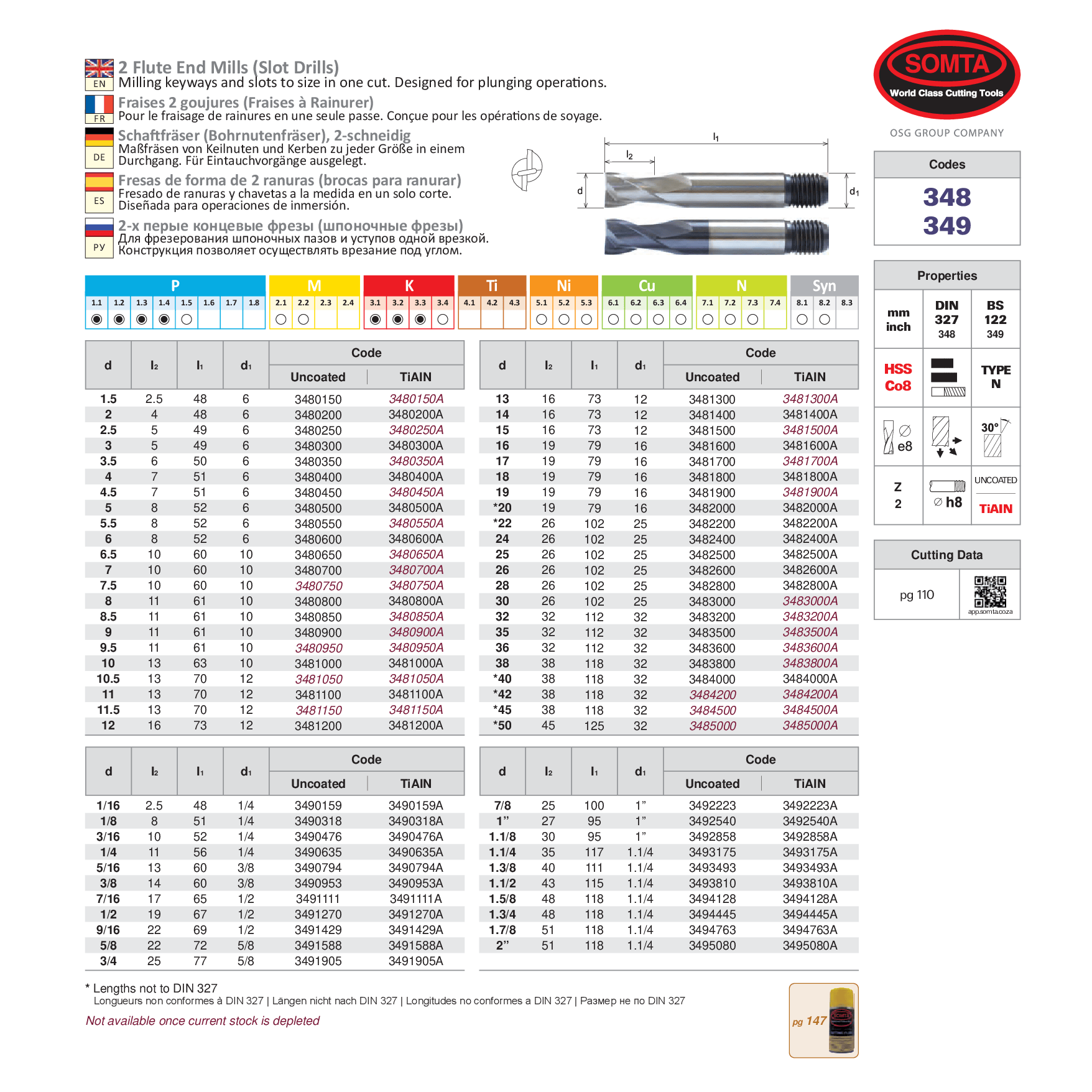

Technical Specifications

  • Part No: 3493175
  • Tool Type: 2-Flute Slot Drill / End Mill
  • Cutting Diameter (d): 1-1/4″ (31.75 mm)
  • Flute Length (l₂): 35 mm
  • Overall Length (l₁): 117 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8)
  • Standard: DIN 327
  • Finish: Uncoated / Optional TiAlN
  • Applications: Ideal for slotting, pocketing, and keyway milling in steel, stainless steel, and cast iron.

Why Choose SOMTA Cutting Tools?

  • Precision Ground Flutes – Deliver excellent surface finish and dimensional control.
  • Long-Lasting Durability – Cobalt content ensures exceptional resistance to heat and tool wear.
  • Reliable Versatility – Performs effectively in both CNC machining and manual milling operations.
  • Trusted SOMTA Engineering – Manufactured to international standards for professional-grade performance.

The SOMTA 3493175 provides exceptional strength, accuracy, and reliability—making it the perfect choice for high-precision slotting and keyway milling in industrial environments.
