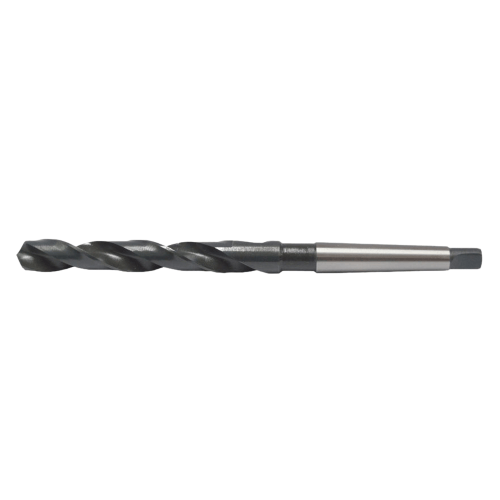

Somta 13/16" HSS Morse Taper Shank Drill MT2 DIN 345

The Somta Series 202 20.637mm Morse Taper Shank Drill Bit is a premium high-speed steel drill designed for precision drilling in heavy-duty engineering and metalworking applications. Manufactured to DIN 345...
£60.00
£0.00
£60.00
(-0%)
Vendor: SOMTA
SKU: 2122064
Availability: In Stock
Subtotal: £60.00
SOMTA DRILLS Somta 13/16" HSS Morse Taper Shank Drill MT2 DIN 345

Somta 13/16" HSS Morse Taper Shank Drill MT2 DIN 345

£0.00 £60.00

Somta 13/16" HSS Morse Taper Shank Drill MT2 DIN 345

£0.00 £60.00

The Somta Series 202 20.637mm Morse Taper Shank Drill Bit is a premium high-speed steel drill designed for precision drilling in heavy-duty engineering and metalworking applications. Manufactured to DIN 345 standards, this drill provides exceptional accuracy, durability, and cutting efficiency for industrial workshops and production environments.

Equipped with a Morse Taper No. 2 shank, the drill mounts directly into compatible drilling machines and lathes, ensuring superior rigidity and concentricity without the need for a chuck. The 118° thinned point design improves centring accuracy, reduces drilling pressure, and promotes efficient chip evacuation for smoother and more precise drilling operations.

Key Features & Benefits

  • Manufactured from premium High-Speed Steel (HSS)
  • Precision ground to DIN 345 specifications
  • Morse Taper No. 2 shank for secure machine mounting
  • 118° thinned point for improved centring and reduced cutting forces
  • Bright finish shank and point
  • Excellent wear resistance and long service life
  • Efficient chip evacuation for smooth drilling performance
  • Suitable for steels, cast iron and general engineering materials
  • Ideal for industrial, workshop and maintenance applications

Technical Specifications

  • Brand: Somta
  • Series: 202
  • Part Number: 2122064
  • Drill Diameter: 20.637mm
  • Imperial Size: 13/16"
  • Overall Length (l1): 243mm
  • Flute Length (l2): 145mm
  • Shank Type: Morse Taper No. 2
  • Material: High-Speed Steel (HSS)
  • Standard: DIN 345
  • Point Angle: 118° Thinned Point
  • Finish: Bright Finish Shank and Point
  • Application: Precision Drilling

Somta cutting tools are recognised worldwide for their outstanding quality and reliability. The Series 202 Morse taper shank drills are engineered to deliver consistent, high-precision results and extended tool life in demanding metalworking applications.
