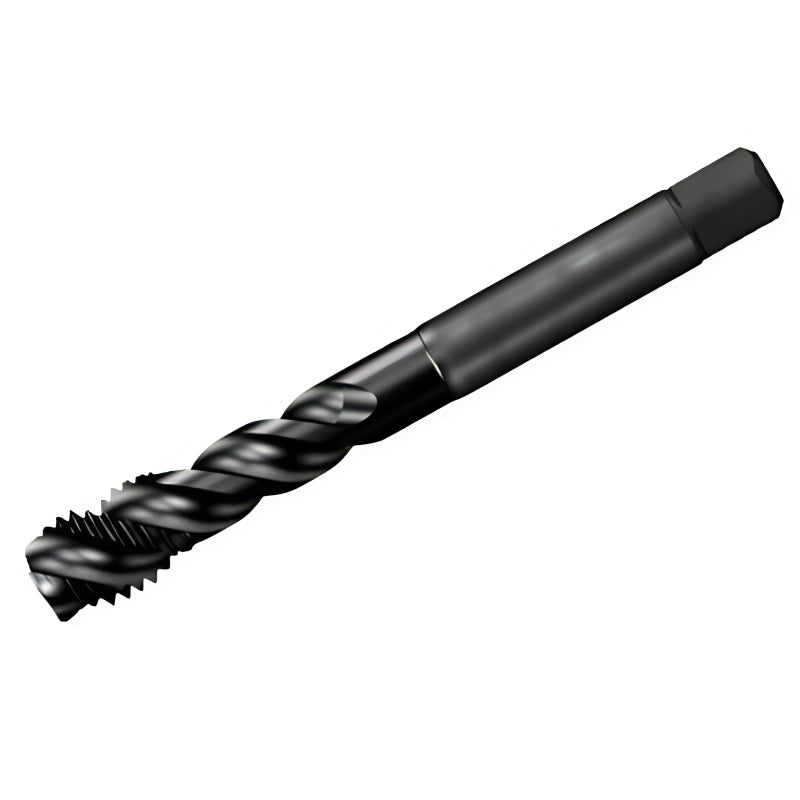

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 5/8" UNC, DIN 2184-1 Long Body

Sandvik 5/8-11 UNC Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1) Designed for robust CNC and manual machining performance. The spiral flute geometry with a 45° helix efficiently transports...
£67.00
£67.00
(-0%)
Vendor: SANDVIK
SKU: T300-XM101DE-5/8 C145
Availability: In Stock
Subtotal: £67.00
Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 5/8" UNC, DIN 2184-1 Long Body

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 5/8" UNC, DIN 2184-1 Long Body

£67.00

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 5/8" UNC, DIN 2184-1 Long Body

£67.00

Sandvik 5/8-11 UNC Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Designed for robust CNC and manual machining performance. The spiral flute geometry with a 45° helix efficiently transports chips out of blind holes, ensuring smooth cutting action and preventing chip packing. Optimized for blind-hole tapping in steels, stainless steels, and cast irons (PMK).

Key Features & Benefits

  • Durable Performance – HSS-PM substrate with advanced PVD FeN coating extends tool life and resists wear.
  • Chip Control – 45° spiral flutes provide excellent chip evacuation in blind-hole applications.
  • Production Efficiency – DIN 2184-1 standard shank and 4-flute design offer stability and cutting reliability.
  • Precision Threading – Ground to UNC 2B tolerance for consistent, high-quality threads.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK
Thread Size UNC 5/8-11 5/8-11
Thread Form UNC 60° UNC 60°

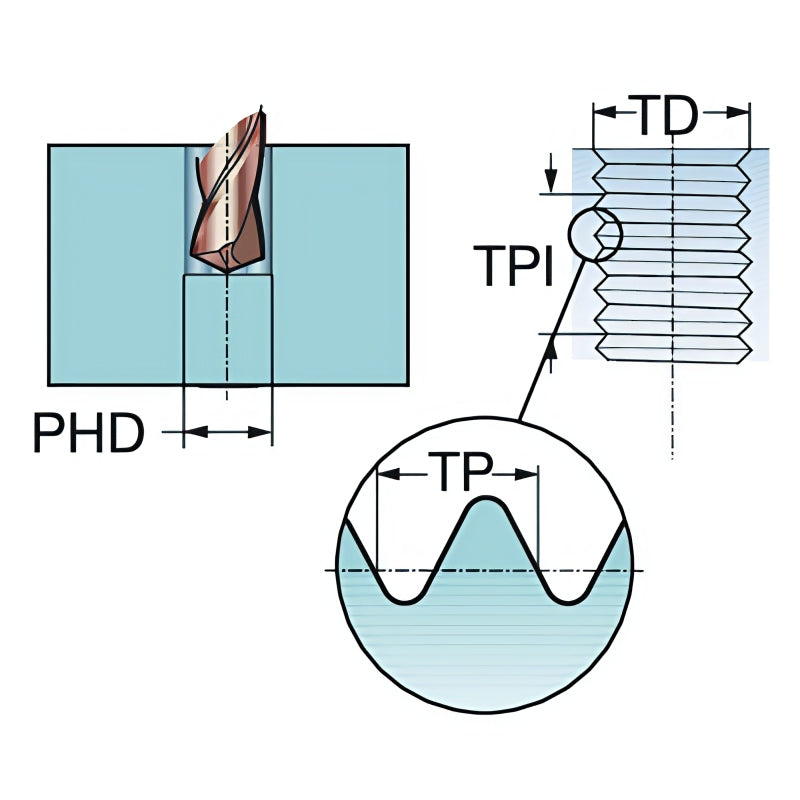

Thread Pitch 2.309 mm (equiv.) 11 TPI
Thread Diameter 15.875 mm 0.6250 in
Tap Chamfer Length 4.75 mm 0.1872 in
Premachined Hole Diameter 13.5 mm 0.5315 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1

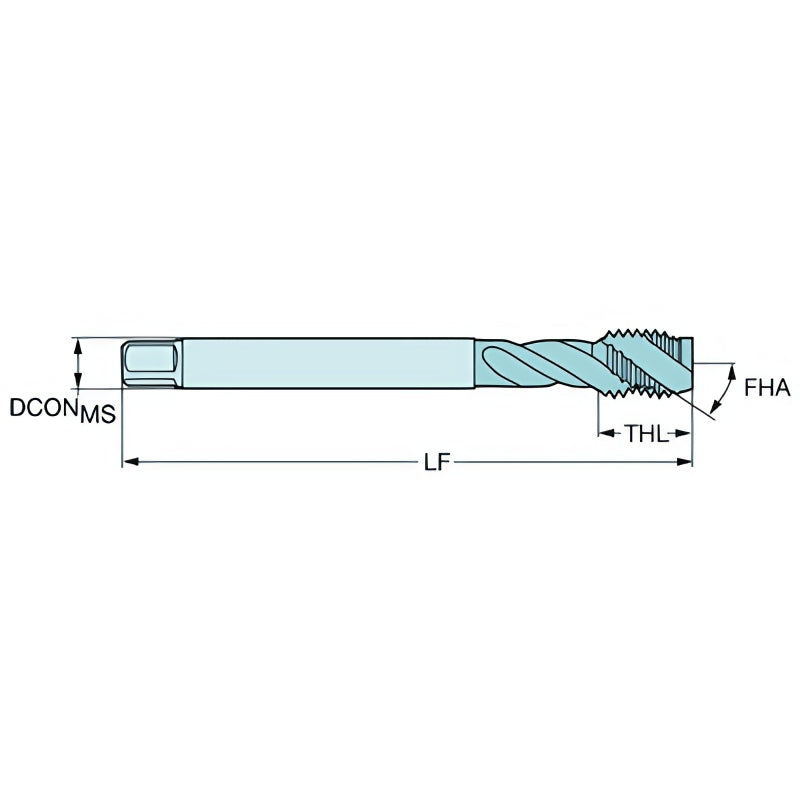

Usable Length (LU) 67.75 mm 2.6673 in
Functional Length (LF) 110 mm 4.3307 in
Overall Length (OAL) 110 mm 4.3307 in
Neck Diameter 11.6 mm 0.4567 in
Flute Count 4
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 20 mm 0.7874 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade C145
Substrate HSS-PM
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 12.00 × 9.00
Connection Diameter (Machine Side) 12.0 mm 0.4724 in
Connection Diameter Tolerance h9
Weight 0.0880 kg 0.194 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

This Sandvik spiral flute tap combines a robust HSS-PM substrate, a durable PVD FeN coating, and a 45° spiral design with 4 flutes for optimal chip evacuation. Engineered for blind-hole tapping in PMK materials, it delivers precision threads, long tool life, and reliable performance in both CNC and manual machining setups.
