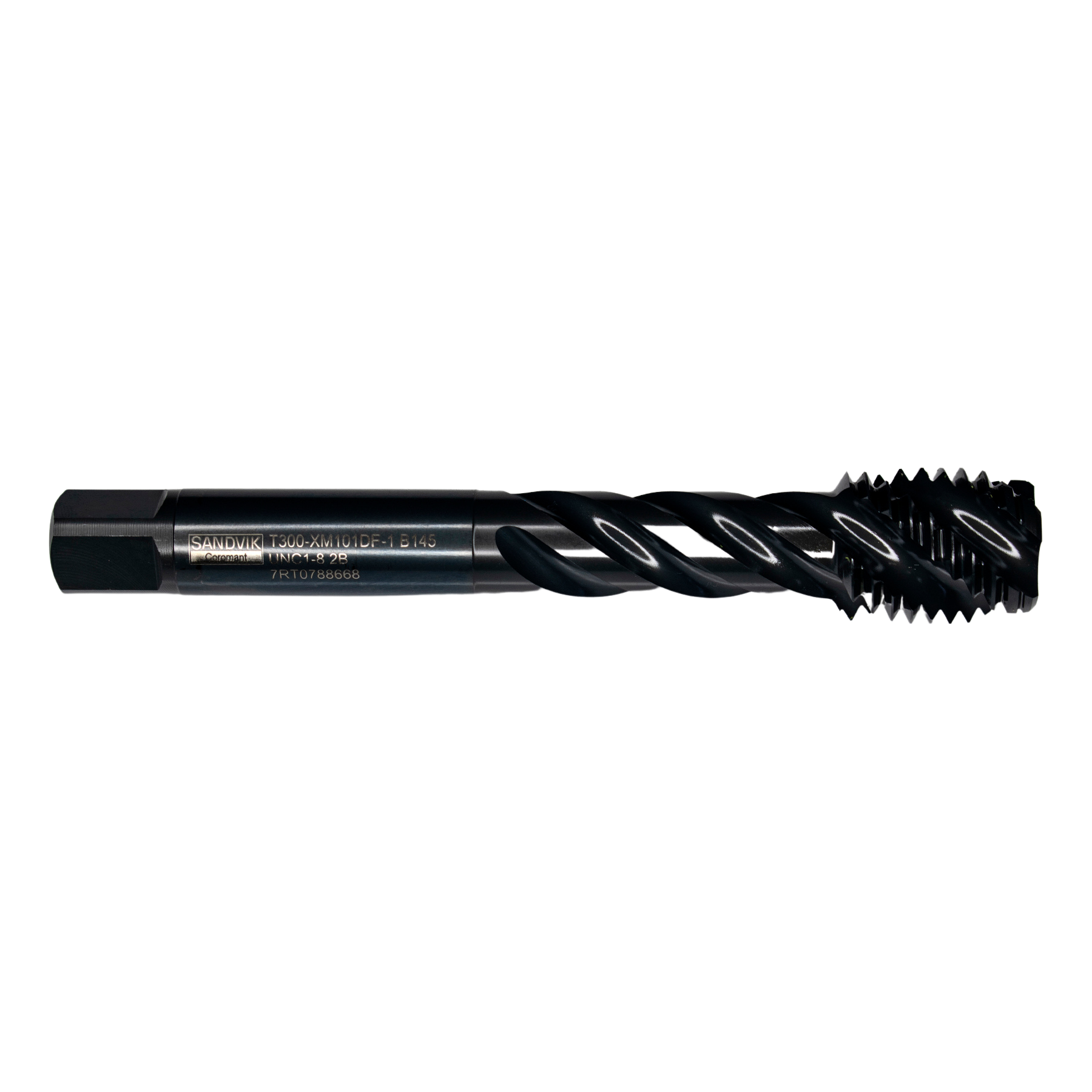

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1" UNF, DIN 2184-1 Long Body

Sandvik UNF 1"-12 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1) Designed for threading applications in steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry is...
£148.00
£0.00
£148.00
(-0%)
Vendor: SANDVIK
SKU: T300-XM101DF-1 B145
Availability: In Stock
Subtotal: £148.00
Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1" UNF, DIN 2184-1 Long Body

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1" UNF, DIN 2184-1 Long Body

£0.00 £148.00

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1" UNF, DIN 2184-1 Long Body

£0.00 £148.00

Sandvik UNF 1"-12 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Designed for threading applications in steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry is optimized for blind holes, efficiently lifting chips out of the hole to maintain thread accuracy and extend tool life. Perfect for both CNC machining centers and conventional setups.

Key Features & Benefits

  • High Performance – HSS-E substrate with PVD FeN coating provides durability and wear resistance.
  • Optimized for Blind Holes – Spiral flutes at 45° ensure smooth chip evacuation and precise threading.
  • DIN 2184-1 Standard – Guarantees compatibility, strength, and repeatability in industrial use.
  • Accurate Threads – Manufactured to UNF 2B tolerance class for consistent, in-spec results.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK
Thread Size UNF 1"-12 1"-12
Thread Form UNF 60° UNF 60°
Thread Pitch 2.12 mm 12 TPI
Thread Diameter 25.4 mm 1.000 in
Tap Chamfer Length 4.35 mm 0.1712 in

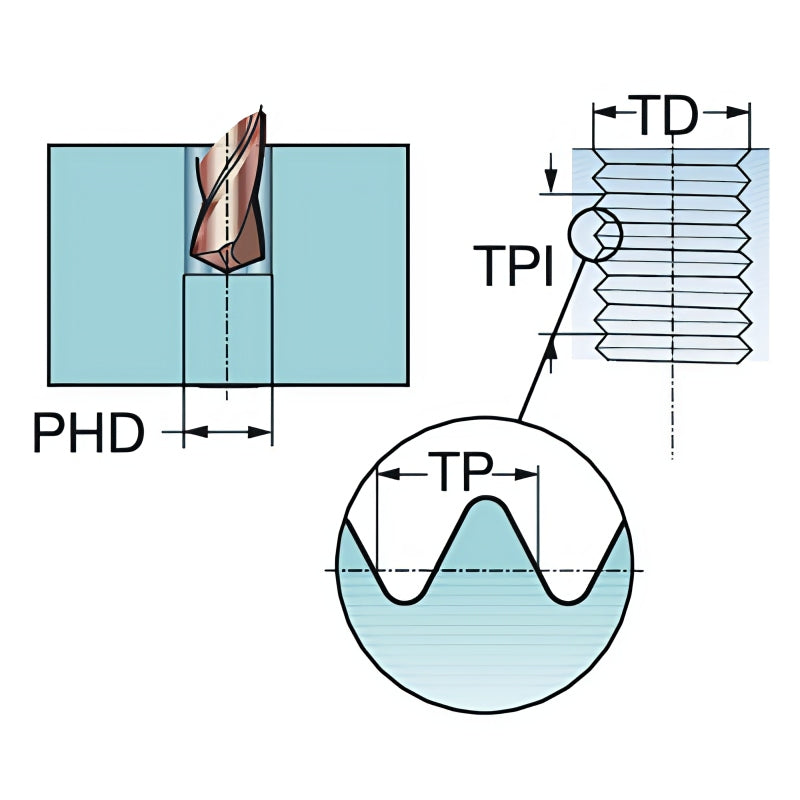

Premachined Hole Diameter 23.25 mm 0.9154 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1
Usable Length (LU) 113 mm 4.4488 in

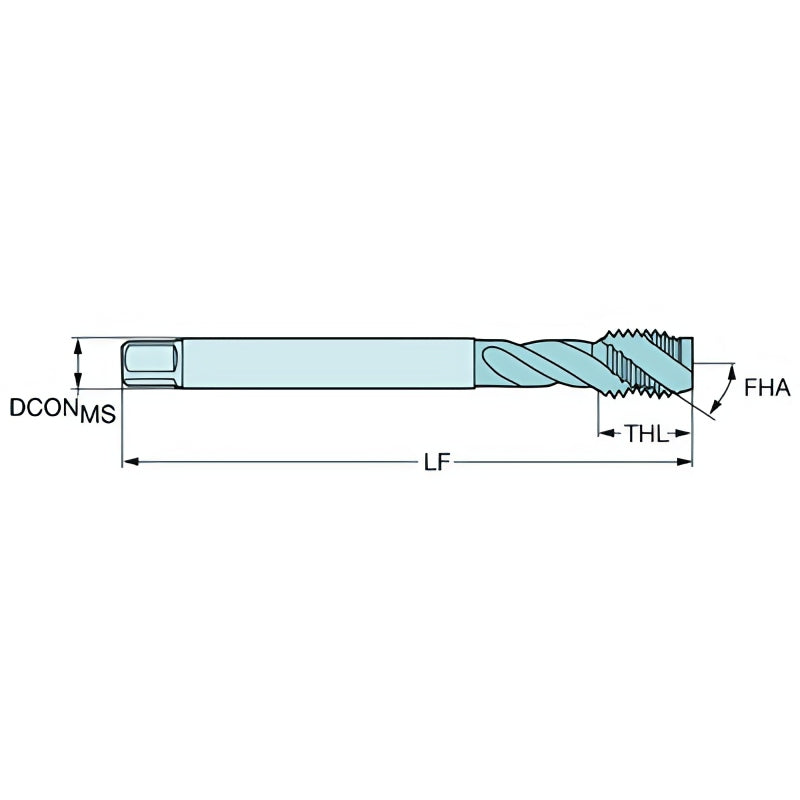

Functional Length (LF) 160 mm 6.2992 in
Overall Length (OAL) 160 mm 6.2992 in
Neck Diameter 17.6 mm 0.6929 in
Flute Count 4
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 30 mm 1.1811 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade B145
Substrate HSS-E
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 18.00 × 14.50
Connection Diameter (Machine Side) 18.0 mm 0.7087 in
Connection Diameter Tolerance h9
Weight 0.302 kg 0.6658 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

The Sandvik UNF 1"-12 spiral flute tap is built with an HSS-E substrate and PVD FeN coating, providing superior wear resistance and long service life. Its 45° spiral flutes excel in blind-hole applications, ensuring chips are removed efficiently and threads are consistently accurate. Ideal for production-grade CNC and manual machining across steels, stainless steels, and cast irons.
