Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1/2" UNF, DIN 2184-1 Long Body

Sandvik UNF 1/2-20 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1) Designed for precision threading in steels, stainless steels, and cast irons (PMK). The 45° spiral flute design lifts...
£52.00
£52.00
(-0%)
Vendor: SANDVIK
SKU: T300-XM101DF-1/2 C145
Availability: In Stock
Subtotal: £52.00
Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1/2" UNF, DIN 2184-1 Long Body

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1/2" UNF, DIN 2184-1 Long Body

£52.00

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap 1/2" UNF, DIN 2184-1 Long Body

£52.00

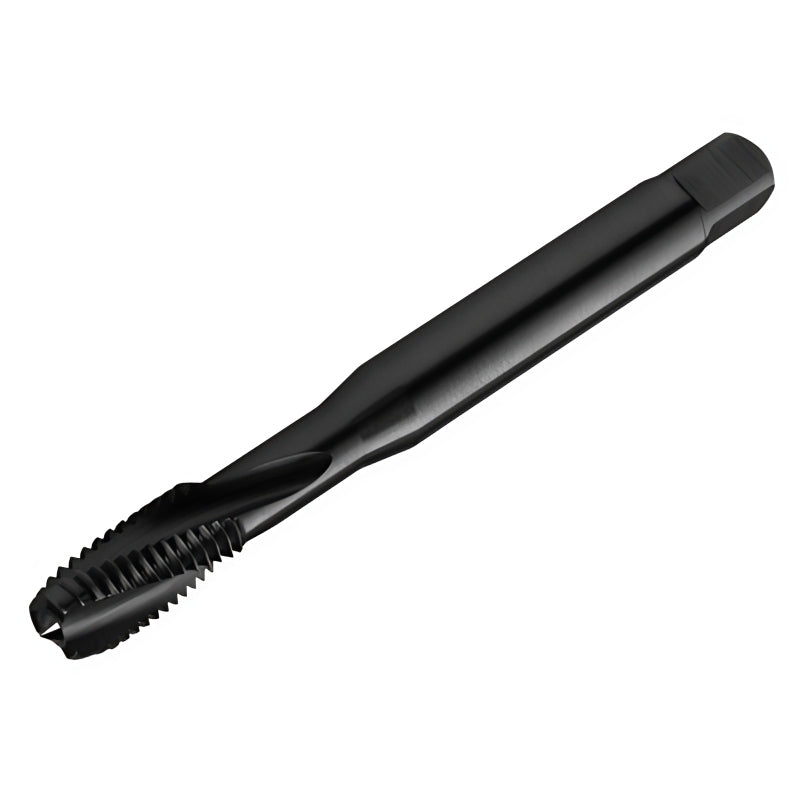

Sandvik UNF 1/2-20 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Designed for precision threading in steels, stainless steels, and cast irons (PMK). The 45° spiral flute design lifts chips out of blind holes to ensure clean threads, longer tool life, and reduced risk of breakage. Suitable for both CNC and conventional machines.

Key Features & Benefits

  • Extended Tool Life – HSS-PM substrate with PVD FeN coating minimizes wear, galling, and chipping.
  • Superior Chip Evacuation – 45° spiral flute geometry reliably pulls chips out of blind holes.
  • Production Ready – DIN 2184-1 standard shank ensures rigidity and compatibility across setups.
  • High Accuracy – Ground to UNF 2B tolerance for repeatable, in-spec threads.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK
Thread Size UNF 1/2-20 1/2-20
Thread Form UNF 60° UNF 60°

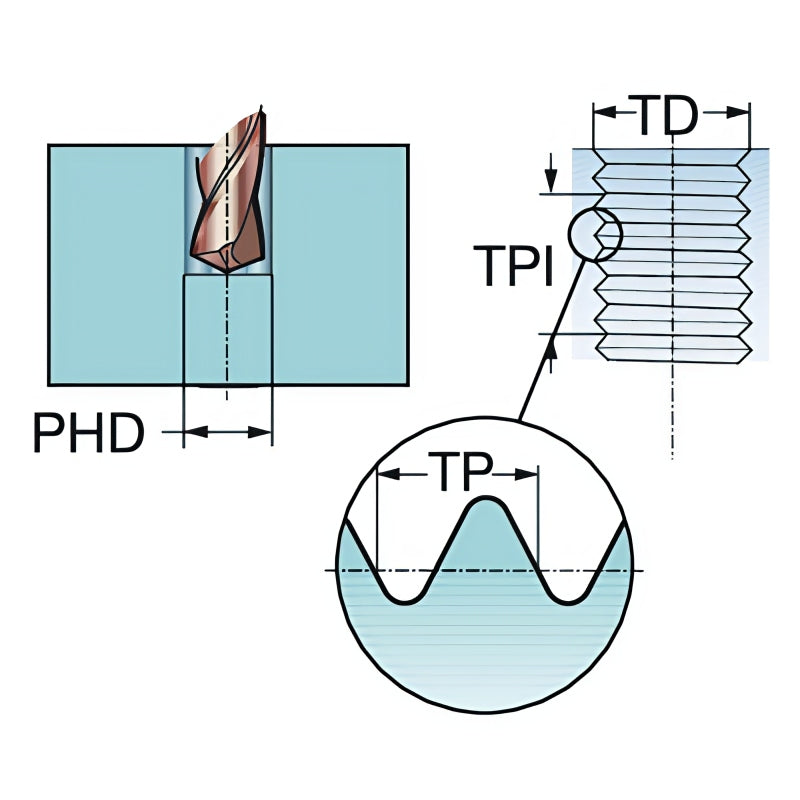

Thread Pitch 1.27 mm 20 TPI
Thread Diameter 12.7 mm 0.500 in
Tap Chamfer Length 2.72 mm 0.1071 in
Premachined Hole Diameter 11.5 mm 0.4528 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1

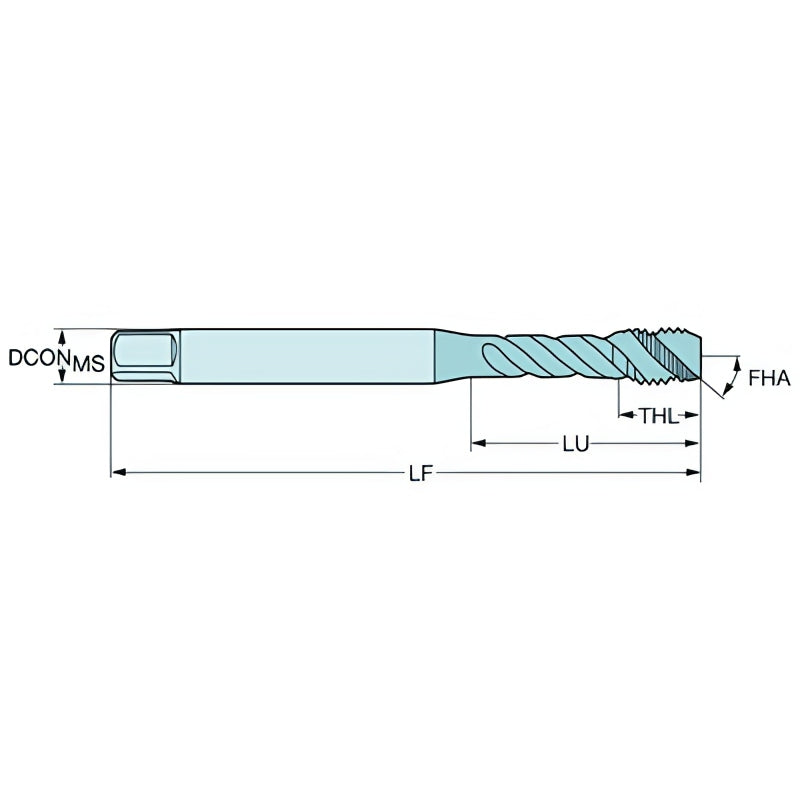

Usable Length (LU) 83 mm 3.2677 in
Functional Length (LF) 110 mm 4.3307 in
Overall Length (OAL) 110 mm 4.3307 in
Neck Diameter 8.6 mm 0.3386 in
Flute Count 3
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 18 mm 0.7087 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade C145
Substrate HSS-PM
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 9.00 × 7.00
Connection Diameter (Machine Side) 9.0 mm 0.3543 in
Connection Diameter Tolerance h9
Weight 0.0475 kg 0.1047 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

The Sandvik UNF 1/2-20 spiral flute tap delivers strong performance in blind-hole threading. Its HSS-PM substrate and PVD FeN coating ensure durability, while the 45° spiral flutes provide smooth and reliable chip evacuation. Ideal for high-precision, professional-grade machining applications.
