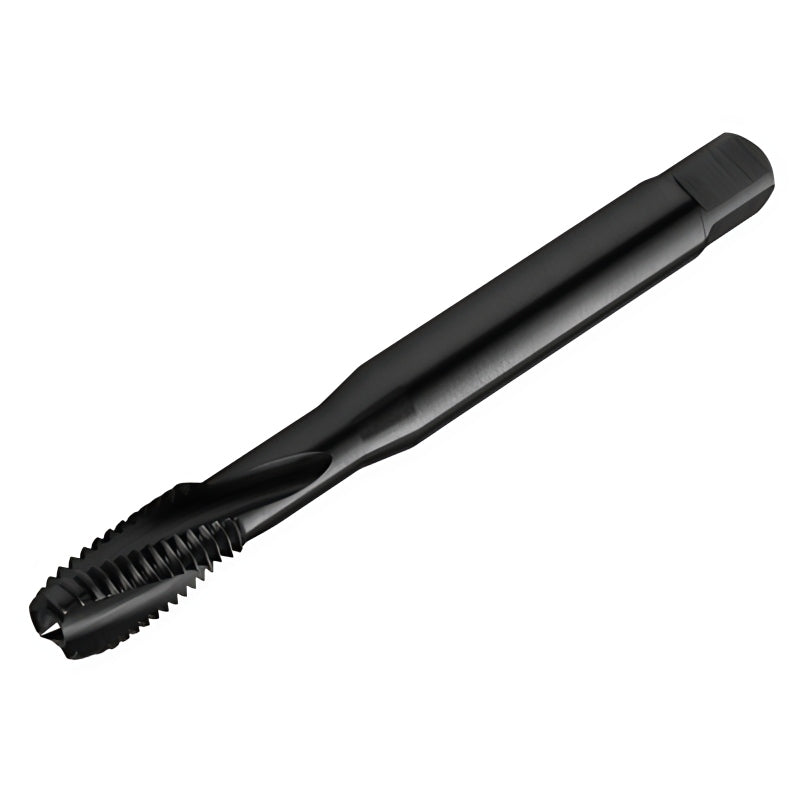

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M16 X 2.0, DIN 376 Standard Shank

Sandvik M16 × 2.0 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 376) Designed for demanding CNC and conventional machining, this spiral point (gun nose) tap drives...
£52.00
£52.00
(-0%)
Vendor: SANDVIK
SKU: E345M16
Availability: In Stock
Subtotal: £52.00
Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M16 X 2.0, DIN 376 Standard Shank

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M16 X 2.0, DIN 376 Standard Shank

£52.00

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M16 X 2.0, DIN 376 Standard Shank

£52.00

Sandvik M16 × 2.0 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 376)

Designed for demanding CNC and conventional machining, this spiral point (gun nose) tap drives chips forward and out of through-holes for smooth, uninterrupted threading. With a high-performance substrate and coating, it ensures accuracy, reliability, and extended tool life across steels and other challenging materials.

Key Features & Benefits

  • Durability & Wear Resistance – Premium HSS-E substrate paired with PVD FeN coating reduces wear and built-up edge formation.
  • Efficient Chip Evacuation – Spiral point (gun nose) design pushes chips ahead, ensuring reliable threading in through-hole applications.
  • Precision Tapping – DIN 376 standard with 4 flutes and ground to 6H tolerance for consistent, accurate threads.
  • Production Efficiency – Optimized geometry and material balance enhance tool stability and reliability in high-production environments.

Technical Specifications

Specification Metric Imperial
Thread Size M16

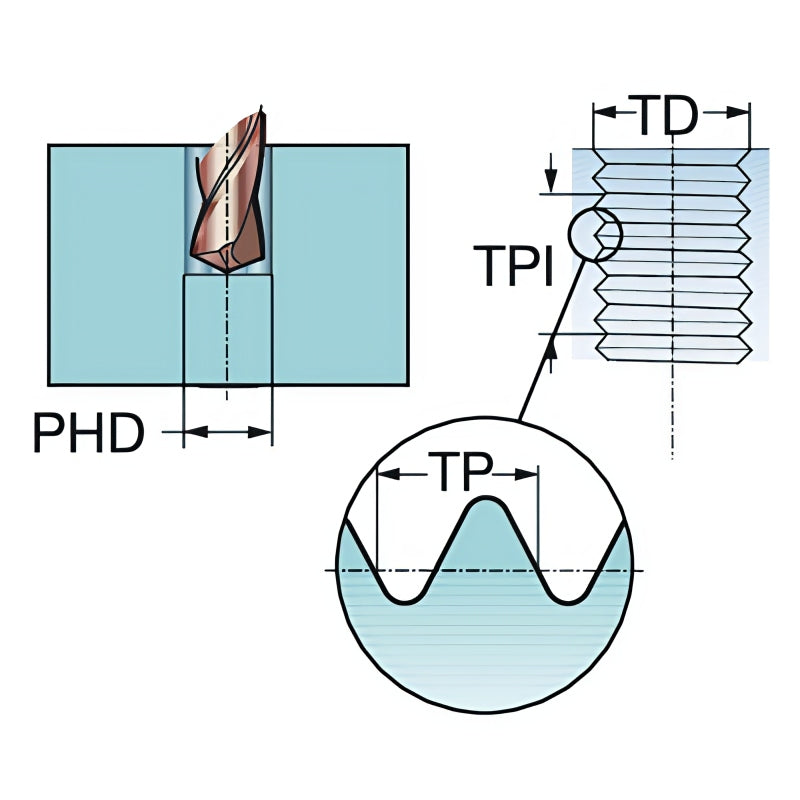

Thread Pitch 2.0 mm 0.0787 in
Thread Form M (Metric 60°)
Thread Diameter 16.0 mm 0.6299 in
Tap Chamfer Length 8.5029 mm 0.3348 in
Premachined Hole Diameter 14.0 mm 0.5512 in
Premachined Hole Type / Hole Type Through hole Through hole
Thread Tolerance Class 6H
Shank Standard DIN 376

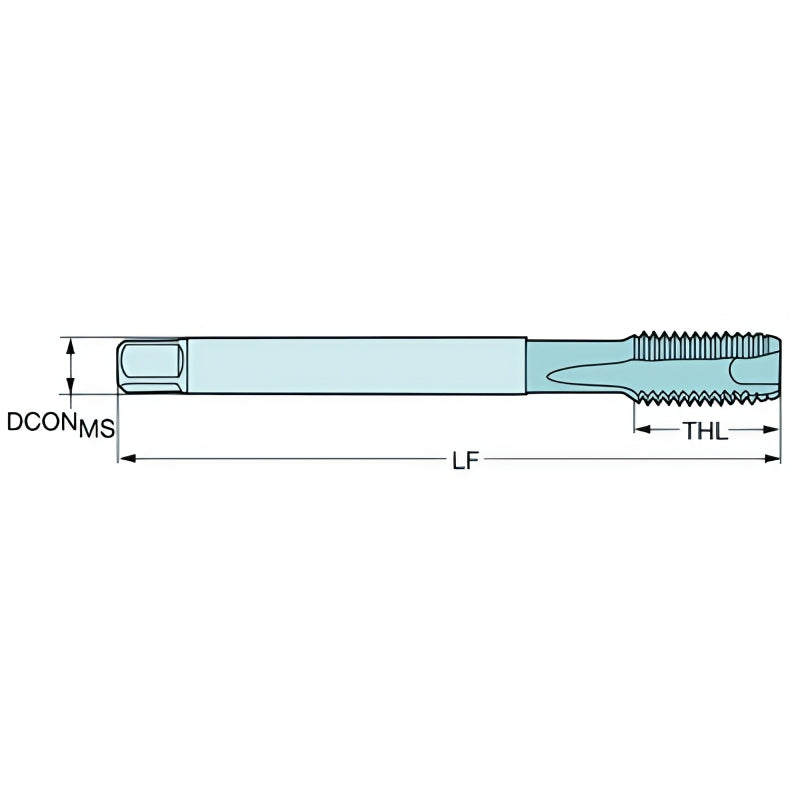

Usable Length (LU) 68 mm 2.677 in
Functional Length (LF) 110 mm 4.3307 in
Overall Length (OAL) 110 mm 4.3307 in
Neck Diameter 11.7 mm 0.4606 in
Flute Count 4
Flute Helix Angle 0° (spiral point)
Radial Rake Angle 11°
Threading Length 25 mm 0.9843 in
Threading Chamfer Type B = 3.5–5×TP (Gunnose)
Chip Breaker MM
Grade S9P4
Substrate HSS-E
Coating PVD FeN (iron-nitride)
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 12.00 × 9.00
Connection Diameter (Machine Side) 12.0 mm 0.4724 in
Connection Diameter Tolerance h9
Weight 0.100 kg 0.2205 lb
Maximum Regrinds 0
Release Date 12/12/2011
Release Pack ID 11.2

Why Choose This Tool?

The Sandvik M16 × 2.0 spiral point (gun nose) tap offers robust performance for through-hole tapping. With its HSS-E substrate, advanced PVD FeN coating, and precise DIN 376 design, it ensures durable tool life, efficient chip evacuation, and accurate threads—ideal for professional-grade CNC and manual machining operations.
