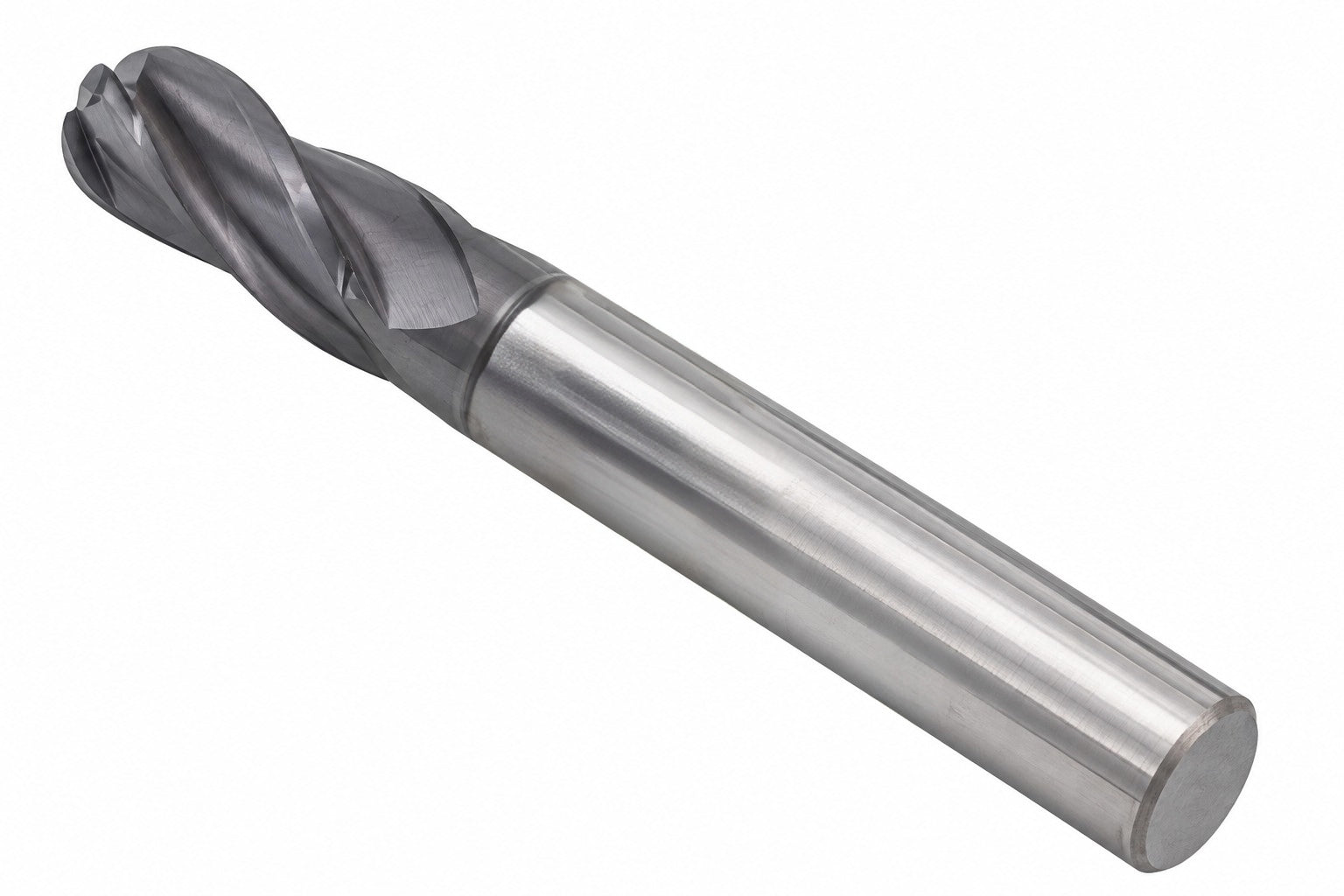

Sandvik Coromant 12.0mm 4 Flute Coated Carbide Ball Nose Endmill

Precision Performance for Profiling, Pre-Machining and Finishing The Sandvik Coromant CoroMill Dura 4 Flute Ball Nose End Mill is a high-performance solid carbide cutting tool designed for precision profiling and...
£139.00
£0.00
£139.00
(-0%)
Vendor: SANDVIK
SKU: 1B240-1200-XA1630
Availability: In Stock
Subtotal: £139.00
Sandvik Coromant 12.0mm 4 Flute Coated Carbide Ball Nose Endmill

Sandvik Coromant 12.0mm 4 Flute Coated Carbide Ball Nose Endmill

£0.00 £139.00

Sandvik Coromant 12.0mm 4 Flute Coated Carbide Ball Nose Endmill

£0.00 £139.00

Precision Performance for Profiling, Pre-Machining and Finishing

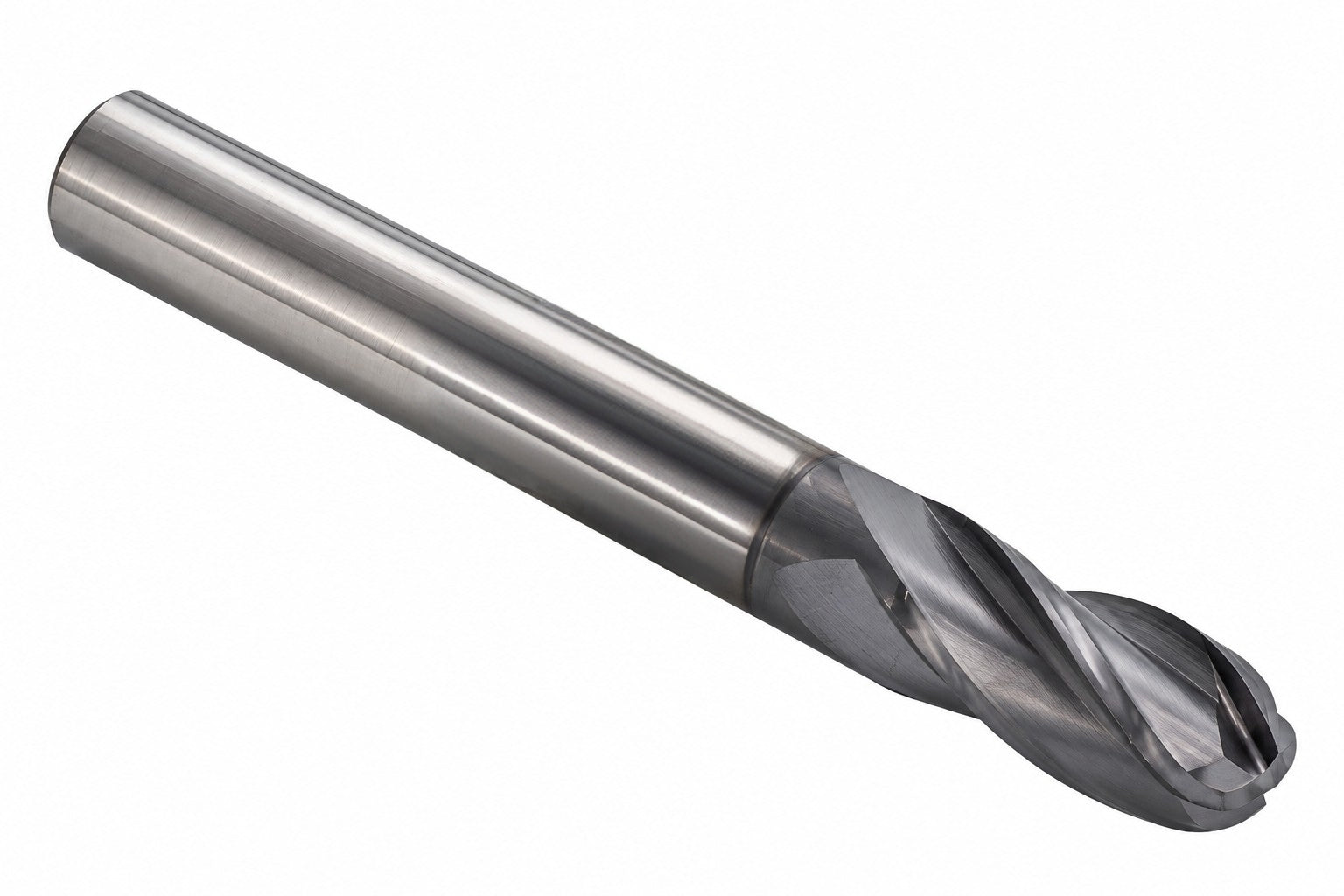

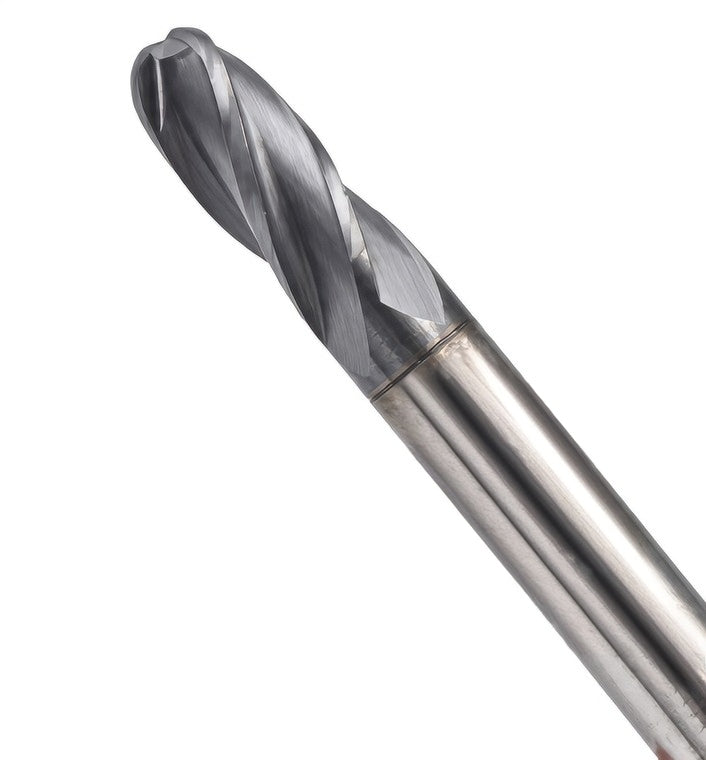

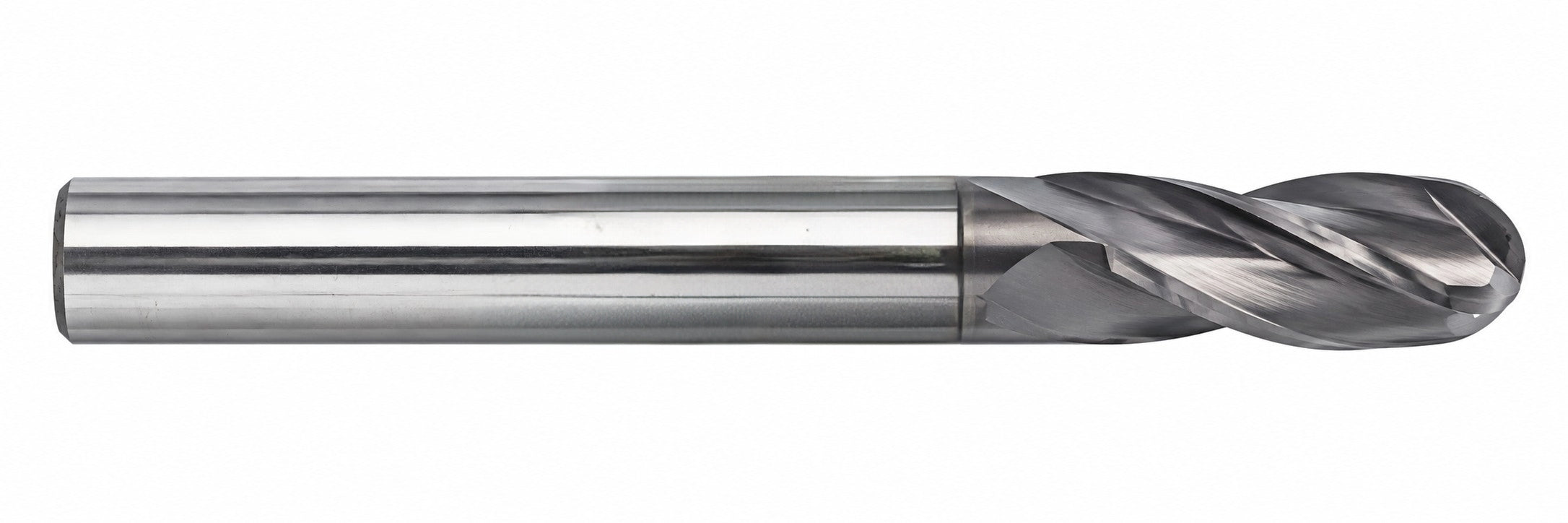

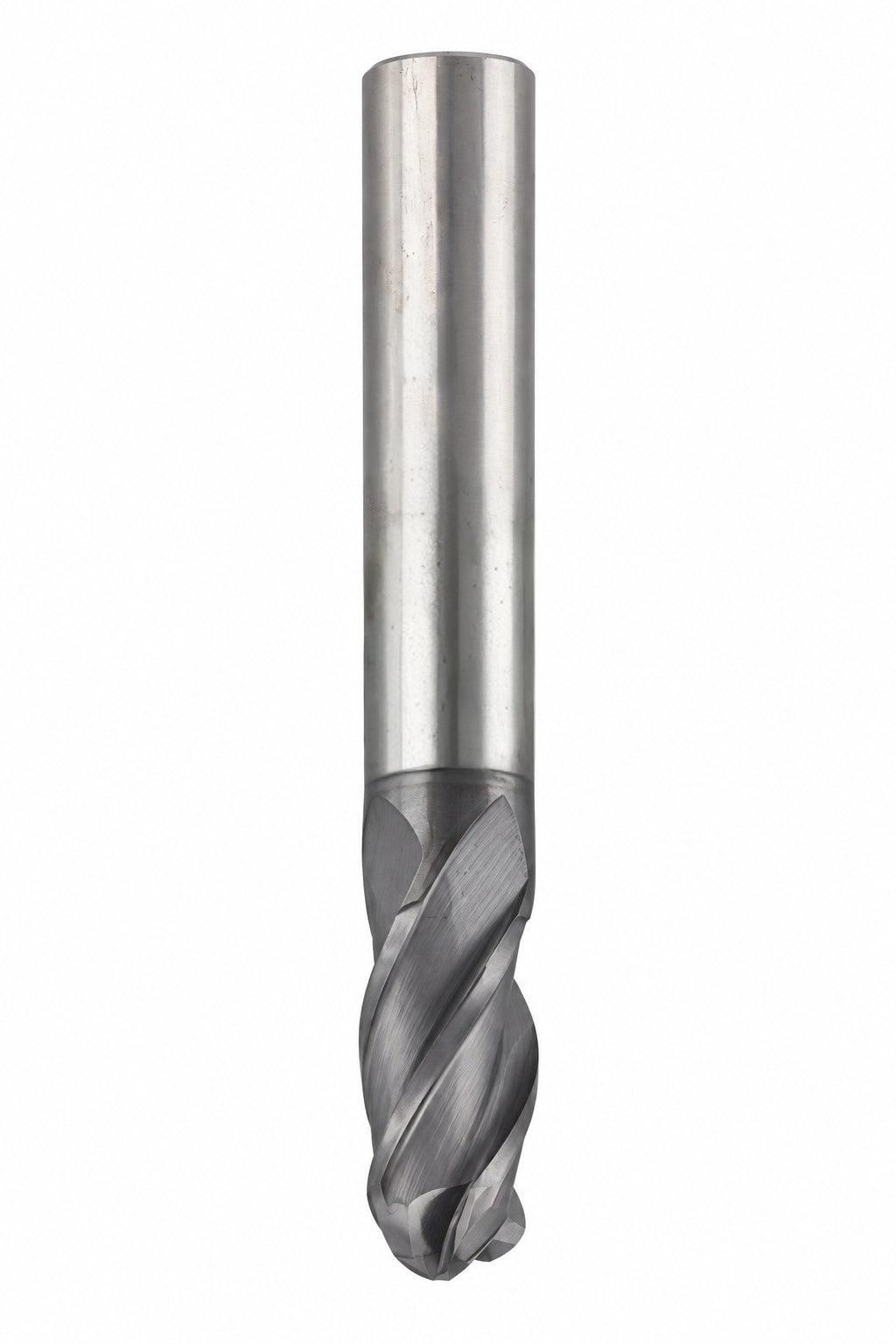

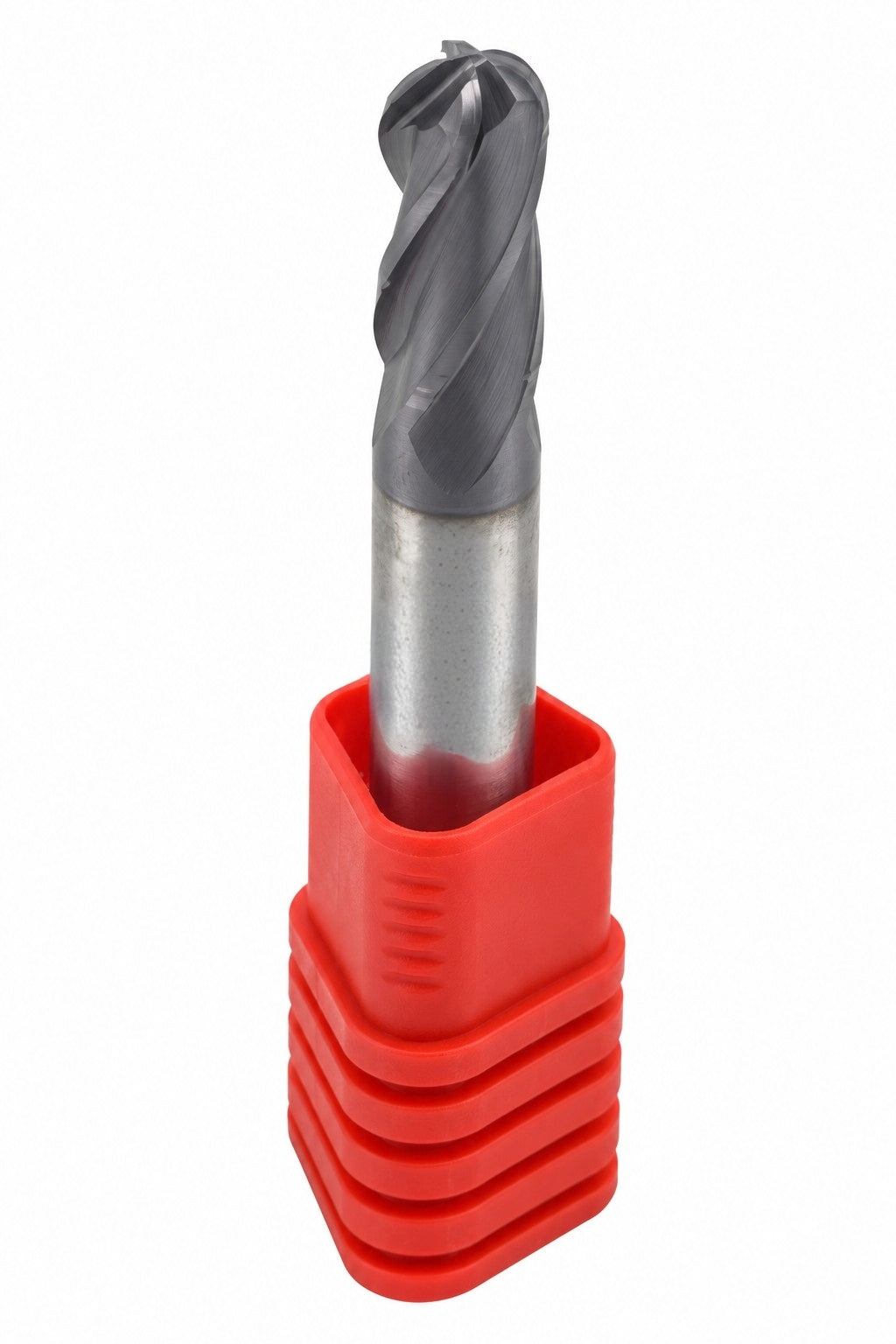

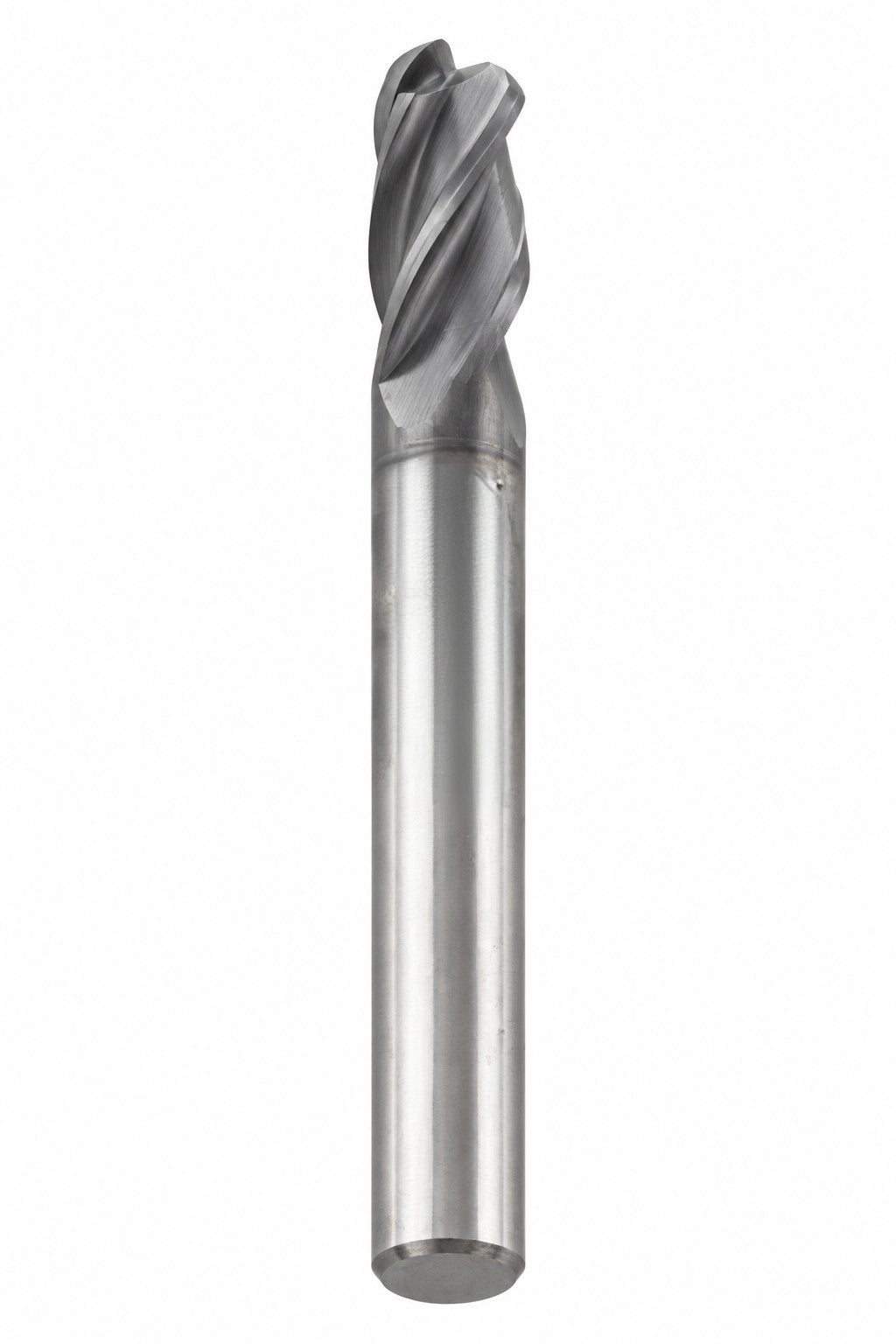

The Sandvik Coromant CoroMill Dura 4 Flute Ball Nose End Mill is a high-performance solid carbide cutting tool designed for precision profiling and demanding machining applications. Manufactured from solid carbide and featuring Sandvik Coromant's 1630 grade with PVD AlCrN coating, this end mill provides excellent wear resistance and reliable cutting performance.

Key Features:

  • Tool Series – CoroMill Dura
  • Manufacturer – Sandvik Coromant
  • Material – Solid Carbide for high strength, rigidity and wear resistance.
  • 4 Flute Design – Provides four effective cutting edges for efficient material removal and finishing.
  • Cutting Diameter – 12mm for precision profiling and 3D machining applications.
  • Shank Diameter – 12mm cylindrical shank (DIN6535-HA), providing a secure and rigid tool connection.
  • Functional Length – 100mm for versatility across a range of machining operations.
  • Usable Length – 26mm for controlled material removal.
  • Corner Radius – 6mm for smooth cutting and high-quality surface finishes.
  • Helix Angle – 30 degrees for efficient chip evacuation and smooth cutting action.
  • Tool Grade – 1630.
  • Coating – PVD AlCrN for enhanced wear and heat resistance.
  • Maximum Ramping Angle – 15 degrees.
  • Maximum RPM – 80,000 rpm.
  • Maximum Overhang – 55mm.
  • Coolant – Without coolant entry.

Product Specifications

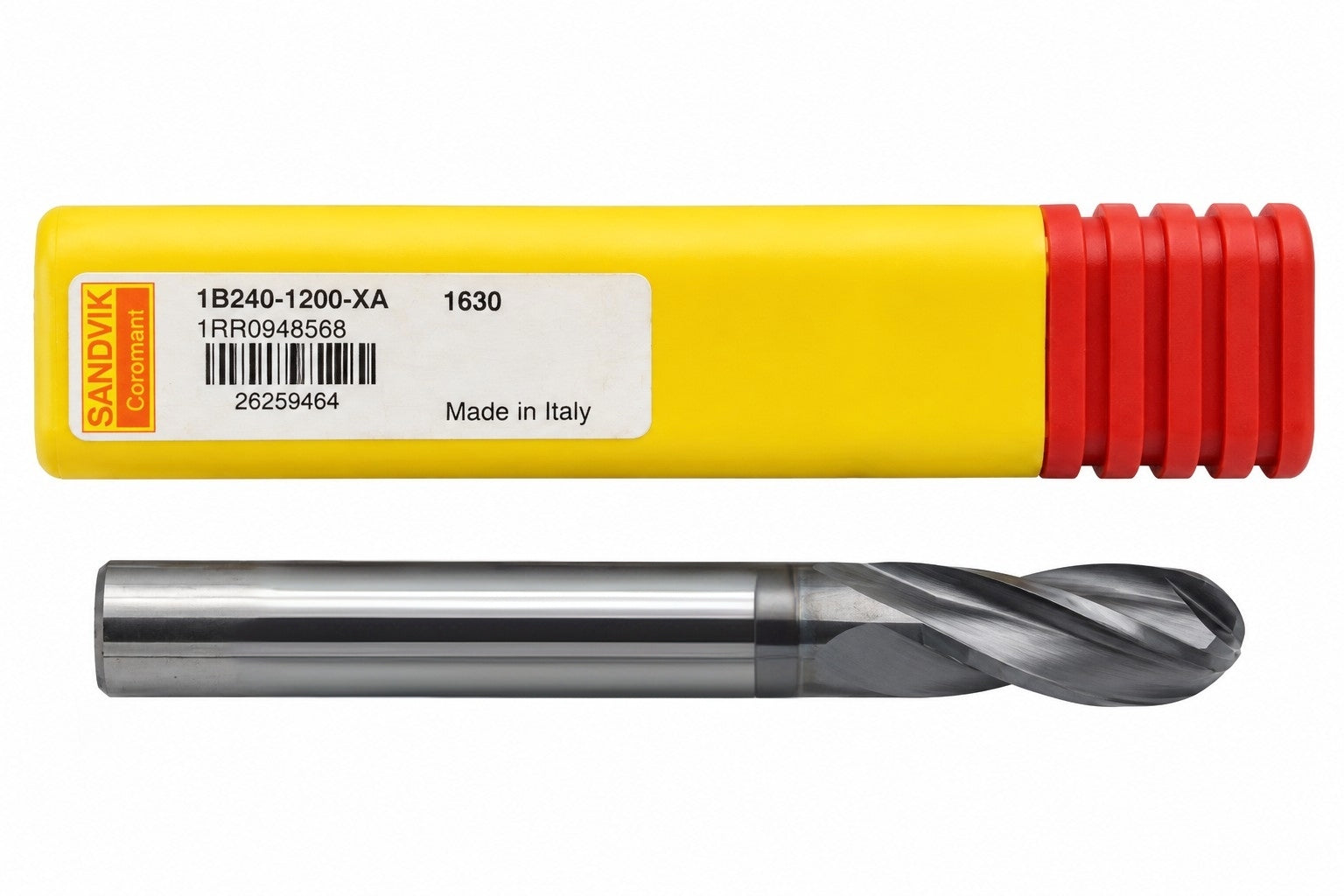

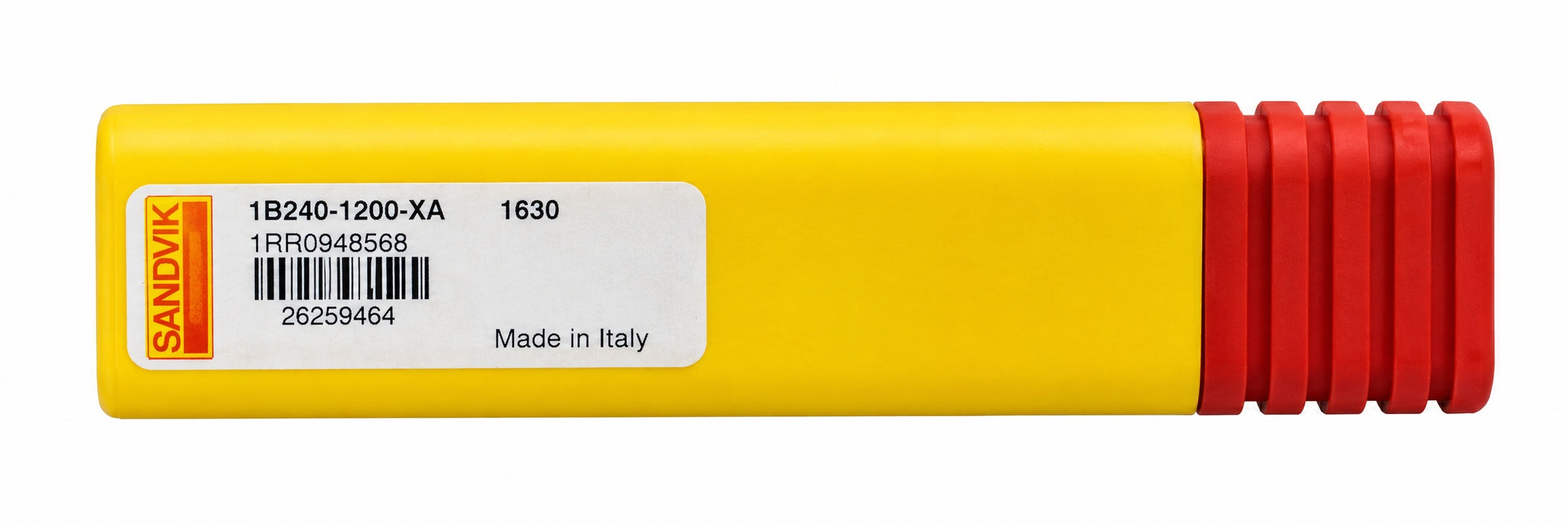

  • Sandvik Coromant Part Number: 1B240-1200-XA 1630
  • Material ID: 6259464
  • Cutting Diameter: 12mm
  • Shank Diameter: 12mm
  • Shank Tolerance: h6
  • Number of Flutes: 4
  • Corner Radius: 6mm
  • Usable Length: 26mm
  • Functional Length: 100mm
  • Maximum Depth of Cut: 26mm
  • Helix Angle: 30 degrees
  • Lead Angle: 0 degrees
  • Maximum Ramping Angle: 15 degrees
  • Maximum Overhang: 55mm
  • Maximum Speed: 80,000 rpm
  • Grade: 1630
  • Substrate: HC
  • Coating: PVD AlCrN
  • Shank Type: Cylindrical Shank – DIN6535-HA
  • Coolant Entry: Without coolant entry
  • Cutting Diameter Tolerance: h8
  • Connection Diameter Tolerance: h6
  • Effective Cutting Edges: 4
  • Cutting Direction: Right Hand

Why Choose Sandvik Coromant?

Sandvik Coromant is a globally recognised manufacturer of high-performance metal-cutting tools. The CoroMill range is engineered to provide reliable cutting performance, precision and long tool life across demanding machining applications.
