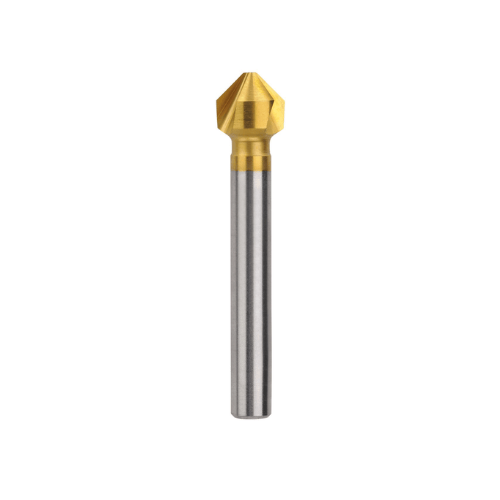

Saber 10mm 90° TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink

The Saber 10.00 mm Triple Flute Countersink is engineered for precision countersinking and deburring across a wide range of ferrous and non-ferrous materials. The three-flute configuration is self-centring with wide flutes,...
£22.00
£0.00
£22.00
(-0%)
Vendor: BORDO
SKU: 8034-10
Availability: In Stock
Subtotal: £22.00
BORDO Drill Bits Saber 10mm 90° TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink

Saber 10mm 90° TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink

£0.00 £22.00

Saber 10mm 90° TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink

£0.00 £22.00

The Saber 10.00 mm Triple Flute Countersink is engineered for precision countersinking and deburring across a wide range of ferrous and non-ferrous materials. The three-flute configuration is self-centring with wide flutes, designed to create a heavy chamfer at the entrance of a drilled hole. This ensures proper seating for countersunk screws or provides an accurate lead-in for secondary machining operations such as tapping.

Manufactured from HSS-Co5 (5% cobalt), this countersink offers exceptional hardness and heat resistance, delivering superior tool life—especially in stainless steel, high-tensile steel, and other difficult-to-machine materials.

The Bronze (Gold Oxide) finish is a tempering treatment commonly used on cobalt tooling for identification, while the TiN (Titanium Nitride) coating significantly reduces friction and heat buildup. This allows higher cutting speeds, improved chip flow, and extended tool life. The coating is applied by Physical Vapour Deposition (PVD) for maximum adhesion and durability.

Key Features & Benefits

  • 10 mm diameter, 90° included angle
  • Triple flute design for smooth cutting and excellent centring
  • Produces clean, accurate chamfers for screw seating or secondary machining
  • Suitable for medium to hard materials, including stainless steel and high-tensile steels
  • Made from HSS-Co5 (5% cobalt) for enhanced hardness and heat resistance
  • Bronze (Gold Oxide) finish for cobalt tool identification
  • TiN (Titanium Nitride) coating for reduced friction, increased wear resistance, and longer tool life
  • Resharpenable for maximum value and durability

Technical Specifications

  • Diameter: 10 mm
  • Included Angle: 90°
  • Shank Diameter: 6 mm
  • Overall Length: 50 mm
  • Capacity (Min–Max): 2.2 mm – 10.0 mm
  • Material: HSS-Co5 (Cobalt)
  • Coating: TiN (Titanium Nitride), PVD applied
  • Flutes: Triple flute, self-centring

This TiN-coated cobalt countersink is ideal for professional trades, precision engineering, stainless fabrication, and any application requiring long-life, clean-cutting countersinking performance.
