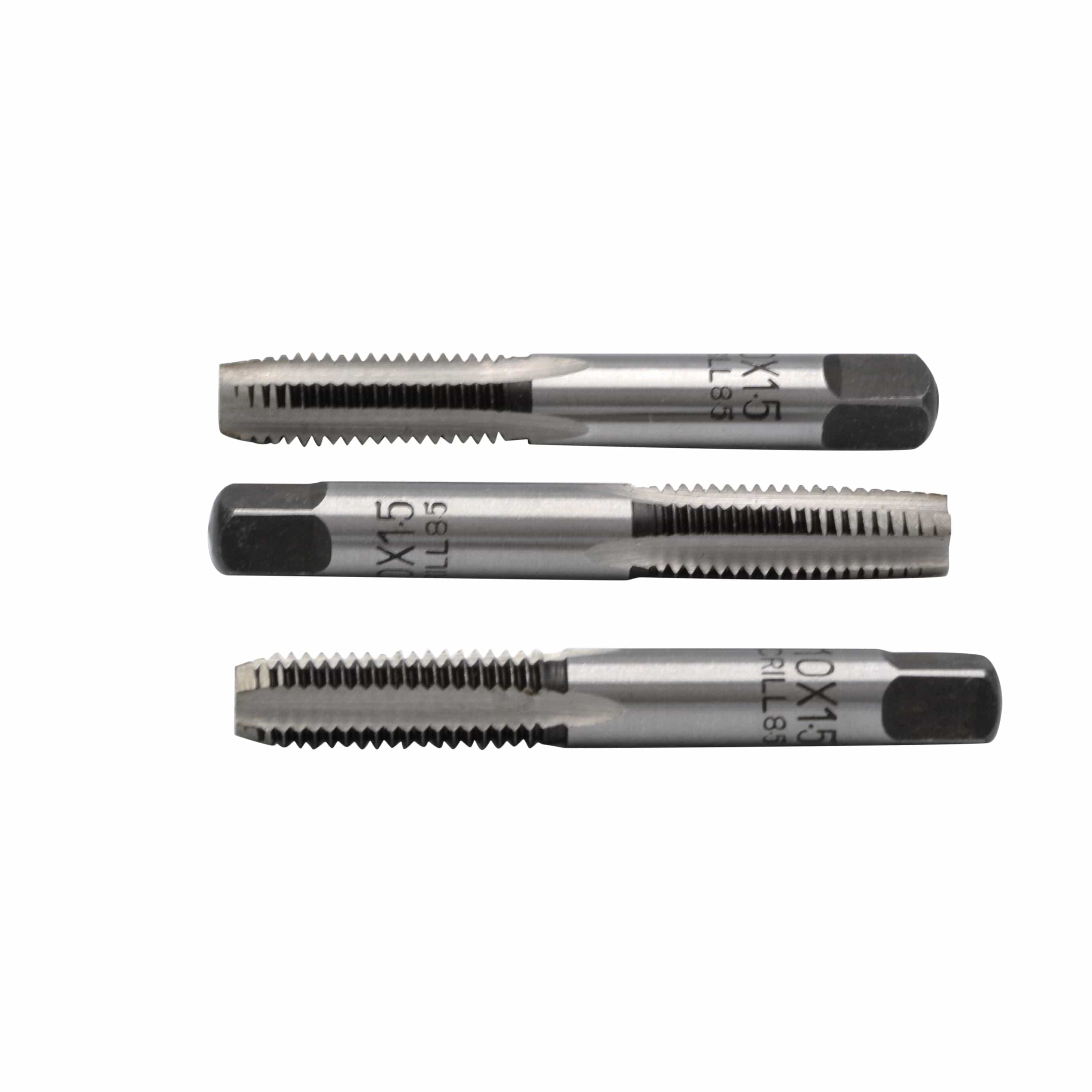

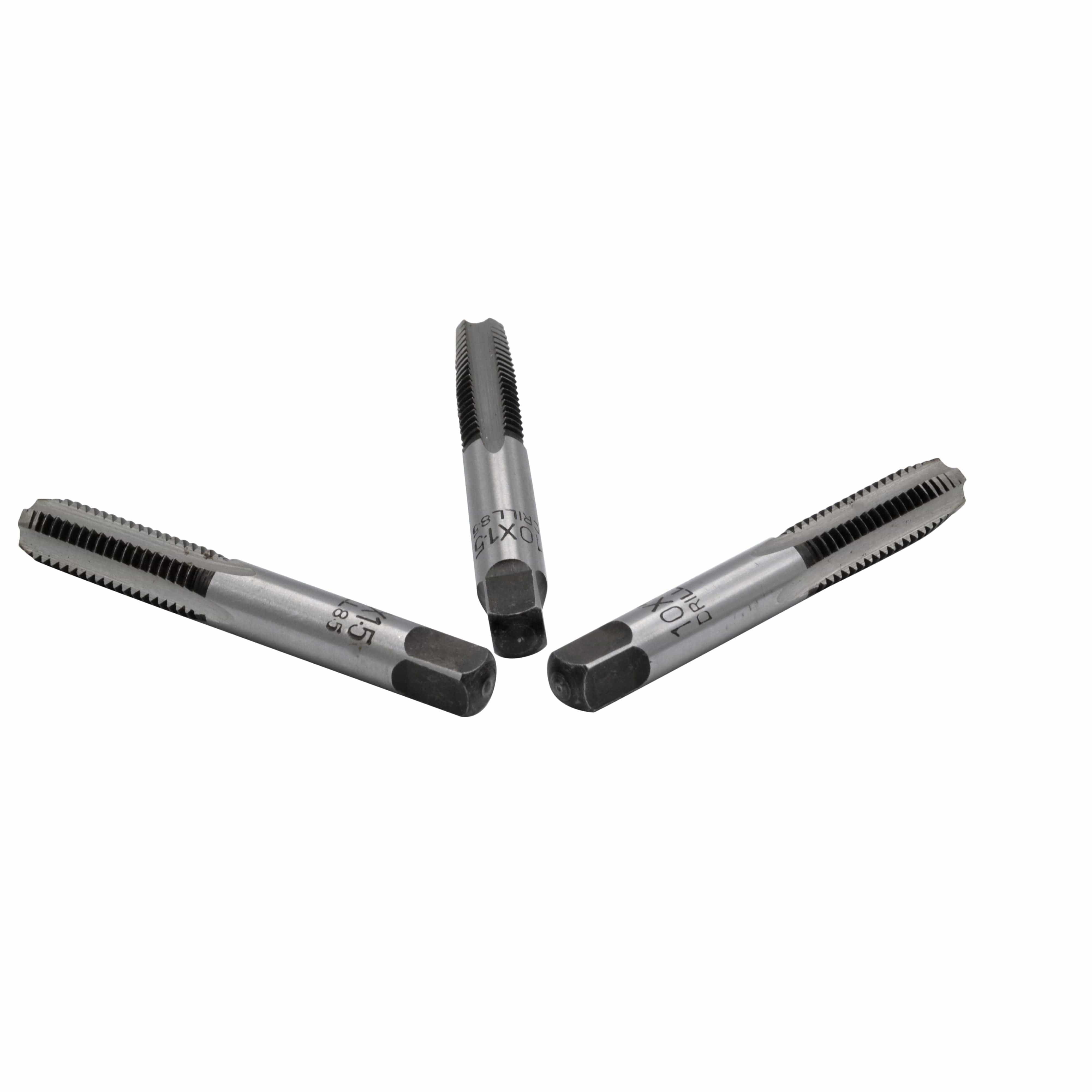

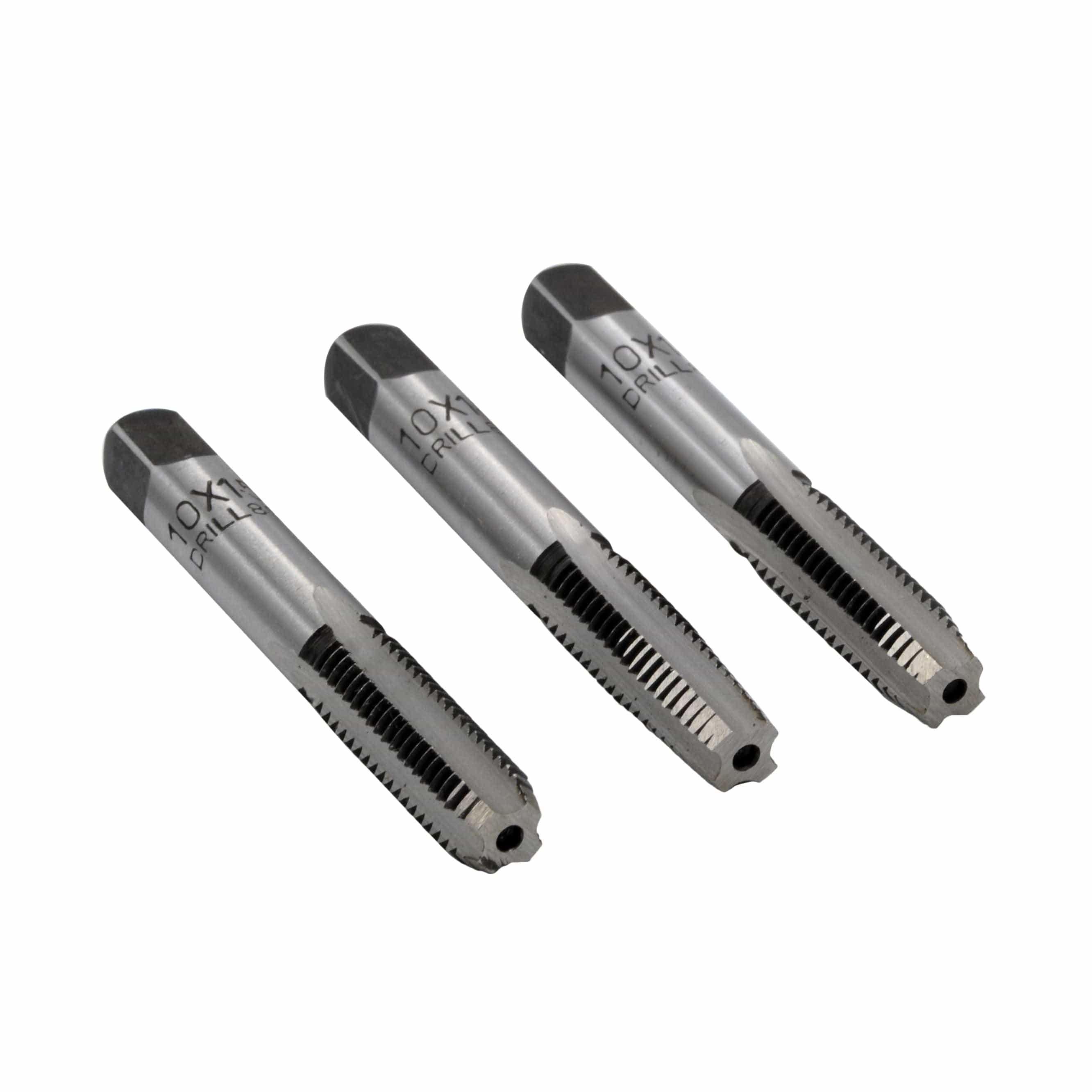

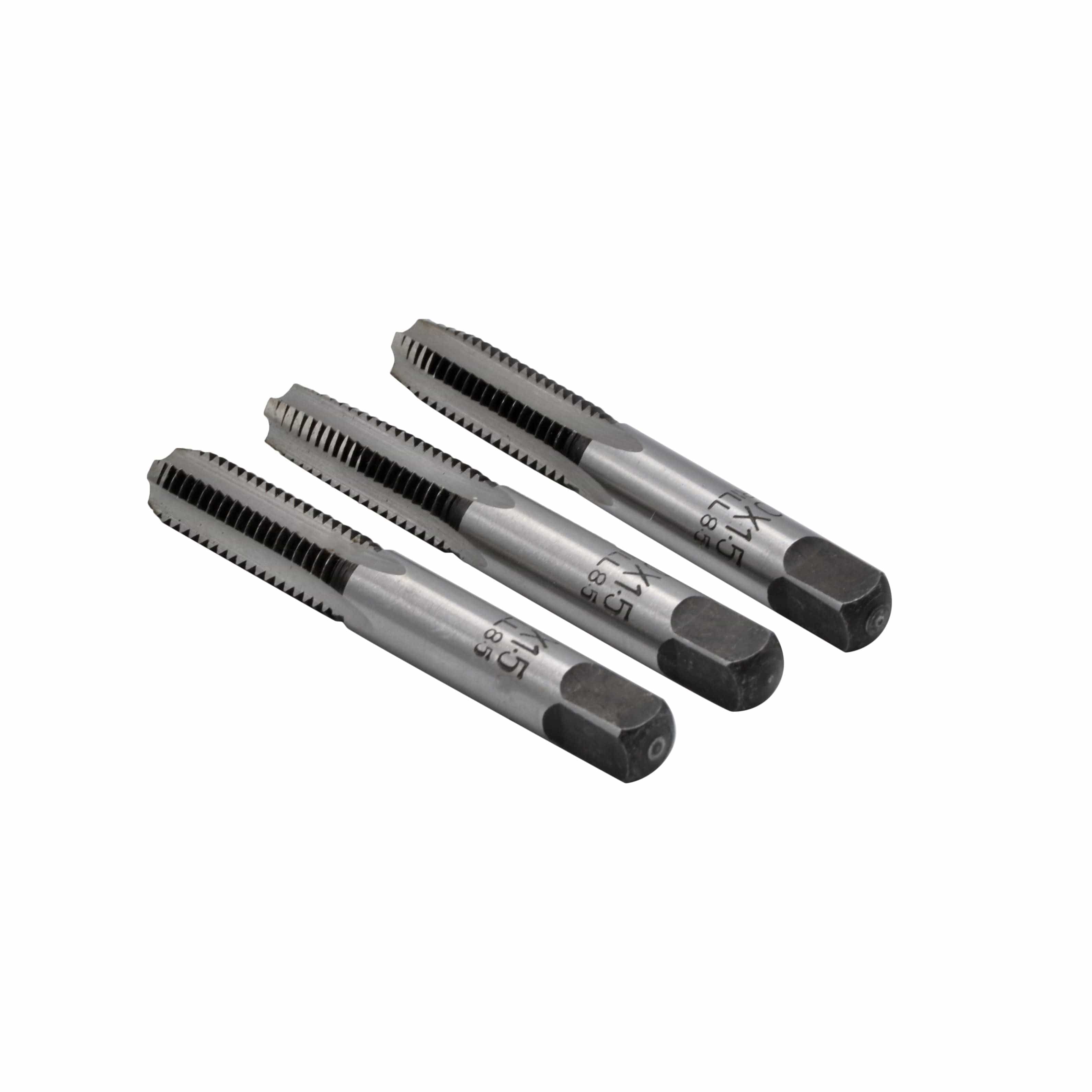

Right Hand Metric HSS Tap M10x1.5 Course Thread
Vendor: Assorts
SKU: 1169
£18.00
Order in The Next to get it by
Real Time 3 Visitor Right Now
Spend $1 to get Free Shipping
Please note this is a M10 -1.5 course thread. This form of tap is ideal for tougher materials as the thread is formed in three stages as opposed to NON serial taps which form the thread in one pass.
Specifications
- Material: HSS (High Speed Steel)
- BOTTOM TAPS have a chamfer (lead) of 1–2 threads, the angle of the lead being around 18 degrees per side. They are used to produce threads close to the bottom of blind holes.
- SECOND TAPS have a lead of 3-5 threads at 8 degrees per side. They are the most popular and can be used for through holes, or blind holes where the thread does not need to go right to the bottom.
- TAPER TAPS have a lead of 7-10 threads at 5 degrees per side. The taper lead distributes the cutting force over a large area, and the taper shape helps the thread to start. They can therefore be used to start a thread prior to use of second or bottom leads, or for through holes.
- Requires 8.5mm drill.
