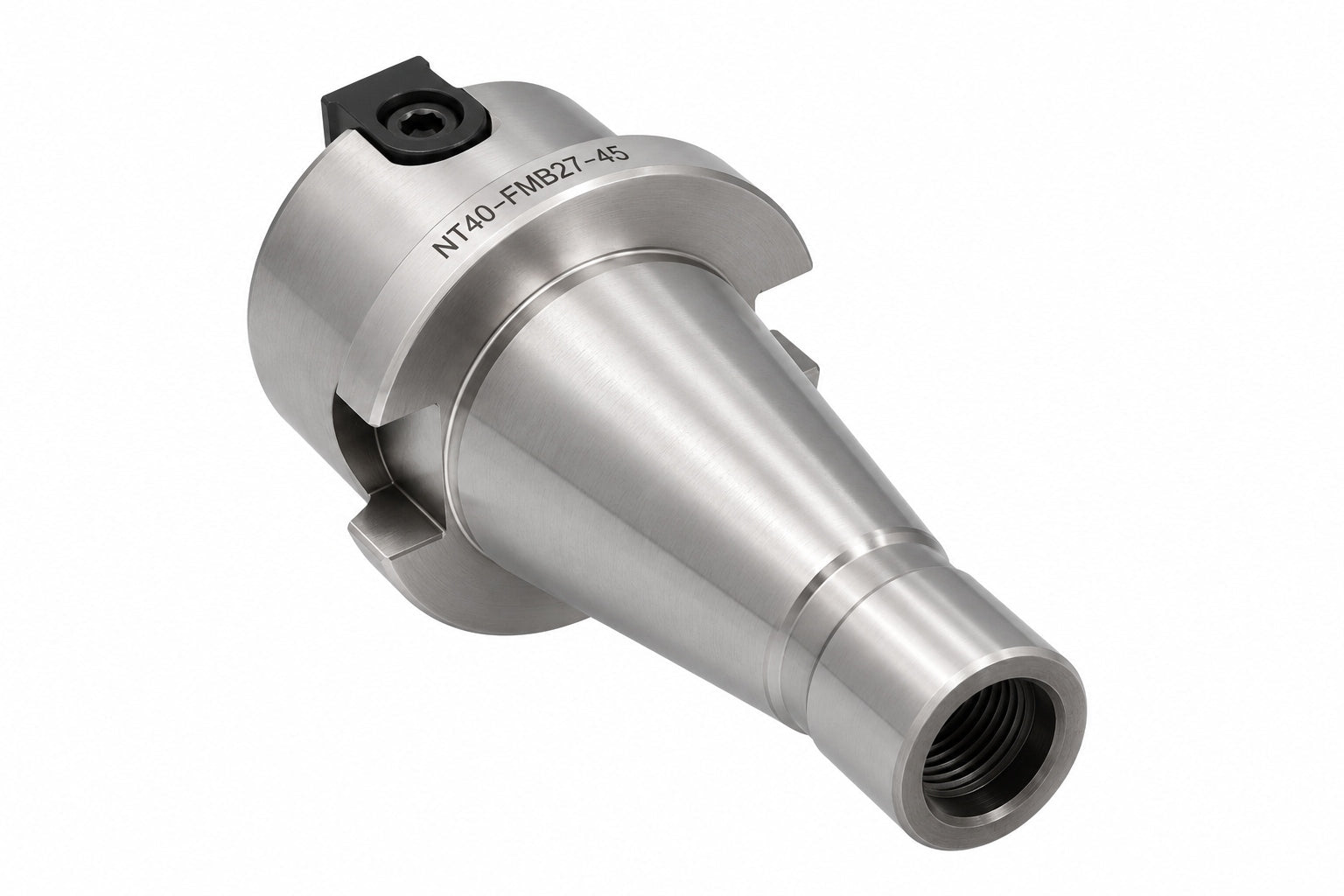

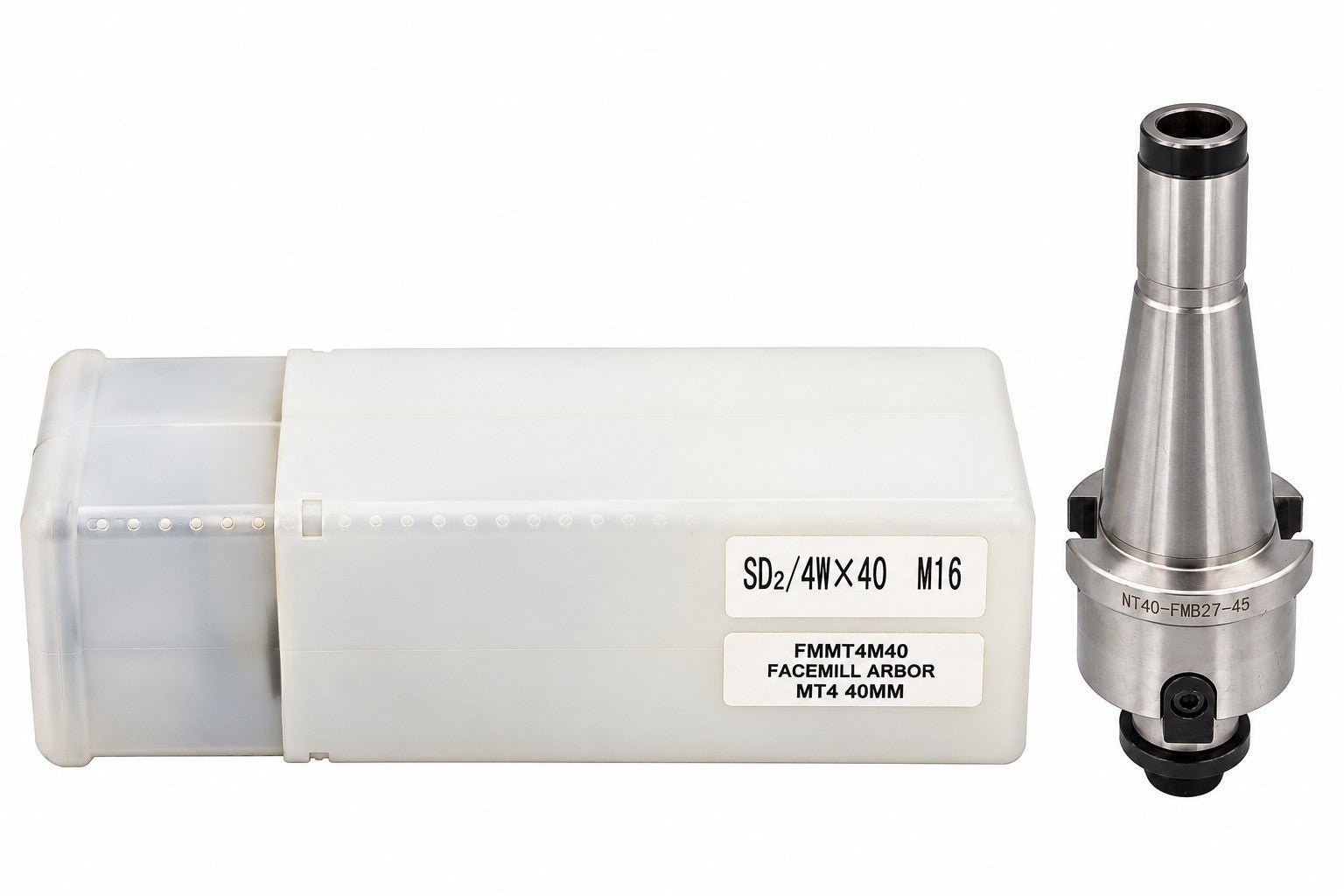

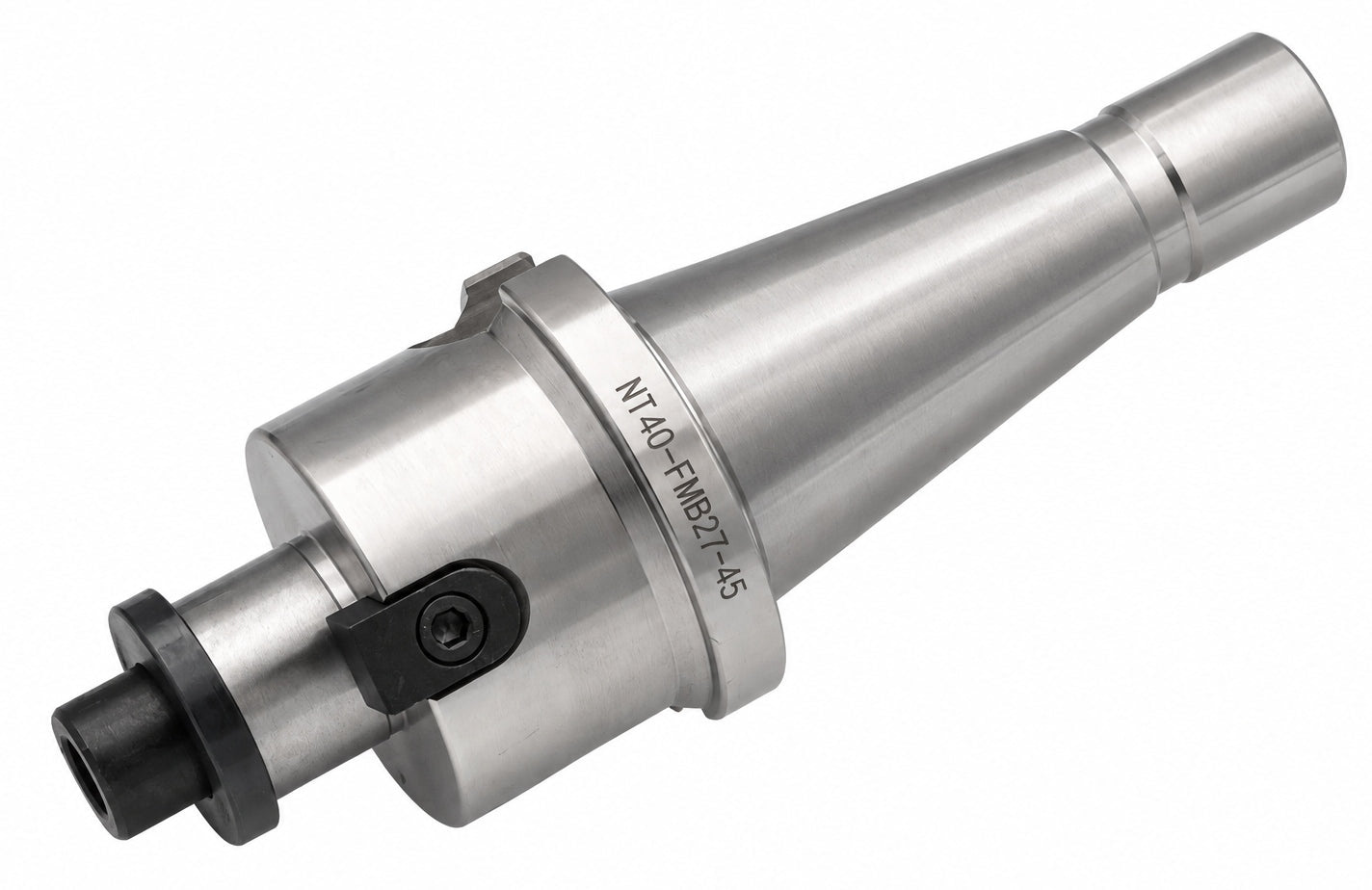

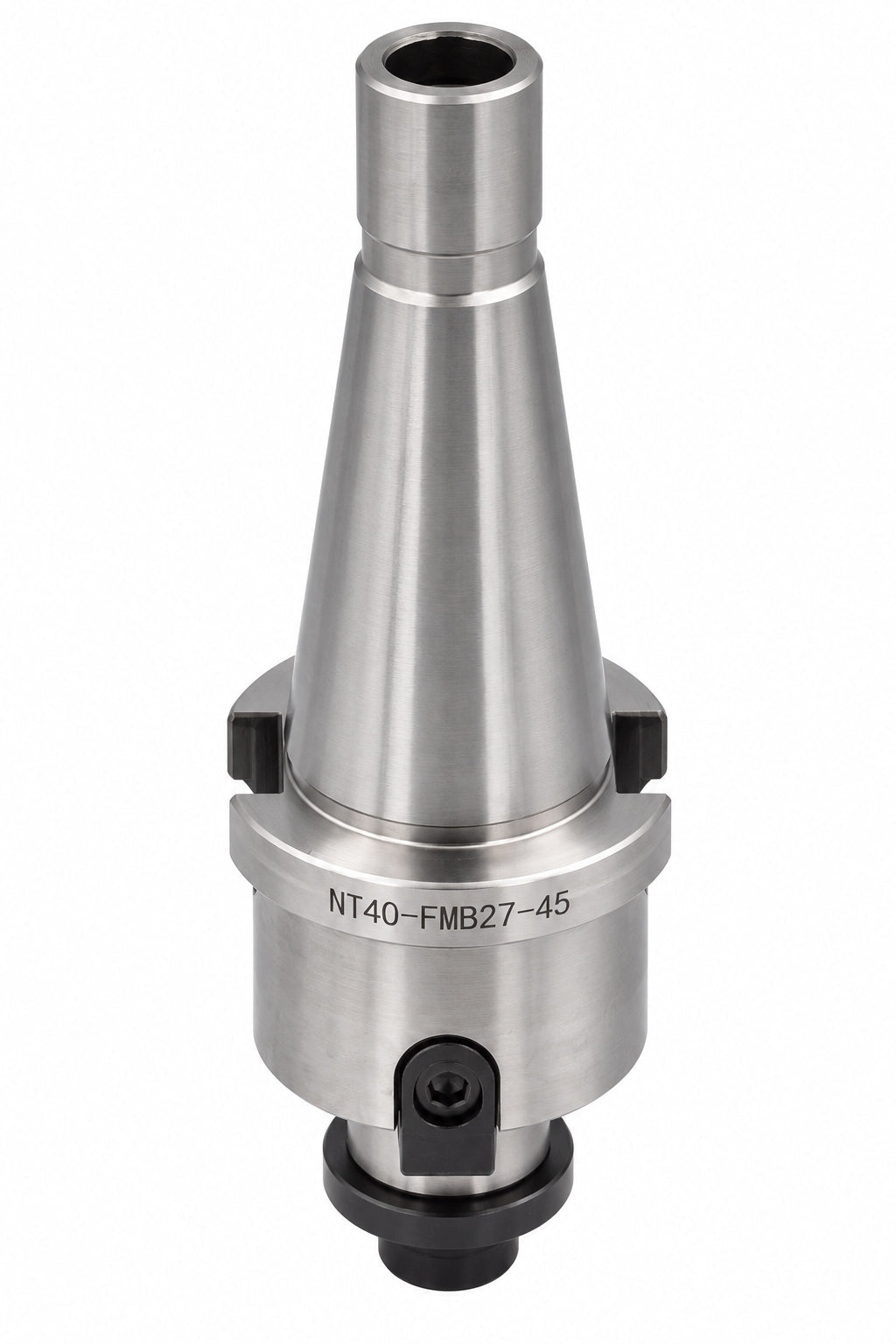

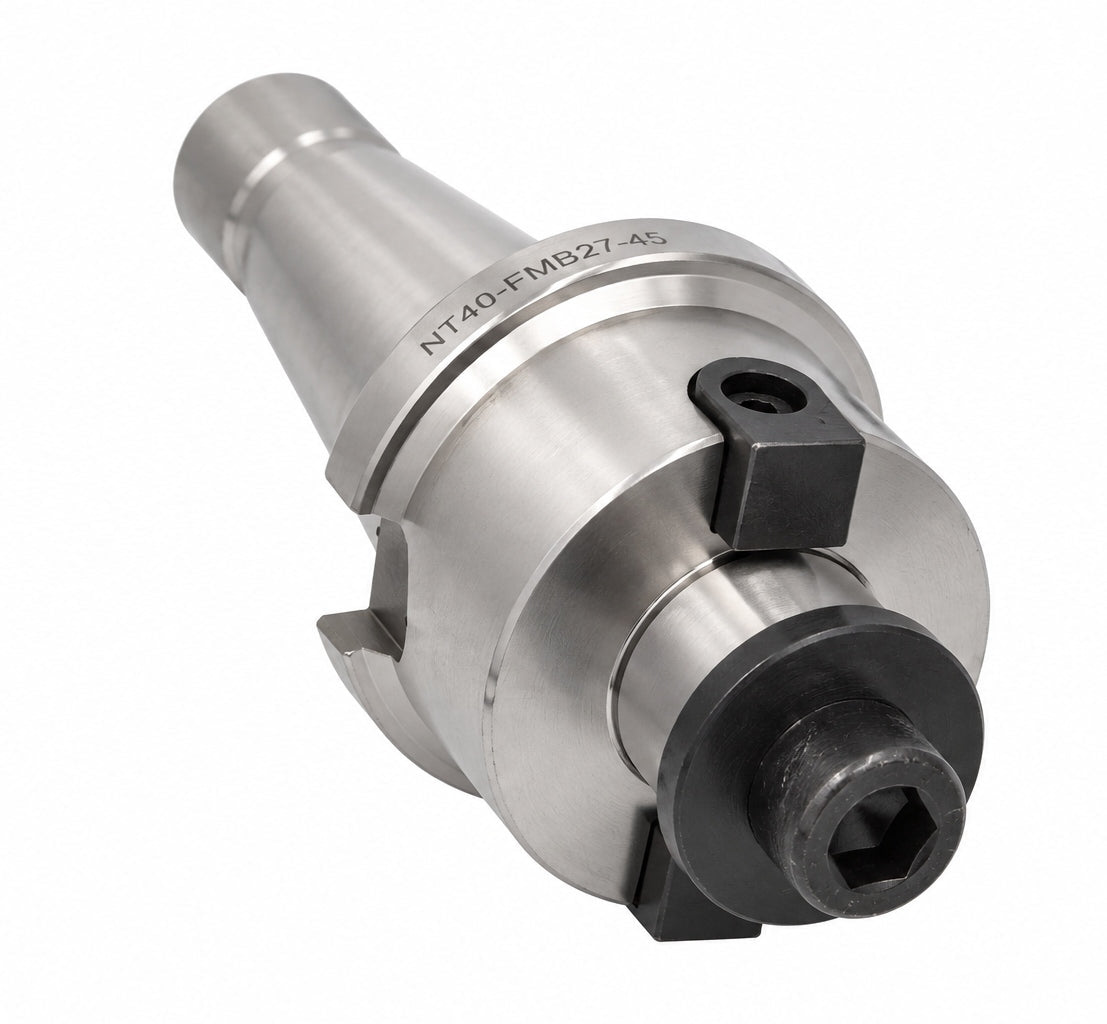

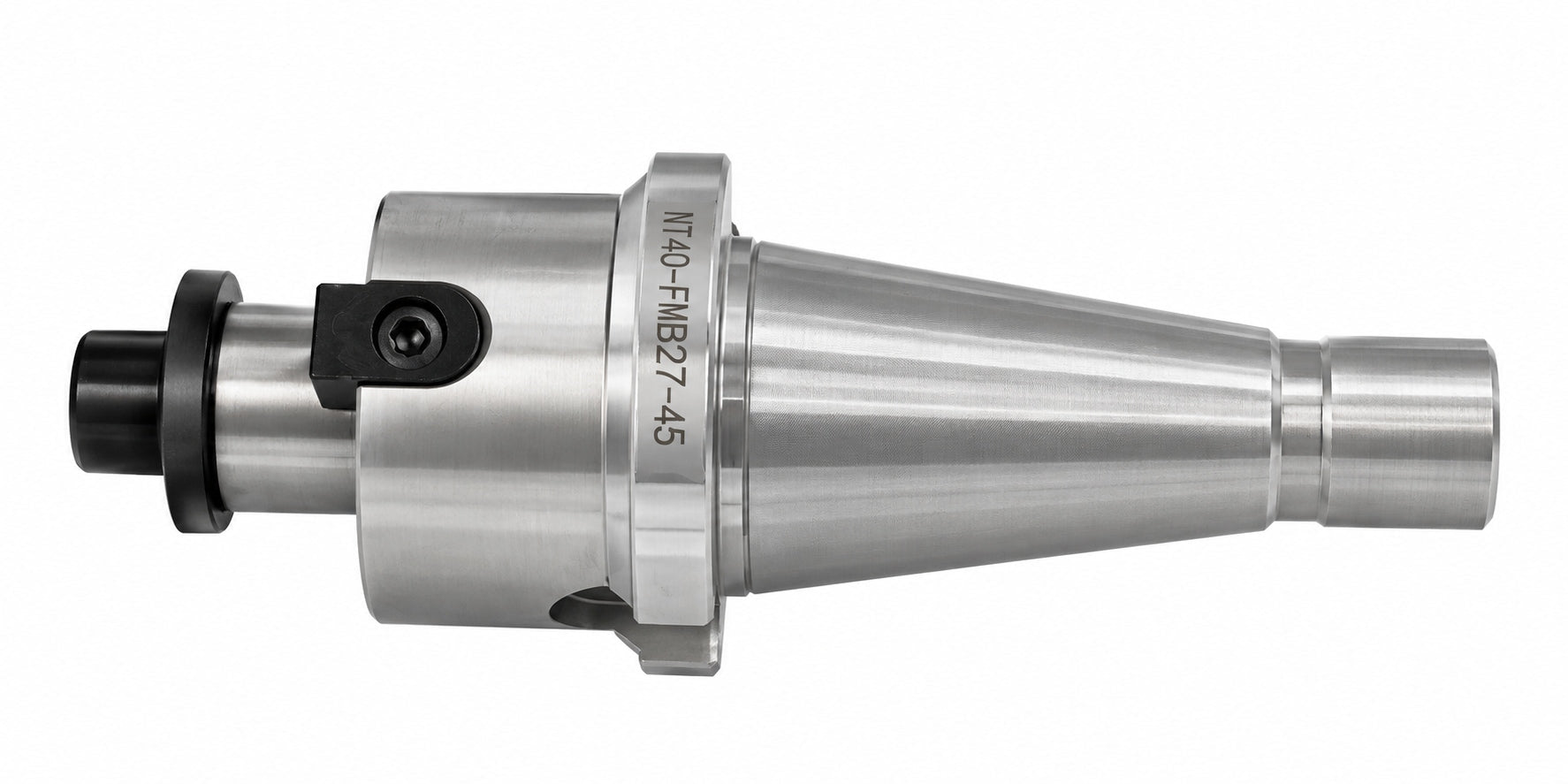

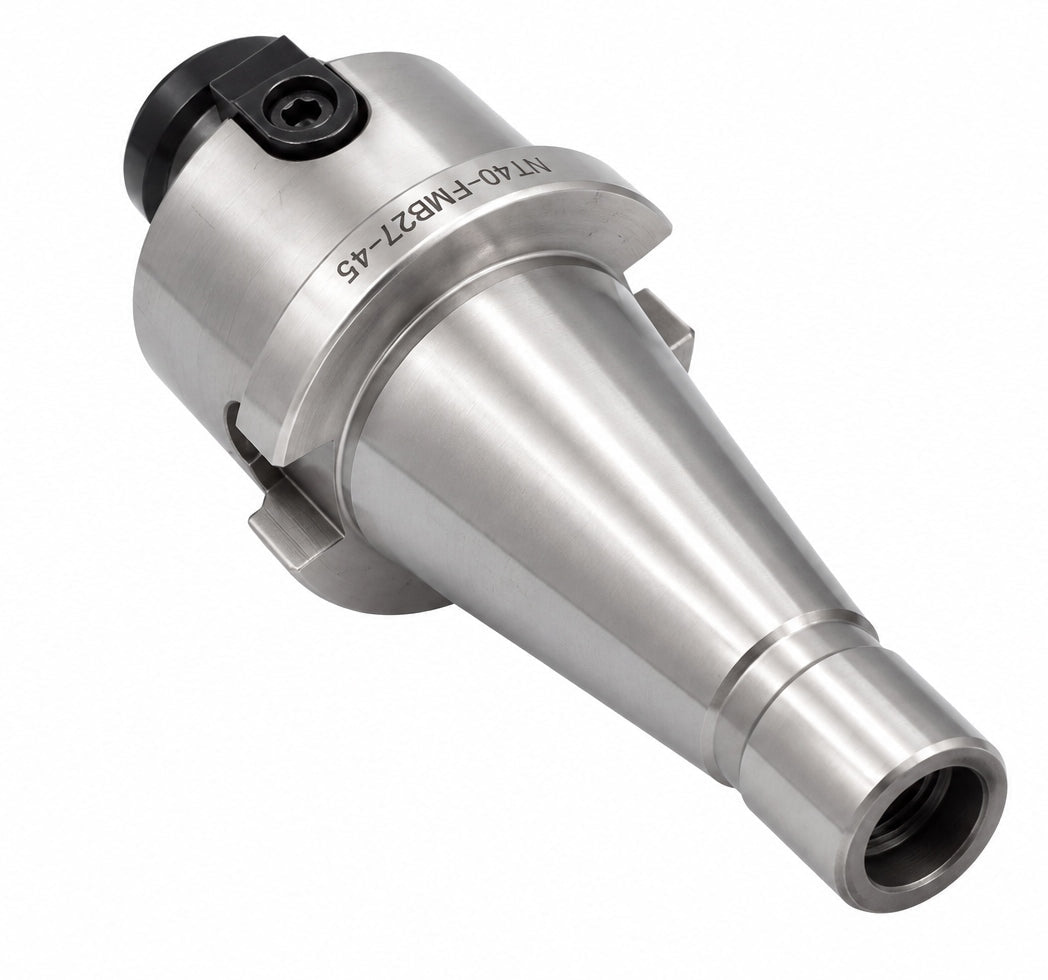

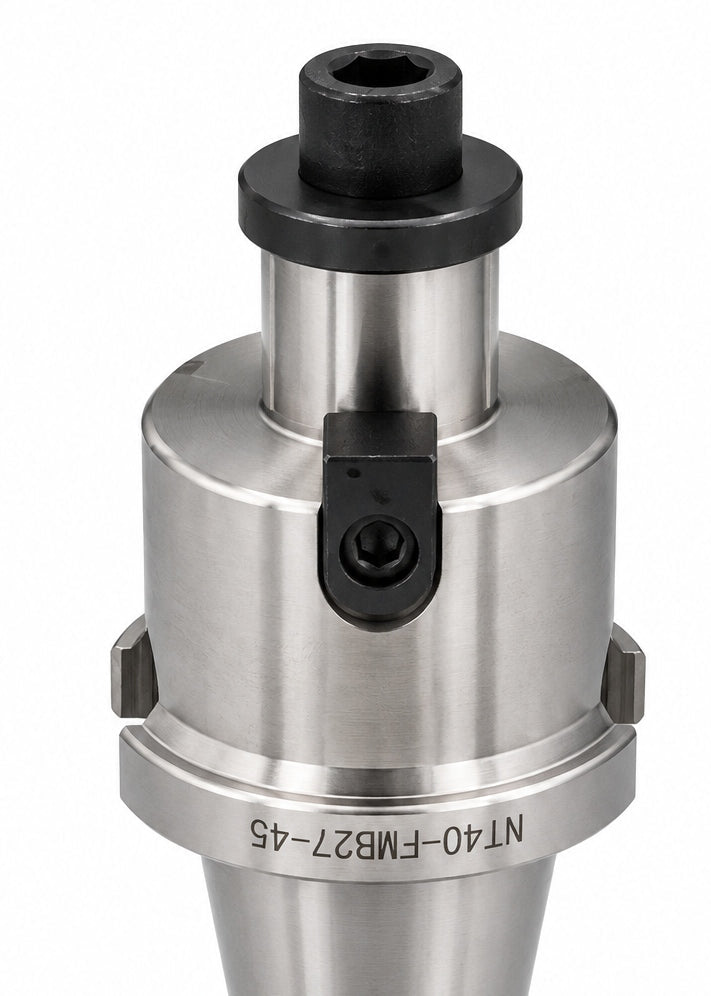

NT40 Face Mill Arbor 27mm Pilot Diameter

The NT40 Face Mill Arbor 27mm (NT40-FMB27-45) is precision-engineered for securely mounting indexable face mills, shell end mills, and slotting cutters with a 27mm bore onto milling machines and machining...
£50.00
£0.00
£50.00
(-0%)
Vendor: Twin Eagle
SKU: FMNT40M27
Availability: In Stock
Subtotal: £50.00
NT40 Face Mill Arbor 27mm Pilot Diameter - Twin Eagle Imports

NT40 Face Mill Arbor 27mm Pilot Diameter

£0.00 £50.00

NT40 Face Mill Arbor 27mm Pilot Diameter

£0.00 £50.00

The NT40 Face Mill Arbor 27mm (NT40-FMB27-45) is precision-engineered for securely mounting indexable face mills, shell end mills, and slotting cutters with a 27mm bore onto milling machines and machining centers equipped with an NT40 (ISO40) spindle taper. Designed with a 45mm projection length, this arbor offers optimal rigidity and clearance for precision milling operations.

Manufactured from high-grade hardened alloy tool steel and precision-ground across all critical mounting surfaces, this toolholder delivers exceptional concentricity, reduced vibration, and extended cutting tool life during heavy-duty cutting tasks.

Key Features:

  • Hardened & Precision Ground: Heat-treated alloy steel construction with precision-ground taper and spigot surfaces for low runout and high rigidity.
  • NT40 Spindle Taper: Standard 40-taper shank featuring an M16 drawbar thread for robust, secure spindle retention.
  • 27mm Pilot Spigot: Precision-machined 27mm mounting diameter ensuring exact cutter alignment and high torque transmission.
  • 45mm Gage Length: Compact 45mm projection length minimizes overhang and maximizes stability under heavy loads.
  • Positive Drive Engagement: Fitted with robust drive keys and a center retaining screw assembly to prevent cutter slippage.
  • Laser-Engraved Markings: Clear model designation ("NT40-FMB27-45") engraved on the flange for fast workshop identification.

Product Specifications:

  • Shank Type: NT40 / ISO40 Taper
  • Arbor / Pilot Diameter: 27 mm (FMB27)
  • Projection / Gage Length: 45 mm
  • Drawbar Thread: M16 x 2.0
  • Model Code: NT40-FMB27-45 (FMNT40M27)
  • Material: Hardened Alloy Tool Steel
  • Application: Face Milling & Shell End Milling on NT40 Spindle Machines
