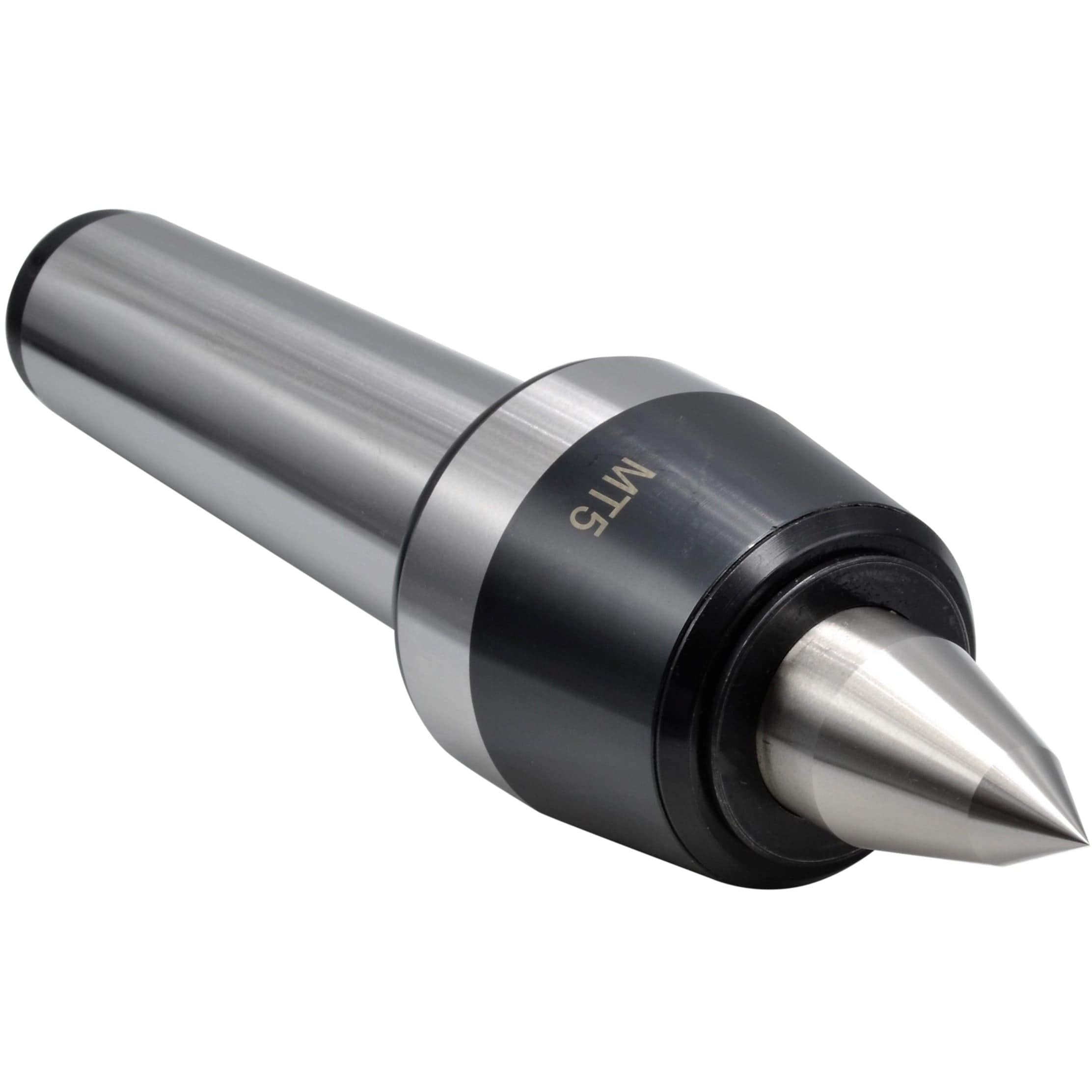

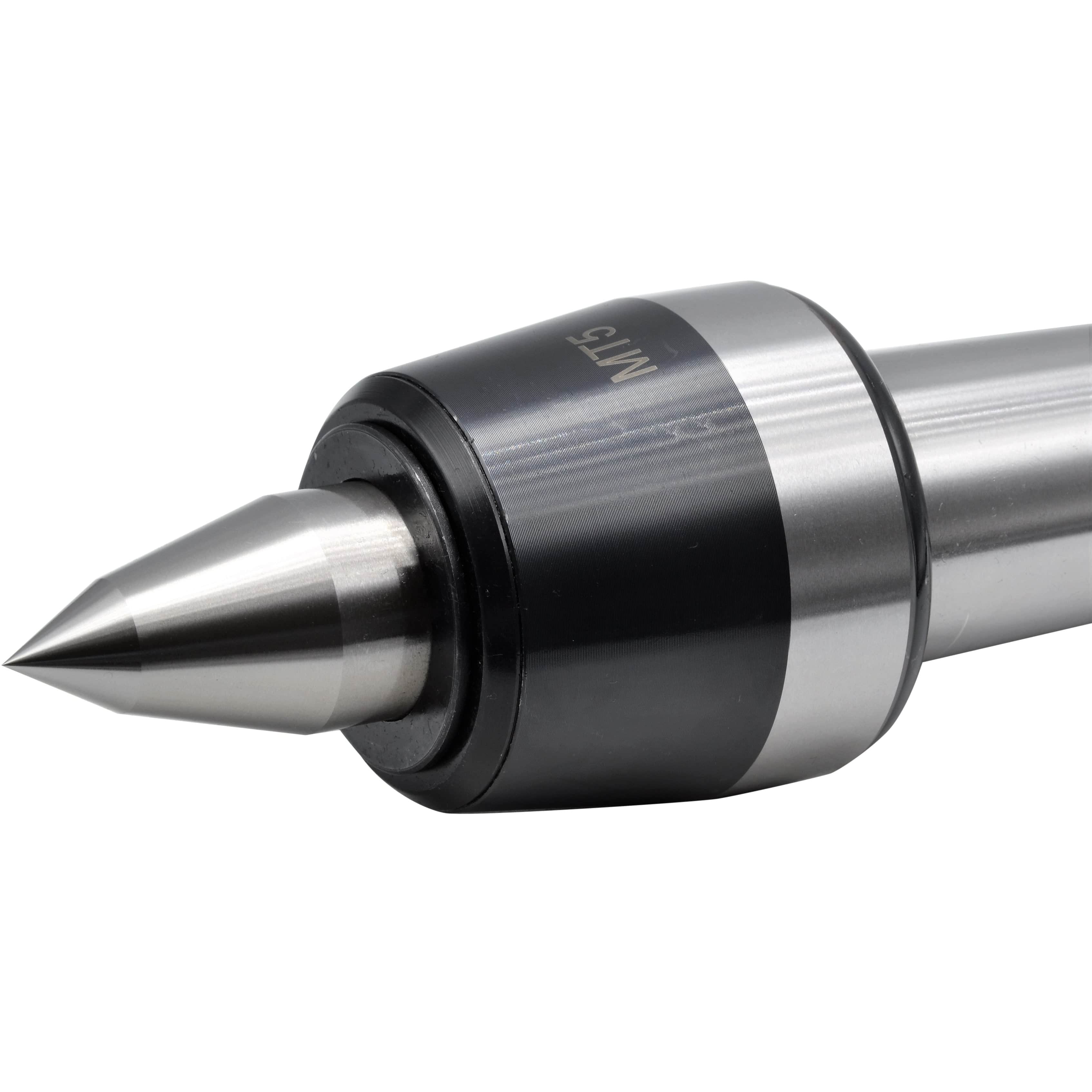

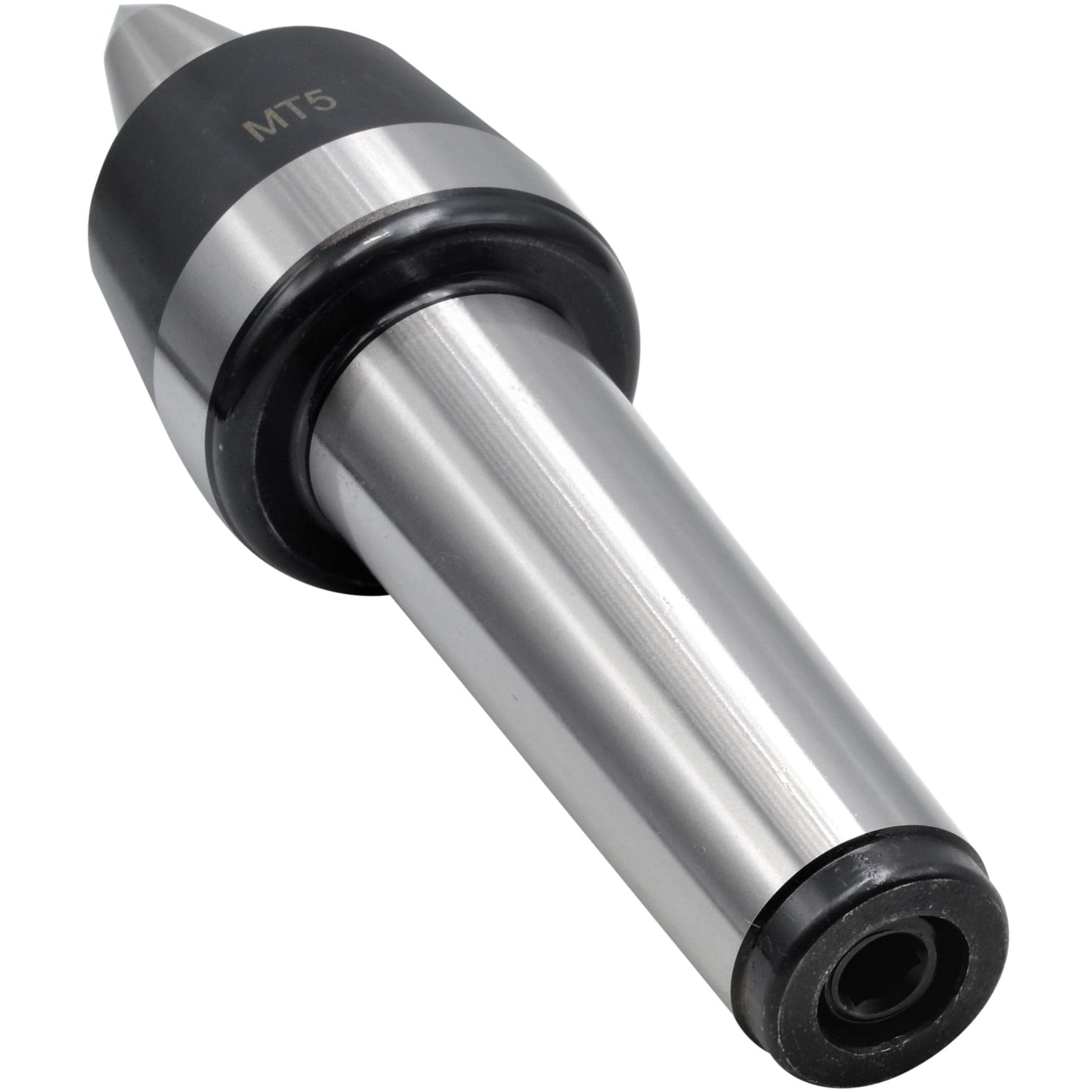

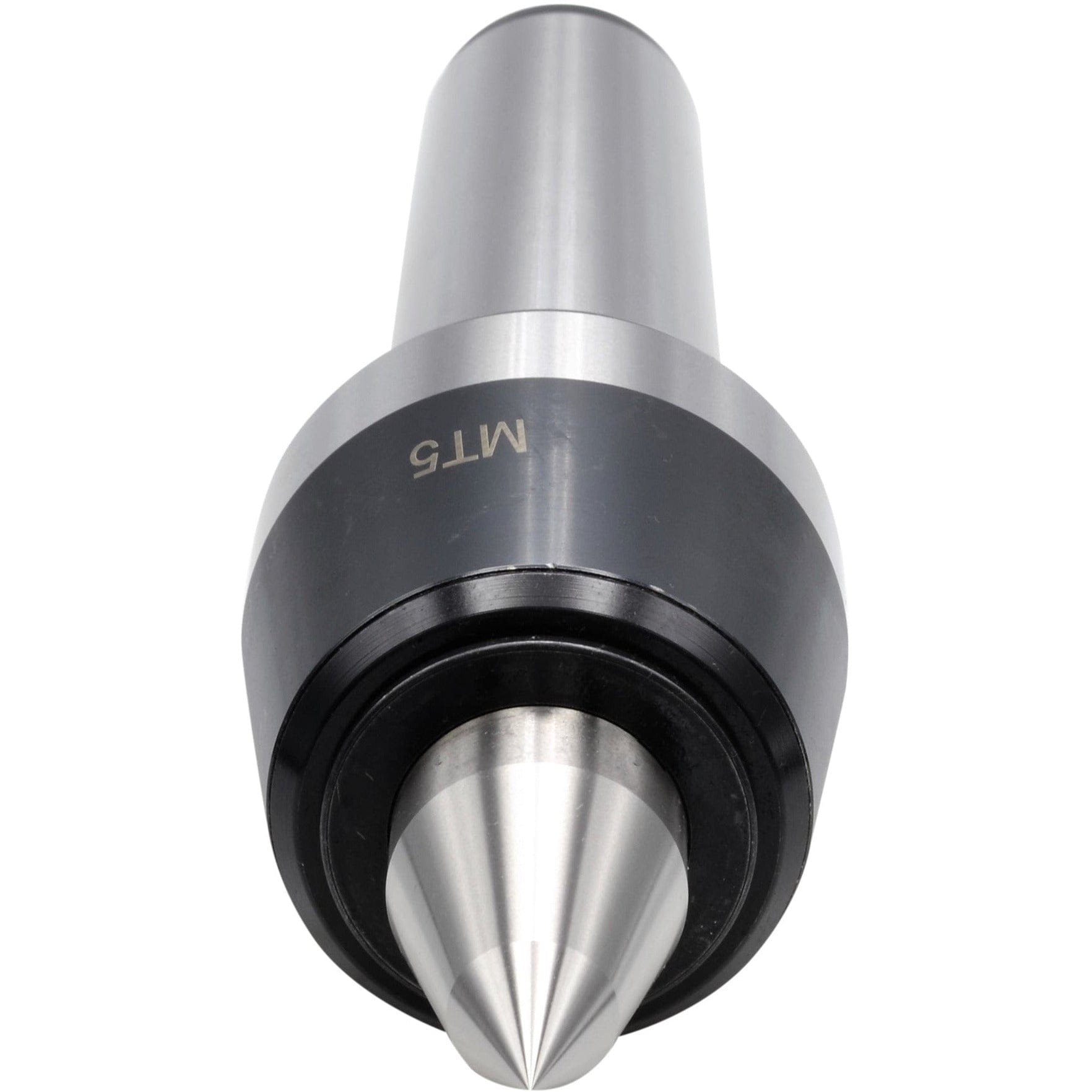

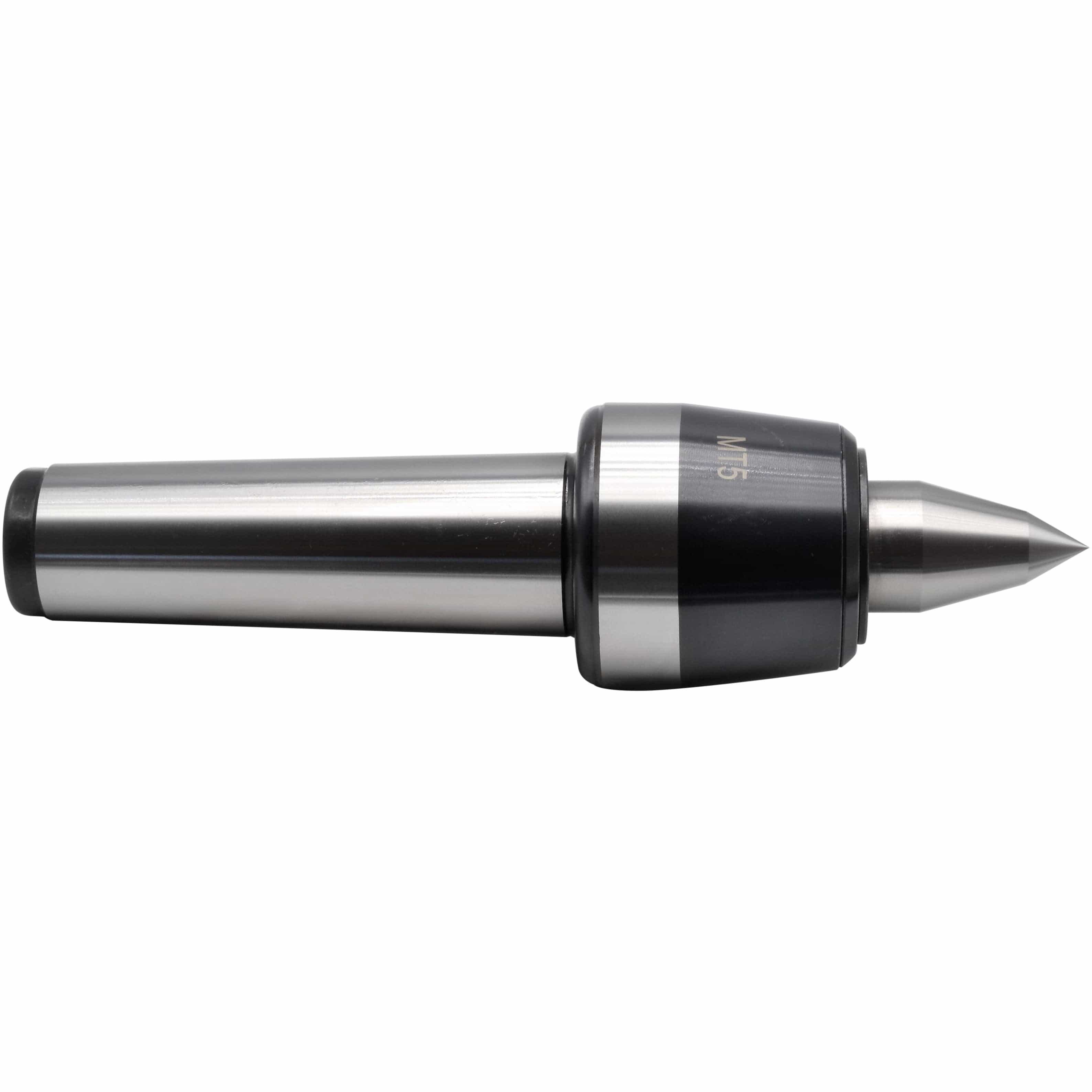

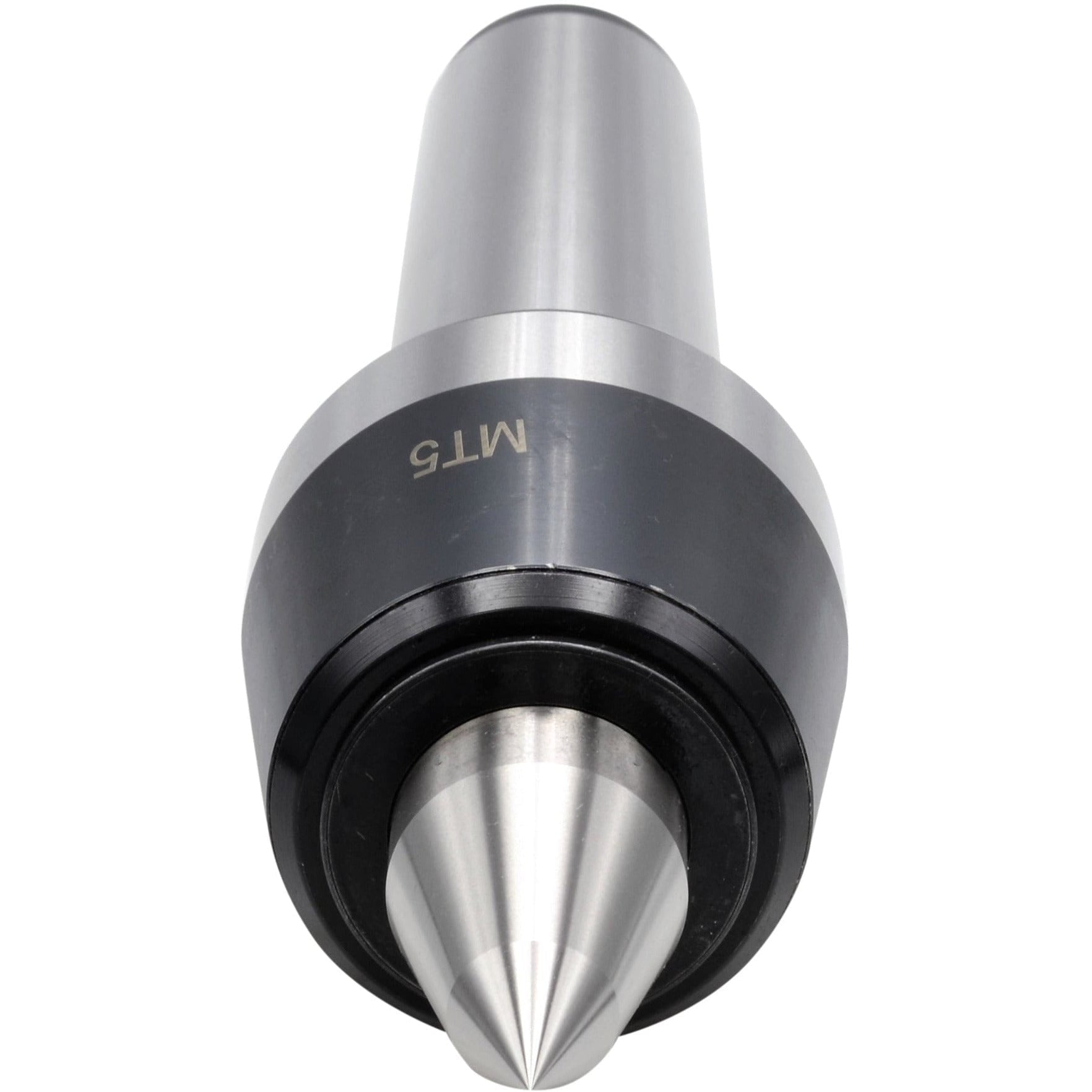

Morse Taper 5 High Speed Live Centre

Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 5
  • Part No:DJ-LO8026/MT5
  • Max RPM: 2500
  • Accuracy: 0.005 mm
  • Load Capacity: 1000 kg
  • 60 Degree Centre Point
  • Triple bearing
  • M18 Drawbar thread with cap

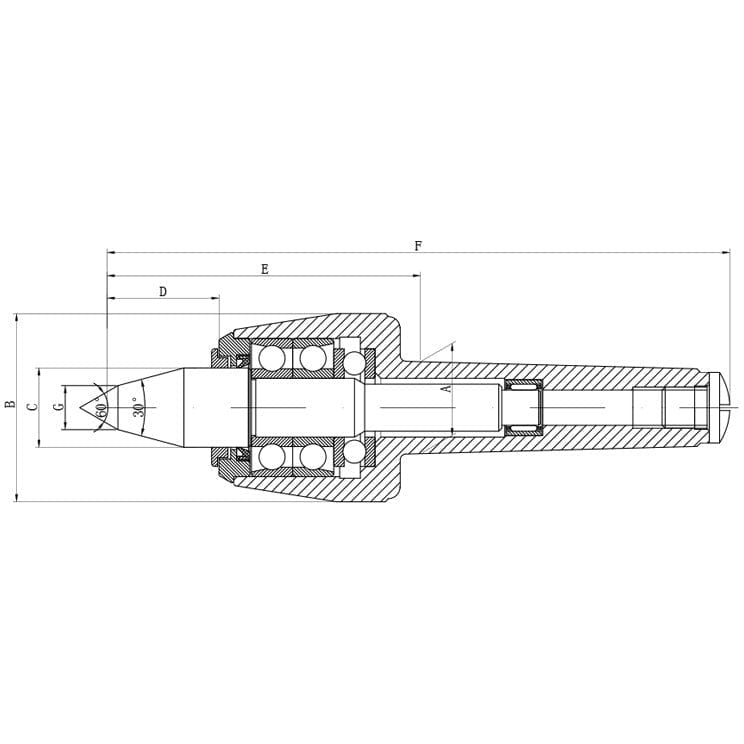

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 42 16
    		 29
    		 76
    		 140 8
    MT3 23.825 54 24 41 103 184 12
    MT4 31.267 64 28
    		 48 120 223 15
    MT5 44.399 69
    		 32
    		 55
    		 128 258 18
