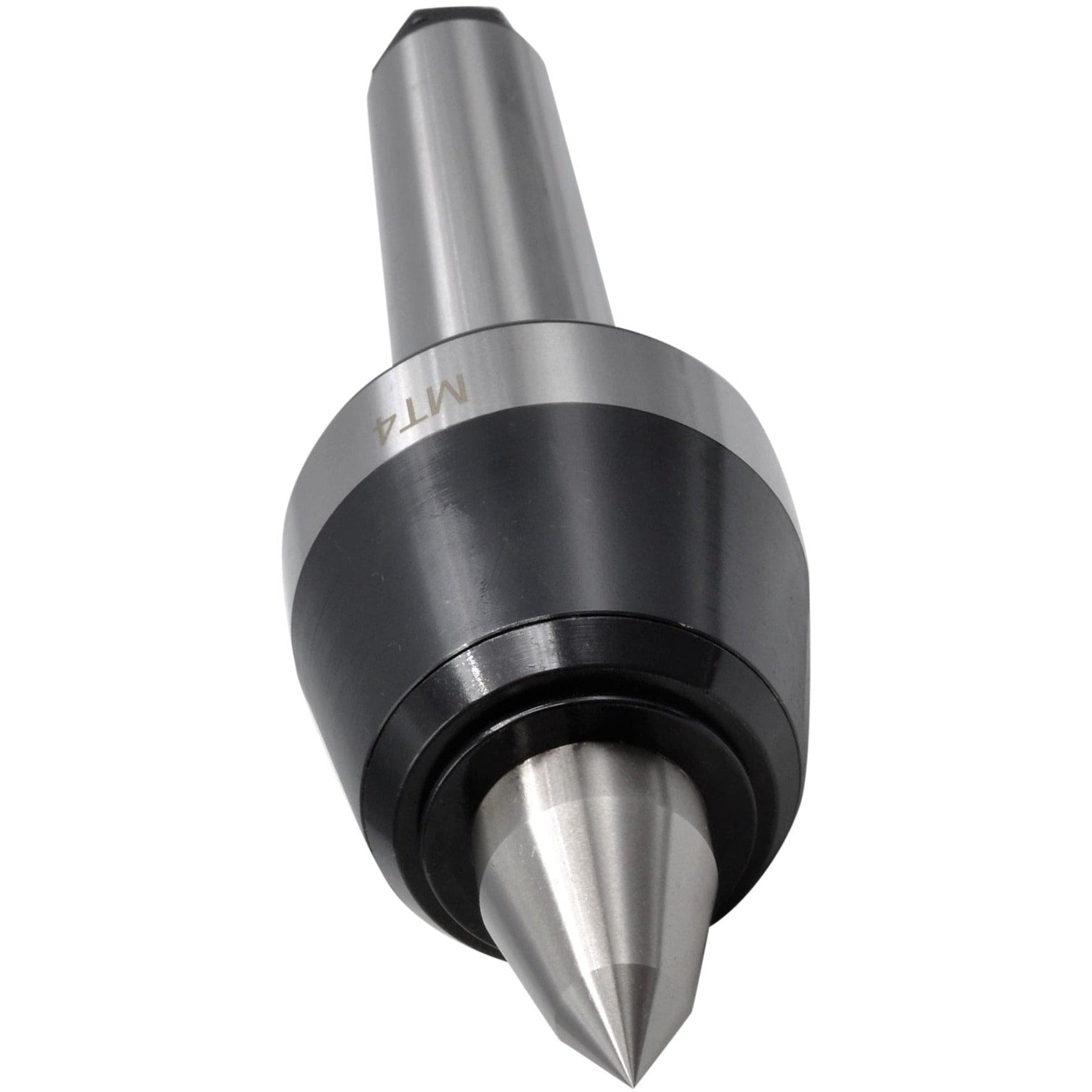

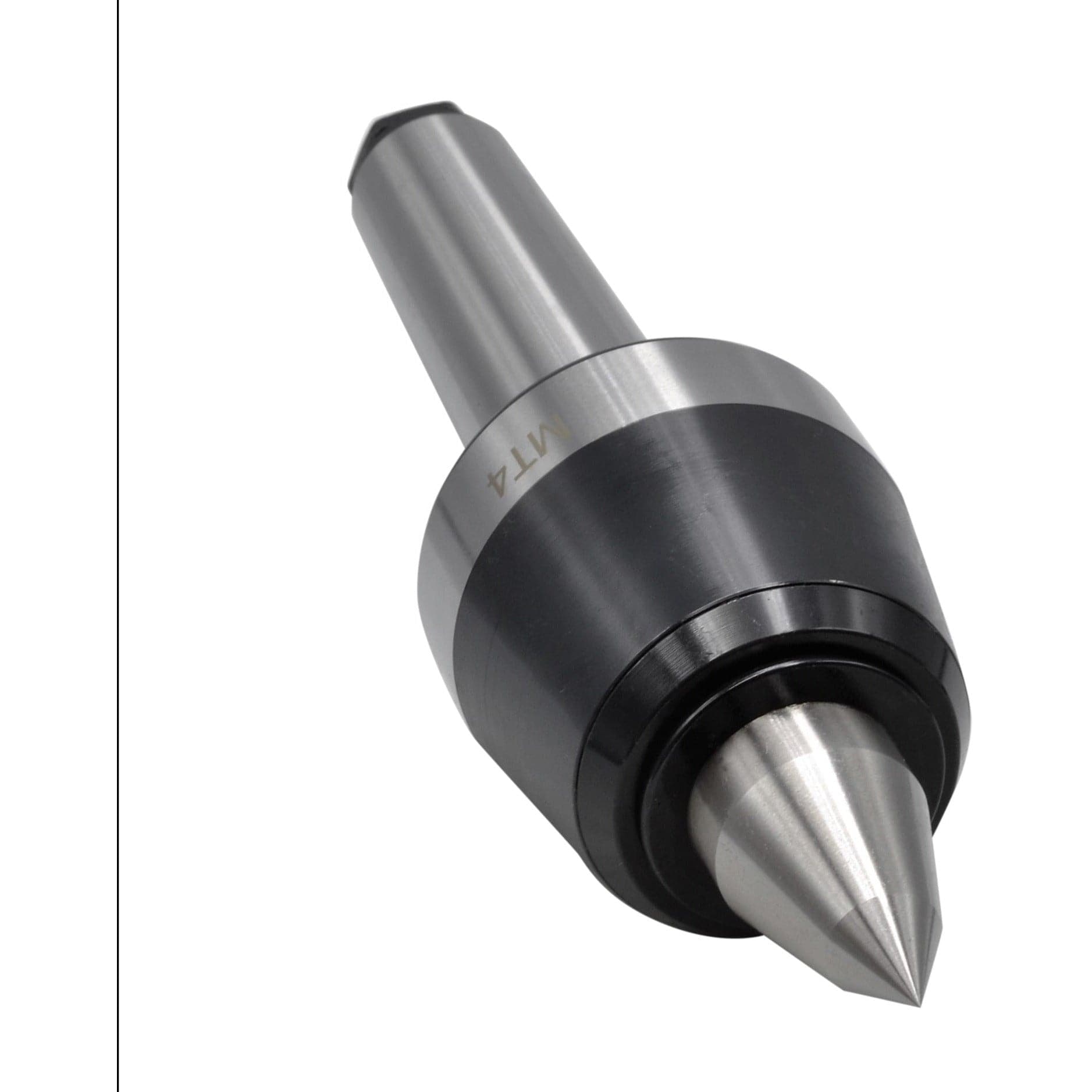

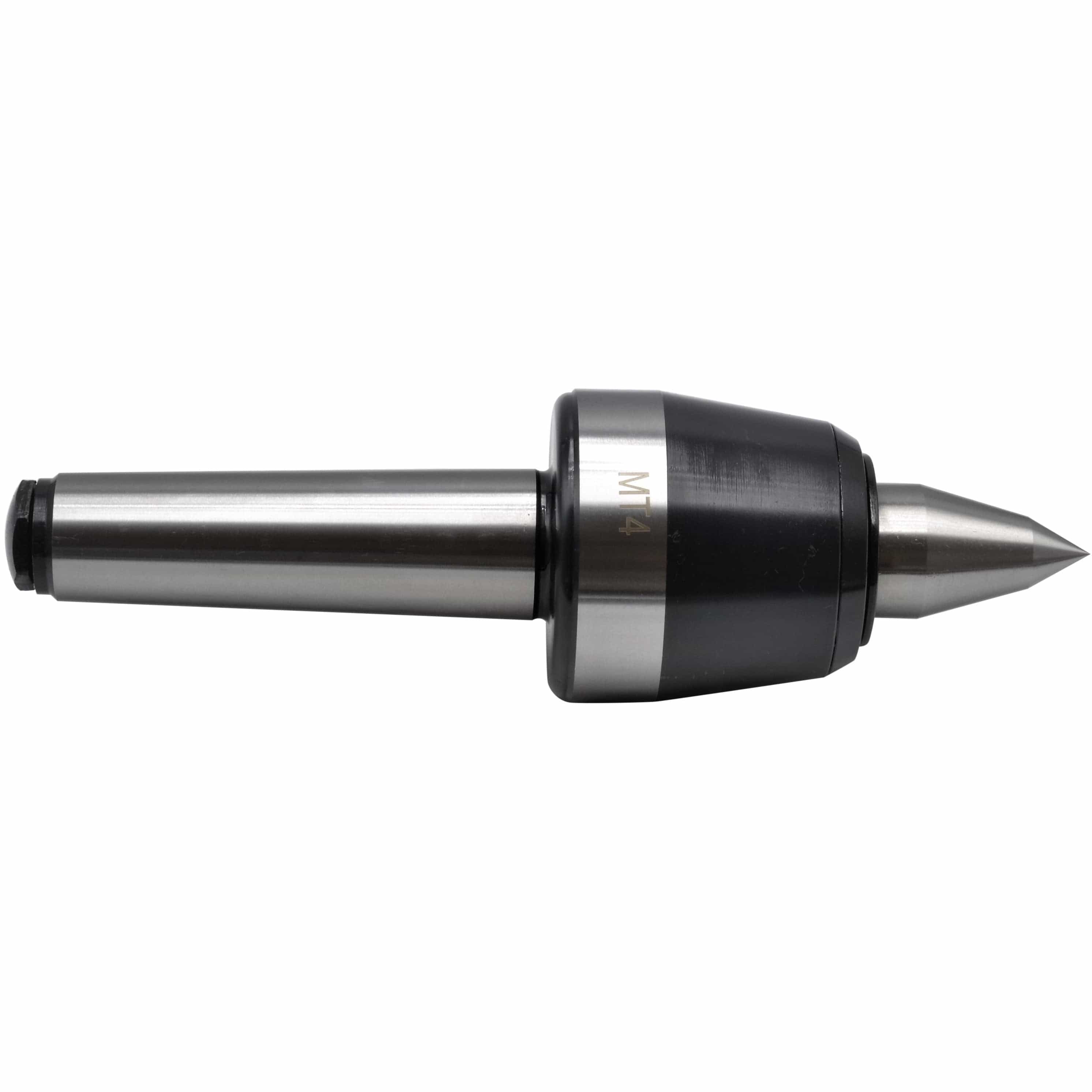

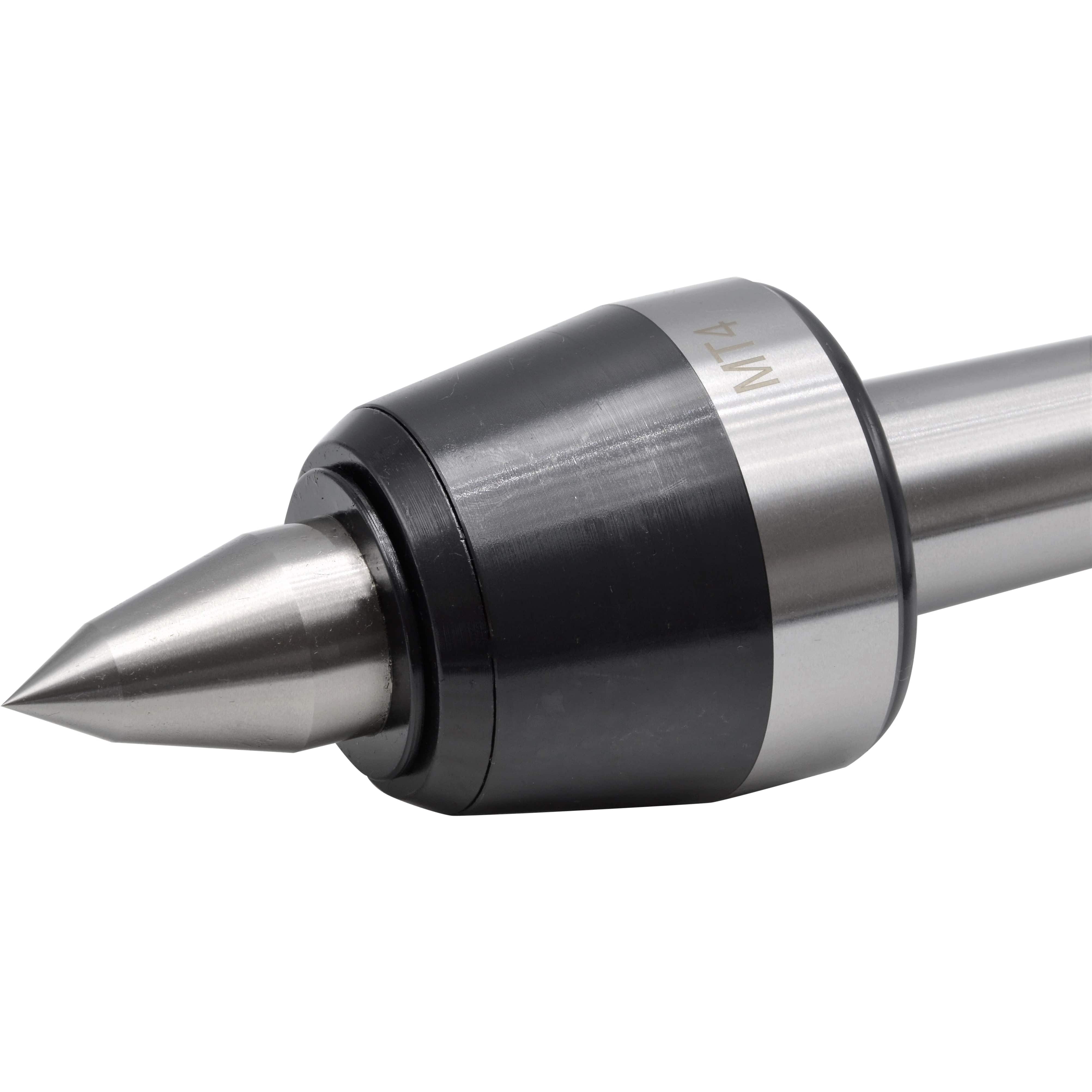

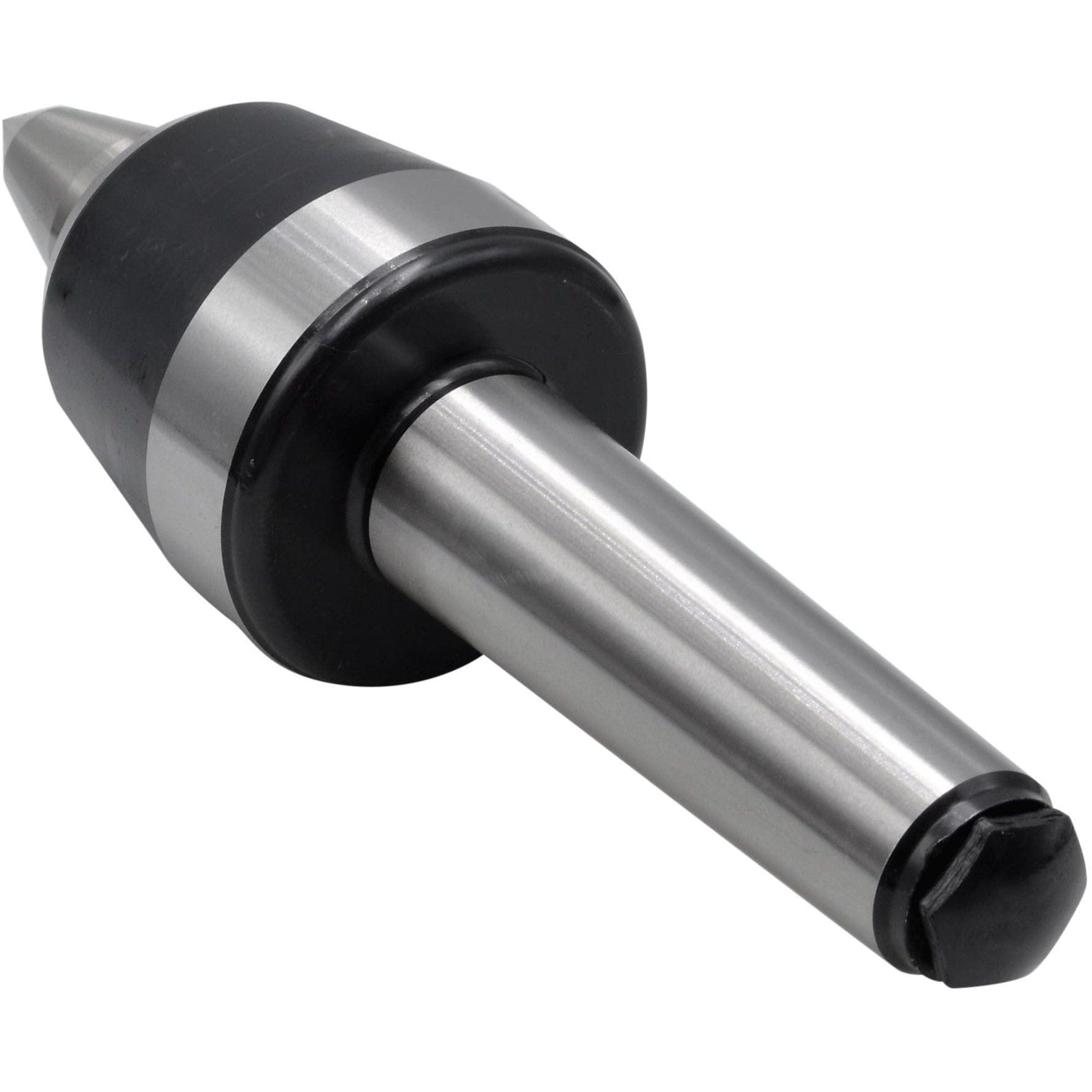

Morse Taper 4 Extended Nose Precision High Speed Live Centre

Morse Taper 4 High Speed Live Centre Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing...
£128.00
£128.00
(-0%)
Vendor: Dajiu
SKU: 596
Availability: In Stock
Subtotal: £128.00
Morse Taper 4 Extended Nose Precision High Speed Live Centre M14 drawbar

Morse Taper 4 Extended Nose Precision High Speed Live Centre

£128.00

Morse Taper 4 Extended Nose Precision High Speed Live Centre

£128.00

Morse Taper 4 High Speed Live Centre

Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 4
  • Part No:DJ-LO8026/MT4
  • Max RPM: 3500
  • Accuracy: 0.005 mm
  • Load Capacity: 700 kg
  • 60 Degree Centre Point
  • Triple bearing
  • M14 Drawbar thread with cap

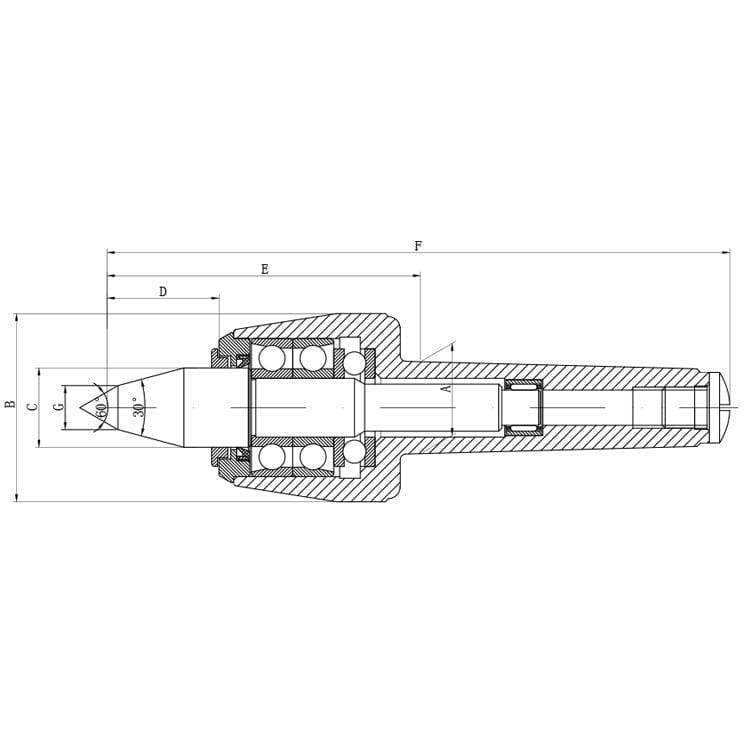

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 42 16
    29
    76
    140 8
    MT3 23.825 54 24 41 103 184 12
    MT4 31.267 64 28
    48 120 223 15
    MT5 44.399 69
    32
    55
    128 258 18
