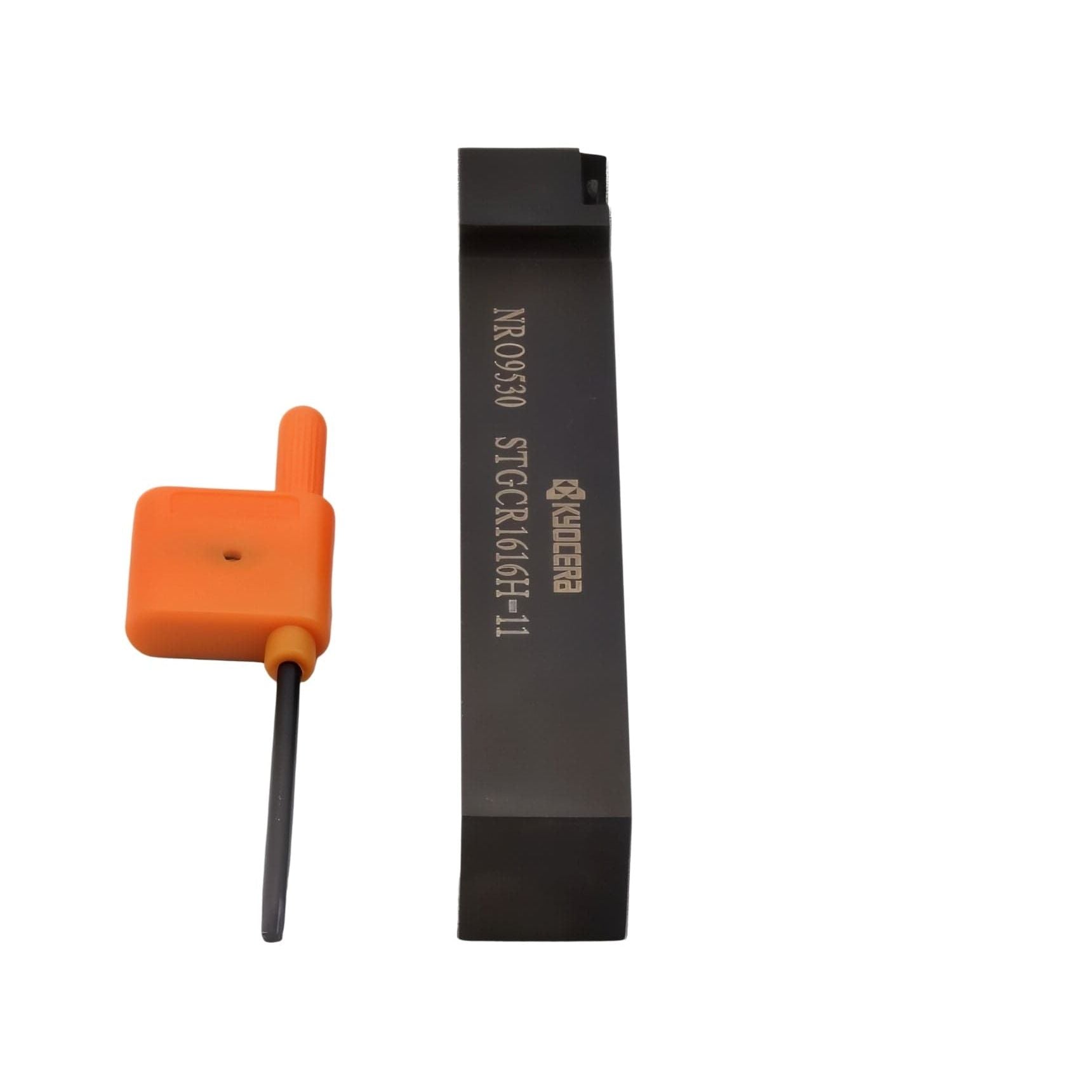

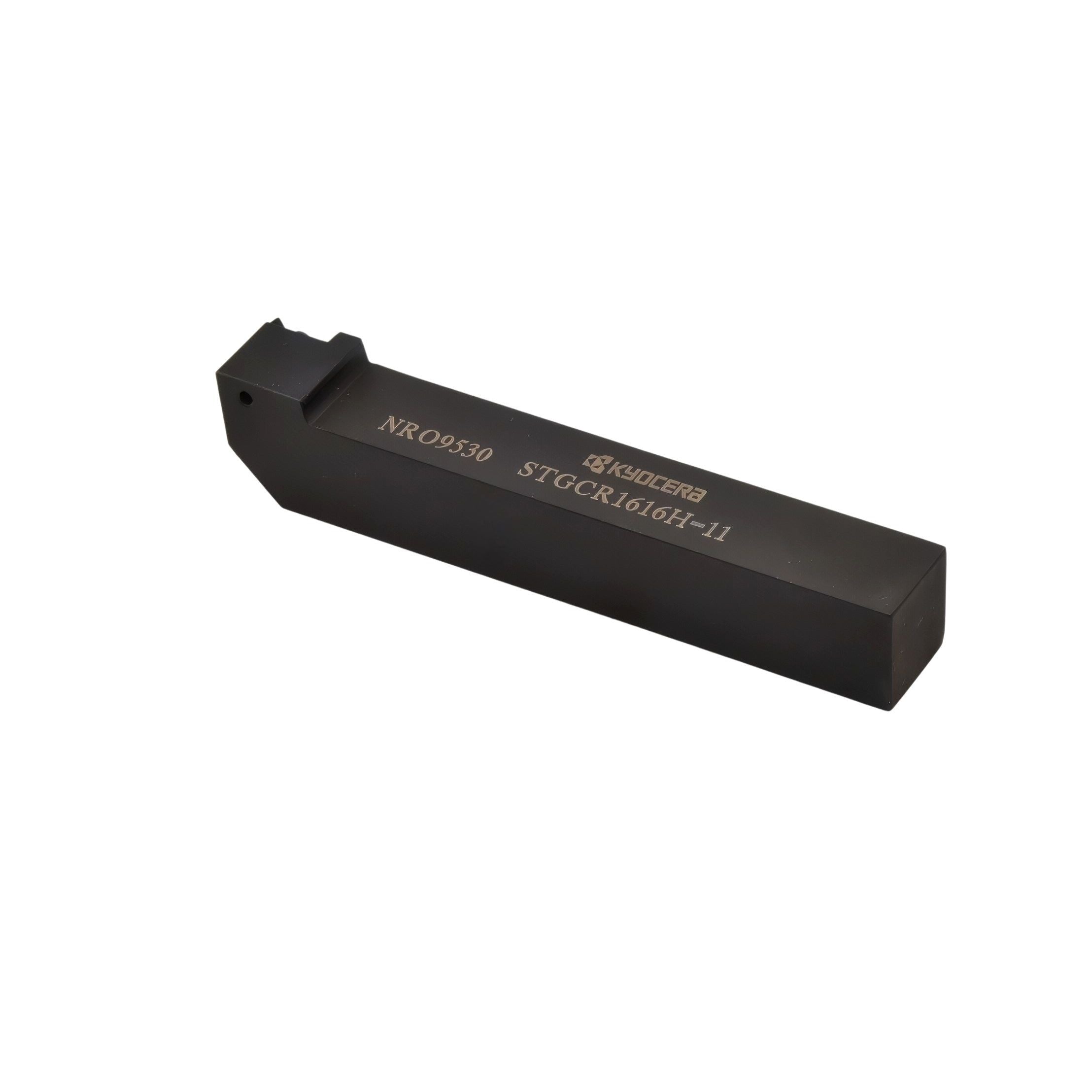

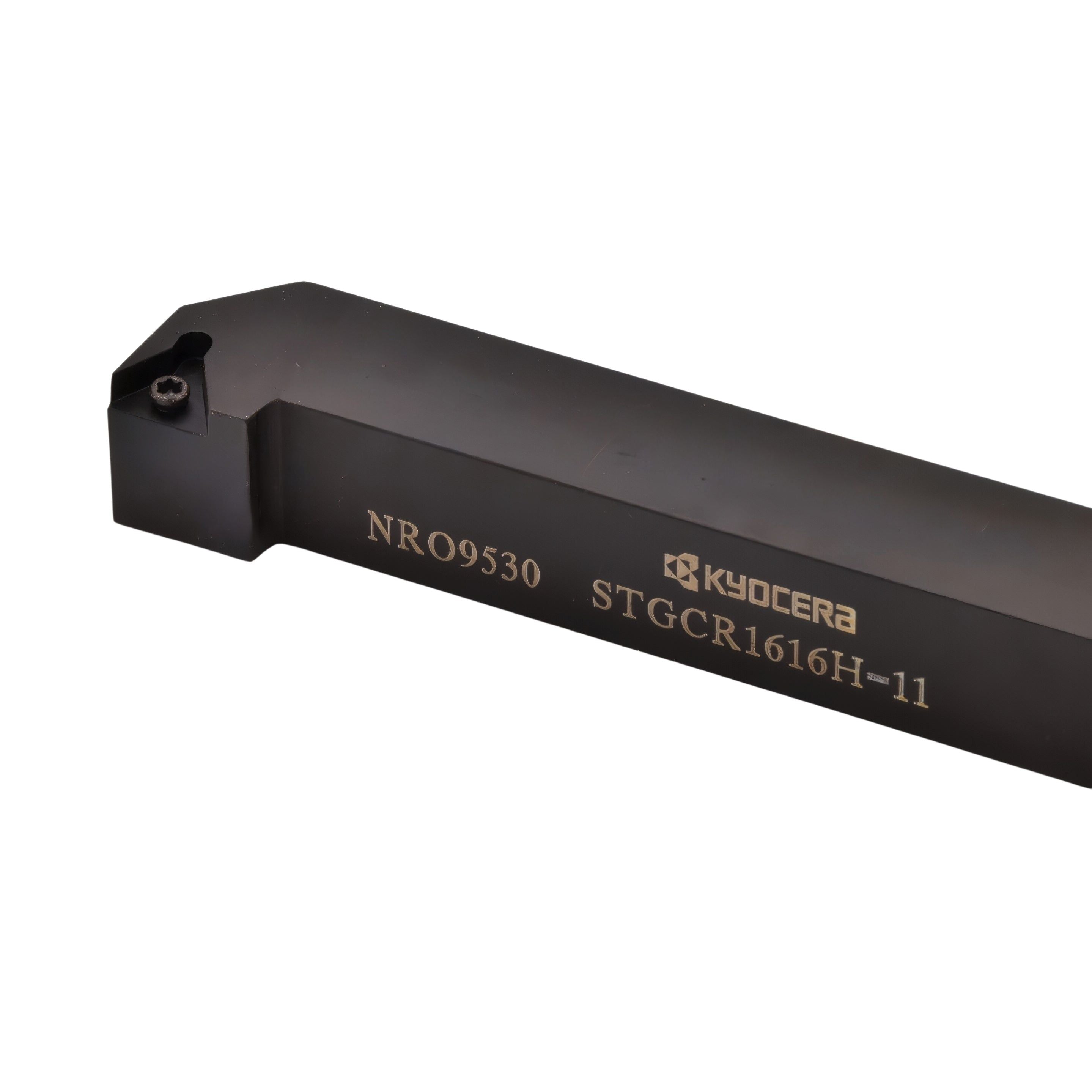

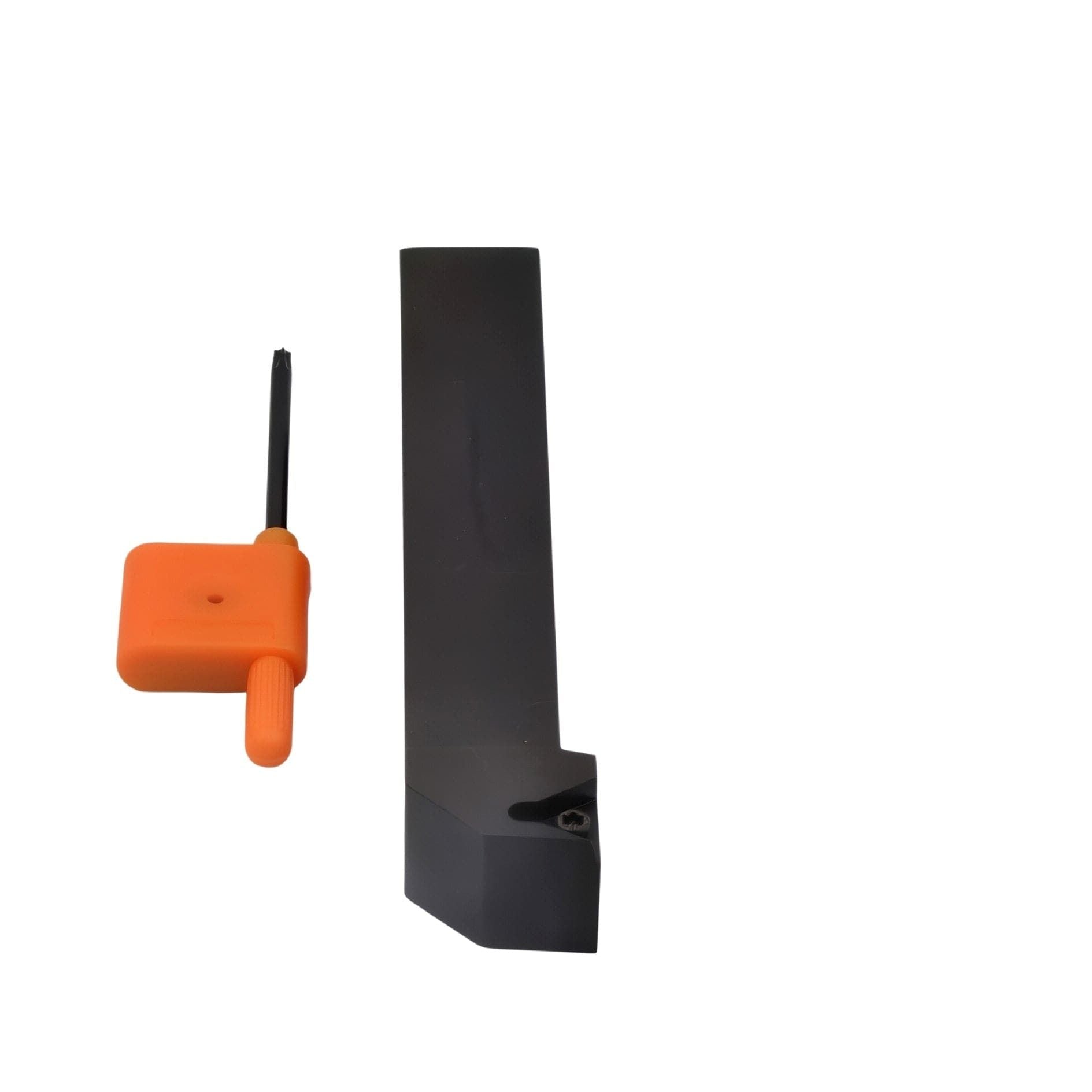

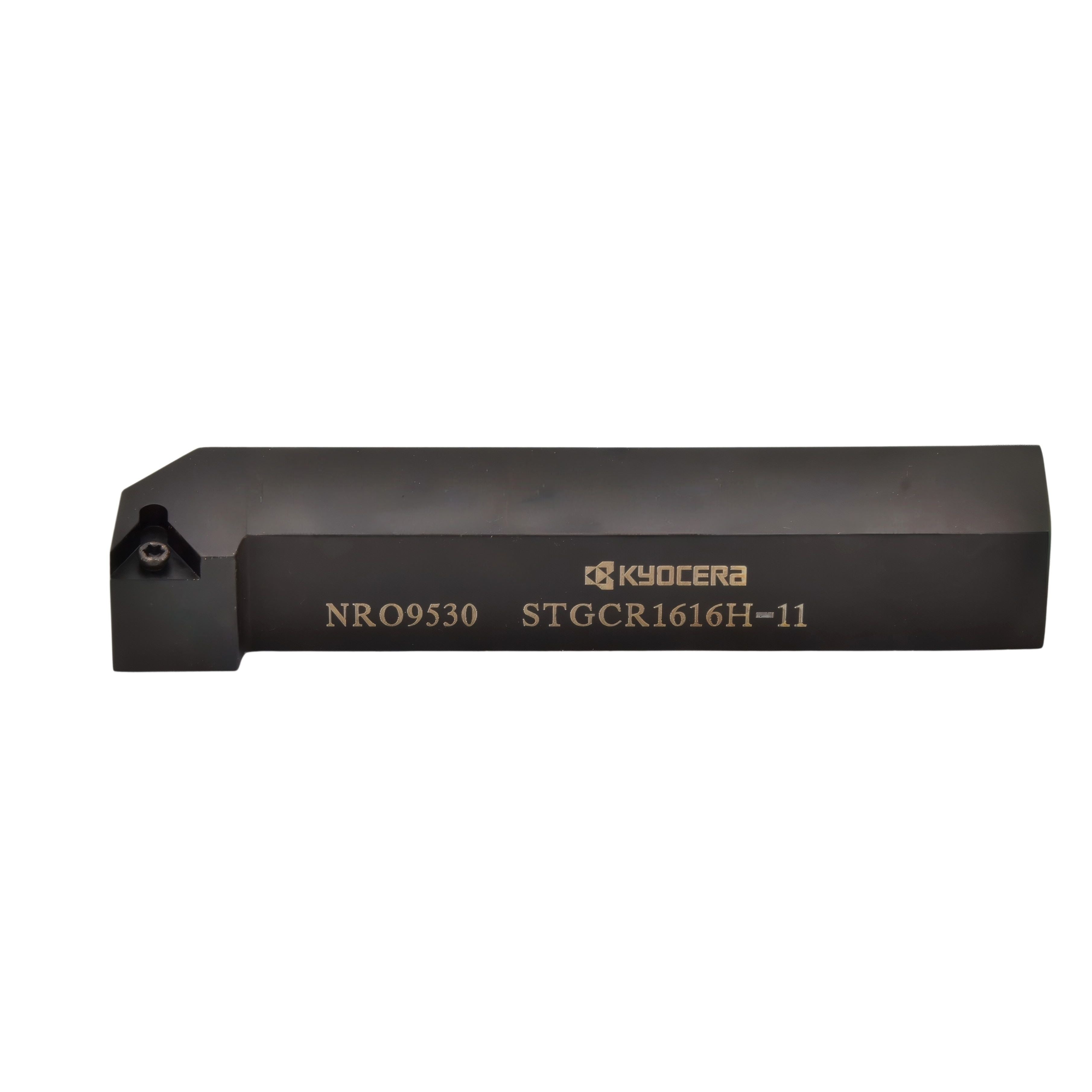

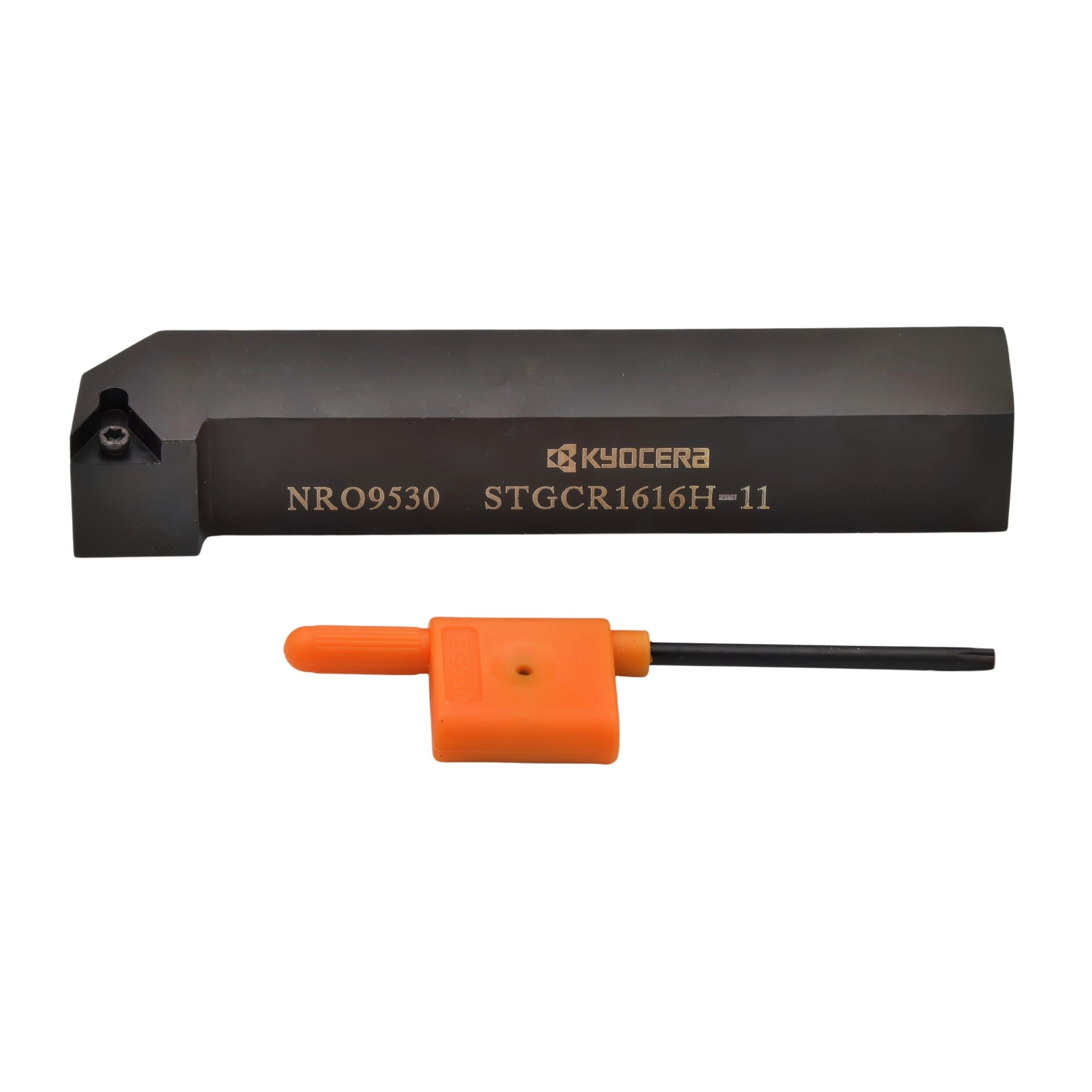

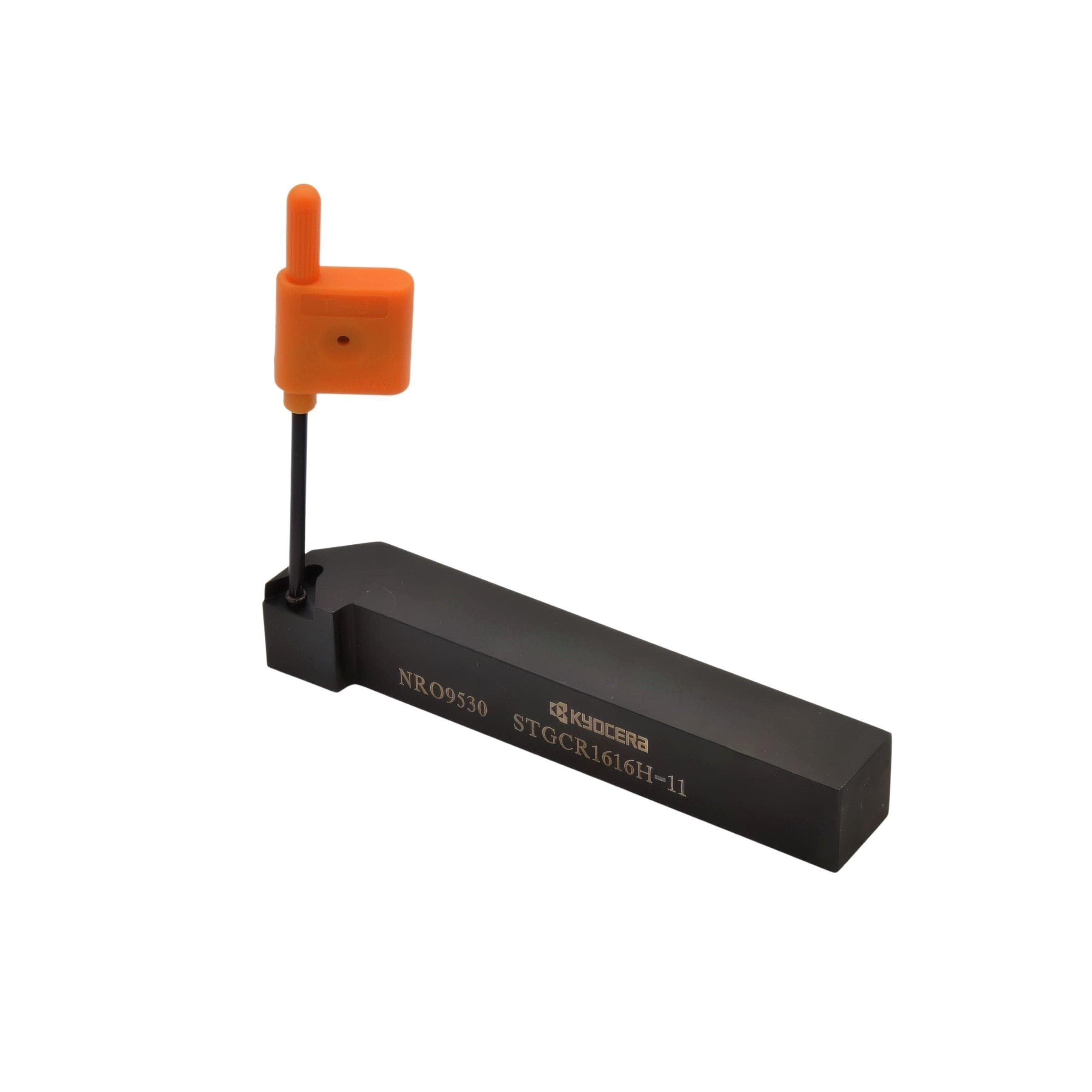

Kyocera STGCR1616H-11 External Turning Toolholder

The Kyocera STGCR1616H-11 external turning toolholder is a compact and precision-engineered solution designed for small-part machining and finishing applications. With its right-hand configuration and optimised geometry, this toolholder is ideal...
£114.00
£0.00
£114.00
(-0%)
SKU: STGCR1616H-11
Availability: In Stock
Subtotal: £114.00
KYOCERA ASIA PACIFIC PTE LTD TOOL HOLDERS Kyocera STGCR1616H-11 External Turning Toolholder

Kyocera STGCR1616H-11 External Turning Toolholder

£0.00 £114.00

Kyocera STGCR1616H-11 External Turning Toolholder

£0.00 £114.00

The Kyocera STGCR1616H-11 external turning toolholder is a compact and precision-engineered solution designed for small-part machining and finishing applications. With its right-hand configuration and optimised geometry, this toolholder is ideal for external turning, facing, and light profiling where accuracy and control are essential.

This toolholder is designed to accommodate positive 55° diamond inserts (DCMT style), providing sharp cutting action, reduced cutting forces, and improved surface finish. The screw clamp system ensures secure insert retention and precise positioning, while the durable steel construction offers excellent rigidity and vibration resistance for consistent machining performance.

Key Features & Benefits

  • External turning toolholder for small-part and precision machining
  • Right-hand configuration for standard turning operations
  • Compatible with 55° diamond inserts (DCMT style)
  • 93° approach angle for efficient profiling and facing
  • Screw clamp system for secure and repeatable insert positioning
  • Compact 16 x 16 mm shank for smaller machines and tight setups
  • High-strength steel construction for durability and rigidity
  • Reduced vibration for improved surface finish
  • Suitable for CNC and conventional lathes

Technical Specifications

  • Brand: Kyocera
  • Model: STGCR1616H-11
  • Item Number: THC05290
  • Product Type: External Turning Toolholder
  • Holder Style: STGCR
  • Insert Type: DCMT (55° Diamond)
  • Insert Size: 11
  • Shank Size: 16 x 16 mm
  • Hand: Right
  • Approach Angle: 93°
  • Clamping System: Screw Clamp
  • Material: Steel
  • Total Length: 100 mm
  • Head Length (LH): 15 mm
  • Internal Coolant: No

Kyocera tooling is globally recognised for its advanced engineering, durability, and machining performance, making it a trusted choice for precision manufacturing across a wide range of industries.
