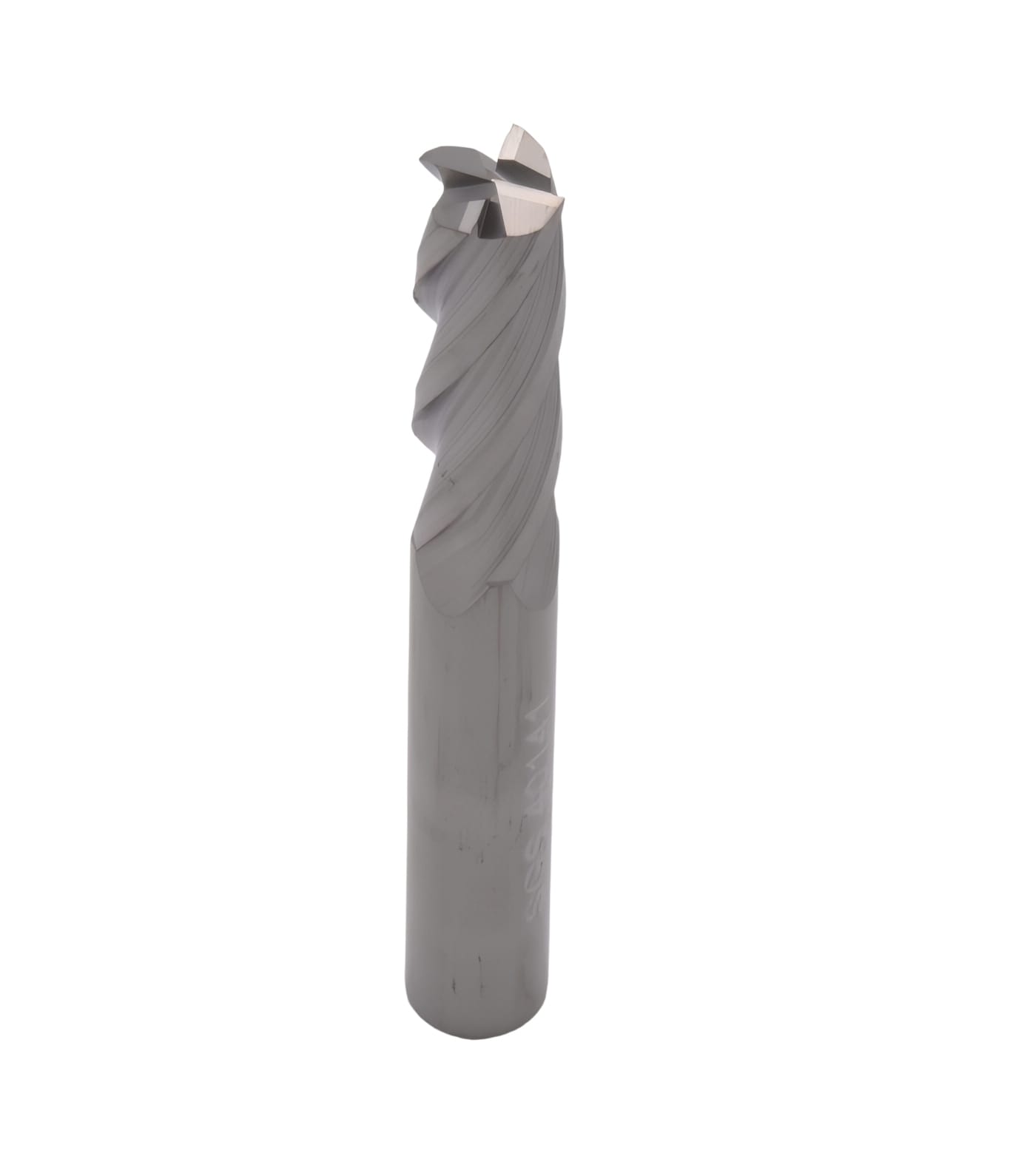

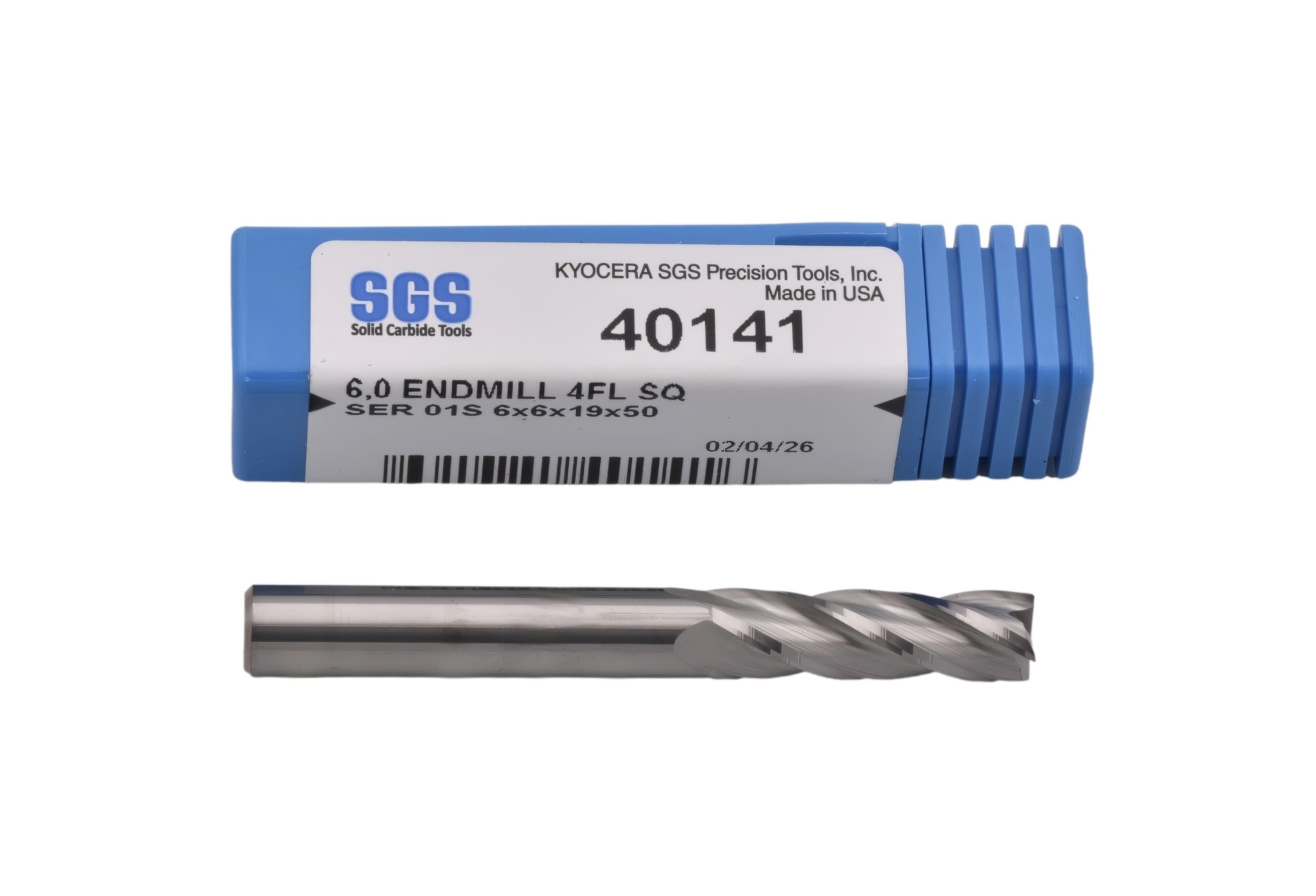

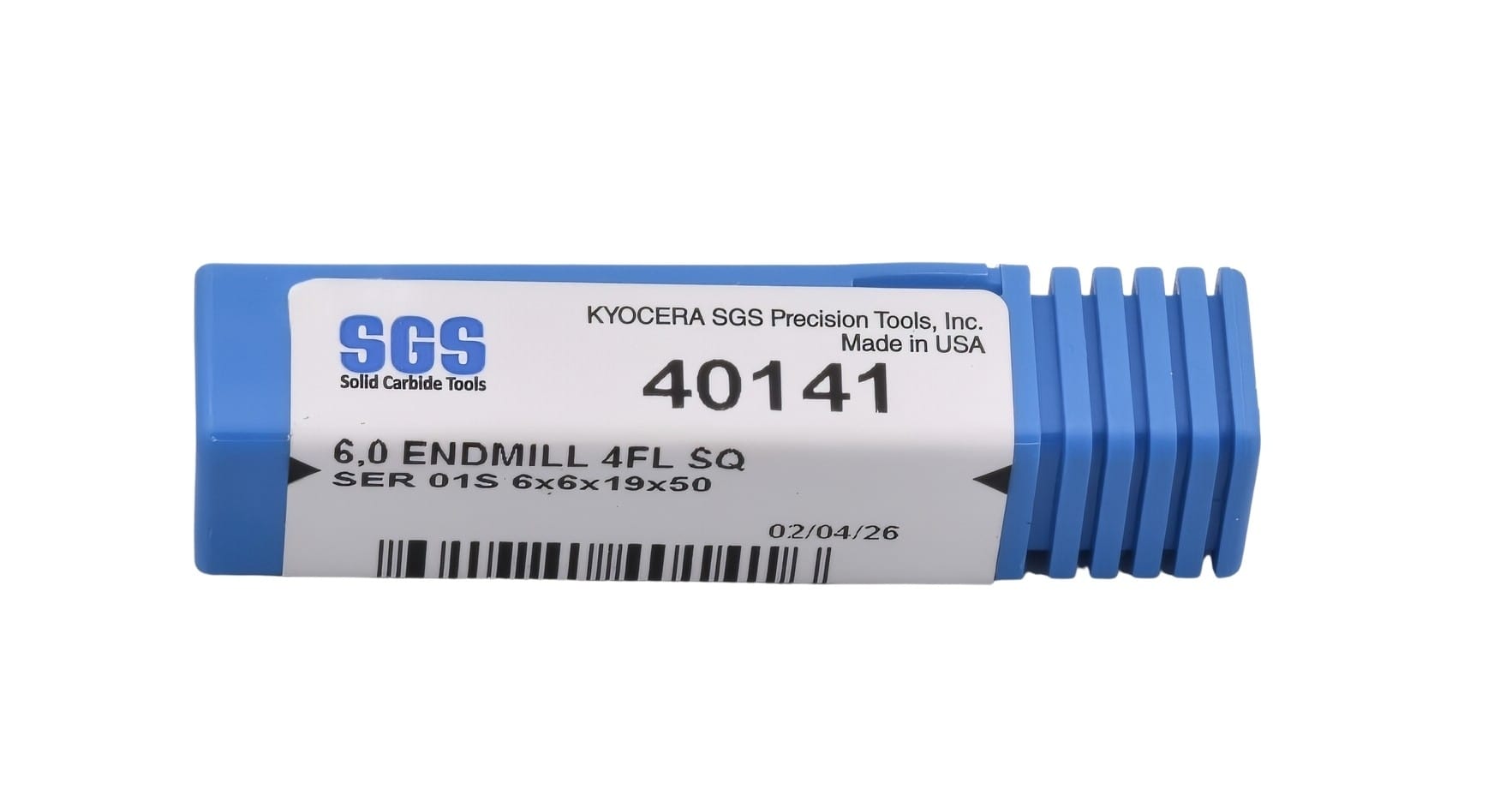

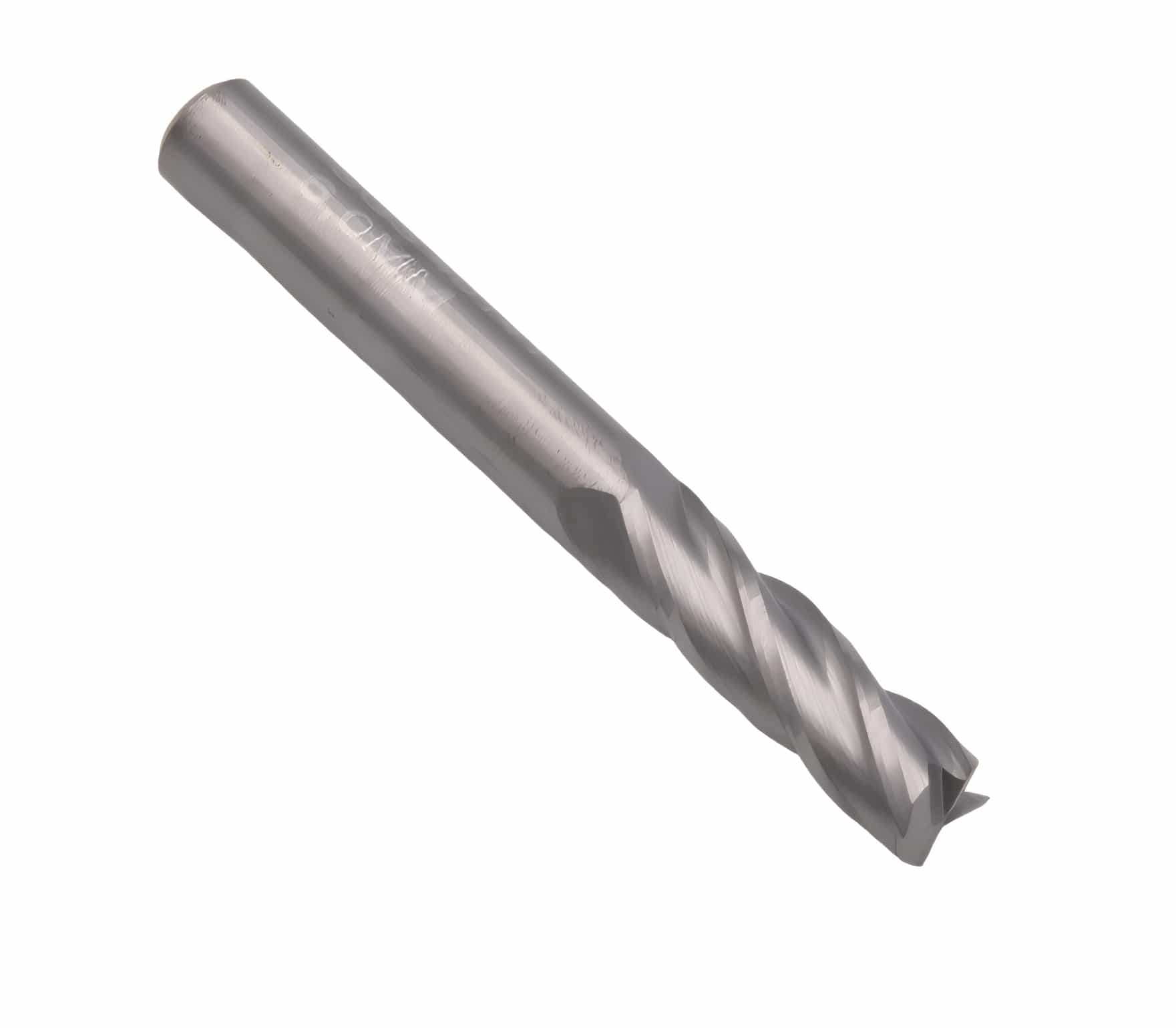

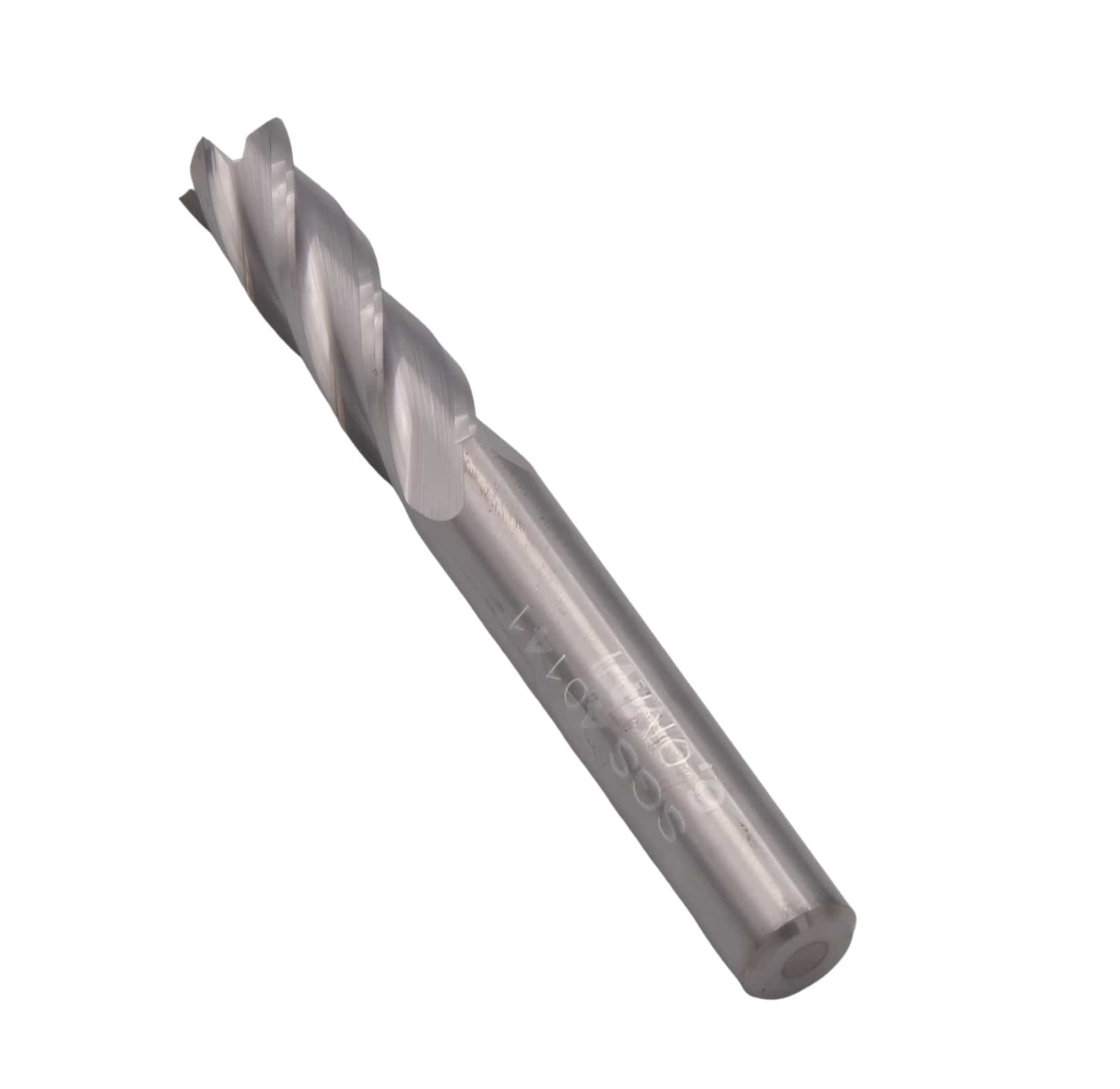

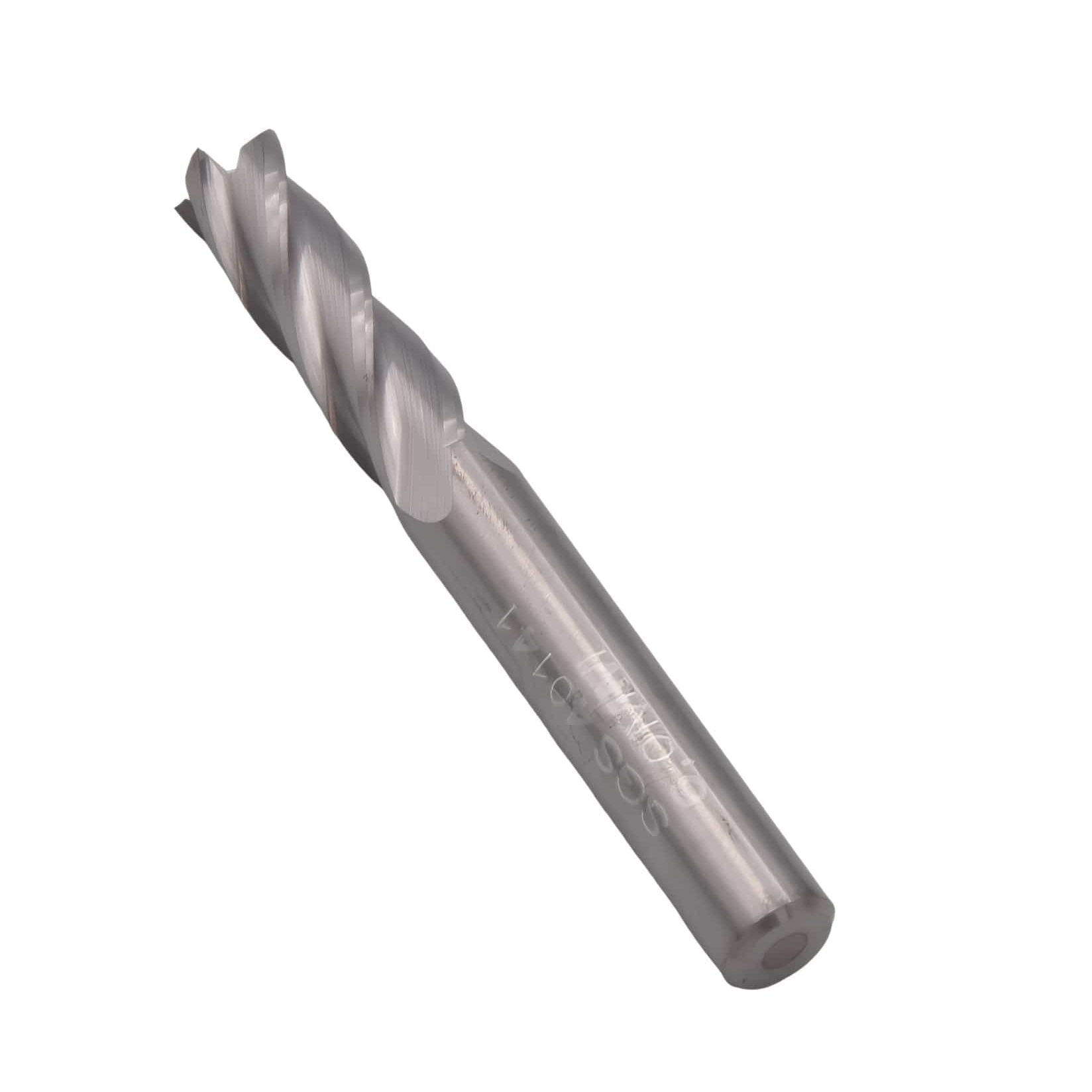

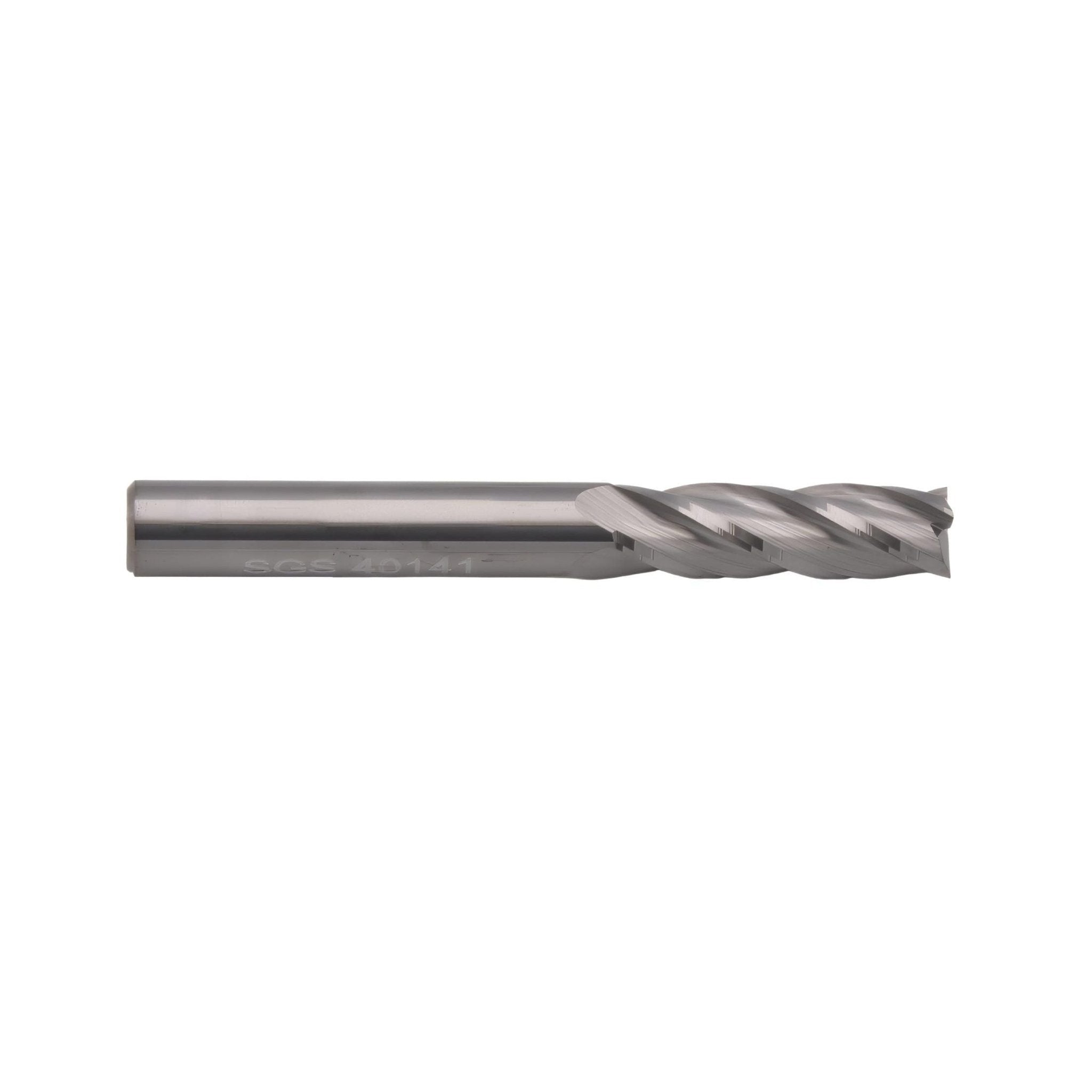

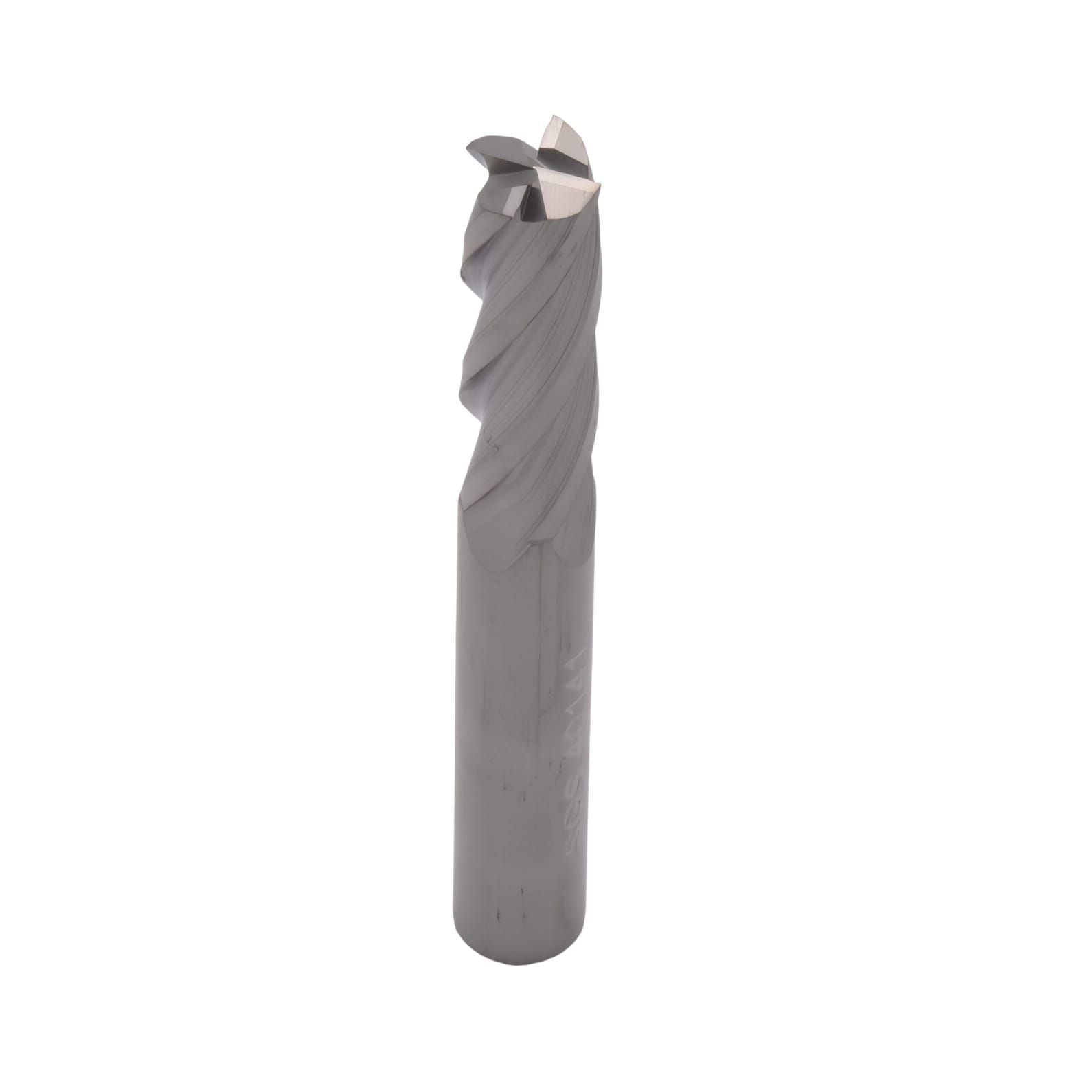

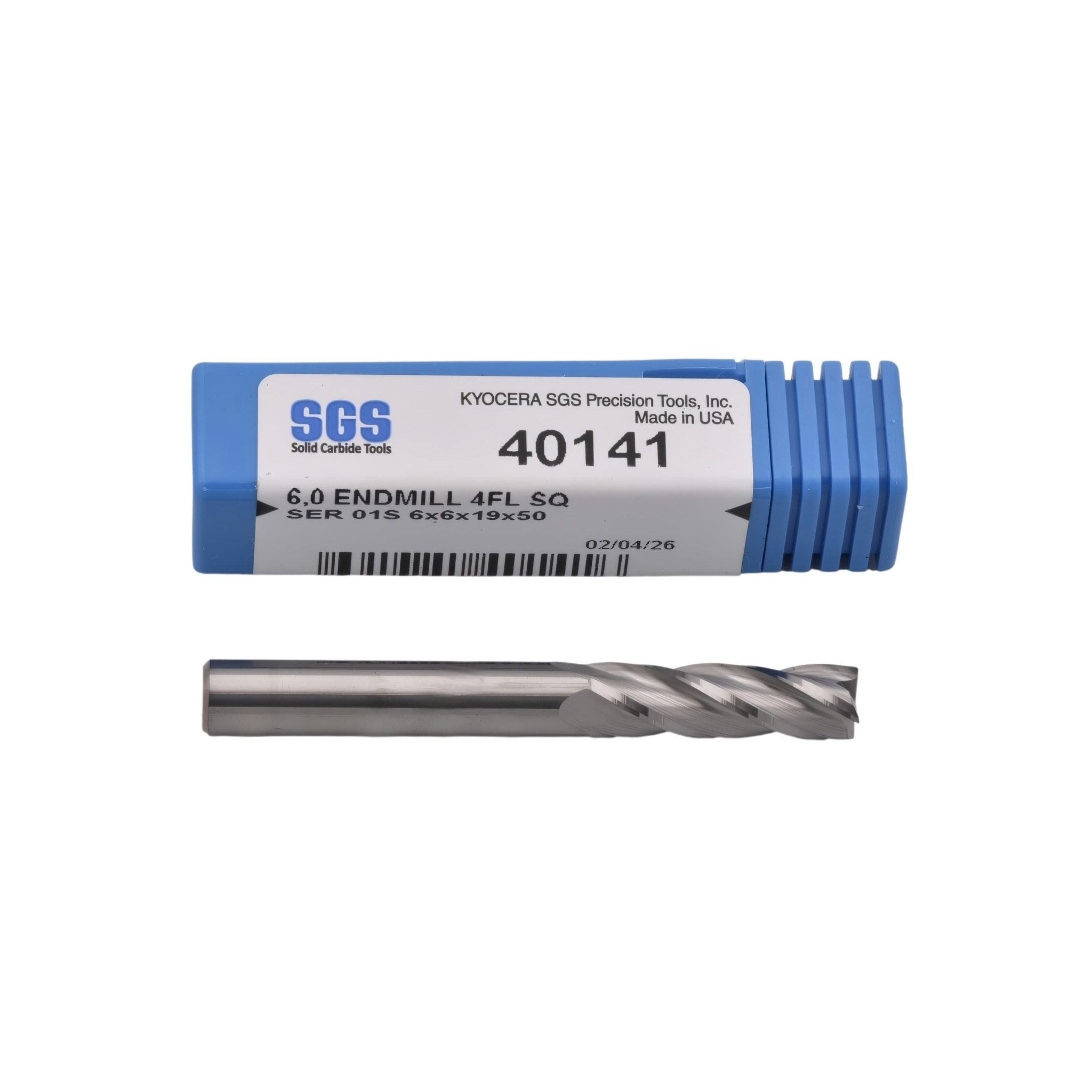

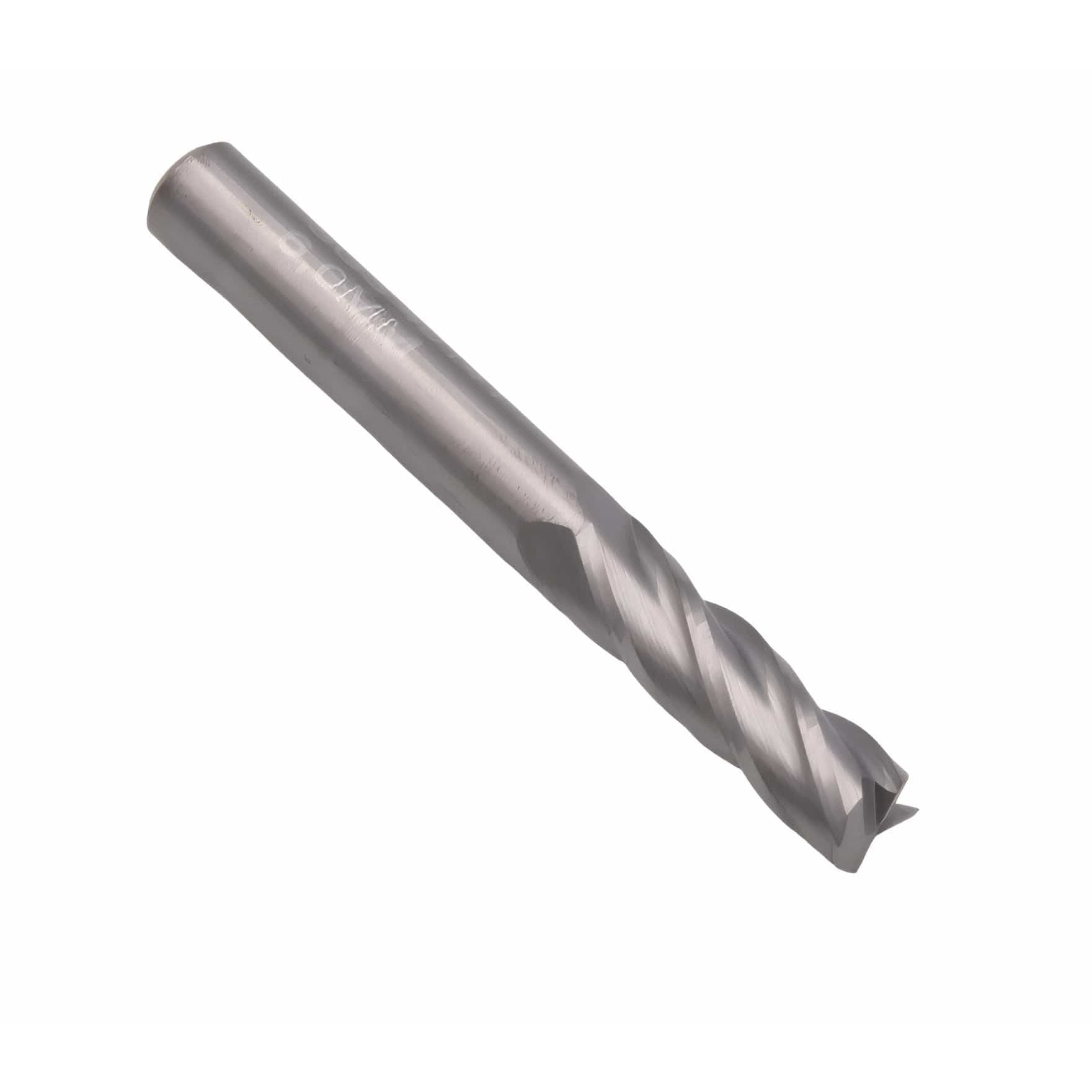

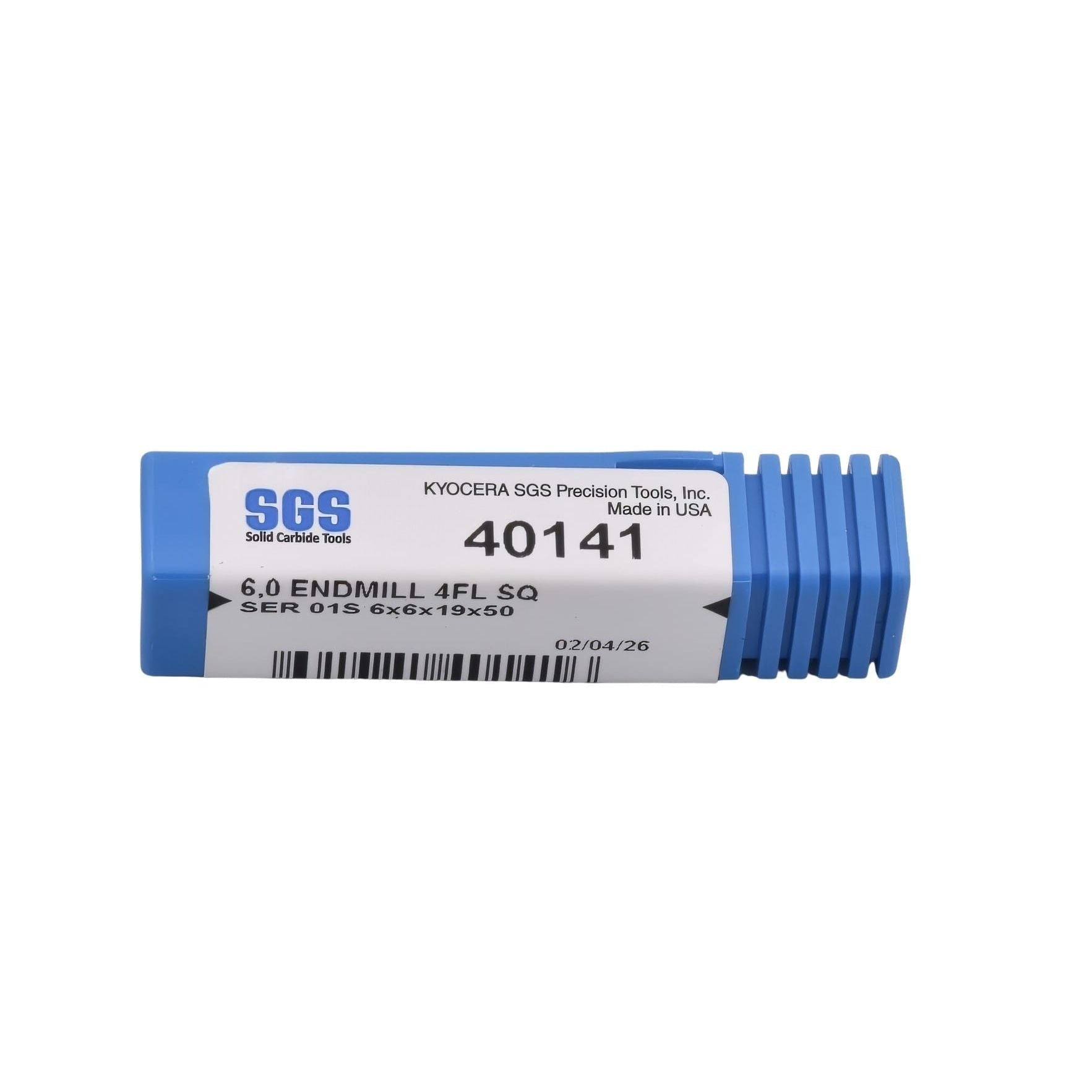

Kyocera SGS - 6.0mm 4 Flute Uncoated Carbide End Mill Short Series

Professional quality Kyocera SGS KSP40141 6mm 4 flute uncoated carbide end mill designed for general-purpose milling applications. This square end mill features a positive rake angle, 30° right-hand spiral geometry...
£52.00
£0.00
£52.00
(-0%)
SKU: KSP40141
Availability: In Stock
Subtotal: £52.00
KYOCERA ASIA PACIFIC PTE LTD ENDMILL Kyocera SGS - 6.0mm 4 Flute Uncoated Carbide End Mill Short Series

Kyocera SGS - 6.0mm 4 Flute Uncoated Carbide End Mill Short Series

£0.00 £52.00

Kyocera SGS - 6.0mm 4 Flute Uncoated Carbide End Mill Short Series

£0.00 £52.00

Professional quality Kyocera SGS KSP40141 6mm 4 flute uncoated carbide end mill designed for general-purpose milling applications. This square end mill features a positive rake angle, 30° right-hand spiral geometry and right-hand cutting direction for efficient cutting performance and dependable chip evacuation across a broad range of workpiece materials.

Manufactured from carbide with a bright uncoated finish, the KSP40141 provides a versatile machining solution for steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys. Hardened materials are also listed as a secondary application. The center-cutting design provides additional versatility for plunging and other axial entry operations.

Product Features

  • Genuine Kyocera SGS general application carbide end mill
  • 6.00 mm cutting diameter
  • 4 flute square end configuration
  • Short series design for stable machining
  • Bright uncoated carbide construction
  • 30° right-hand spiral helix
  • Positive rake angle for efficient cutting
  • Right-hand cut direction
  • Center cutting for plunging capability
  • 19 mm length of cut
  • 50 mm overall length
  • 6 mm straight shank
  • h6 shank diameter tolerance
  • External coolant compatible
  • No Weldon flat

Technical Specifications

  • Brand: Kyocera SGS
  • Part Number: KSP40141
  • Series: 01S
  • Series Description: General Application End Mill
  • End Configuration: Square End
  • Tool Type: Carbide End Mill
  • Number of Flutes: 4
  • Cutting Diameter (DC): 6.00 mm
  • Shank Diameter (DCON): 6.00 mm
  • Shank Diameter Tolerance: h6
  • Length of Cut (APMX): 19.00 mm
  • Overall Length (LF): 50.00 mm
  • Shank Length (LS): 31.04 mm
  • Tool Length: Long
  • Shank Type: Straight
  • Helix Angle: 30°
  • Helix Direction: Right Spiral
  • Variable Helix: No
  • Cut Direction: Right Hand Cut
  • Rake Angle: Positive
  • Center Cutting: Yes
  • Chip Breaker: No
  • Weldon Flat: No
  • Coolant: External Coolant
  • Coating: Bright / Uncoated
  • Flute Type: Spiral
  • Cutting Diameter Tolerance: +0.000 / -0.050 mm
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials and High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.0457

Applications

The Kyocera SGS KSP40141 is suitable for general-purpose milling operations including slotting, profiling, contouring, pocketing and plunging where a 6mm 4 flute square end mill is required. Its center-cutting geometry provides additional versatility for applications requiring axial entry into the workpiece.

This carbide end mill is designed for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys, with hardened materials listed as a secondary application.
