Kyocera MFH063R-14-5T-22M 63mm Milling Toolholder (5 Inserts 22mm Bore Internal Coolant)

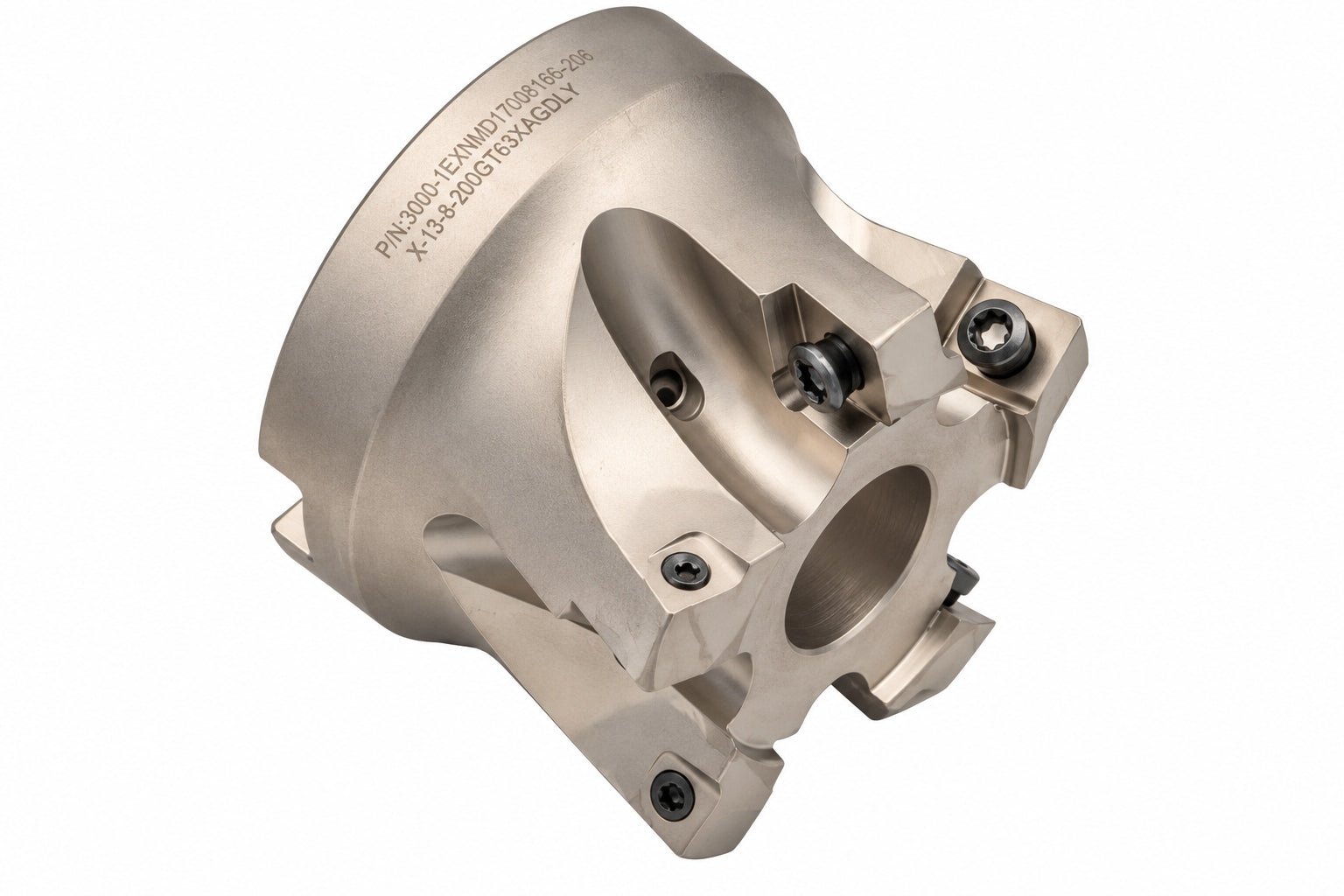

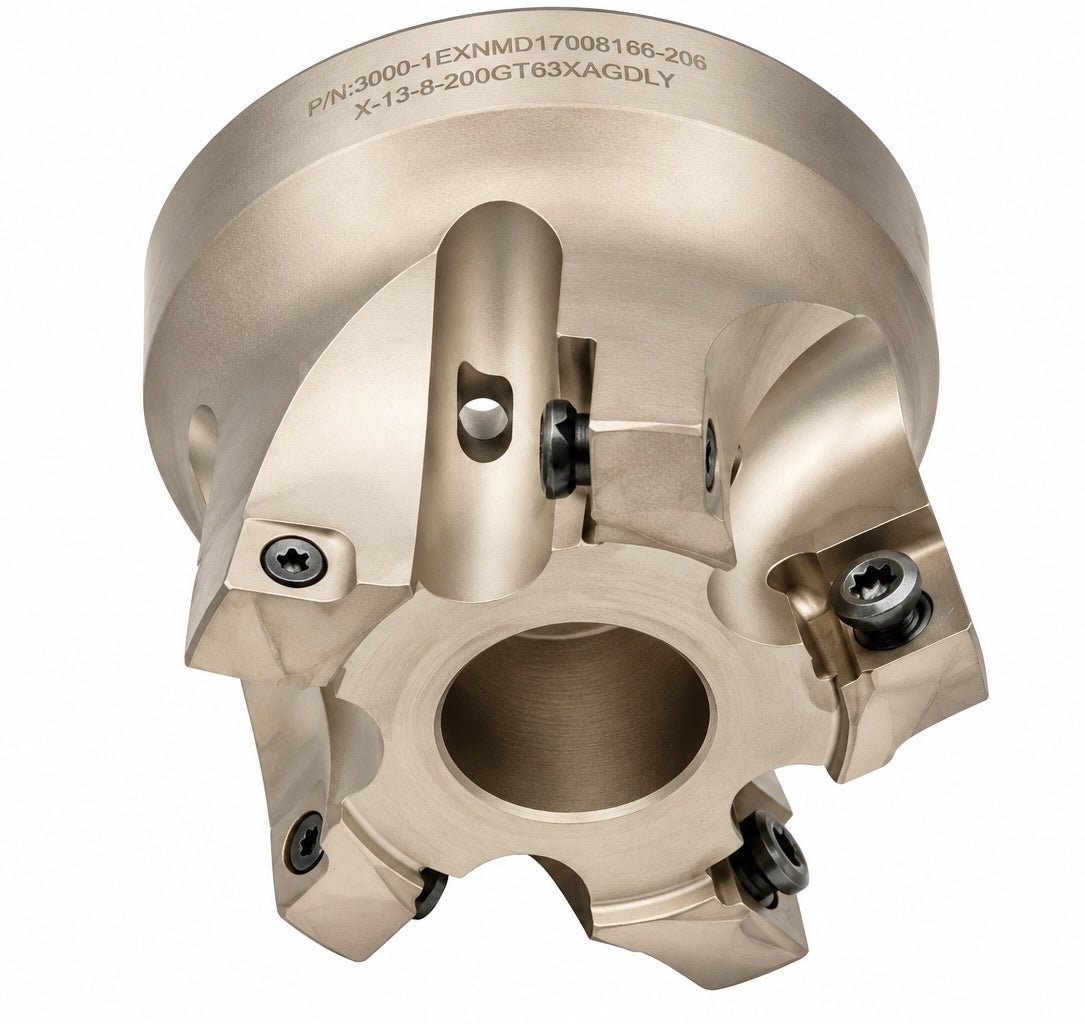

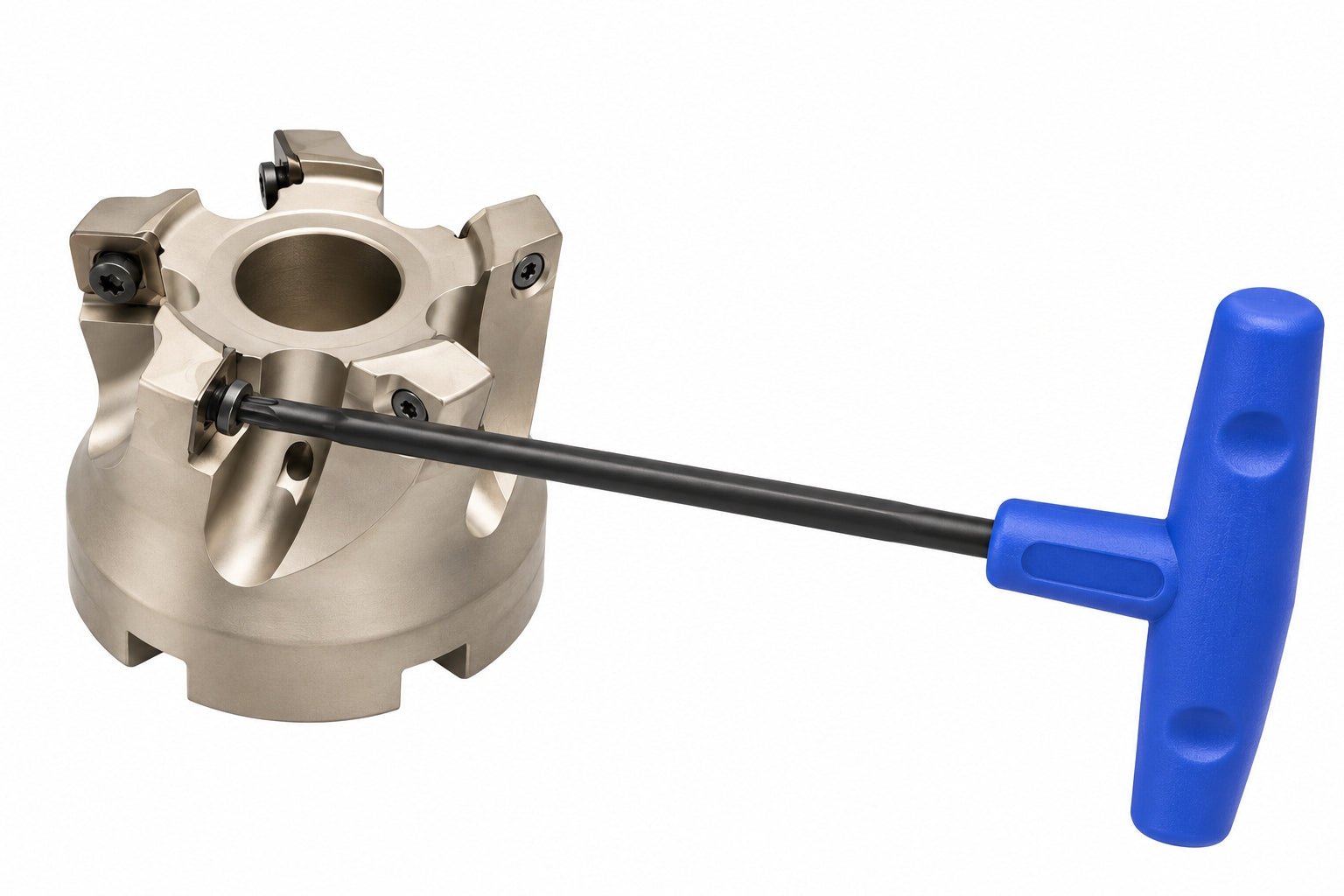

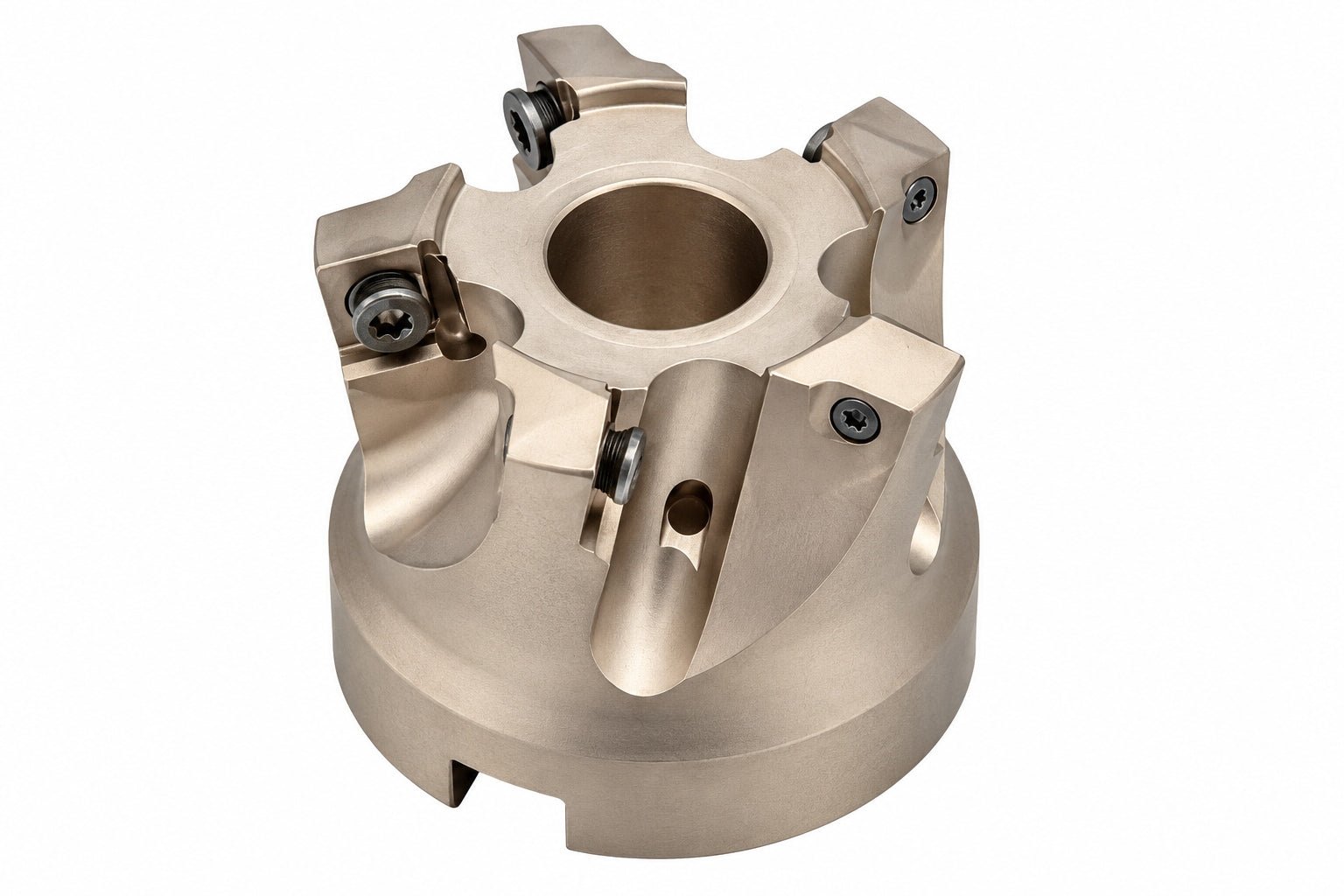

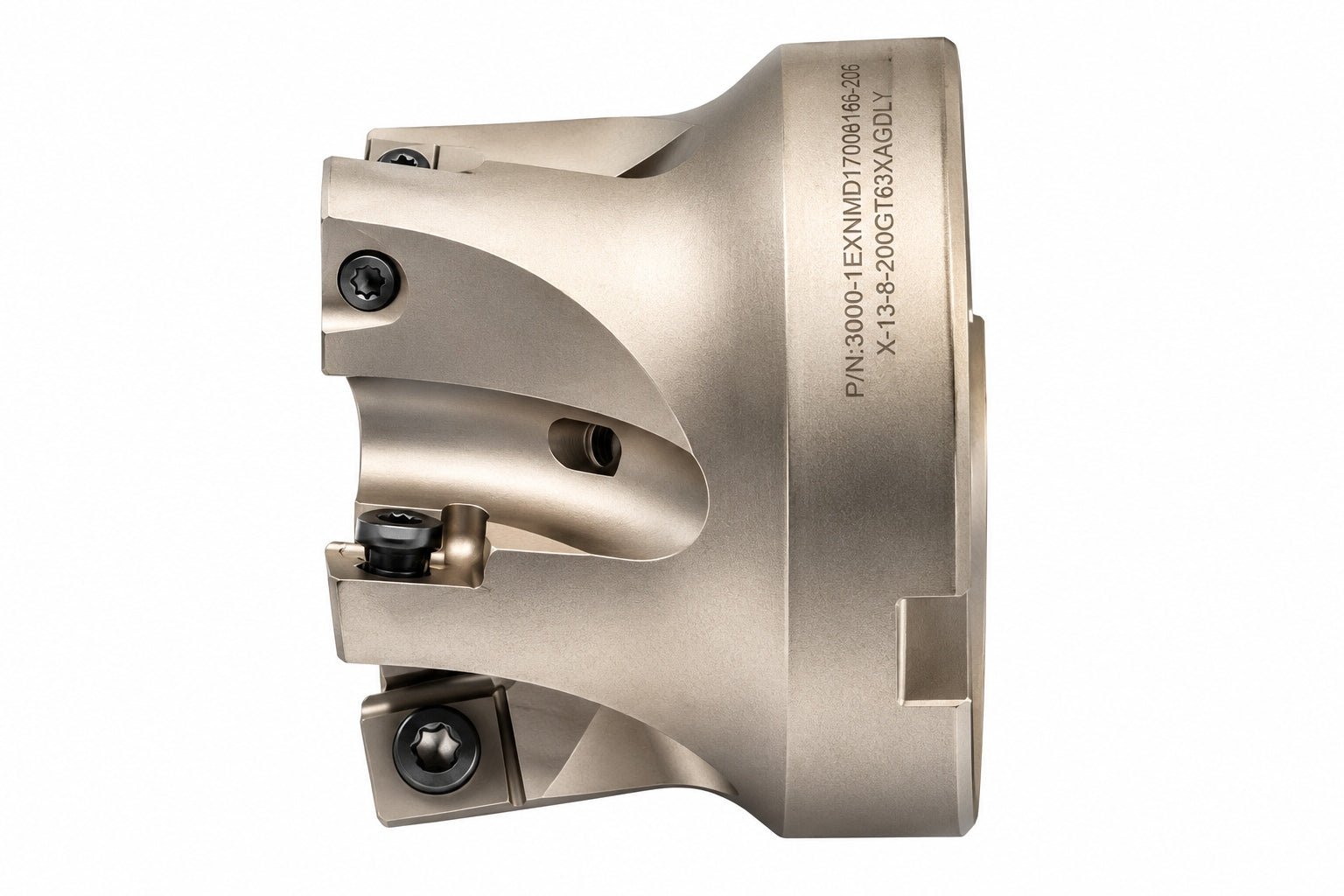

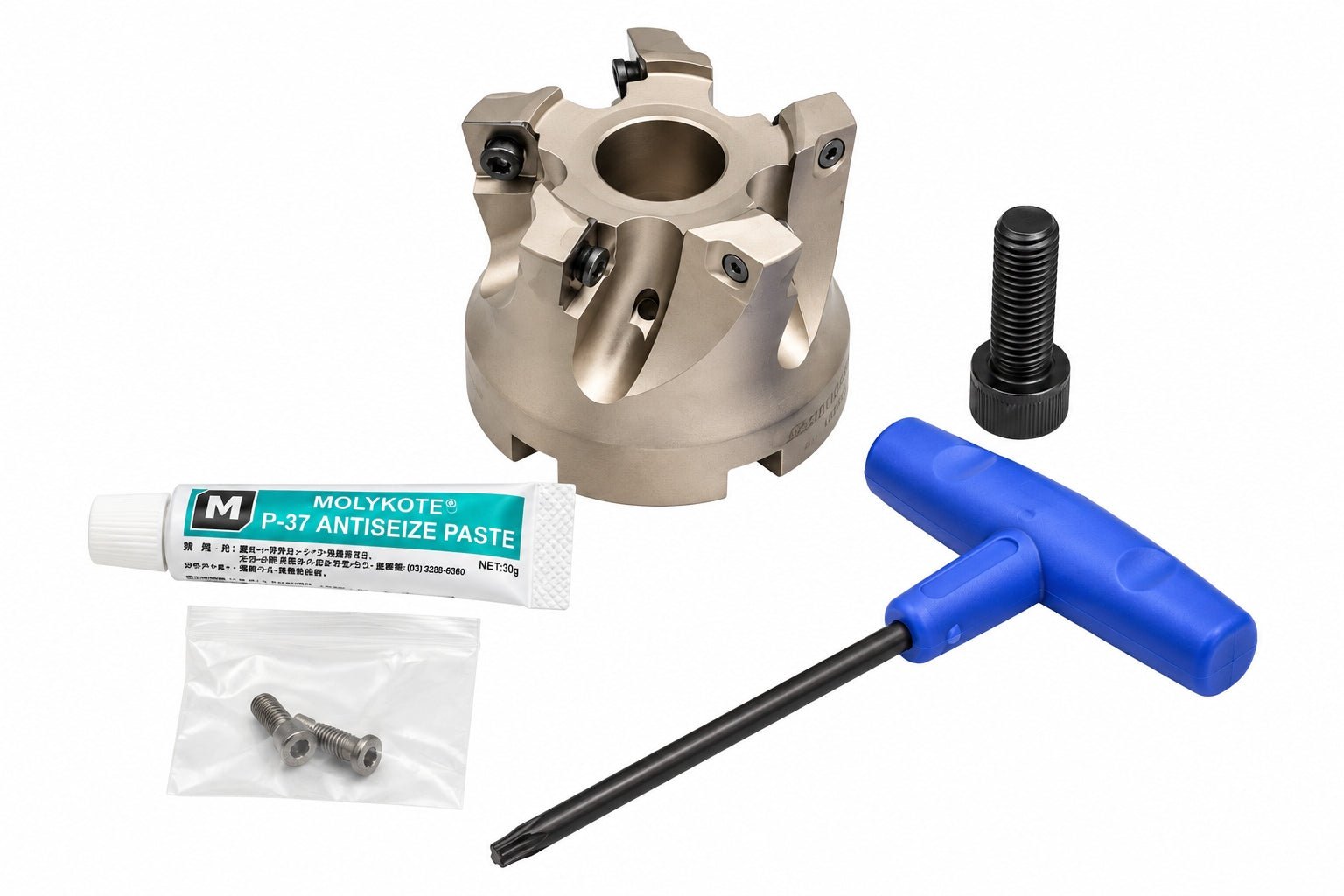

The Kyocera MFH063R-14-5T-22M Milling Toolholder is a precision-engineered milling cutter designed for efficient machining with a shallow maximum depth of cut. Featuring a 63mm cutting diameter and a five-insert configuration, it is designed to support productive milling operations with consistent cutting performance. The 22mm connection bore provides a mounting interface for compatible equipment, while the integrated internal coolant capability helps manage heat in the cutting zone. With a 50mm overall length and a 10° cutting edge angle, this toolholder is suited to compatible milling applications requiring controlled material removal.

Key Features & Benefits

  • 63mm Cutting Diameter: Designed for milling operations requiring a 63mm cutter diameter.
  • Five-Insert Configuration: Accommodates five face-mounted inserts for efficient cutting performance.
  • 10° Cutting Edge Angle: Designed with a 10° tool cutting edge angle.
  • Internal Coolant: Supports coolant delivery to the cutting area to help manage heat during machining.
  • Controlled Depth of Cut: Provides a maximum depth of cut of 2mm and a recommended depth of cut of 1.2mm.

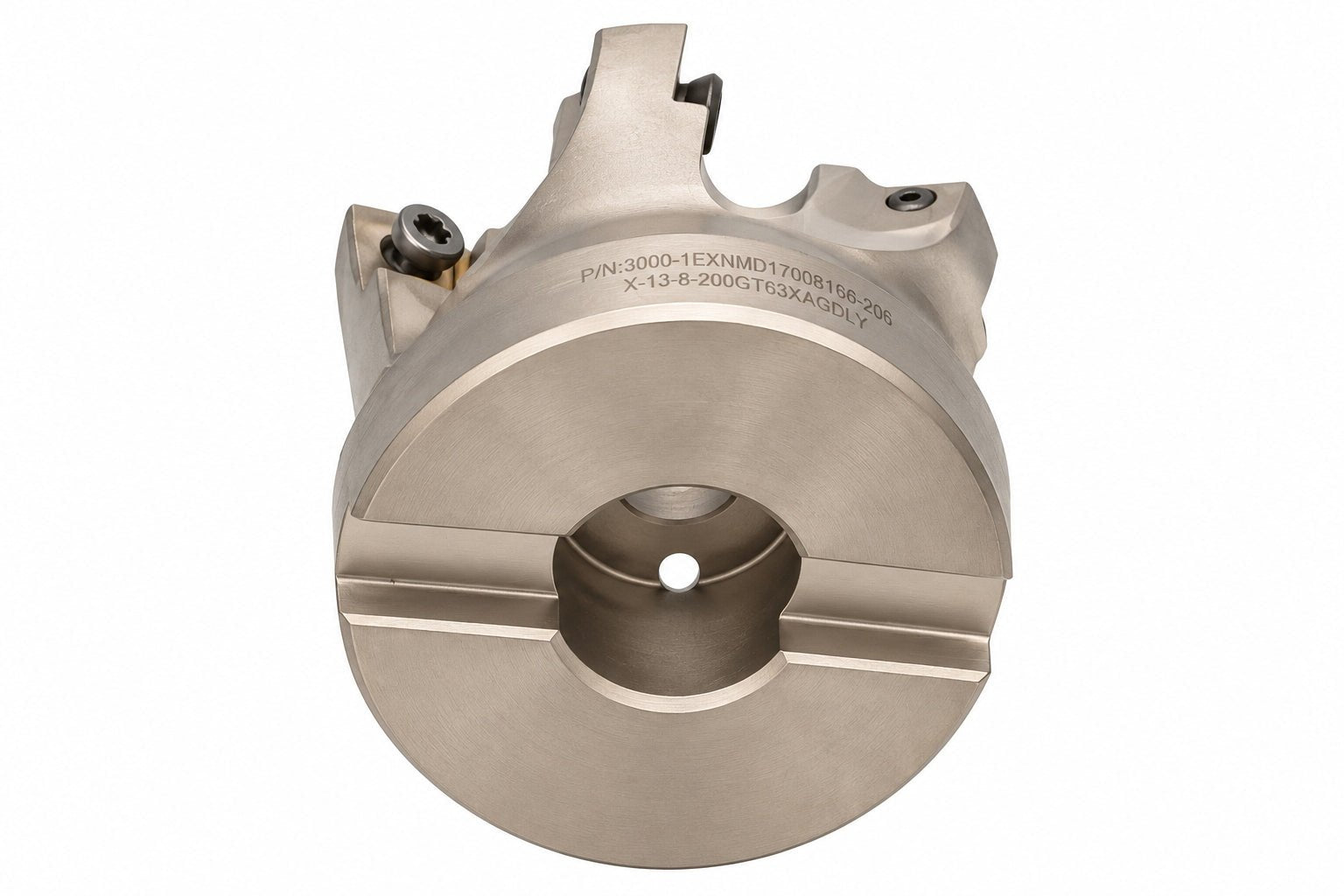

  • 22mm Connection Bore: Designed for mounting on compatible milling equipment.
  • 2mm Corner Radius: Features a specified 2mm corner radius.
  • Right-Hand Cutting Direction: Designed for right-hand cutting applications.
  • Compact Tool Design: Features a 50mm overall length.

Technical Specifications

  • Brand: Kyocera
  • Model: MFH063R-14-5T-22M
  • Item Number: THN07691
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 63 mm
  • Number of Inserts: 5
  • Connection Bore Diameter: 22 mm
  • Cutting Edge Angle: 10°
  • Maximum Depth of Cut: 2 mm
  • Recommended Depth of Cut: 1.2 mm
  • Corner Radius: 2 mm
  • Overall Length (OAL): 50 mm
  • Functional Length (LF): 50 mm
  • Body Diameter: 60 mm
  • Machine-Side Contact Surface Diameter: 60 mm
  • Hub Diameter: 60 mm
  • Connection Bore Depth: 21 mm
  • Axial Rake Angle: 10°
  • Major Clearance Angle: 16°
  • Insert Included Angle: 90°
  • Inscribed Circle Diameter: 10.3 mm
  • Cutting Edge Length: 10.3 mm
  • Insert Thickness: 4.58 mm
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes
  • Maximum Rotational Speed: 7,400 RPM

The Kyocera MFH063R-14-5T-22M Milling Toolholder is available from Twin Eagle Imports for compatible milling applications requiring a 63mm cutter, five inserts, and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
