Kyocera MCSE106 – Chamfer & Profile Milling Toolholder (THC05850)

The Kyocera MCSE106 (Item no. THC05850) is a precision profile and chamfer milling toolholder designed for indexable inserts. With a single-insert design and a 22 mm cutting diameter, this holder...
£119.00
£0.00
£119.00
(-0%)
SKU: MCSE106
Availability: In Stock
Subtotal: £119.00
KYOCERA ASIA PACIFIC PTE LTD MILLING CUTTERS Kyocera MCSE106 – Chamfer & Profile Milling Toolholder (THC05850)

Kyocera MCSE106 – Chamfer & Profile Milling Toolholder (THC05850)

£0.00 £119.00

Kyocera MCSE106 – Chamfer & Profile Milling Toolholder (THC05850)

£0.00 £119.00

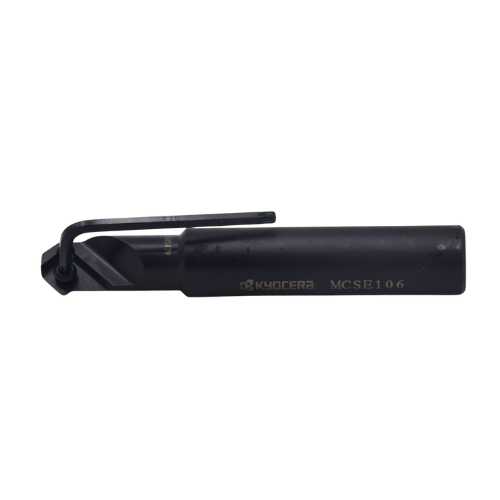

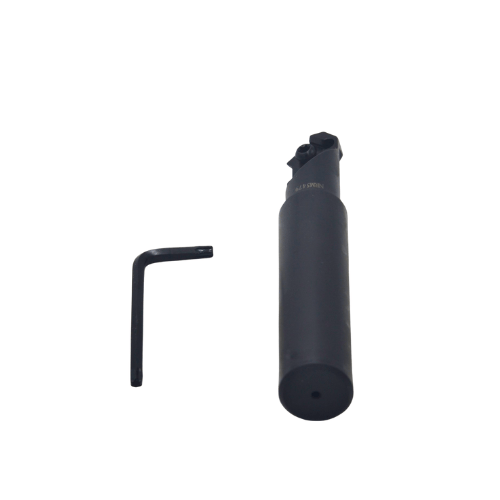

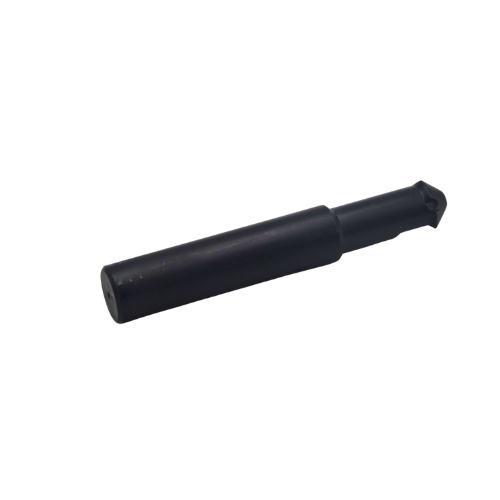

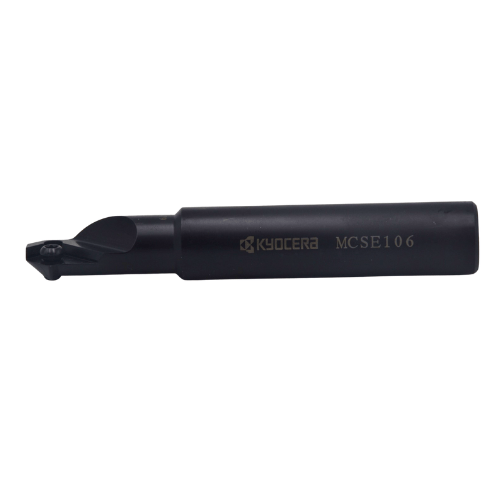

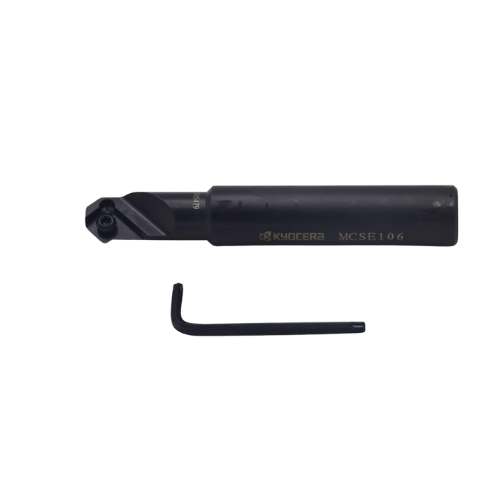

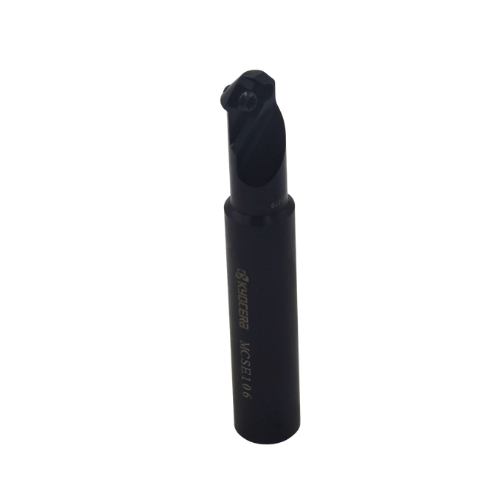

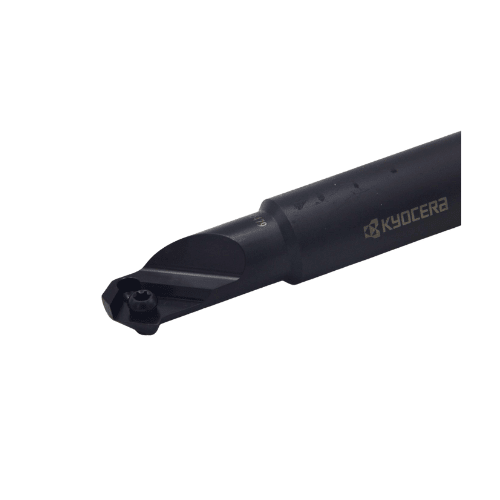

The Kyocera MCSE106 (Item no. THC05850) is a precision profile and chamfer milling toolholder designed for indexable inserts. With a single-insert design and a 22 mm cutting diameter, this holder is ideal for chamfering, back chamfering, V-groove machining, countersinking, and general profiling operations. Its rigid 20 mm cylindrical shank delivers stable performance and smooth cutting action in a wide range of materials.

This toolholder features a 45° cutting angle that enhances chip flow and cutting efficiency, while its compact overall design makes it suitable for both production and workshop settings. Internal coolant is not included, simplifying setup in standard machining environments.

Key Features & Benefits

  • Single-insert profile milling design — optimised for chamfering and V-groove machining.
  • 22 mm cutting diameter — versatile for a variety of milling tasks.
  • 45° cutting angle — improves chip control and surface finish.
  • Rigid 20 mm cylindrical shank — reduces vibration and enhances tool life.
  • Compact overall length — suitable for production and general milling.
  • No internal coolant — simplified design for flood or dry machining.

Technical Specifications

  • Item No: THC05850
  • Model: MCSE106
  • Cutting Diameter (DC): 22 mm
  • Number of Inserts: 1
  • Total Length (OAL): 121 mm
  • Recess (LDN): 41.0 mm
  • Shank Diameter (DCON): 20 mm
  • Shank Type: Cylindrical
  • Cutting Angle: 45°
  • Internal Coolant: No
  • Suitable For: Chamfering, back chamfering, countersinking, V-groove machining, general profiling
