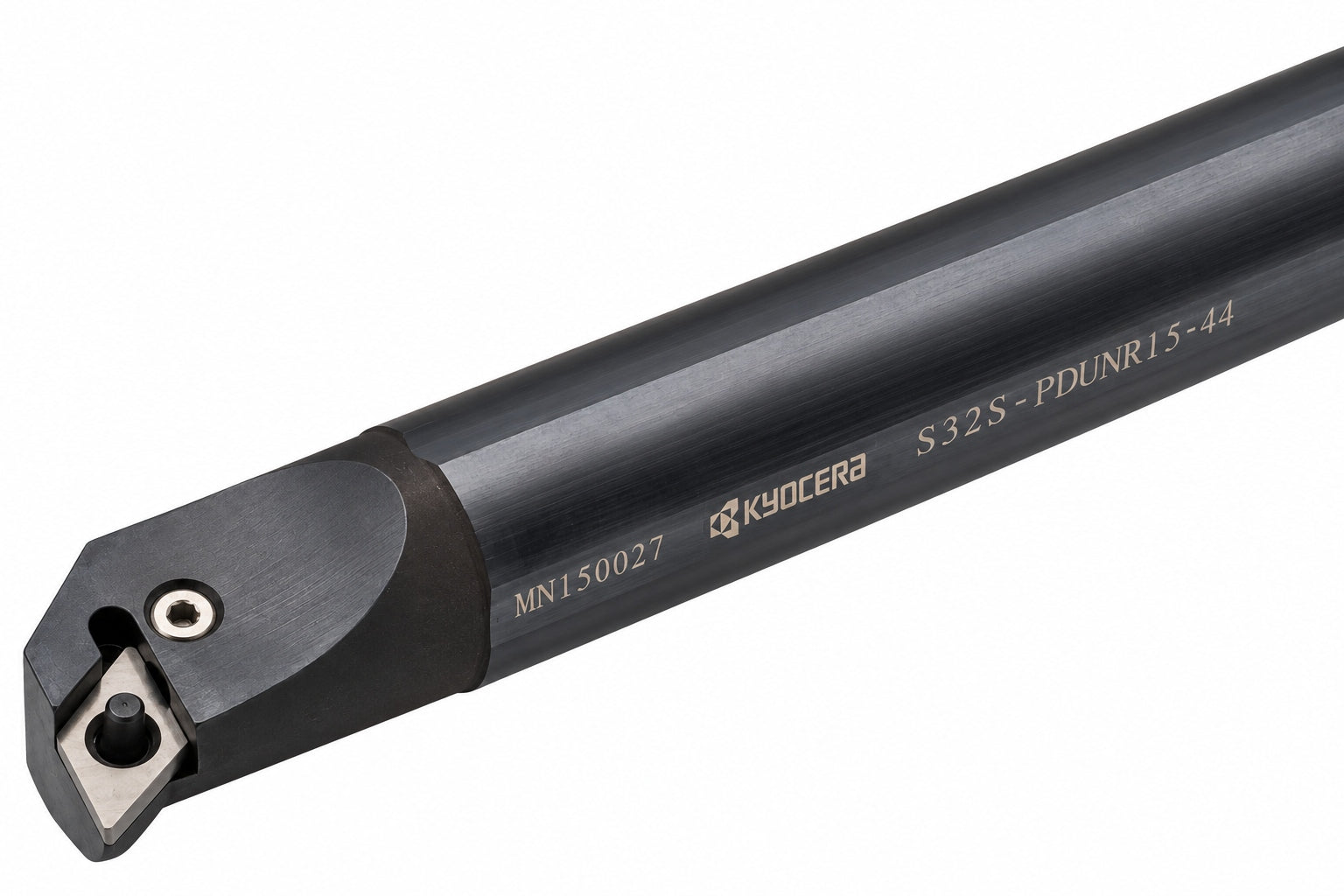

Kyocera Boring Bar S32S-PDUNR15-44 suits DNMG 1504 Inserts

Professional quality Kyocera S32S-PDUNR15-44 turning toolholder designed for compatible 15mm inserts in turning applications. This right-hand toolholder features a 32mm connection diameter, 44mm minimum bore diameter and 250mm overall length,...
£262.00
£0.00
£262.00
(-0%)
Vendor: Kyocera
SKU: S32S-PDUNR15-44
Availability: In Stock
Subtotal: £262.00
Kyocera Boring Bar S32S-PDUNR15-44 suits DNMG 1504 Inserts

Kyocera Boring Bar S32S-PDUNR15-44 suits DNMG 1504 Inserts

£0.00 £262.00

Kyocera Boring Bar S32S-PDUNR15-44 suits DNMG 1504 Inserts

£0.00 £262.00

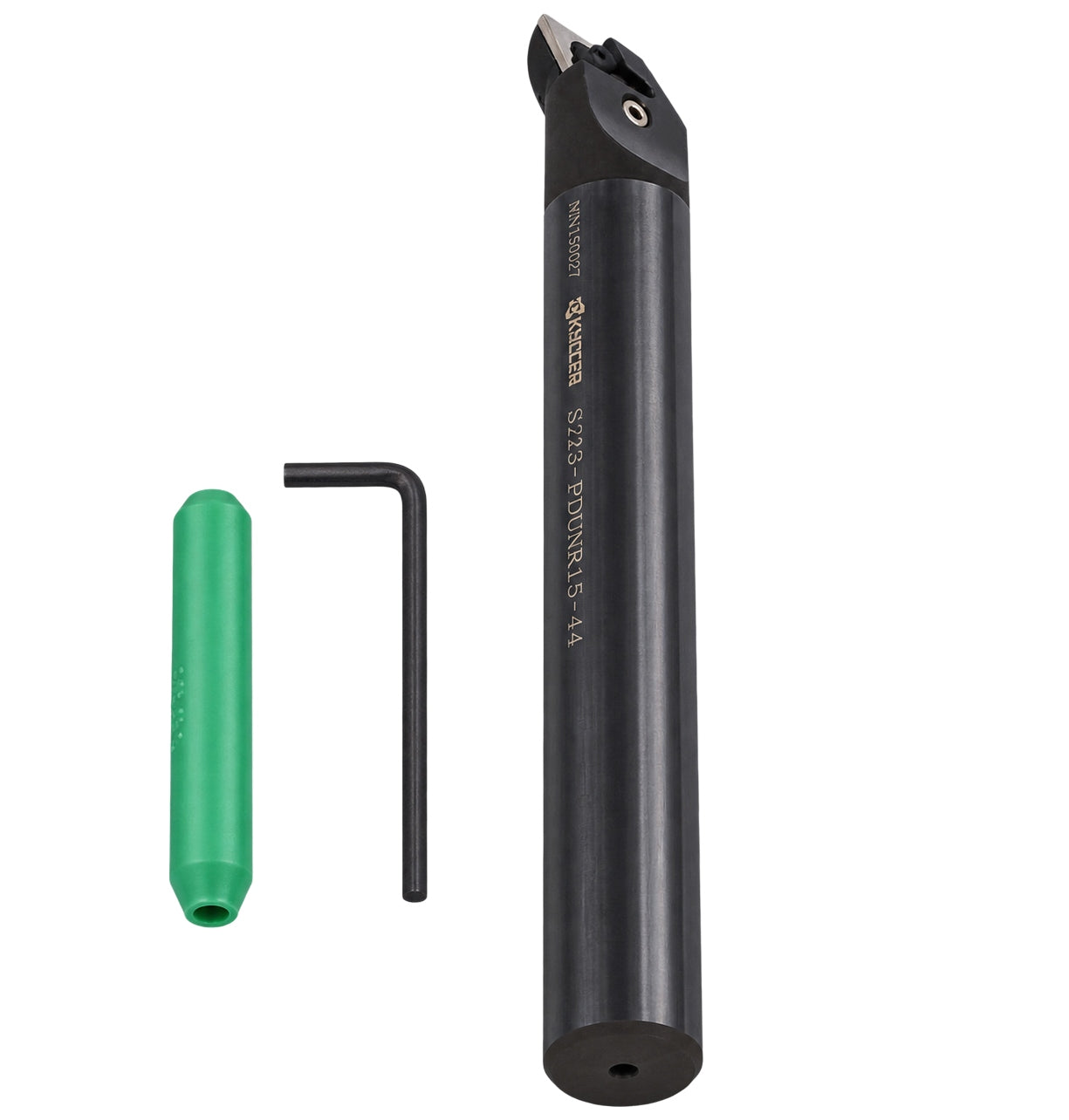

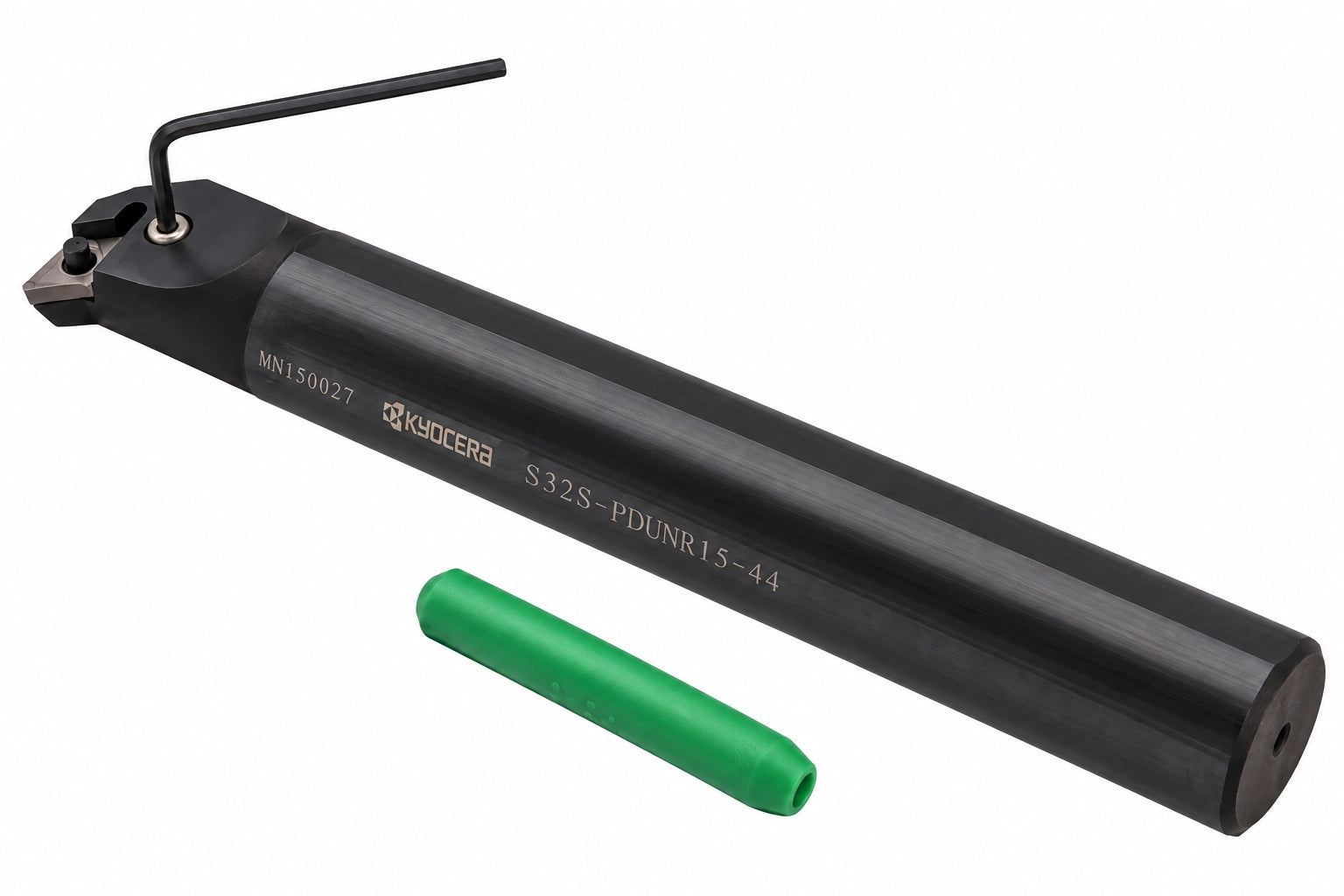

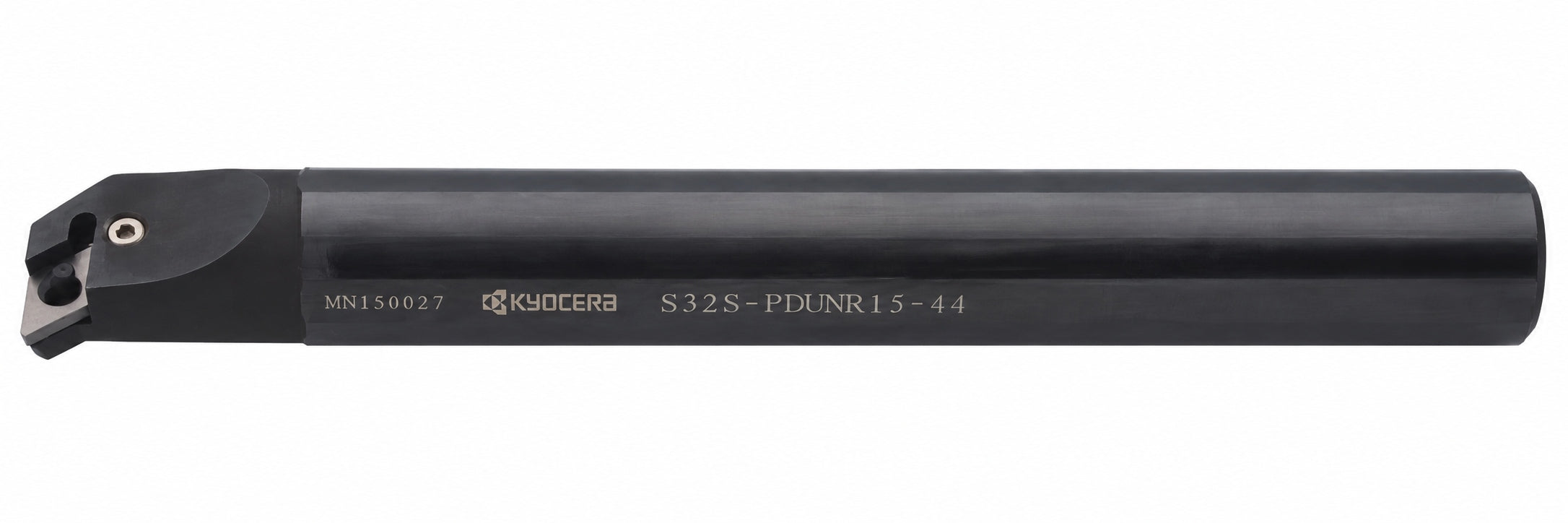

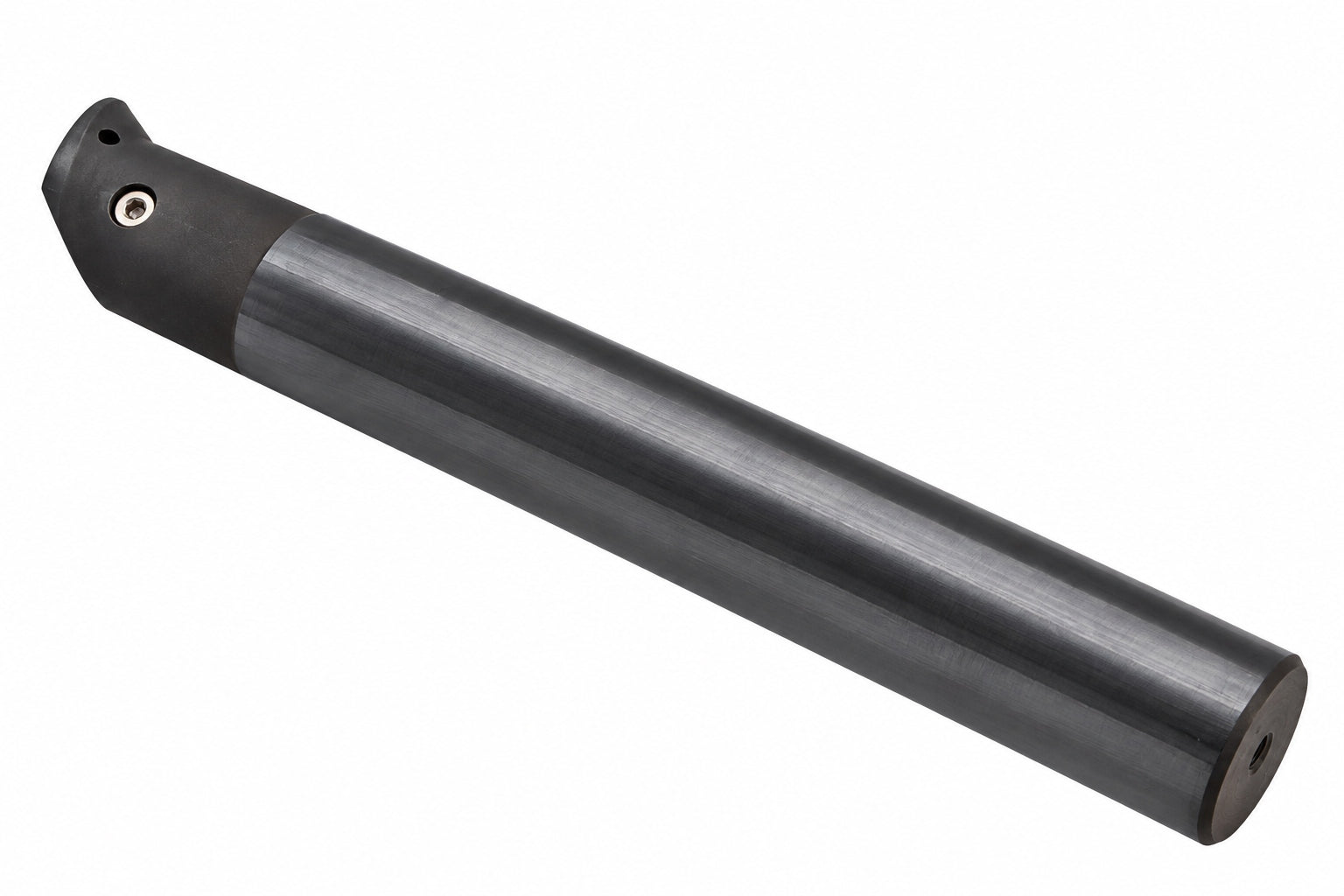

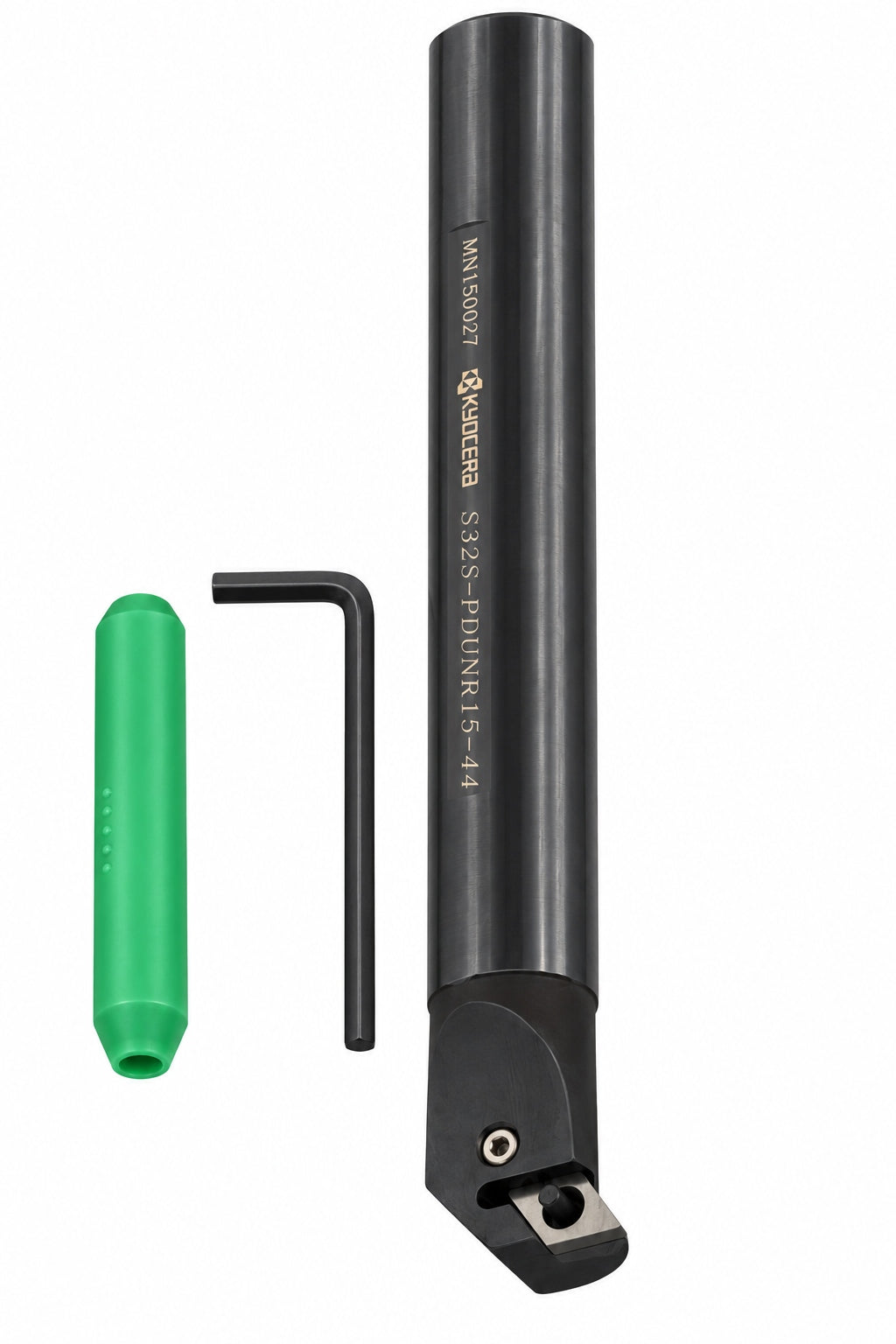

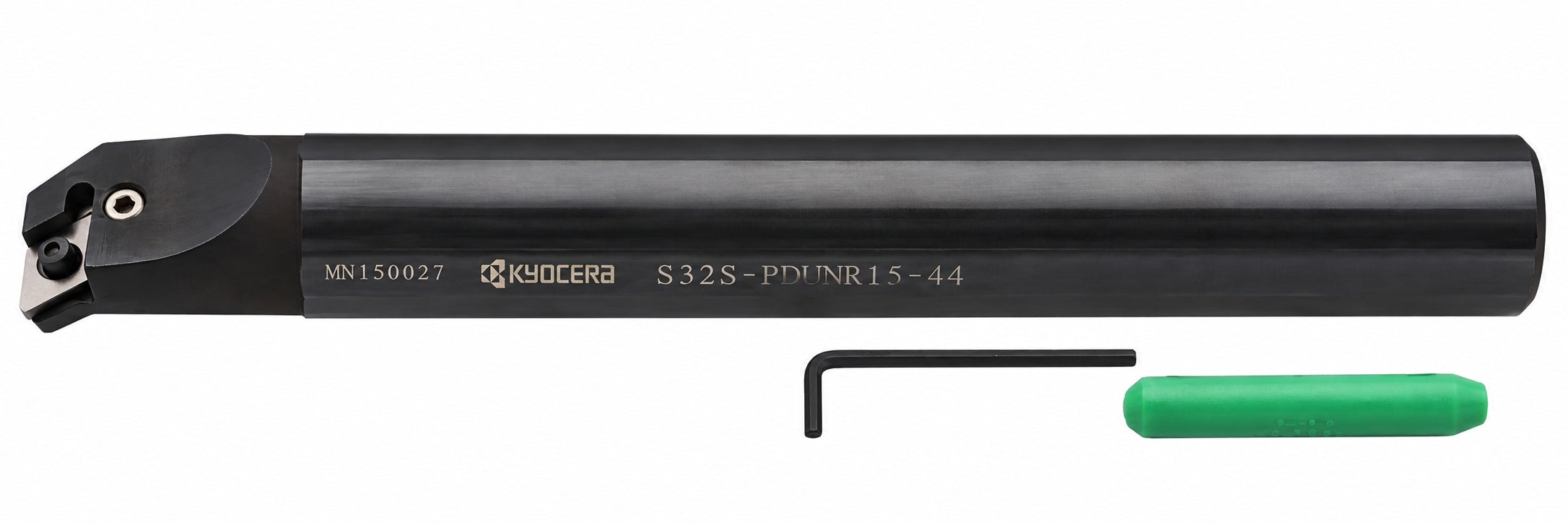

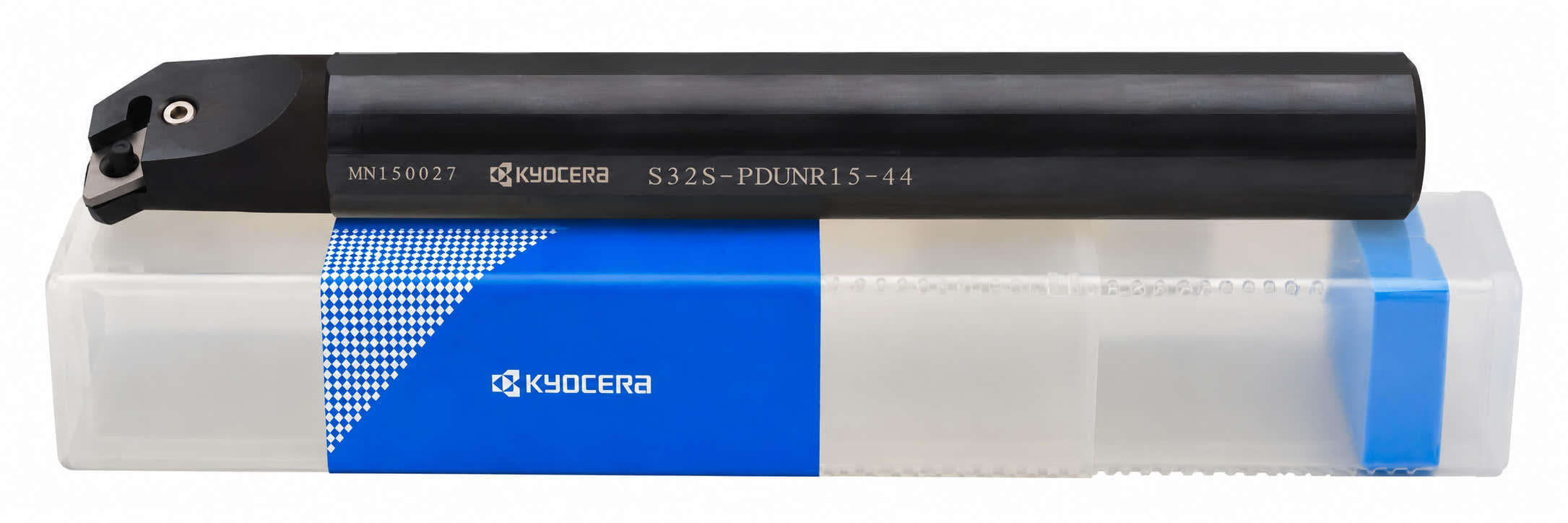

Professional quality Kyocera S32S-PDUNR15-44 turning toolholder designed for compatible 15mm inserts in turning applications. This right-hand toolholder features a 32mm connection diameter, 44mm minimum bore diameter and 250mm overall length, providing a robust tooling solution for machining operations requiring a larger shank size.

The S32S-PDUNR15-44 features a 55° insert included angle, 93° tool cutting edge angle, 6° radial rake angle and -6° axial rake angle. It has a 0.8mm corner radius specification, 31mm shank height and 50mm head and usable lengths.

Product Features

  • Genuine Kyocera turning toolholder
  • Right-hand configuration
  • Designed for 15mm insert size
  • 32mm connection diameter
  • 44mm minimum bore diameter
  • 250mm overall and functional length
  • 50mm head length
  • 50mm usable length
  • 55° insert included angle
  • 93° tool cutting edge angle
  • 6° radial rake angle
  • -6° axial rake angle
  • 0.8mm corner radius specification
  • 31mm shank height

Technical Specifications

  • Brand: Kyocera
  • Part Number: S32S-PDUNR15-44
  • Item Number: THC08076
  • Tool Type: Turning Toolholder
  • Hand: Right
  • Insert Size: 15
  • Connection Diameter (DCON): 32mm
  • Minimum Bore Diameter (DMIN): 44mm
  • Shank Height (H): 31mm
  • Overall Length (OAL): 250mm
  • Functional Length (LF): 250mm
  • Head Length (LH): 50mm
  • Usable Length (LU): 50mm
  • Insert Included Angle (EPSR): 55°
  • Tool Cutting Edge Angle (KAPR): 93°
  • Major Clearance Angle (AN): 0°
  • Radial Rake Angle (GAMF): 6°
  • Axial Rake Angle (GAMP): -6°
  • Inscribed Circle Diameter (IC): 12.7mm
  • Cutting Edge Length (L): 15.504mm
  • Corner Radius (RE): 0.8mm
  • Insert Thickness (S): 4.76mm
  • Functional Width (WF): 22mm
  • Functional Width 2 (WF2): 6.5mm

Applications

The Kyocera S32S-PDUNR15-44 is designed for turning applications requiring a right-hand toolholder with a 32mm connection diameter and 44mm minimum bore diameter. It is suitable for use with compatible 15mm inserts matching the specified insert geometry and dimensions.
