Insize Interchangeable Point Digital Caliper Range Series 1526-200

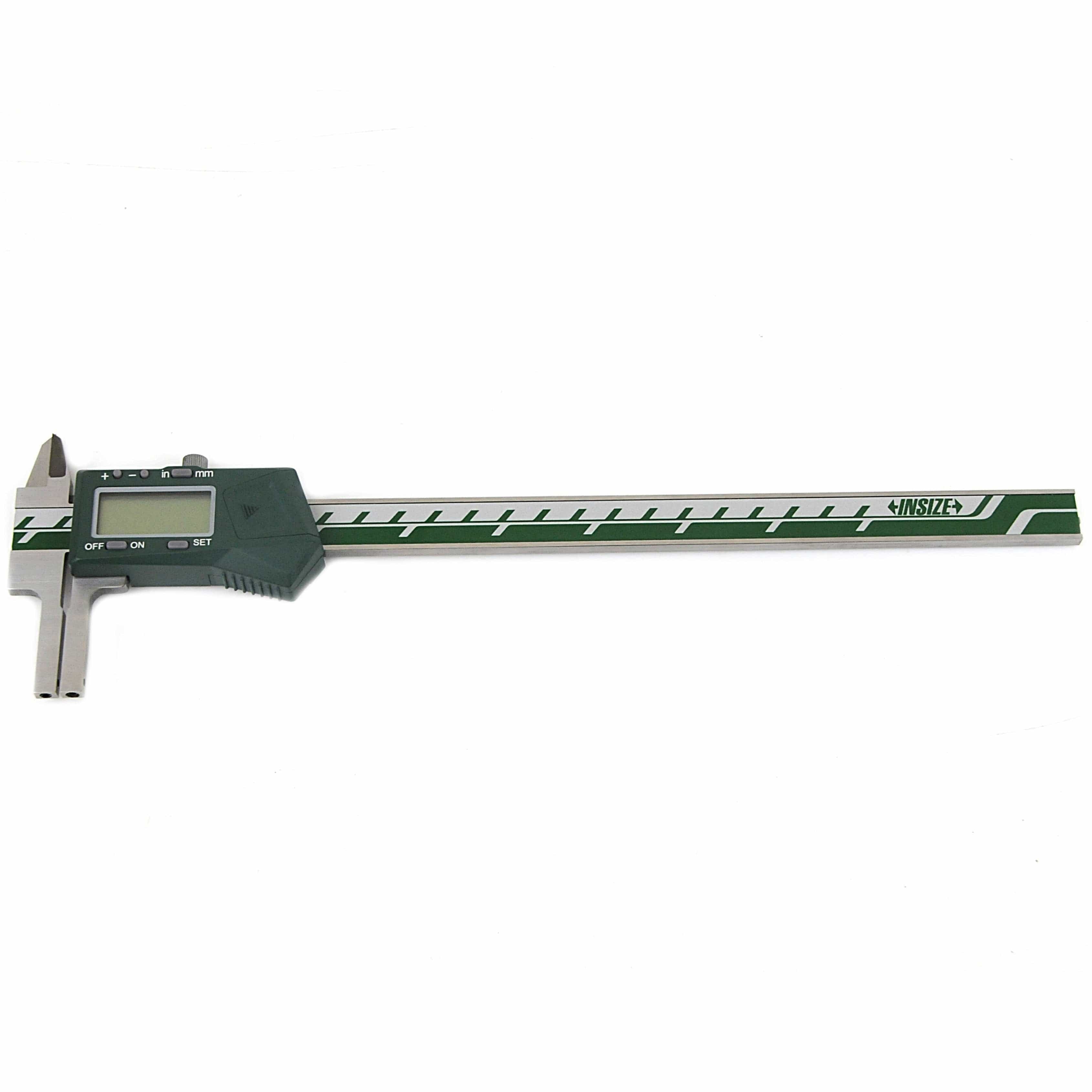

Insize Interchangeable Point Digital Caliper
You are buying a genuine Insize product from the agent appointed distributor of all Insize products within Australia. What does this mean for you, all our product warranty is honoured within Australia by Twin Eagle. Each product is shipped with a unique identifier. Feel free to contact us to supply your Insize products.

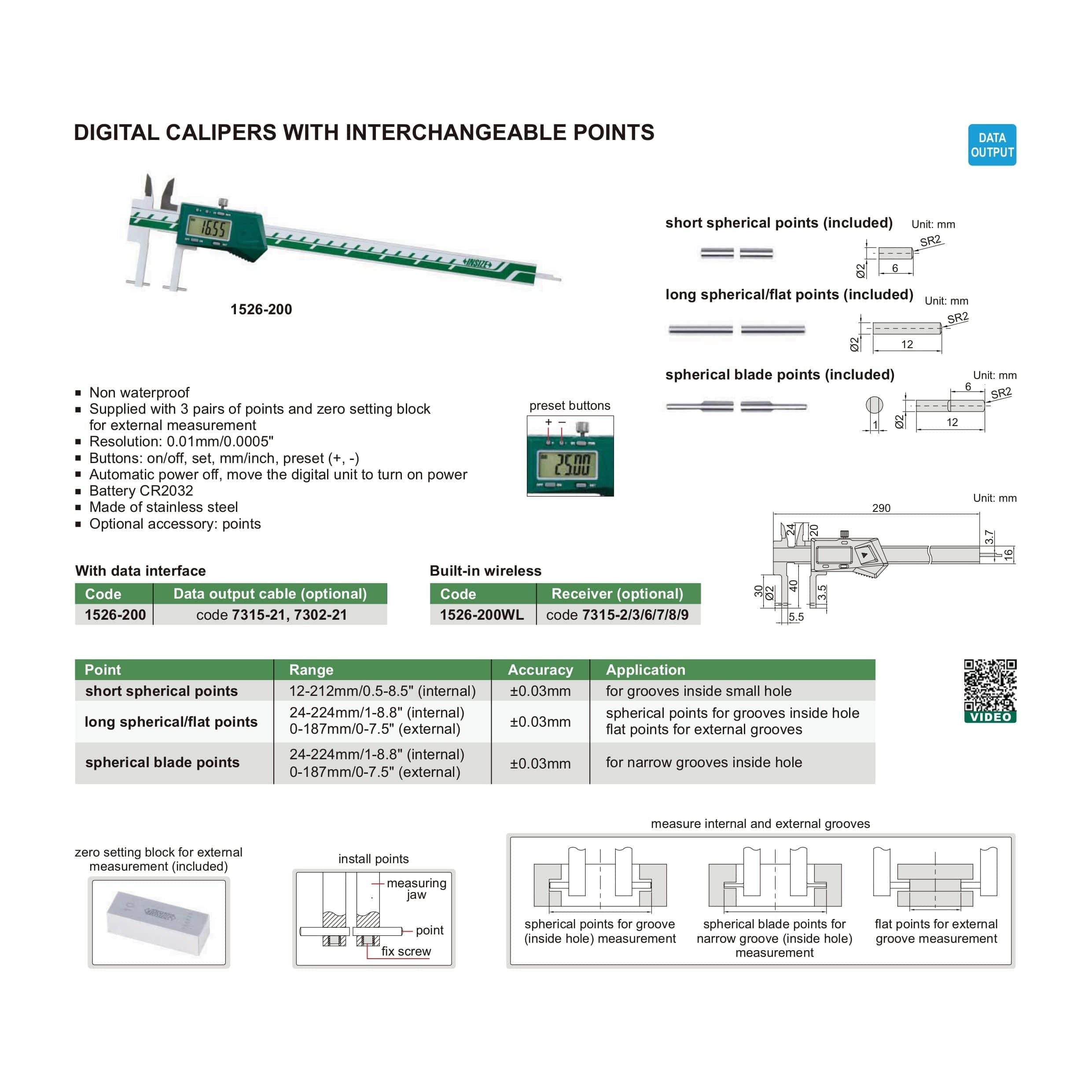

Specifications :
- Part no: 1526-200
- Resolution: 0.0005"/0.01mm.
- Buttons: on/off, set, inch/mm, preset (+, -)
- Automatic power off, move the digital unit to turn on power.
- Battery CR2032.

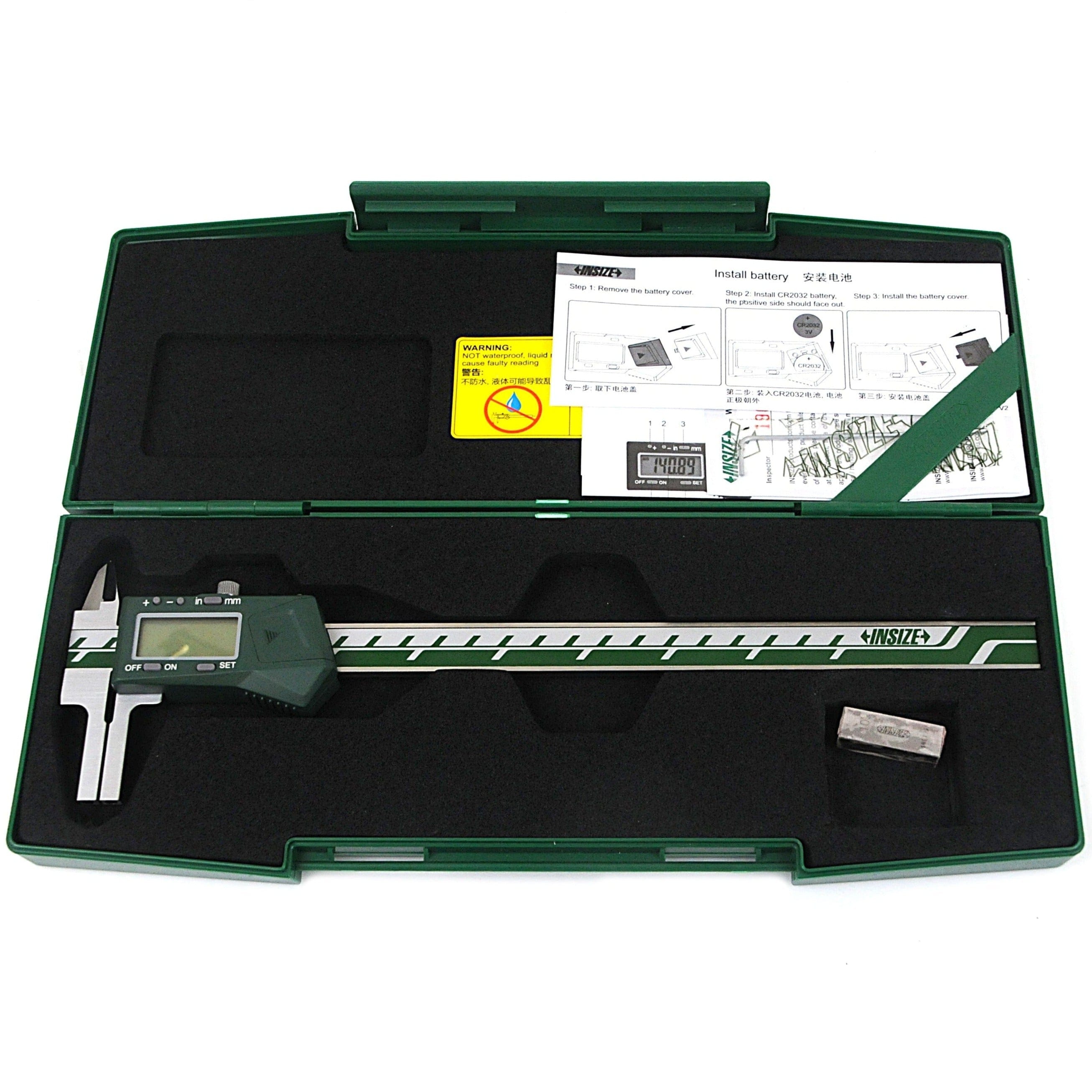

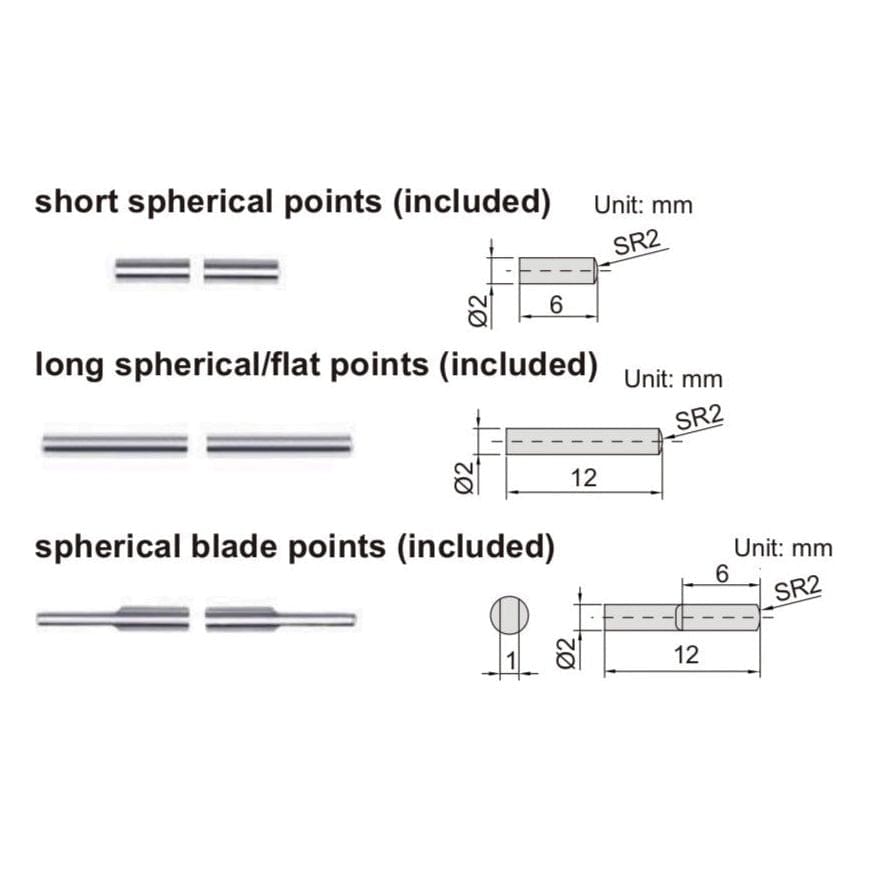

- Supplied with 3 pairs of points and zero setting block for external measurement.
- Optional: points, data output cable(7306-20 etc.)
| Point | Range | Accuracy | Application |
|---|---|---|---|
| Short Spherical Points | 12-212mm/0.5-8.5" (internal) | ±0.03mm | For grooves inside small hole |
| Long Spherical/Flat Points | 24-224mm/1-8.8" (internal) 0-187mm/0-7.5" (external) |
±0.03mm | Spherical Points for grooves inside hole flat points for external grooves |
| Spherical Blade Points | 24-224mm/1-8.8" (internal) 0-187mm/0-7.5" (external) |
±0.03mm | For narrow grooves inside hole |
Well designed, durable high precision tools that are suitable for various measuring ranges. This precision instrument is perfect for measuring small distances and make them visible to the user. Easy to use and adjust digital caliper with interchangeable points to measure a variety of tools.
