Hepyc 33/64" HSS Morse Taper Shank Drill MT1 DIN 345

Hepyc Drill HSS DIN345N 33/64" – Taper Shank, 118° Point The Hepyc 33/64" HSS Taper Shank Drill DIN345N is a precision-engineered drill bit designed for reliable performance in industrial and...
£36.00
£0.00
£36.00
(-0%)
Vendor: HEPYC
SKU: 11219003364
Availability: In Stock
Subtotal: £36.00
HEPYC DRILLS Hepyc 33/64" HSS Morse Taper Shank Drill MT1 DIN 345

Hepyc 33/64" HSS Morse Taper Shank Drill MT1 DIN 345

£0.00 £36.00

Hepyc 33/64" HSS Morse Taper Shank Drill MT1 DIN 345

£0.00 £36.00

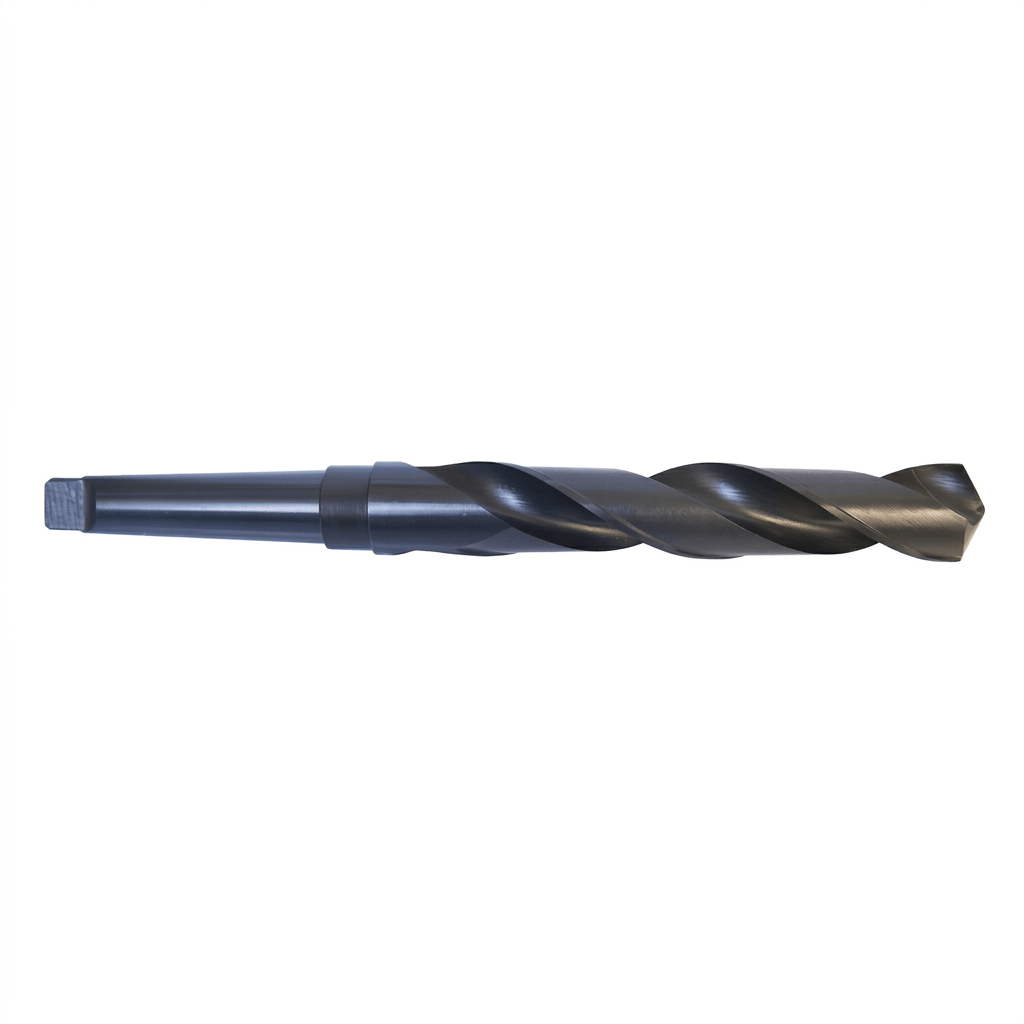

Hepyc Drill HSS DIN345N 33/64" – Taper Shank, 118° Point

The Hepyc 33/64" HSS Taper Shank Drill DIN345N is a precision-engineered drill bit designed for reliable performance in industrial and workshop machining applications. Manufactured from premium High Speed Steel (HSS), this short series drill offers excellent wear resistance, long service life, and dependable cutting performance. The Morse taper shank ensures a secure machine fit and efficient torque transmission during demanding drilling operations.

Featuring a 118° point angle and a 30° helix design, this drill provides accurate centering, smooth penetration, and efficient chip evacuation. It is suitable for machining soft magnetic steels, construction steels, case-hardening steels, and unalloyed and alloyed carbon steels with tensile strengths up to 800 N/mm².

Key Features & Benefits

  • 33/64" HSS taper shank drill bit
  • Manufactured to DIN345N standard
  • Premium High Speed Steel (HSS) construction
  • 118° point angle for accurate drilling
  • 30° helix for improved chip evacuation
  • Short series design for enhanced rigidity
  • Morse Taper Shank: CM1
  • Stable and reliable for heavy-duty machining
  • Suitable for steels up to 800 N/mm² tensile strength

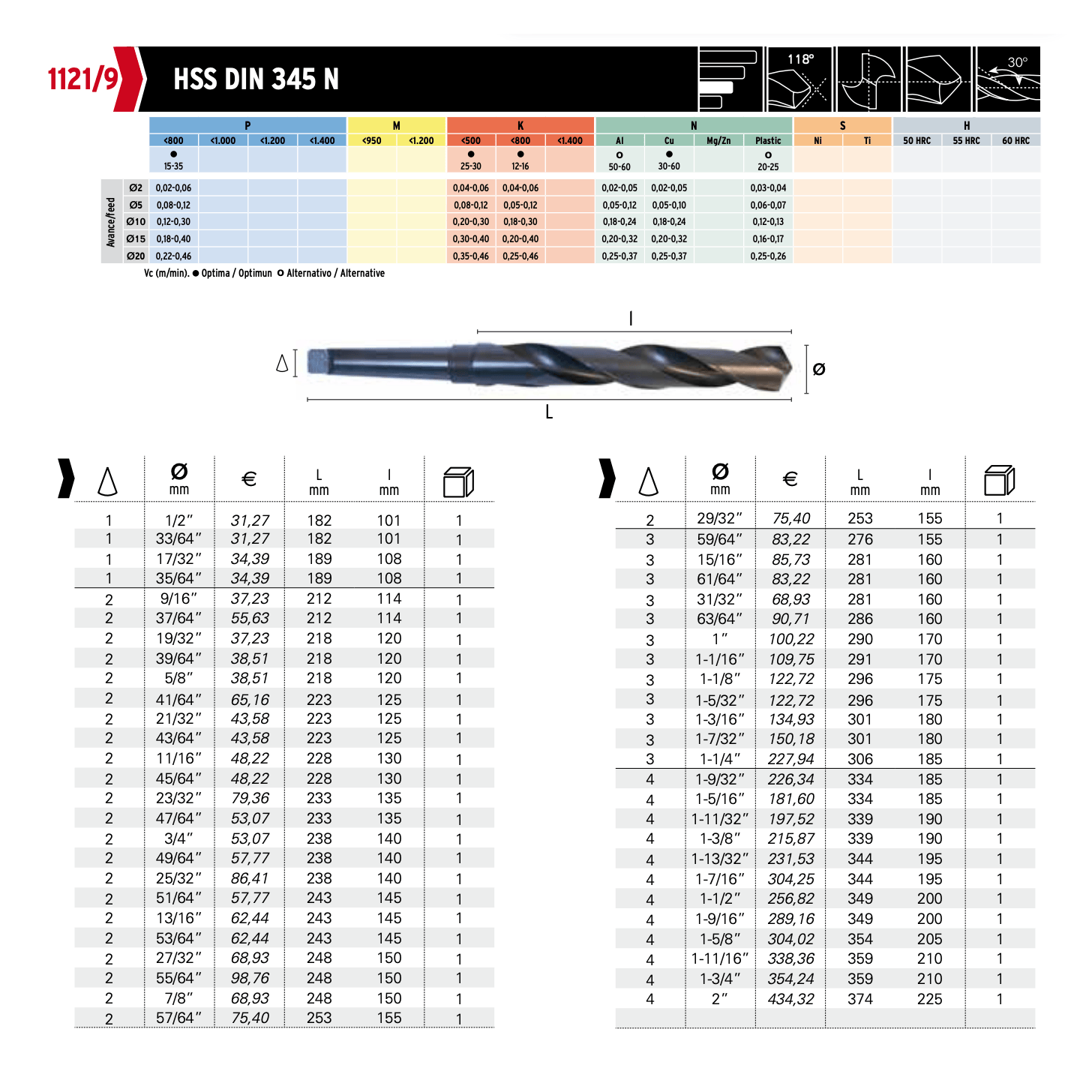

Technical Specifications

  • SKU: 11219003364
  • Diameter: 33/64"

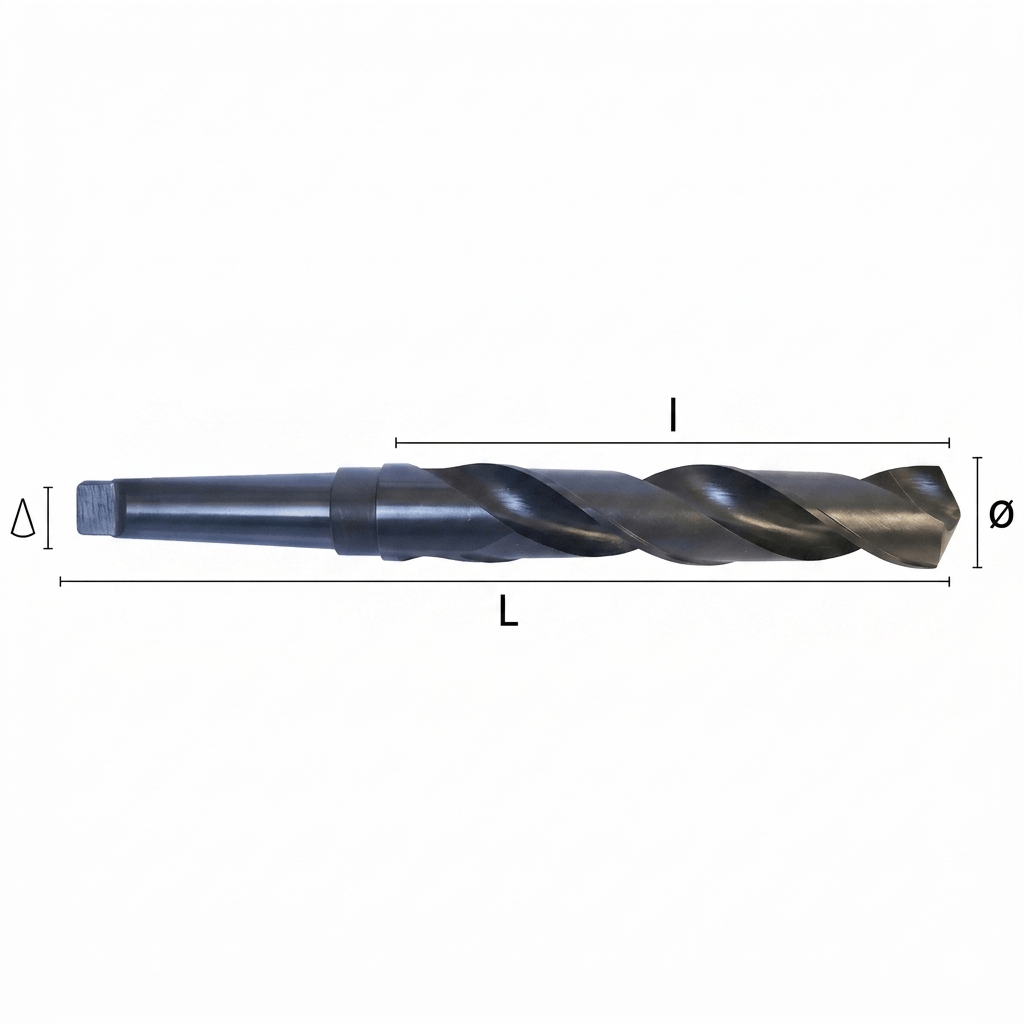

  • Overall Length (L): 182mm
  • Flute Length (I): 101mm
  • Morse Taper Shank: CM1
  • Material: High Speed Steel (HSS)
  • Standard: DIN345N
  • Point Angle: 118°
  • Helix Angle: 30°
  • Series: Short Series
  • Pack Quantity: 1 Piece
