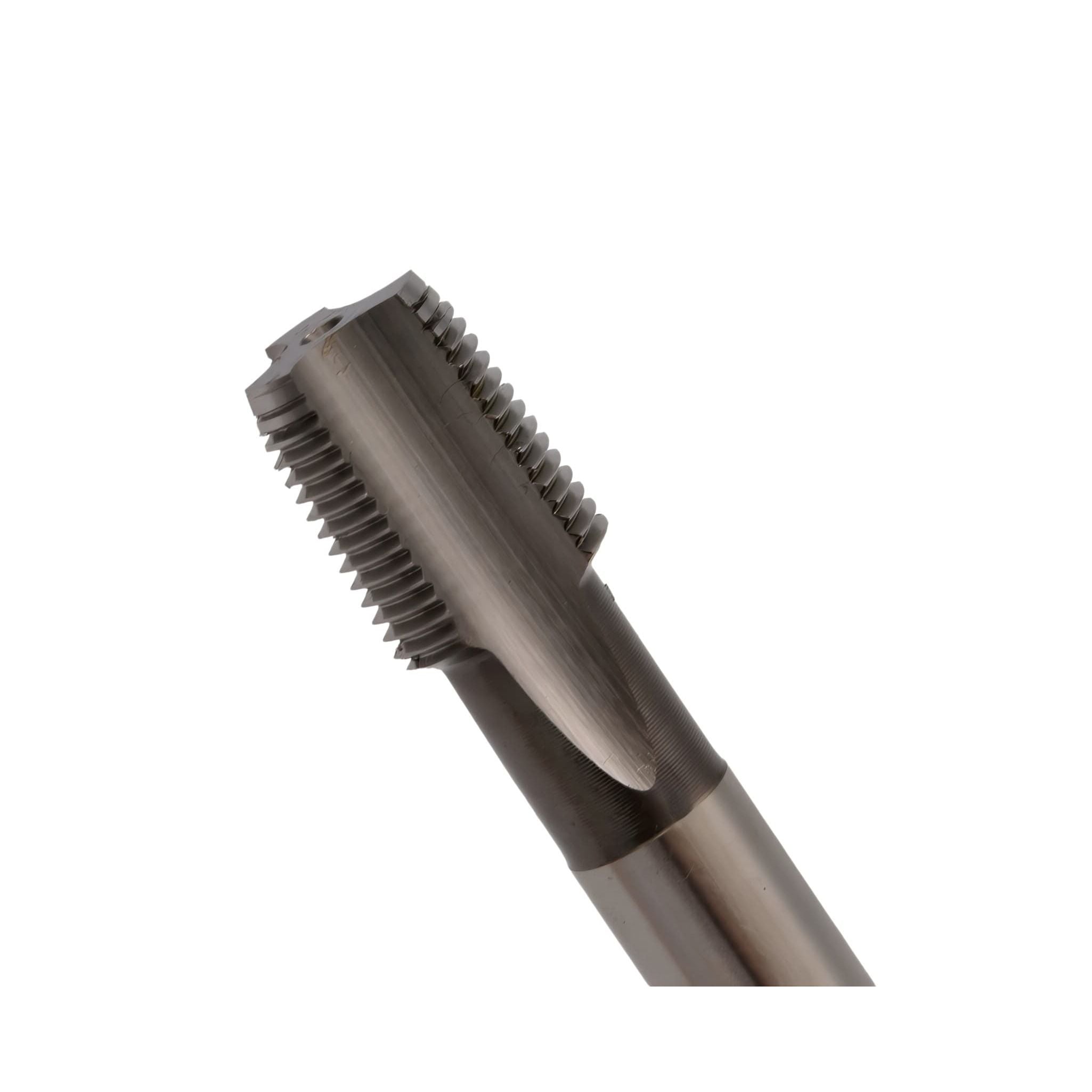

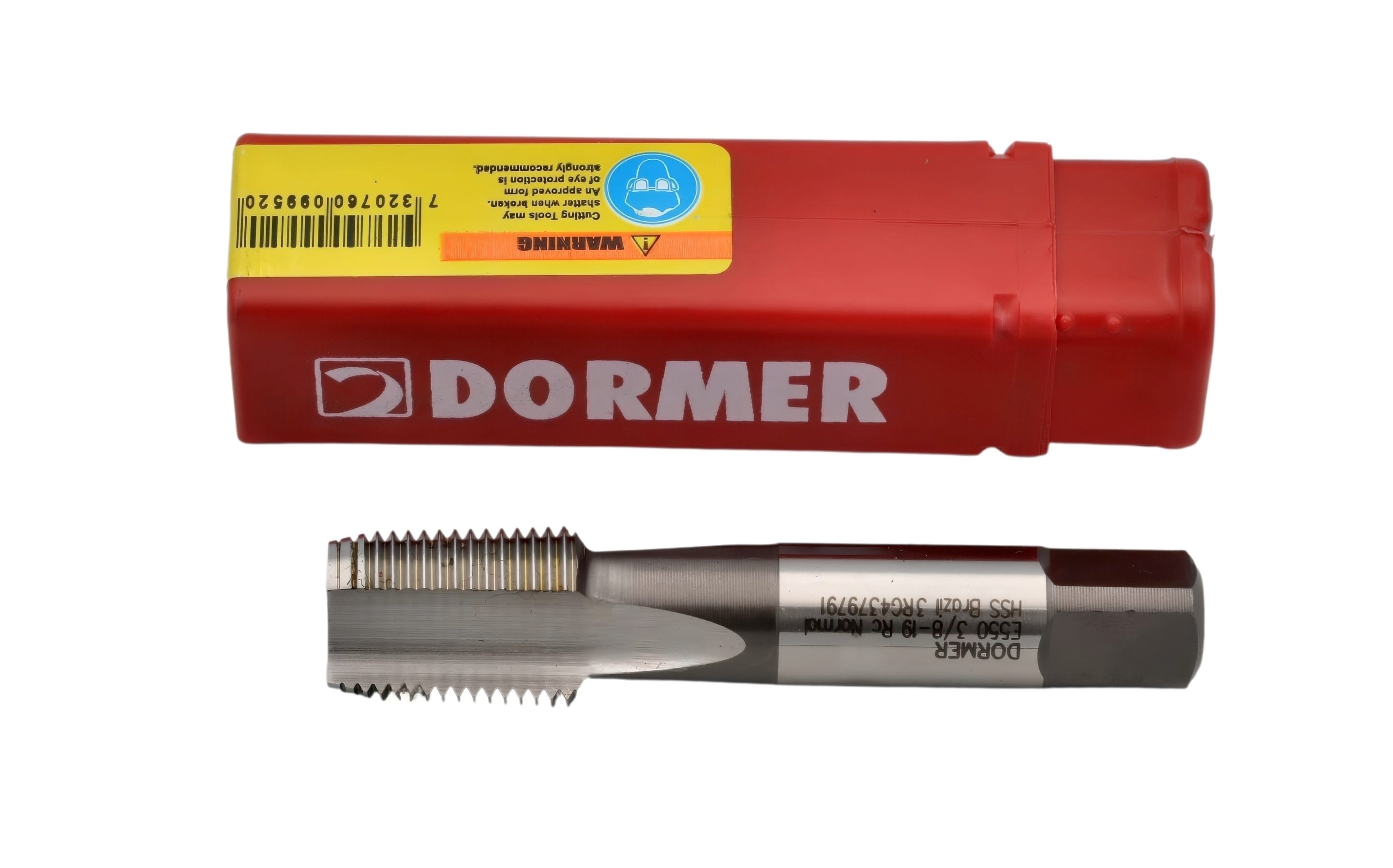

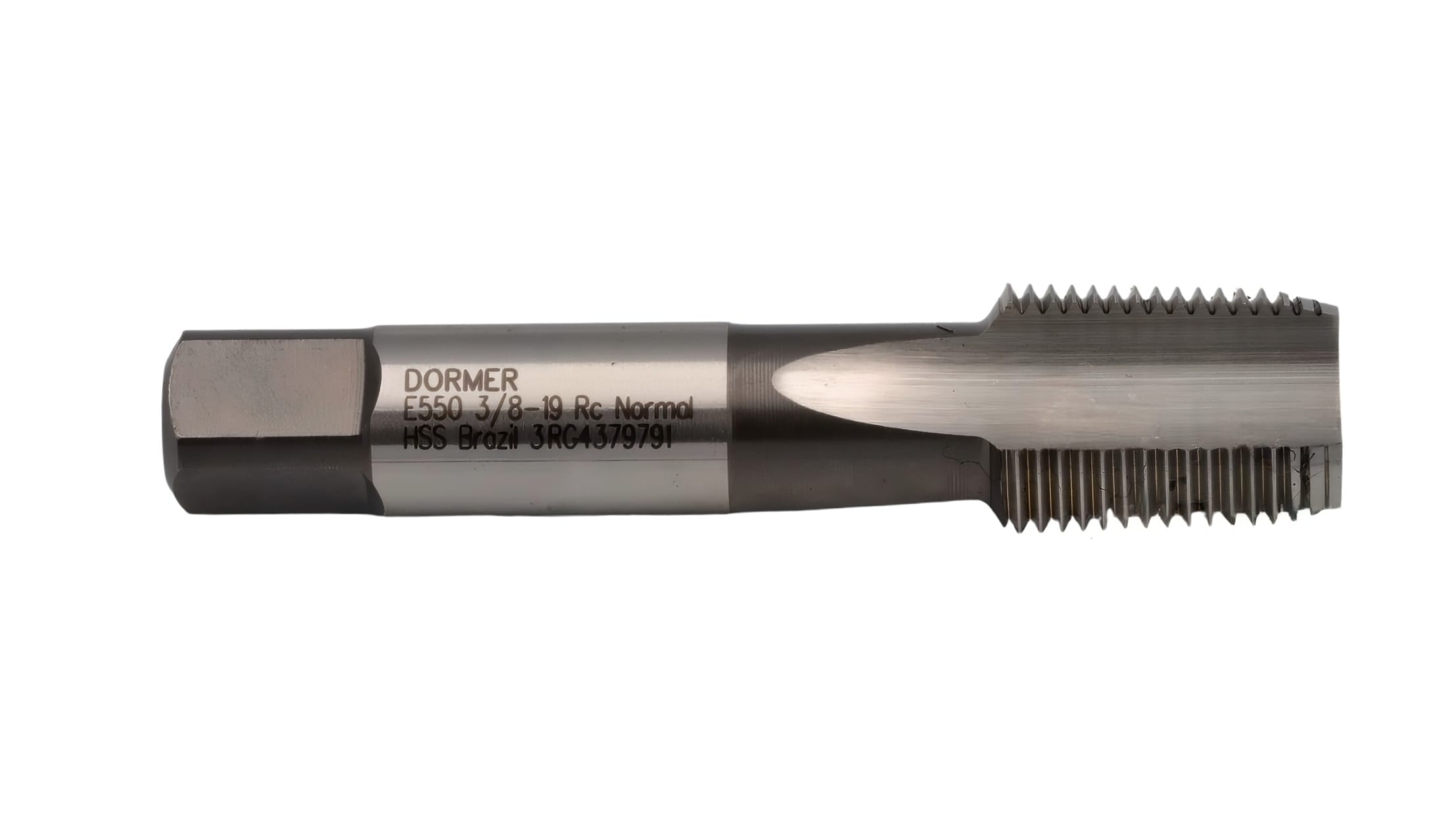

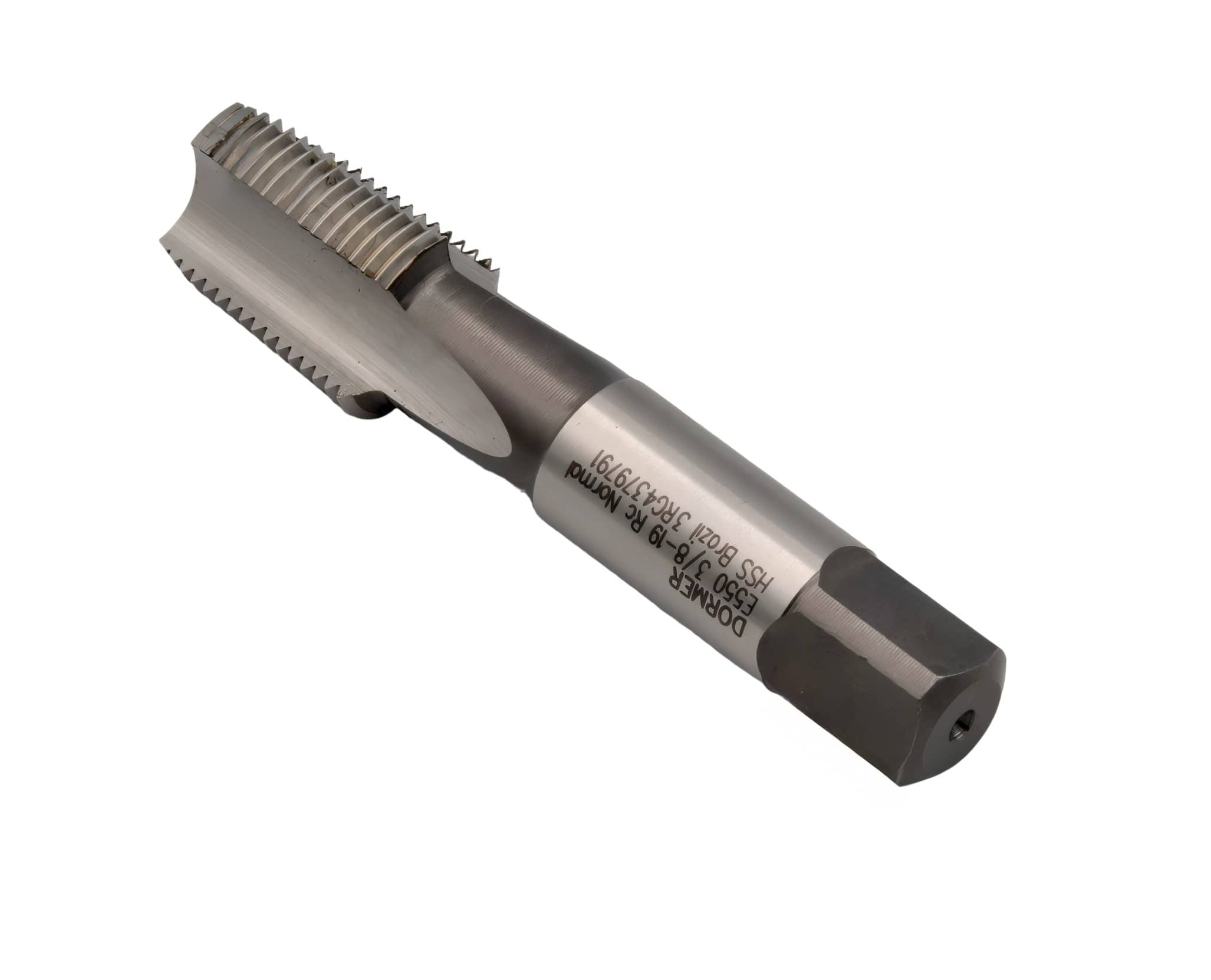

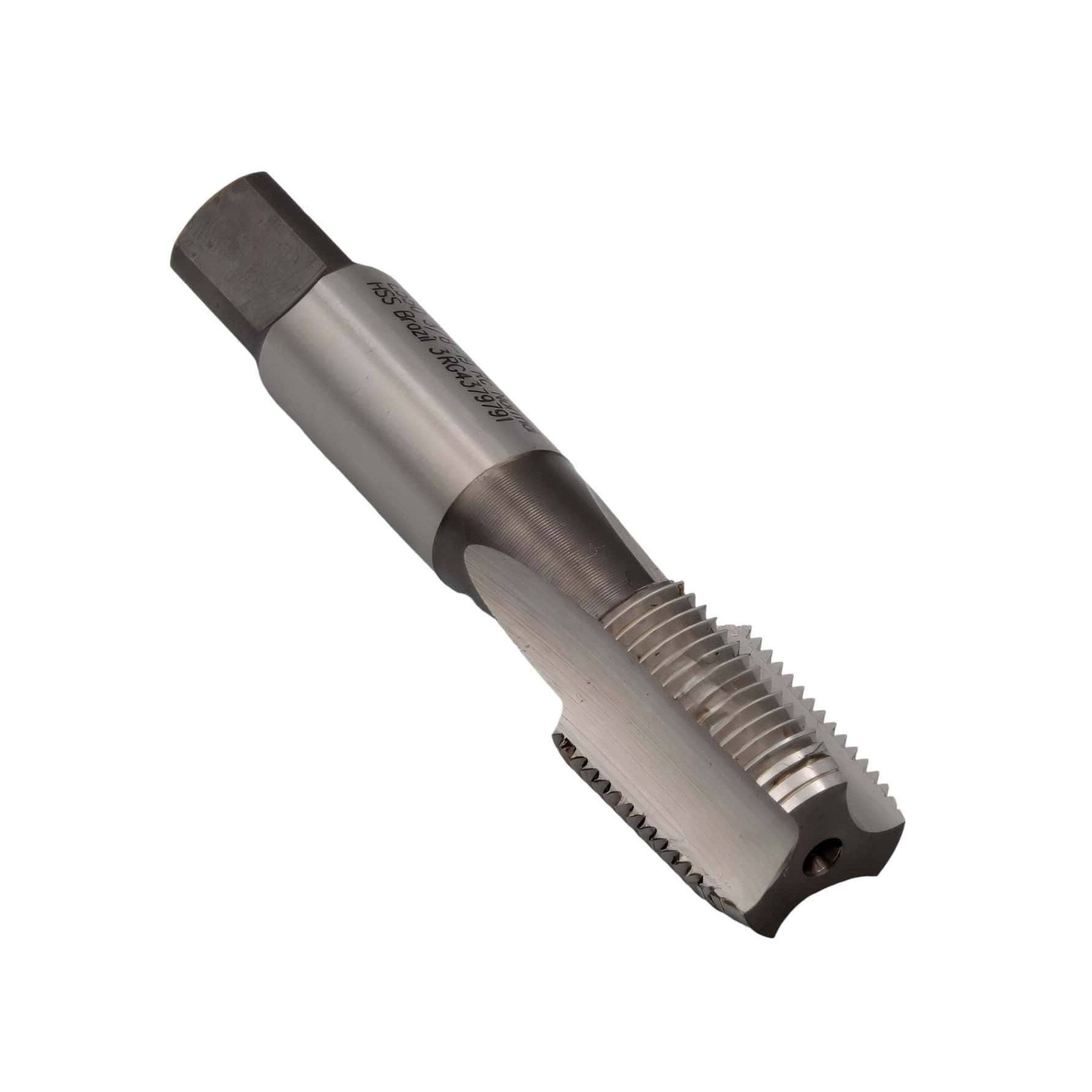

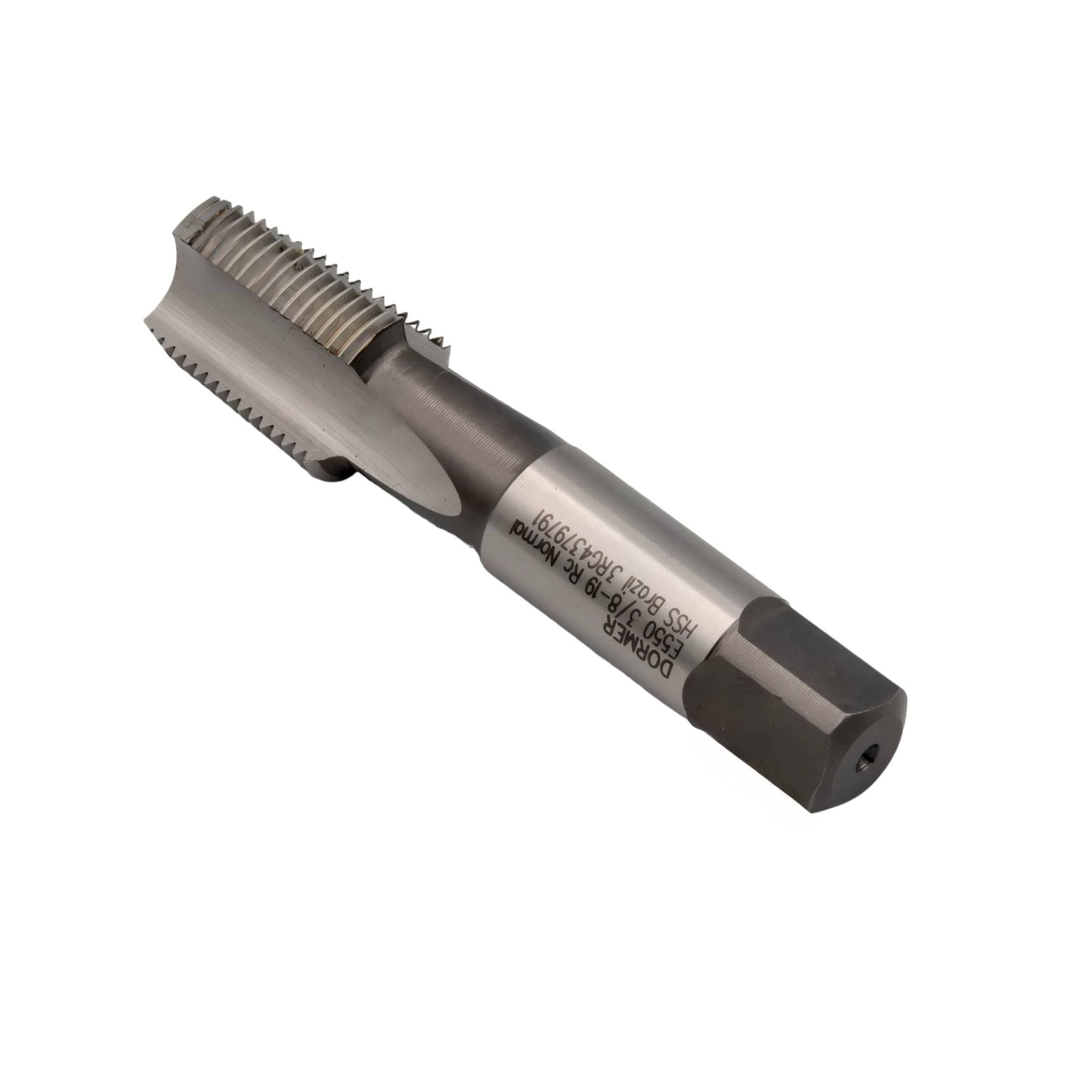

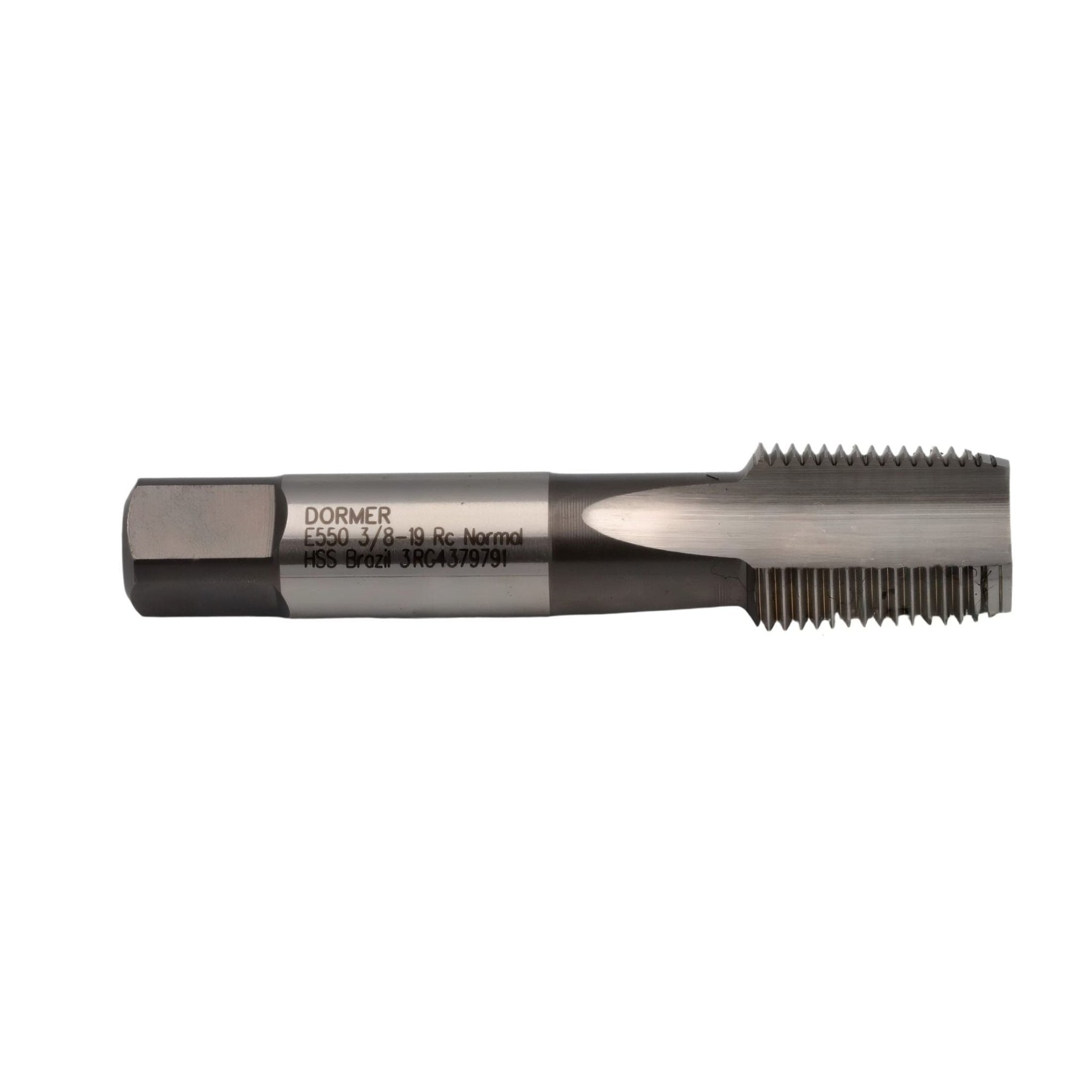

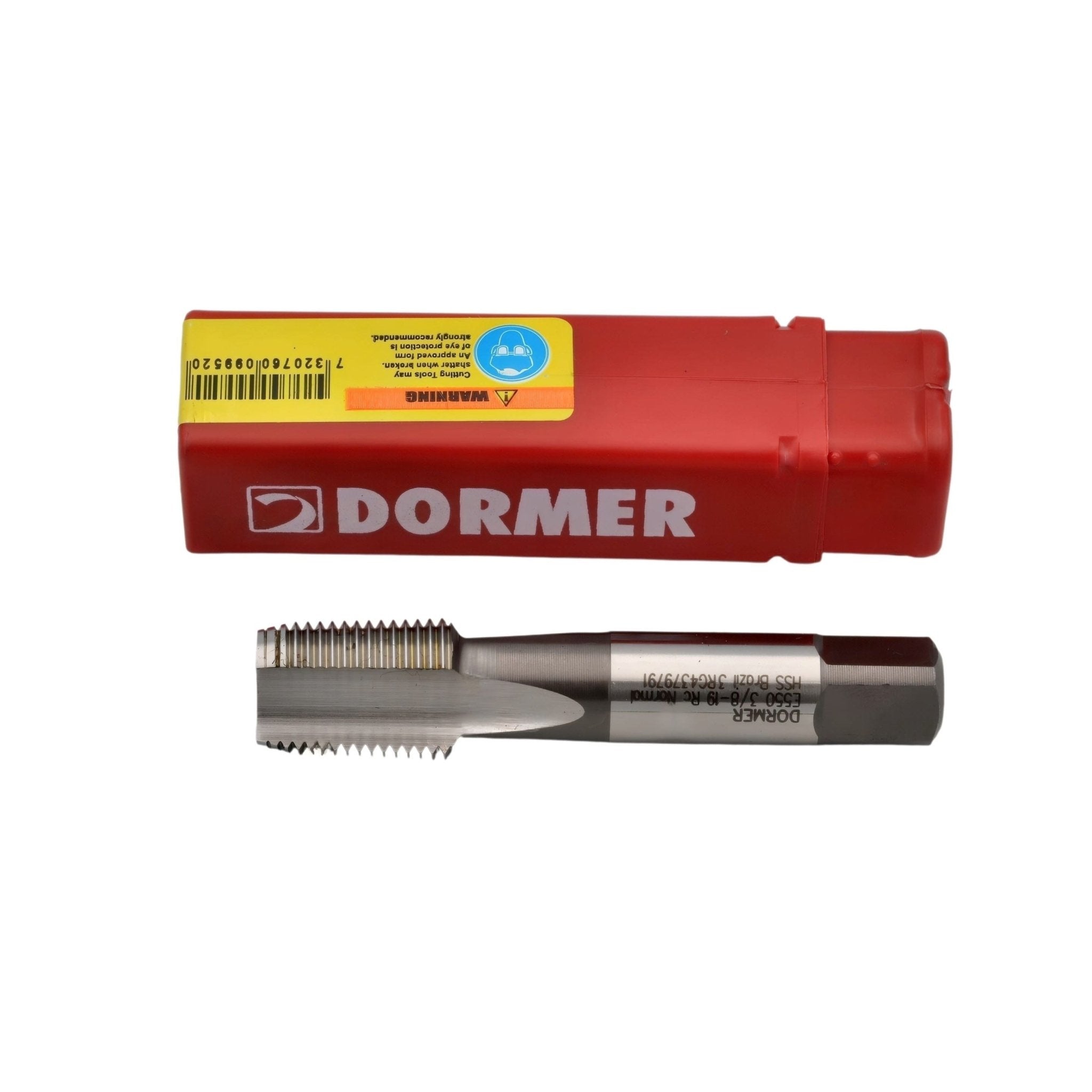

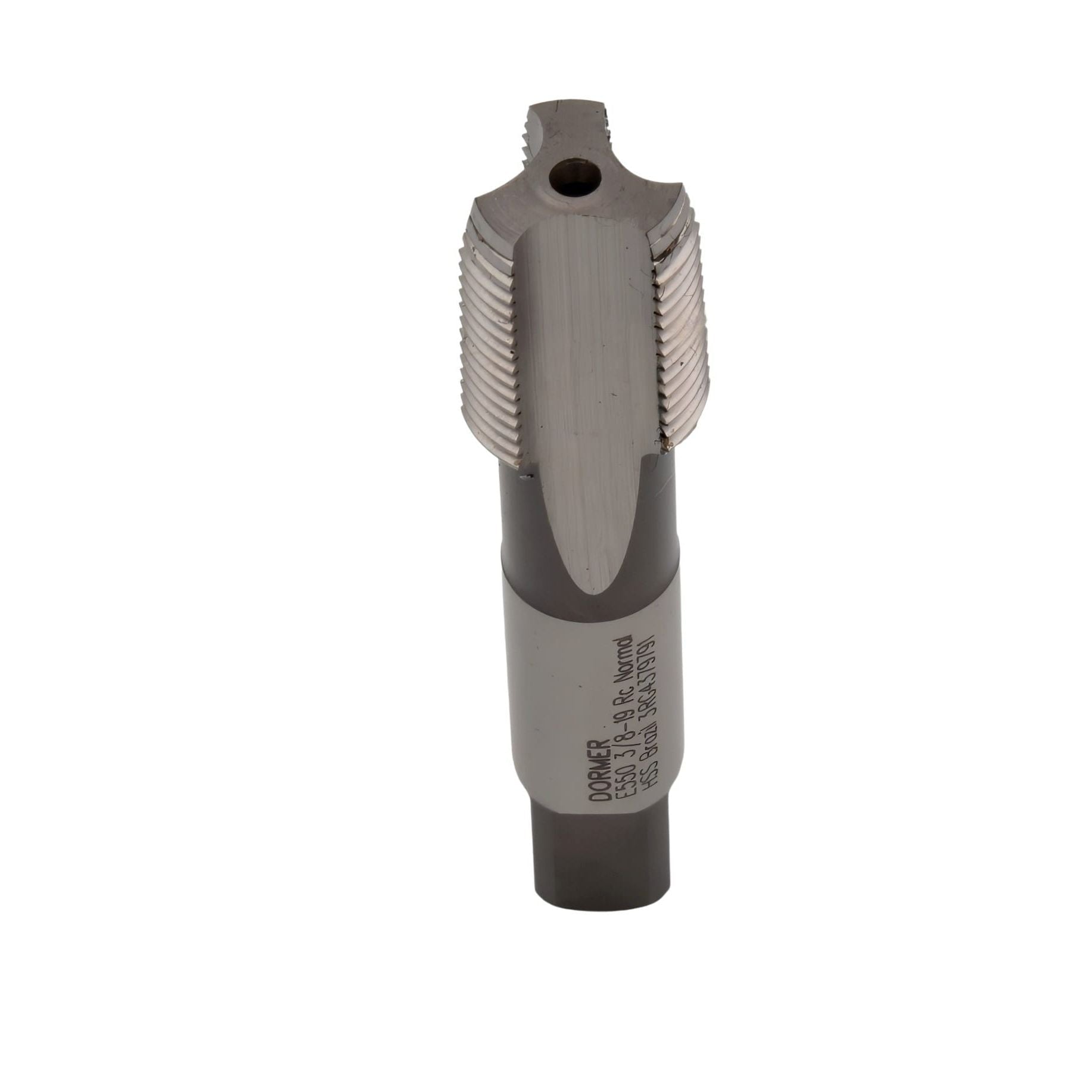

Dormer E5503/8 – 3/8" BSPT Rc HSS Straight Flute Hand Tap

The Dormer E5503/8 is a high-quality straight flute hand tap engineered for producing Rc 3/8" British Standard Pipe Taper (BSPT) internal threads with 19 TPI. Designed with chamfer form C...
£76.00
£0.00
£76.00
(-0%)
Vendor: DORMER
SKU: E5503/8
Availability: In Stock
Subtotal: £76.00
DORMER TAPS Dormer E5503/8 – 3/8" BSPT Rc HSS Straight Flute Hand Tap

Dormer E5503/8 – 3/8" BSPT Rc HSS Straight Flute Hand Tap

£0.00 £76.00

Dormer E5503/8 – 3/8" BSPT Rc HSS Straight Flute Hand Tap

£0.00 £76.00

The Dormer E5503/8 is a high-quality straight flute hand tap engineered for producing Rc 3/8" British Standard Pipe Taper (BSPT) internal threads with 19 TPI. Designed with chamfer form C and a 2–3xP semi-bottoming lead, it is suitable for both through hole and blind hole threading applications up to 1.5xD depth.

Manufactured from premium high-speed steel with a bright uncoated finish, this tap provides dependable cutting performance in free machining steels, copper, and copper alloys. Built to ISO 2284 standards, it delivers accurate pipe thread production with a normal fit class and excellent tool life in maintenance, fabrication, and industrial threading applications.

Key Features & Benefits

  • Brand: Dormer Pramet
  • Product Code: E5503/8
  • Thread Type: BSPT Rc internal pipe thread
  • Thread Size: Rc 3/8" x 19 TPI
  • Thread Form: British Standard Taper Pipe (BSPT), 1:16 taper
  • Chamfer Type: Form C semi-bottoming, 2–3 pitch lead
  • Flute Geometry: Straight flute
  • Material: High Speed Steel (HSS)
  • Finish: Bright (uncoated)
  • Cutting Direction: Right-hand cutting
  • Application: Through hole and blind hole threading
  • Usable Tool Depth: Up to 1.5xD
  • Standard: ISO 2284 pipe tap standard
  • Fit Class: Normal pipe thread fit

Technical Specifications

  • Product Name: E5503/8
  • Ordering Code ANSI: E5503/8
  • EAN: 7320760099520
  • Thread Diameter Size: 3/8"
  • Thread Diameter: 16.662 mm
  • Threads Per Inch: 19 TPI
  • Threading Length: 21 mm
  • Overall Length: 75 mm
  • Shank Diameter: 12.5 mm
  • Square Drive: 10 mm
  • Clamping Length: 13 mm
  • Flute Count: 3
  • Premachined Hole Diameter: 14.75 mm
  • Net Weight: 63.3 g
  • Gross Weight: 70.9 g
  • Product ID: 86017120
  • EDP Number: 0099520

Dormer Pramet is globally recognised for manufacturing precision cutting tools that deliver consistent performance, reliability, and long service life across demanding industrial machining applications.
