Insize Digital Non-Rotating Spindle Disk Micrometer 25–50 mm / 1–2" Series 3594-50A

Insize Digital Non-Rotating Spindle Disk Micrometer The Insize 3594-50A Digital Non-Rotating Spindle Disk Micrometer is designed for measuring the root tangent length of gears with high accuracy. Featuring a non-rotating...
£530.00
£530.00
(-0%)
Vendor: INSIZE
SKU: 3594-50A
Availability: In Stock
Subtotal: £530.00
Insize Digital Non-Rotating Spindle Disk Micrometer 25–50 mm / 1–2" Series 3594-50A

Insize Digital Non-Rotating Spindle Disk Micrometer 25–50 mm / 1–2" Series 3594-50A

£530.00

Insize Digital Non-Rotating Spindle Disk Micrometer 25–50 mm / 1–2" Series 3594-50A

£530.00

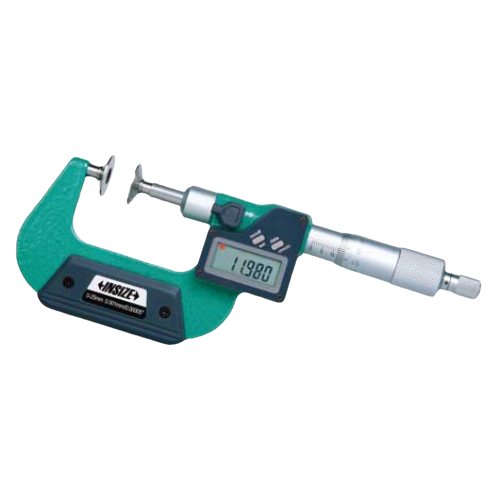

Insize Digital Non-Rotating Spindle Disk Micrometer

The Insize 3594-50A Digital Non-Rotating Spindle Disk Micrometer is designed for measuring the root tangent length of gears with high accuracy. Featuring a non-rotating spindle and disk-shaped measuring faces, it ensures consistent contact and precision. This model offers IP-rated dust protection, a clear digital display, and data output capability for efficient measurement recording. The ratchet stop ensures uniform measuring force, while carbide disks provide long-term durability.

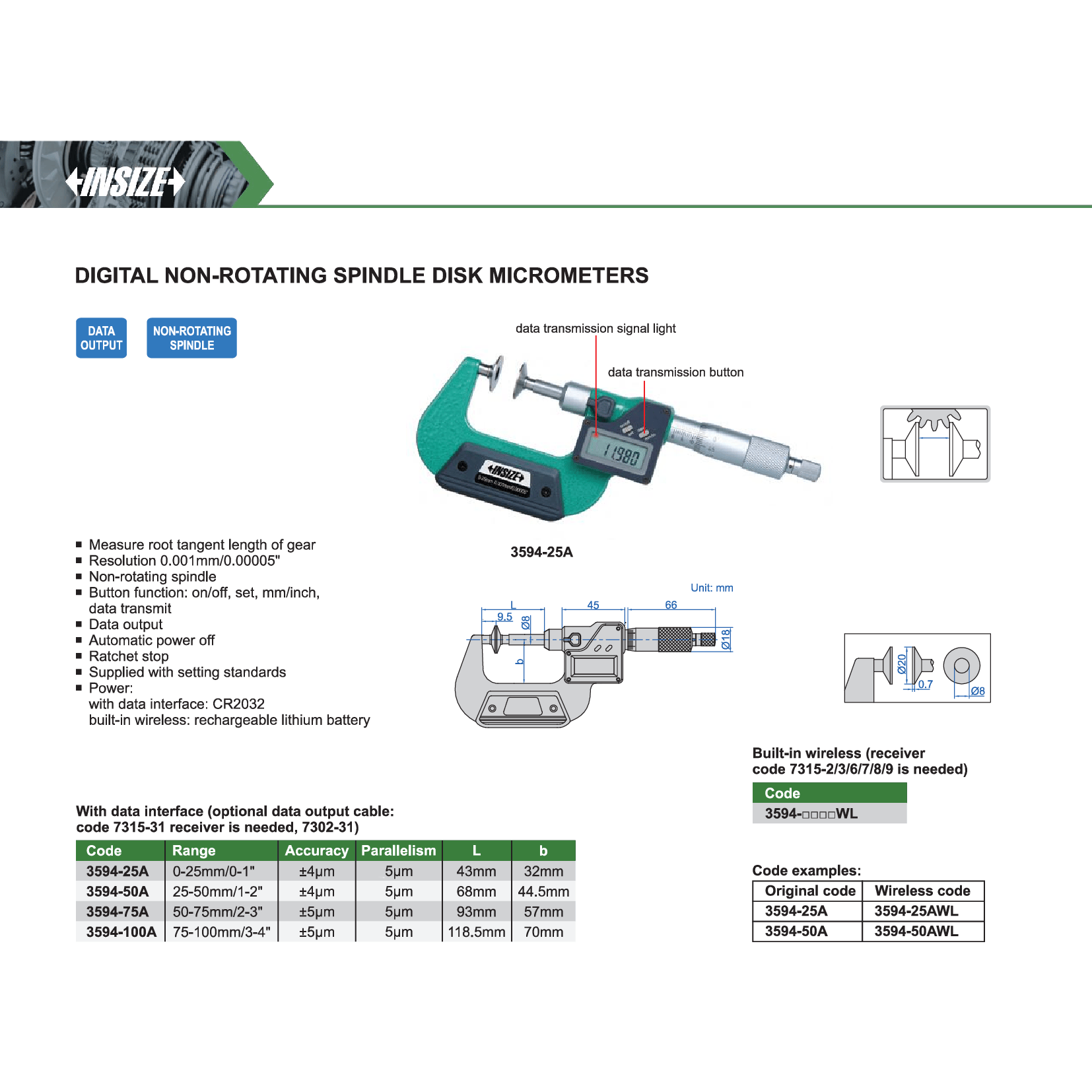

Specifications :

  • Part No: 3594-50A
  • Range: 25–50 mm / 1–2"
  • Resolution: 0.001 mm / 0.00005"
  • Accuracy: ±4 µm
  • Parallelism: 5 µm
  • Measuring Face Diameter: 20 mm
  • L: 68 mm
  • b (Throat Depth): 44.5 mm
  • Functions: On/Off, set, mm/inch conversion, data transmit
  • Features: Data output, automatic power off, ratchet stop, non-rotating spindle, carbide measuring faces
  • Power Supply:
    • With data interface: CR2032 battery
    • Built-in wireless: Rechargeable lithium battery
  • Data Output: SPC output (requires 7315-31 cable and receiver; optional)
  • Included Accessories: Setting standards, battery, protective case

With its non-rotating spindle and precision carbide disks, the INSIZE 3594-50A is ideal for accurate gear measurement in manufacturing, inspection, and quality control environments.
