Carmex Internal Right Hand Full Radius Grooving Insert 16 mm / R0.90 mm / 16 IR/EL R0.90 BXC

Internal Grooving Insert – Full Radius Profile (R0.90 mm) The Carmex 16 IR/EL R0.90 BXC is a precision internal grooving insert designed for full-radius (R0.90 mm) internal grooving and profiling...
£24.00
£0.00
£24.00
(-0%)
Vendor: CARMEX
SKU: 16 IR/EL R0.90 BXC
Availability: In Stock
Subtotal: £24.00
Carmex Internal Right Hand Full Radius Grooving Insert 16 mm / R0.90 mm / 16 IR/EL R0.90 BXC

Carmex Internal Right Hand Full Radius Grooving Insert 16 mm / R0.90 mm / 16 IR/EL R0.90 BXC

£0.00 £24.00

Carmex Internal Right Hand Full Radius Grooving Insert 16 mm / R0.90 mm / 16 IR/EL R0.90 BXC

£0.00 £24.00

Internal Grooving Insert – Full Radius Profile (R0.90 mm)

The Carmex 16 IR/EL R0.90 BXC is a precision internal grooving insert designed for full-radius (R0.90 mm) internal grooving and profiling operations. Ideal for producing round-bottom grooves, undercuts, and reliefs, this insert ensures accurate geometry, smooth surface finish, and consistent performance across a wide range of materials and applications.

Manufactured from advanced BXC-grade carbide, this insert offers excellent wear resistance, edge stability, and heat tolerance. It performs reliably on steels, stainless steels, and high-temperature alloys, maintaining dimensional precision, smooth chip flow, and extended tool life even in demanding machining environments.

Key Features:

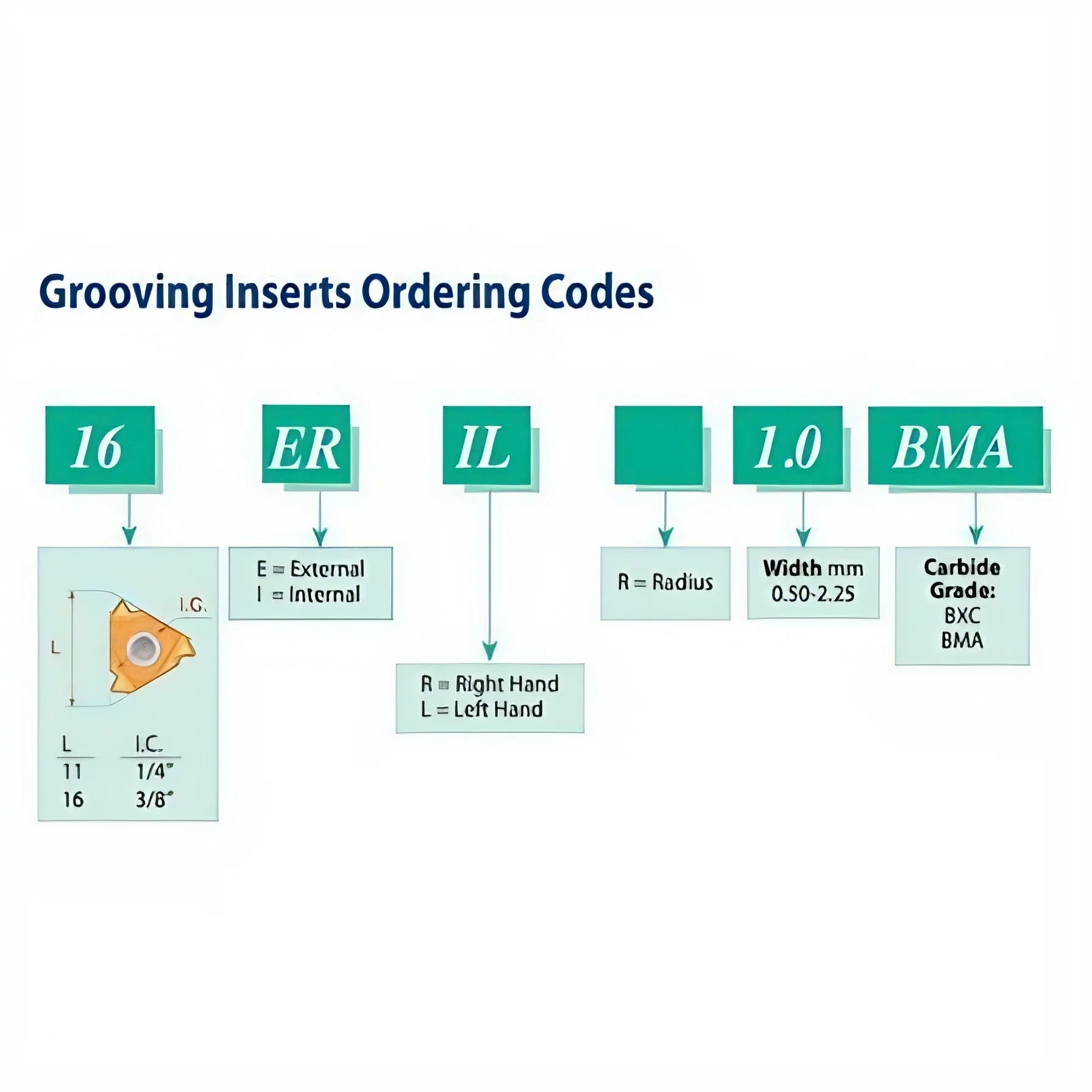

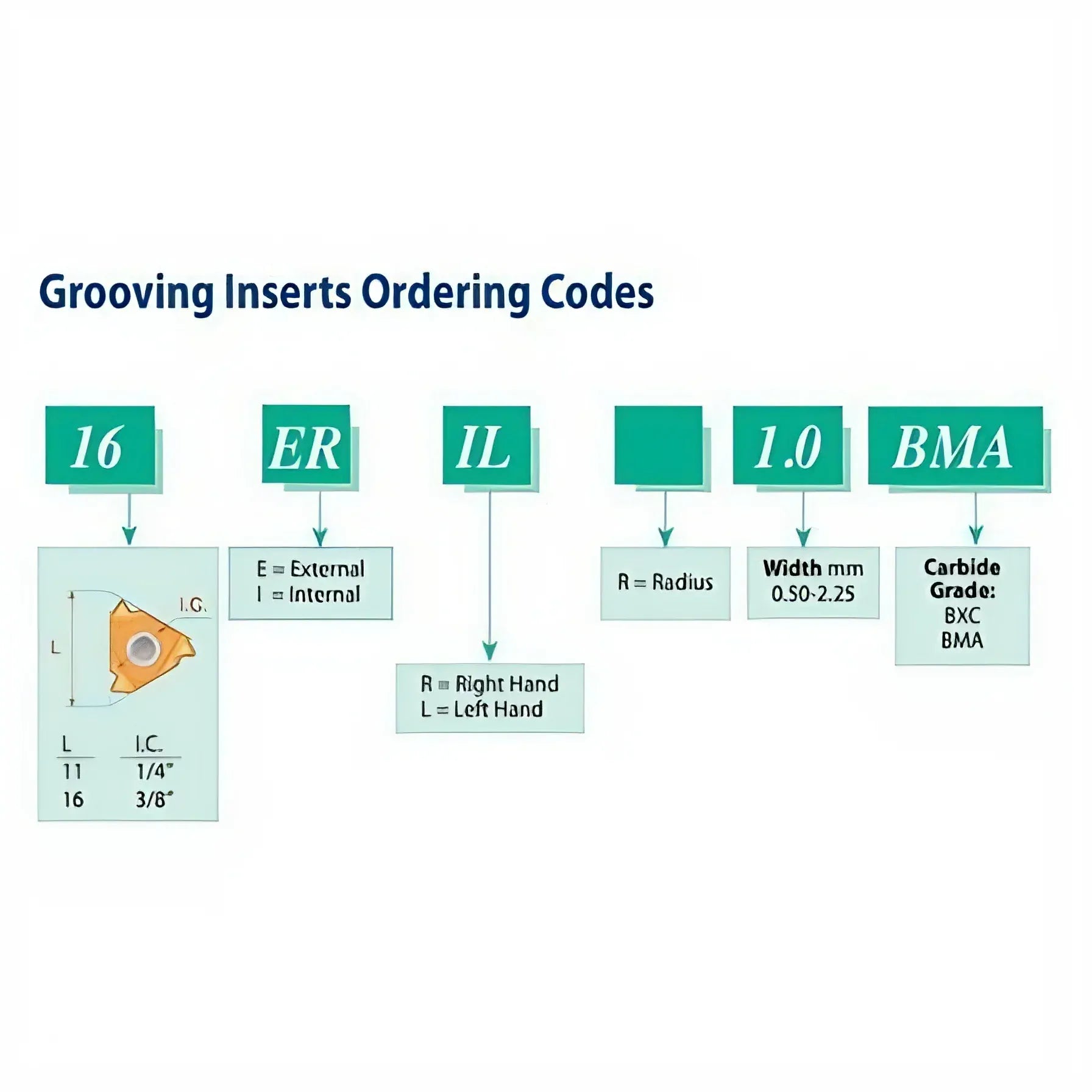

  • Ordering Code: 16 IR/EL R0.90 BXC
  • Insert Type: Internal Grooving (Full Radius)
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Groove Radius: 0.90 mm
  • Cutting Edge Geometry: EL Profile – Optimized for full-radius internal grooves

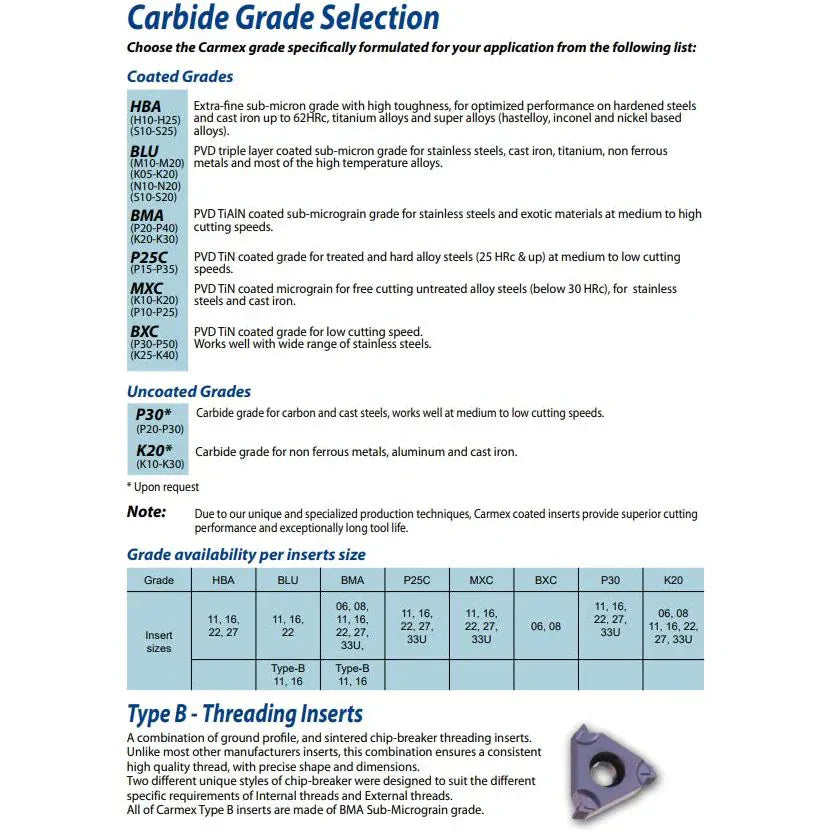

  • Carbide Grade: BXC
  • Applications: Internal Full-Radius Grooving, Profiling, and Undercutting in Steels, Stainless Steels, and Alloys
  • Key Advantage: Full-radius insert providing exceptional surface finish, stability, and long-lasting wear resistance for high-precision internal grooving

Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading and grooving technologies—this insert is part of a comprehensive range that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide Threadmills. Known for precision, reliability, and durability, Carmex tools are trusted by professionals in demanding machining environments worldwide.
