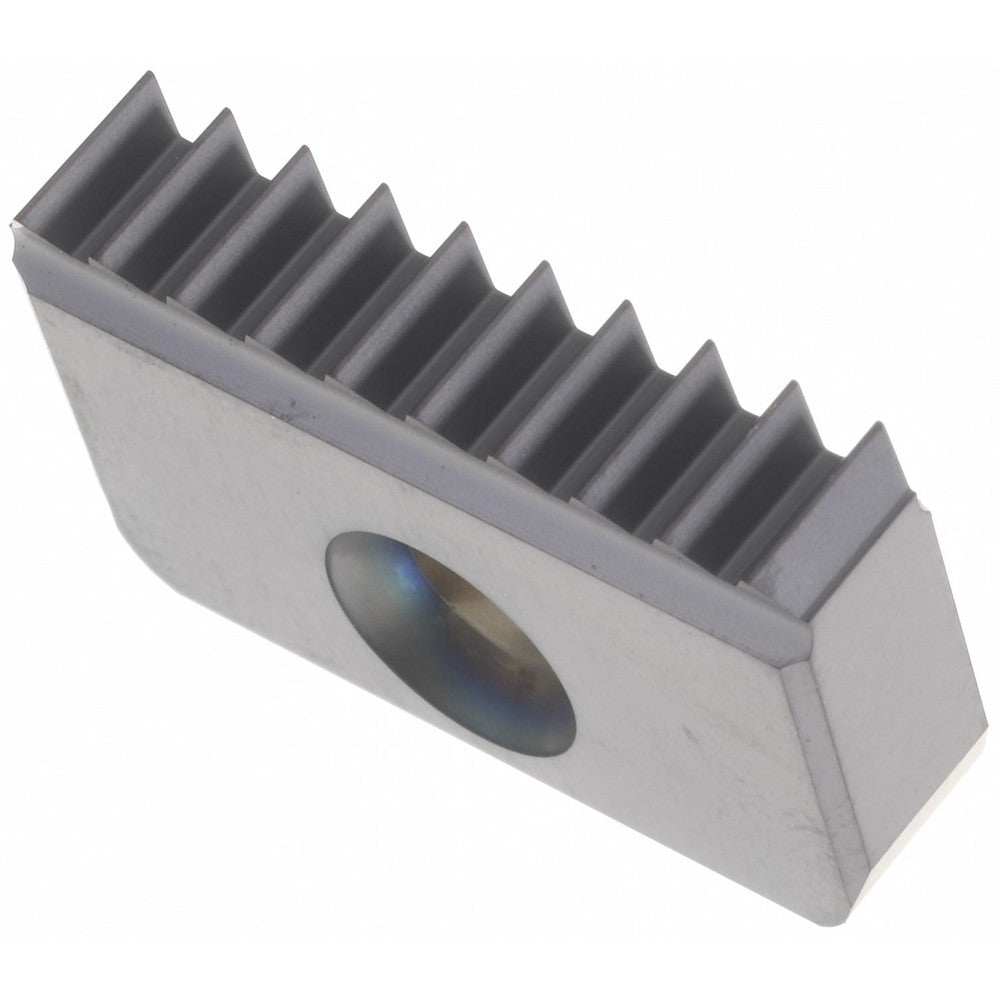

Mill-Thread Insert – Whitworth 14 TPI, Internal/External

The Carmex 21–14 W MT7 is a high-precision internal and external thread milling insert engineered for cutting Whitworth 55° thread profiles with a 14 TPI pitch. Designed for use in CNC milling machines with helical interpolation, this insert provides smooth, accurate threading for pipe and fitting applications that require consistent form and sealing performance.

Crafted from MT7 ultra-fine carbide, the insert offers superior hardness, wear resistance, and thermal stability for extended tool life. Its 21 mm size, 12 mm height, and 4.7 mm thickness ensure rigidity and precision under demanding threading conditions. Suitable for both internal and external operations, it’s a versatile choice for general engineering and industrial pipe thread production.

Key Features & Benefits

  • Ordering Code: 21–14 W MT7
  • Thread Type: Whitworth (55°)
  • Threading: Internal and External
  • Insert Size: 21 mm
  • Pitch: 14 TPI
  • H (Height): 12 mm
  • T (Thickness): 4.7 mm
  • Carbide Grade: MT7
  • Applications: Whitworth pipe and general-purpose threading requiring tight form and sealing accuracy
  • Advantages: High precision | Dual-use (Int./Ext.) | Excellent wear resistance | Smooth thread finish

Carmex Precision Tools Ltd. is a world-leading manufacturer of cutting tools for threading and milling. Their comprehensive product line includes Thread Turning Inserts and Toolholders, Mill-Thread Inserts and Tool Holders, Solid Carbide Threadmills, and Spiral Mill-Thread Systems — all designed to deliver maximum accuracy, consistency, and performance across diverse machining applications.
