Carmex External Right Hand Vertical Partial Profile 55° Thread Turning Insert 7-5 TPI / 22V ER N55 BMA

External Thread Turning Insert – 55° Vertical Partial Profile (7–5 TPI) The 22V ER N55 BMA is a high-performance external thread turning insert engineered for vertical partial profile threading at a...
£30.00
£0.00
£30.00
(-0%)
SKU: 22V ER N55 BMA
Availability: In Stock
Subtotal: £30.00
Carmex External Right Hand Vertical Partial Profile 55° Thread Turning Insert 7-5 TPI / 22V ER N55 BMA

Carmex External Right Hand Vertical Partial Profile 55° Thread Turning Insert 7-5 TPI / 22V ER N55 BMA

£0.00 £30.00

Carmex External Right Hand Vertical Partial Profile 55° Thread Turning Insert 7-5 TPI / 22V ER N55 BMA

£0.00 £30.00

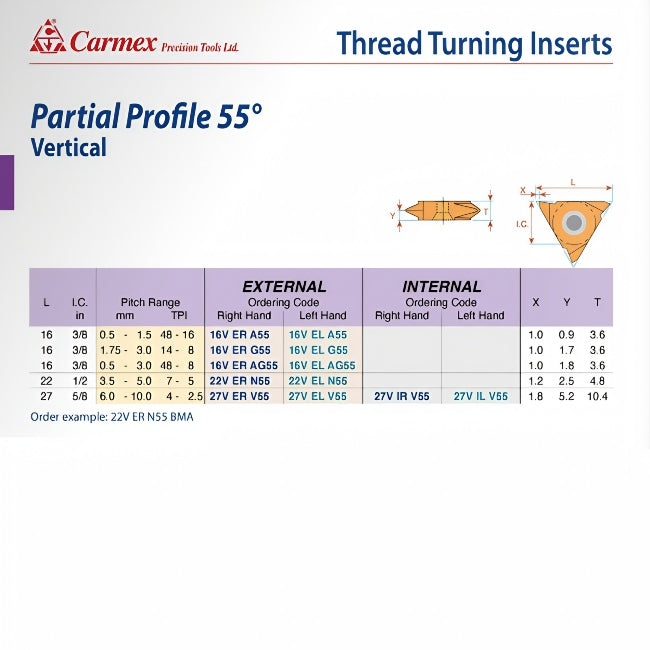

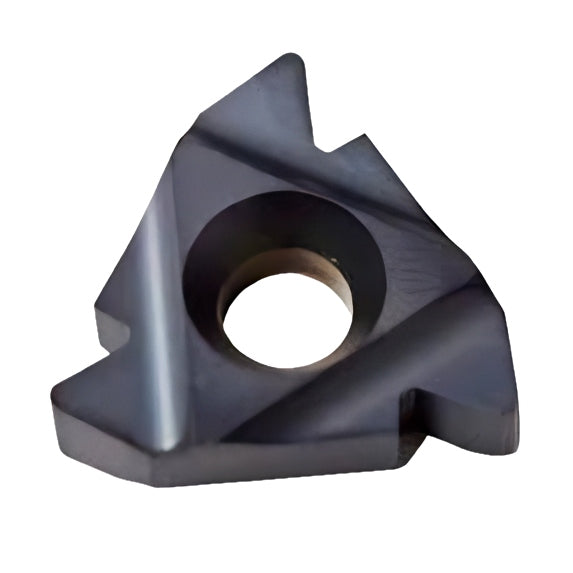

External Thread Turning Insert – 55° Vertical Partial Profile (7–5 TPI)

The 22V ER N55 BMA is a high-performance external thread turning insert engineered for vertical partial profile threading at a 55° angle. Supporting thread pitches from 3.5 mm to 5.0 mm (7–5 TPI), this insert is ideal for general-purpose threading where flexibility and high precision are required across multiple thread forms within the 55° standard.

Made from BMA-grade carbide, the insert ensures excellent resistance to wear, heat, and edge degradation during extended machining runs. The insert features a 22 mm length and 1/2" I.C., with precision-ground geometry including X, Y, and T dimensions of 1.2 mm, 2.5 mm, and 4.8 mm respectively, enabling clean thread profiles and efficient chip evacuation during cutting.

Key Features:

  • Ordering Code: 22V ER N55 BMA
  • Thread Type: 55° Vertical Partial Profile
  • Profile: Partial Form, 55° included angle
  • Insert Type: External
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch Range: 3.5 – 5.0 mm
  • Pitch Range (TPI): 7 – 5
  • X: 1.2 mm
  • Y: 2.5 mm
  • T: 4.8 mm
  • Carbide Grade: BMA
  • Applications: External thread turning for BSF, BSW, and other 55° profile threads across medium pitch sizes
  • Key Advantage: One insert supports a range of 55° thread pitches with stable and repeatable cutting performance

Carmex Precision Tools Ltd. is a global leader in threading technologies. Their Vertical Partial Profile series delivers outstanding versatility and accuracy for multi-pitch threading applications, reducing tool inventory and setup time.
