Carmex External Right Hand UN Unified Thread Turning Insert 18 TPI / 16 ER 18 UN P25C

External Thread Turning Insert – UN Full Profile 60° The UN Full Profile External Thread Turning Insert is designed for high-precision threading of Unified thread forms (UNC, UNF, UNEF, UNS)....
£16.00
£0.00
£16.00
(-0%)
SKU: 16 ER 18 UN P25C
Availability: In Stock
Subtotal: £16.00
Carmex External Right Hand UN Unified Thread Turning Insert 18 TPI / 16 ER 18 UN P25C

Carmex External Right Hand UN Unified Thread Turning Insert 18 TPI / 16 ER 18 UN P25C

£0.00 £16.00

Carmex External Right Hand UN Unified Thread Turning Insert 18 TPI / 16 ER 18 UN P25C

£0.00 £16.00

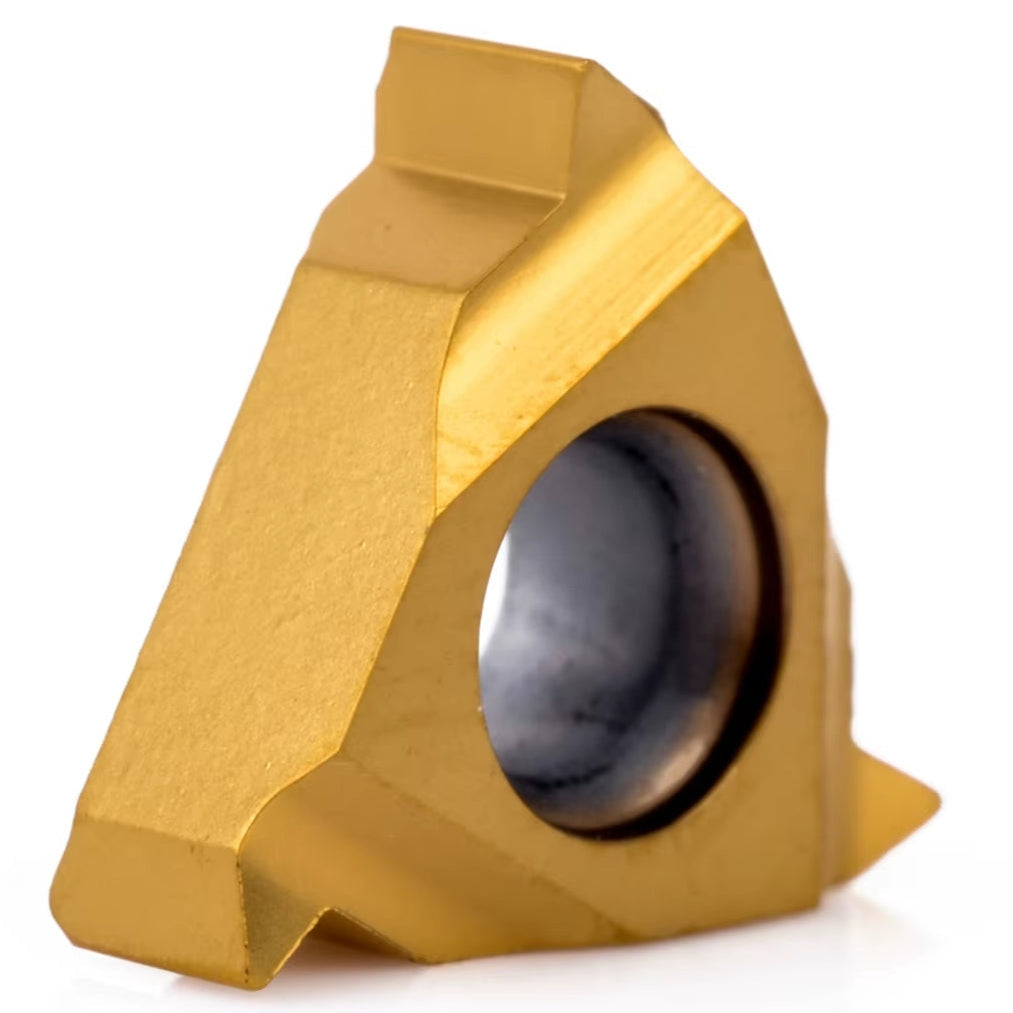

External Thread Turning Insert – UN Full Profile 60°

The UN Full Profile External Thread Turning Insert is designed for high-precision threading of Unified thread forms (UNC, UNF, UNEF, UNS). With a 60° profile and 18 TPI pitch, this insert forms the full thread geometry—crest, root, and flanks—in a single operation, delivering accuracy and strength in external threading applications.

Manufactured from robust P25C-grade carbide, this insert provides a strong balance of wear resistance and toughness, making it suitable for machining steel and alloy components. The refined X and Y dimensions contribute to smooth chip evacuation, stable cutting action, and long tool life in high-volume or high-precision environments.

Key Features:

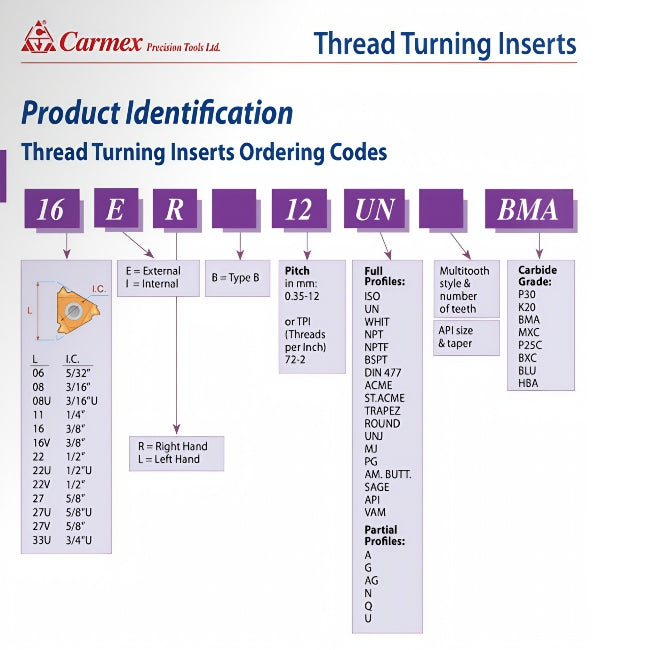

  • Ordering Code: 16 ER 18 UN P25C

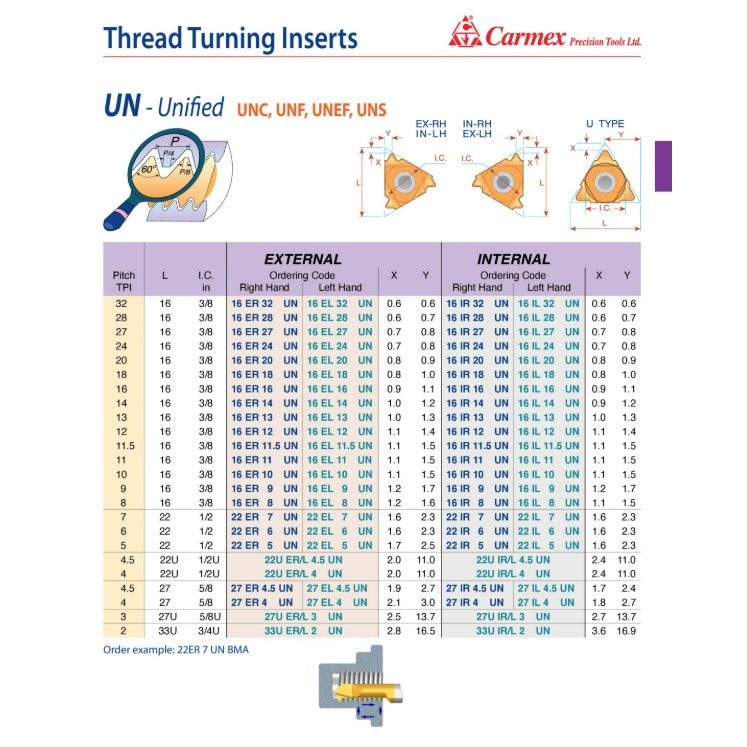

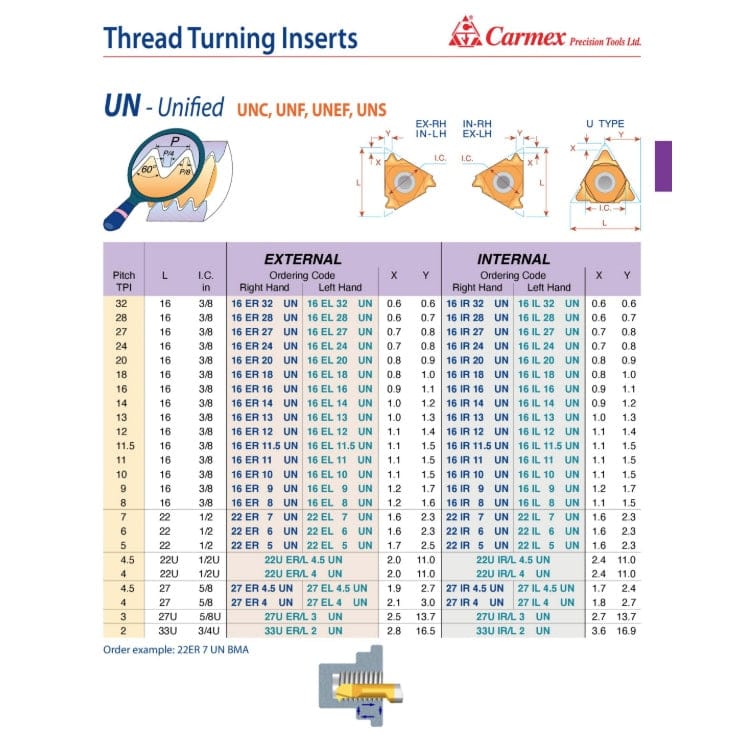

  • Thread Type: UN (Unified Thread Standard – 60°)
  • Profile: Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 18 TPI
  • X: 0.8 mm
  • Y: 1.0 mm

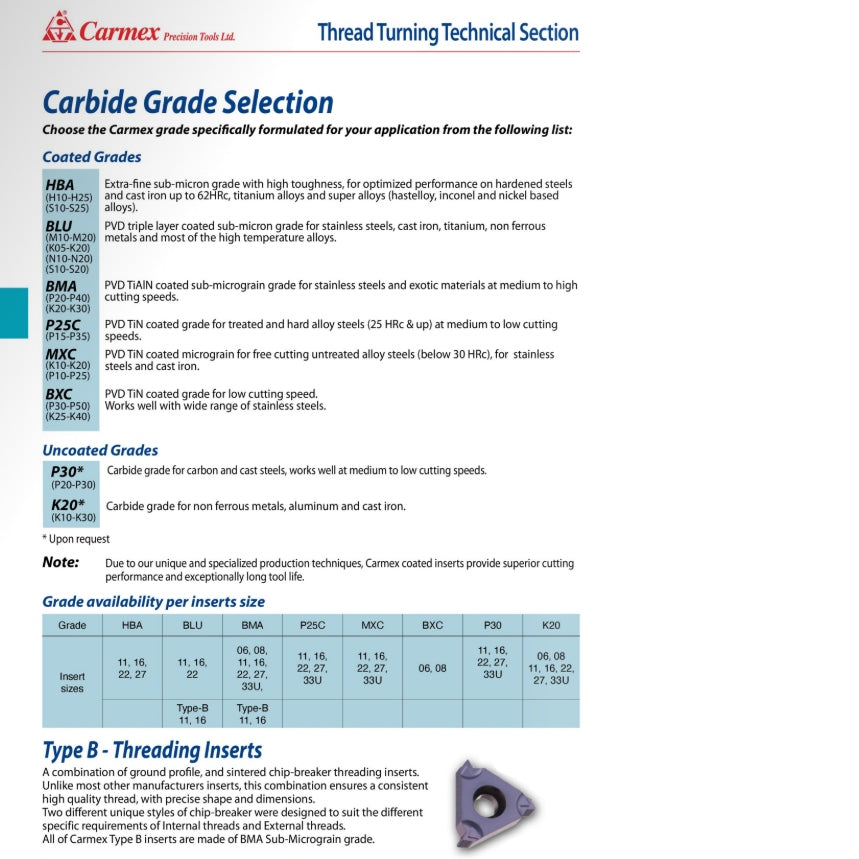

  • Carbide Grade: P25C
  • Applications: External Thread Turning for Unified Thread Standards
  • Key Advantage: Full-profile threading with optimal balance of strength and wear resistance for general-purpose materials

Manufactured by Carmex Precision Tools Ltd.—a globally recognized leader in threading technologies—this insert is part of a complete product lineup including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for their performance, precision, and reliability in demanding industrial applications.
