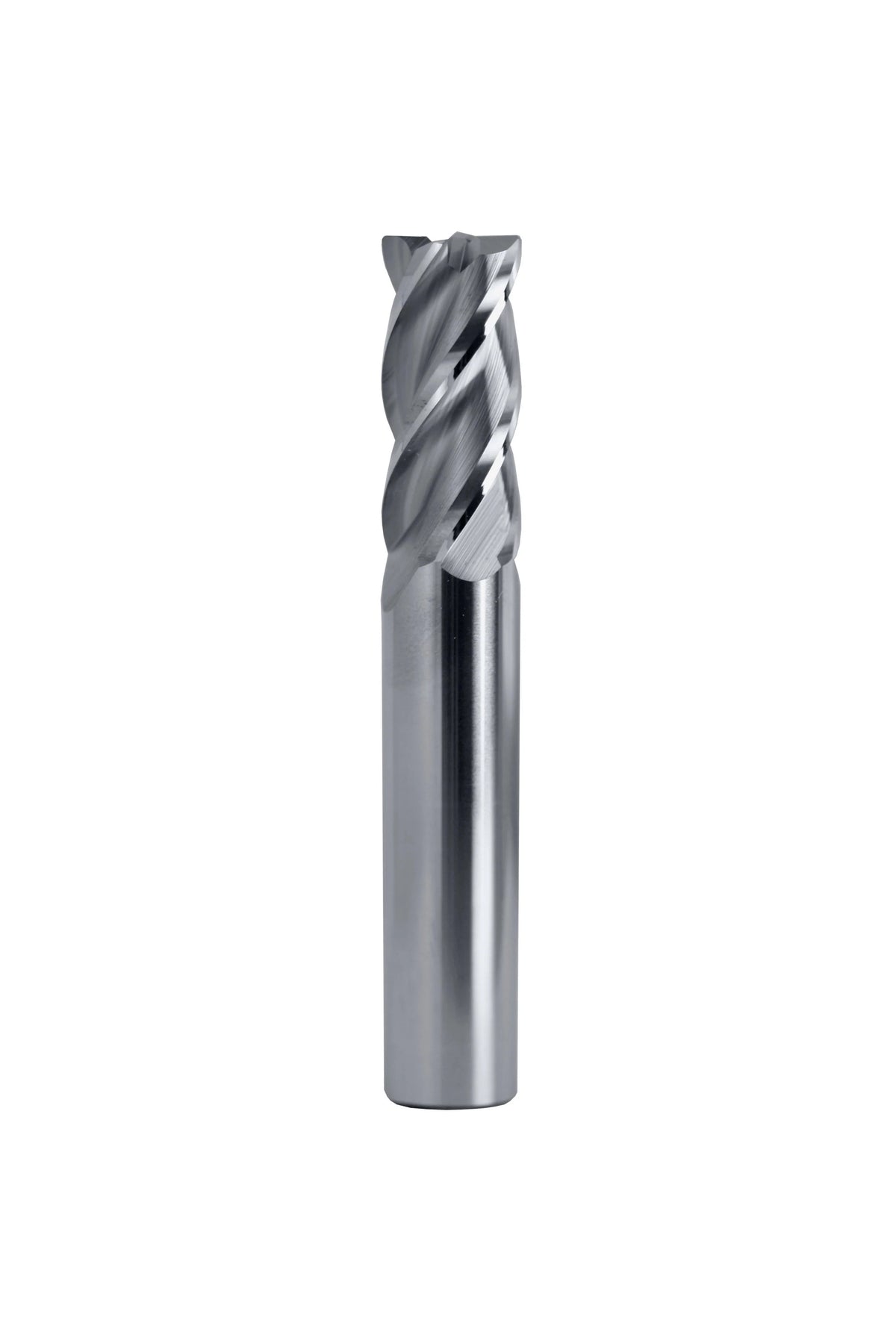

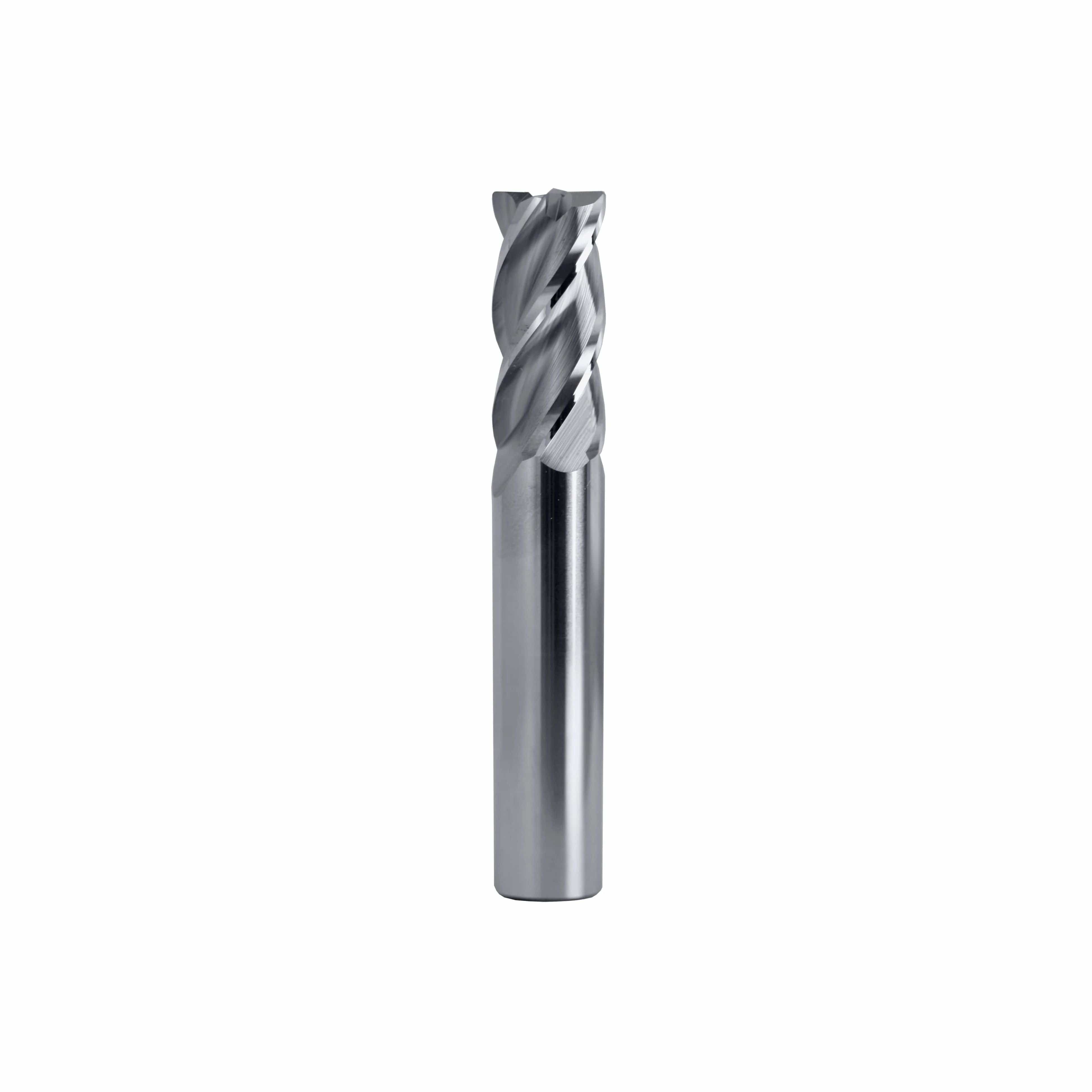

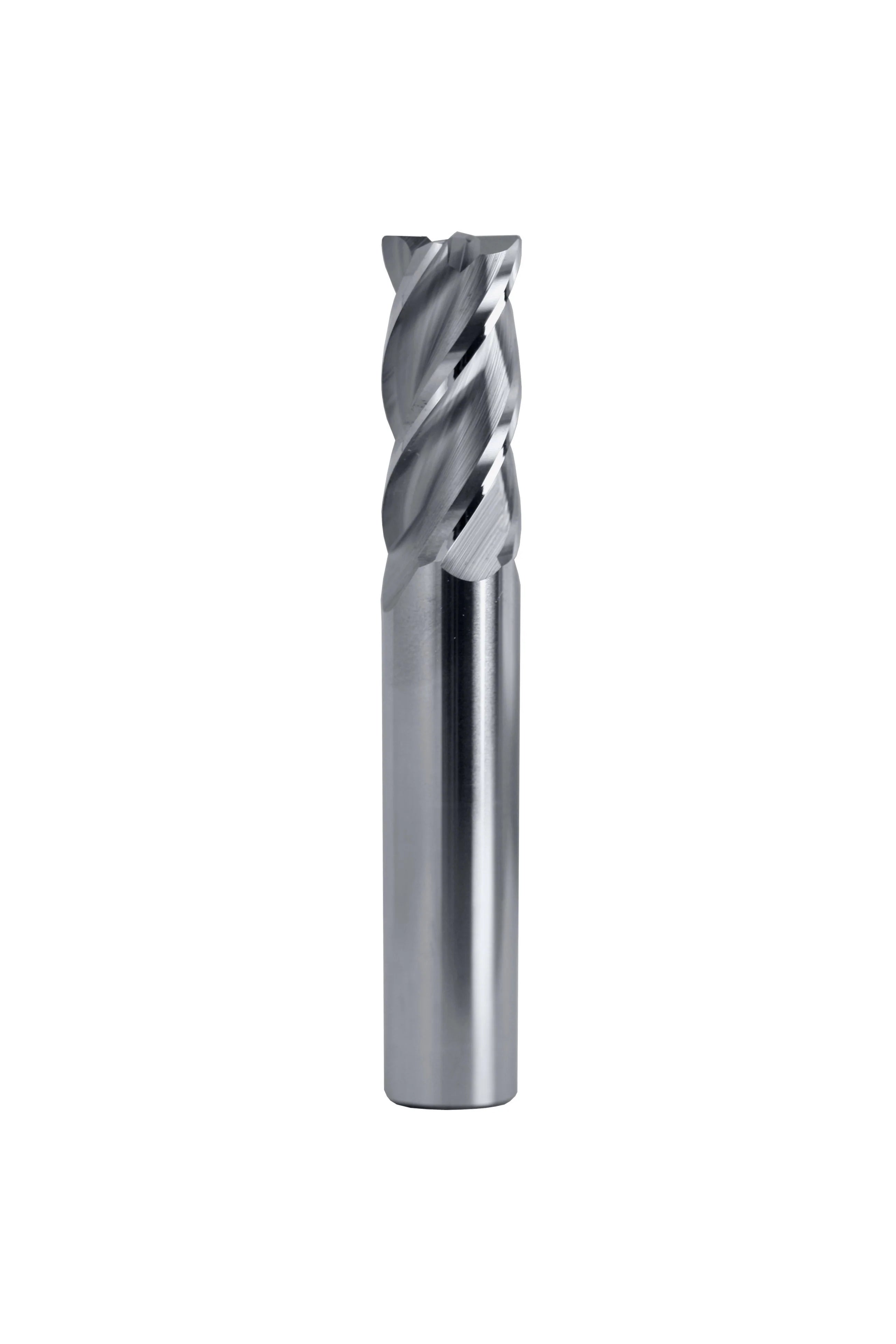

Best Carbide - Short Series Corner Radius End Mill 5mm (4 Flute)

High-Performance Variable Helix Corner Radius End Mill The Best Carbide Short Series Corner Radius End Mill 5 mm (4 Flute, Variable Helix, 0.5 mm Radius) is engineered for high-feed cutting, precision profiling,...
£48.00
£0.00
£48.00
(-0%)
Vendor: BEST CARBIDE
SKU: 402405005R
Availability: In Stock
Subtotal: £48.00
Best Carbide - Short Series Corner Radius End Mill 5mm (4 Flute)

Best Carbide - Short Series Corner Radius End Mill 5mm (4 Flute)

£0.00 £48.00

Best Carbide - Short Series Corner Radius End Mill 5mm (4 Flute)

£0.00 £48.00

High-Performance Variable Helix Corner Radius End Mill

The Best Carbide Short Series Corner Radius End Mill 5 mm (4 Flute, Variable Helix, 0.5 mm Radius) is engineered for high-feed cutting, precision profiling, and demanding milling applications. Its variable helix / offset design reduces chatter and vibration, resulting in smoother finishes and longer tool life. The corner radius strengthens the cutting edge, minimizing chipping and improving durability. Made from solid carbide, it offers superior rigidity and accuracy, making it ideal for CNC and manual machining of steels, stainless steels, and tough alloys.

Specifications:

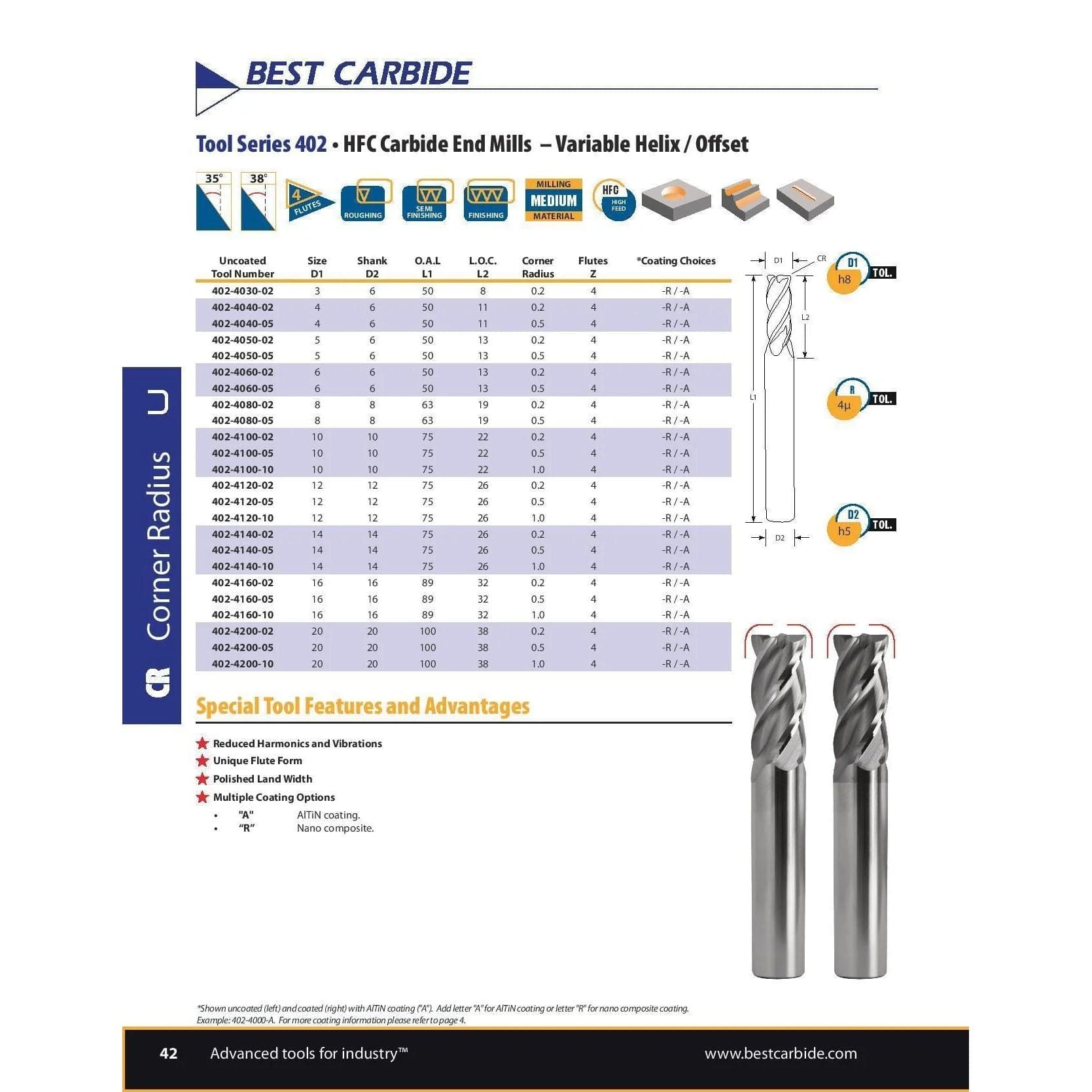

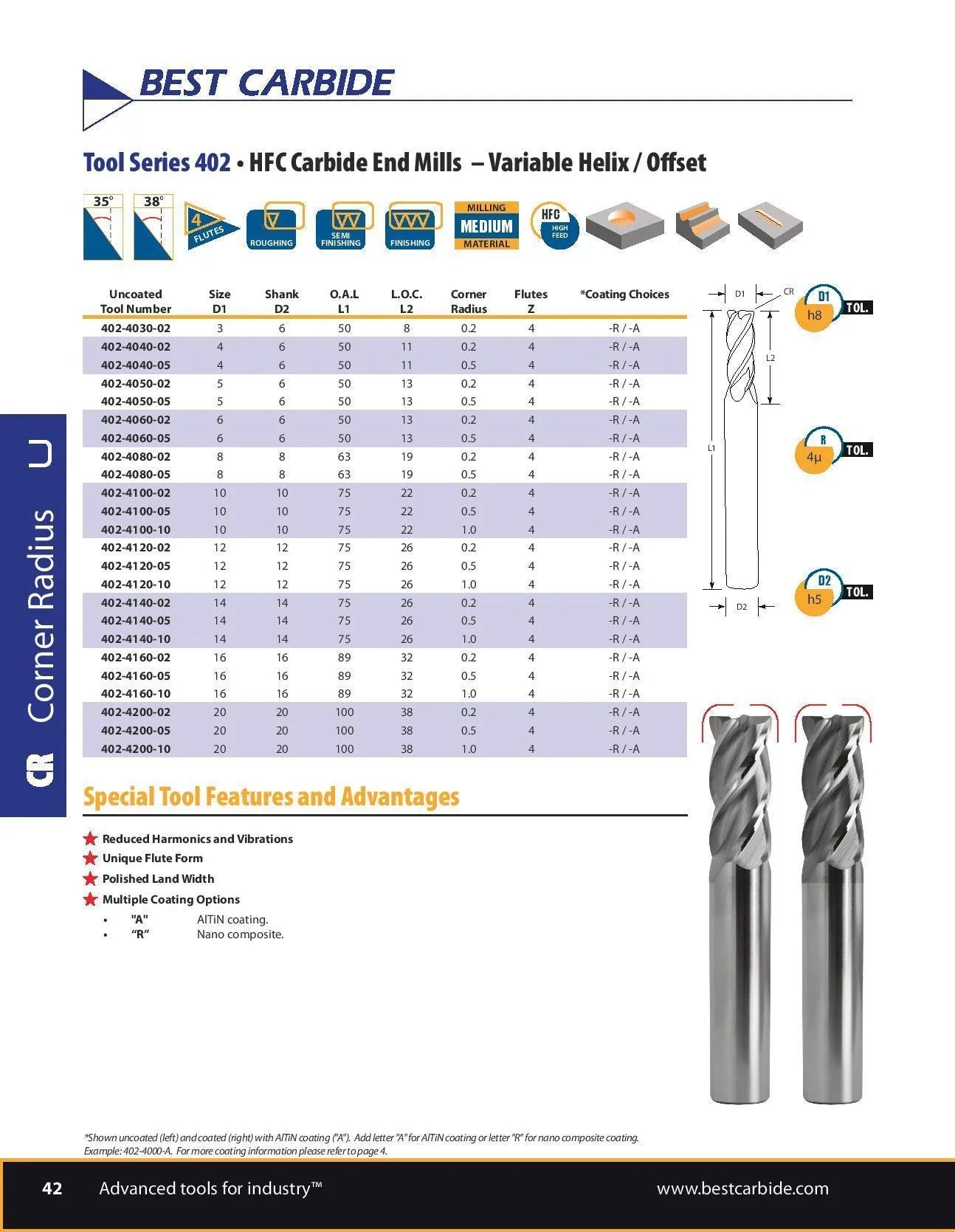

🔹 Tool Series: 402
🔹 Type: HFC Carbide End Mills – Variable Helix / Offset
🔹 Geometry: 4 Flute – Corner Radius
🔹 Material: Solid carbide
🔹 Cutting Diameter (D1): 5 mm
🔹 Shank Diameter (D2): 6 mm
🔹 Length of Cut (L.O.C.): 13 mm
🔹 Overall Length (O.A.L.): 50 mm
🔹 Corner Radius: 0.5 mm
🔹 Reference Number: 402405005R

Key Features & Benefits:

Variable Helix / Offset – Reduces chatter for improved surface quality
Corner Radius – Strengthens the edge and minimizes premature wear
4-Flute Geometry – Enables smooth cutting balance and fine finishes
Solid Carbide – Provides rigidity, accuracy, and long service life
Short Series – Enhances stability and reduces tool deflection

Applications:

✅ High-feed cutting and precision profiling
✅ Shoulder milling and slotting with edge protection
✅ Mold, die, and aerospace machining
✅ Machining steels, stainless steels, and alloys

Why Choose?

✔ Advanced variable helix technology for stability
✔ Longer tool life with corner radius reinforcement
✔ Professional-grade accuracy and performance in production machining
