Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper)

Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper) The Acrow BT50-SLN25-150 is a long-projection Sidelock (Weldon) Holder manufactured to DIN1835B standards for clamping Ø25 mm shank tools...
£222.00
£0.00
£222.00
(-0%)
SKU: BT50-SLN25-150
Availability: In Stock
Subtotal: £222.00
ACROW MACHINERY MFG CO LTD TOOL HOLDERS Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper)

Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper)

£0.00 £222.00

Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper)

£0.00 £222.00

Acrow BT50-SLN25-150 – Sidelock (Weldon) Holder (Ø25 mm Bore, BT50 Taper)

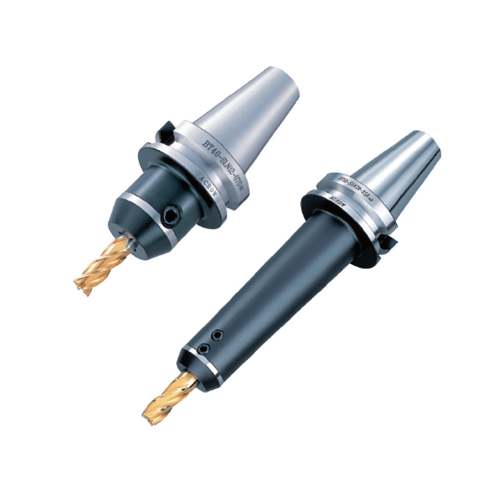

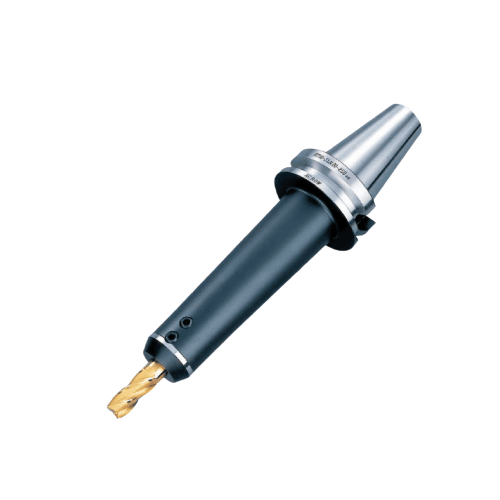

The Acrow BT50-SLN25-150 is a long-projection Sidelock (Weldon) Holder manufactured to DIN1835B standards for clamping Ø25 mm shank tools with Weldon flats. Its 150 mm projection allows deep or extended milling operations while maintaining rigidity and superior torque transmission. Built from hardened alloy steel and precision-ground for exceptional concentricity, it provides stable, accurate performance and long service life on BT50 spindle machining centers.

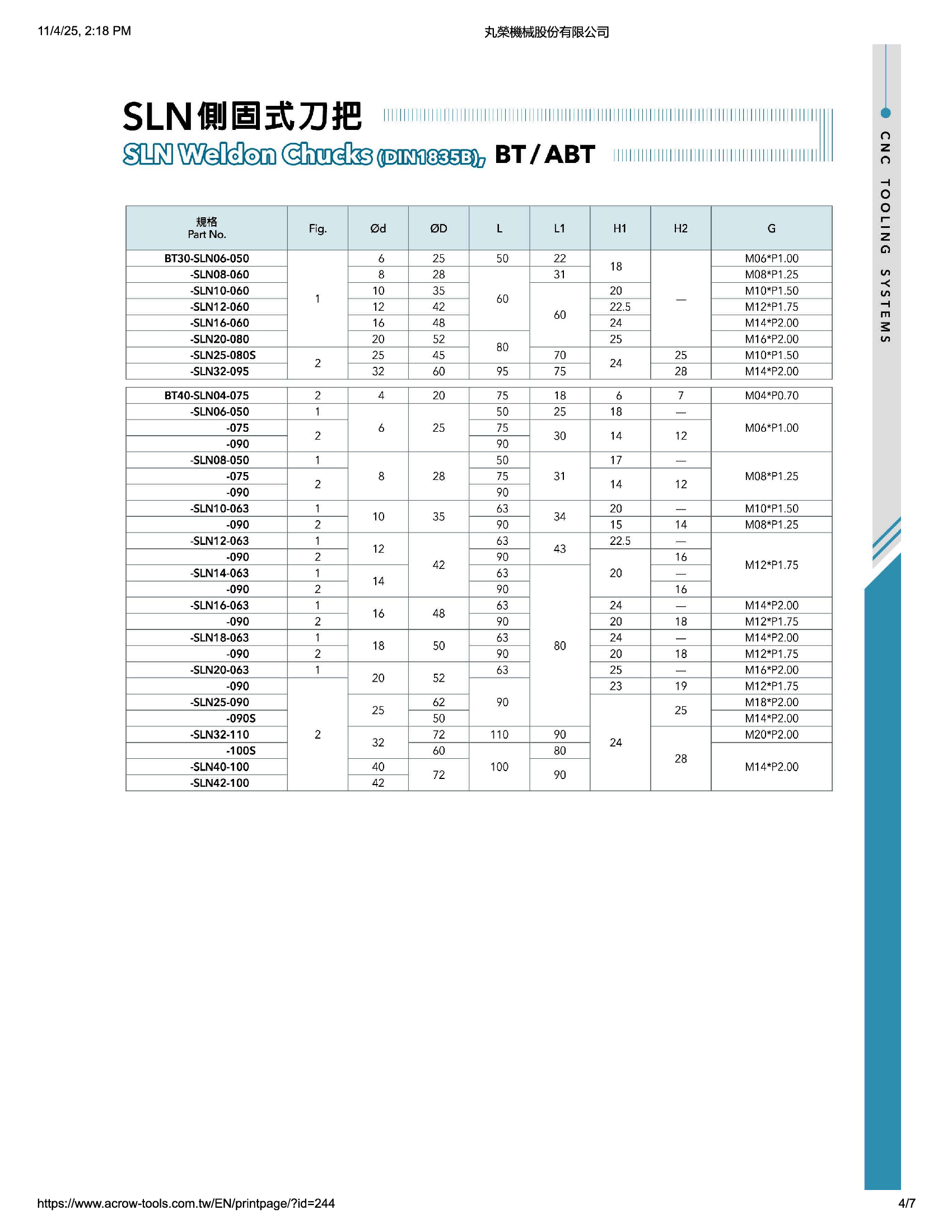

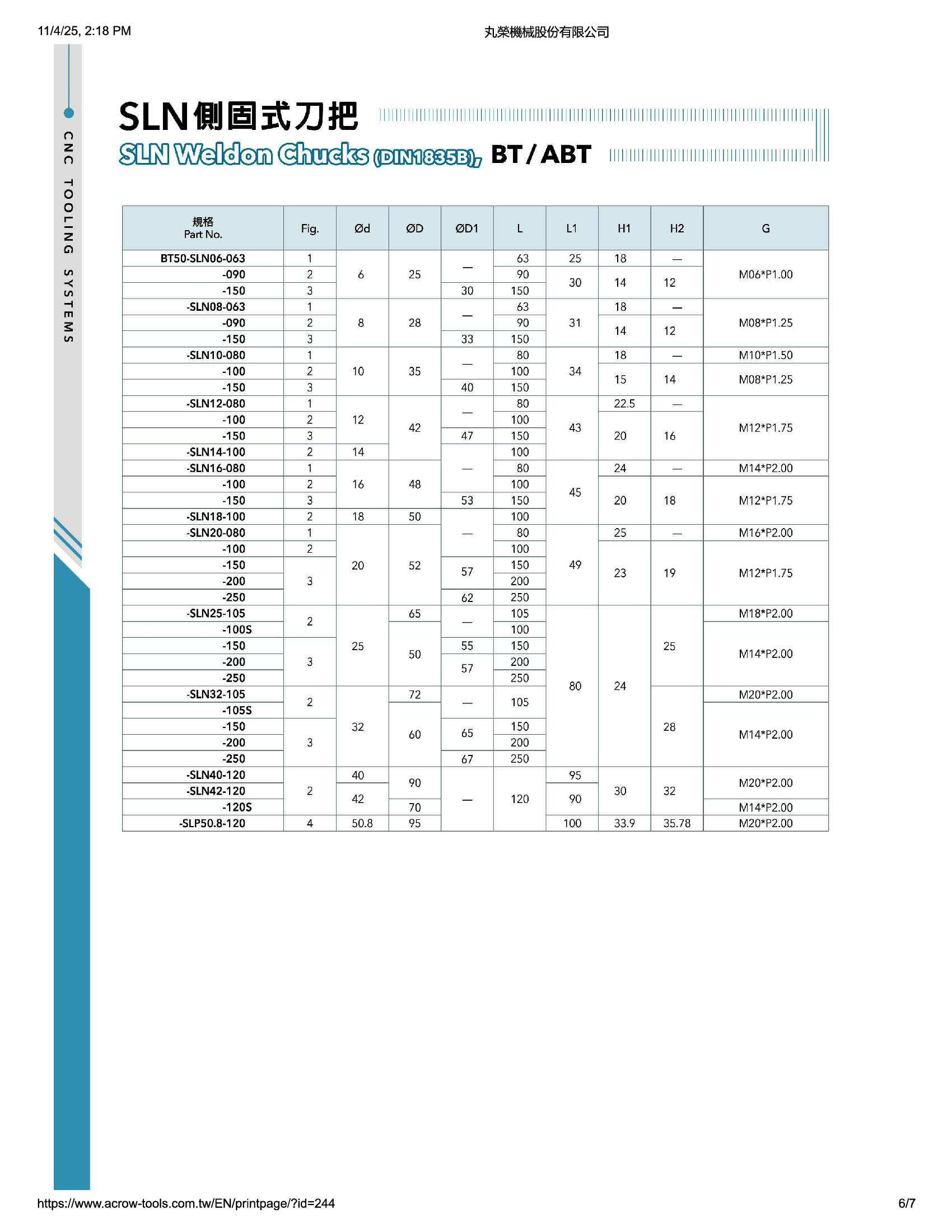

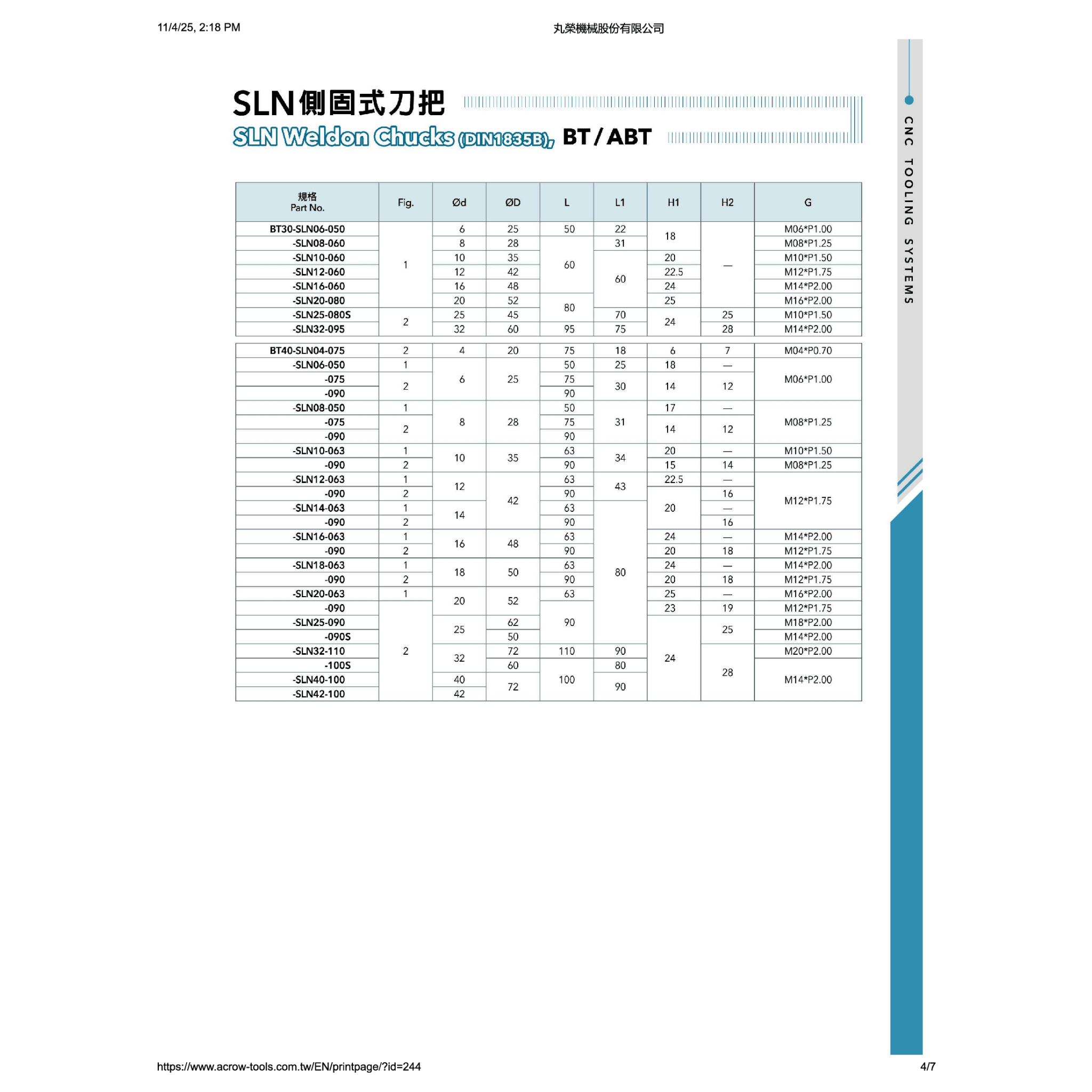

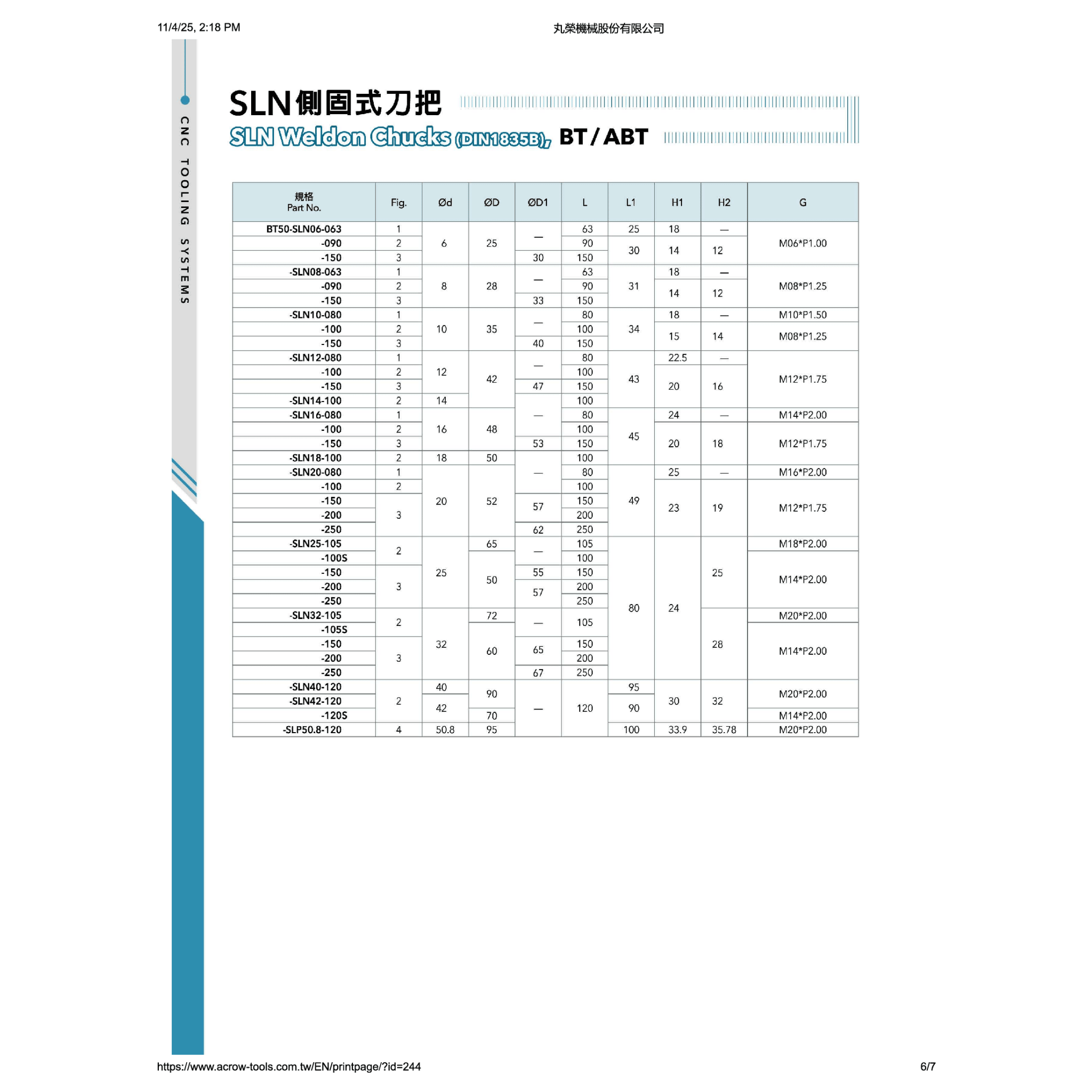

Specifications:

  • Brand: Acrow
  • Type: Sidelock (Weldon) Holder
  • Standard: DIN1835B
  • Model: BT50-SLN25-150

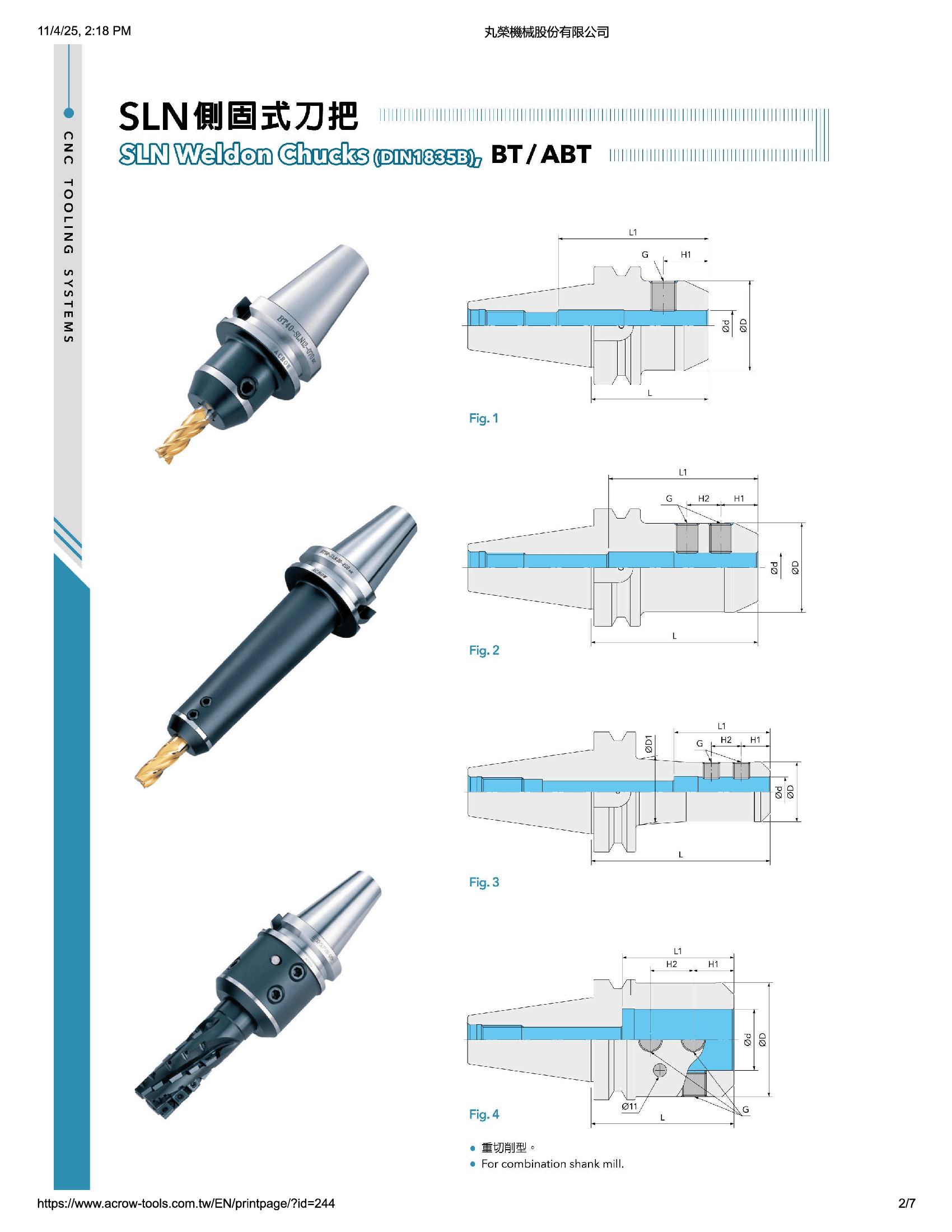

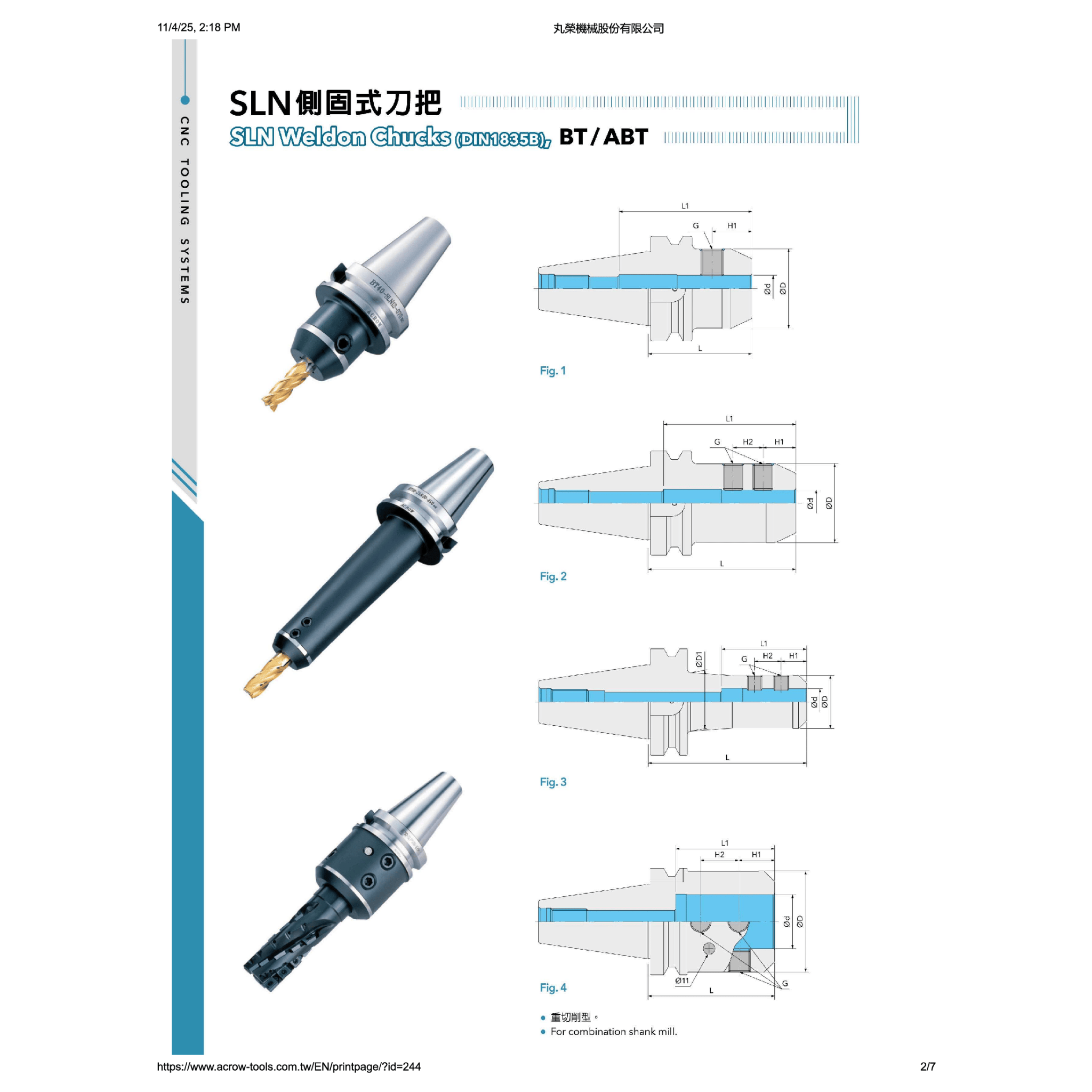

  • Figure No.: 3
  • Ød (Tool Bore Diameter): 25 mm
  • ØD (Body Diameter): 50 mm
  • L (Overall Length): 150 mm
  • L1 (Gauge Length): 80 mm
  • H1 (Set Screw Position 1): 24 mm
  • H2 (Set Screw Position 2): 25 mm
  • G (Drawbar Thread): M14 × P2.00
  • Material: Hardened Alloy Steel
  • Surface Finish: Precision Ground
  • Run-out Accuracy: ≤ 0.005 mm
  • Application: Designed for extended-reach and heavy-duty milling using Ø25 mm Weldon shank cutting tools on BT50 spindle machining centers, ensuring excellent rigidity, torque transmission, and precision.
