Acrow BT40-WER32-120 – WER Tapping Chuck (ER32, Ø2–20 mm Range, 120 mm L)

Acrow BT40-WER32-120 – CNC Tapping Chuck (ER32, Ø2–20 mm Capacity, 120 mm Projection) The Acrow BT40-WER32-120 is a high-capacity CNC tapping chuck engineered for threading larger diameter taps with exceptional...
£210.00
£0.00
£210.00
(-0%)
SKU: BT40-WER32-120
Availability: In Stock
Subtotal: £210.00
Acrow BT40-WER32-120 – WER Tapping Chuck (ER32, Ø2–20 mm Range, 120 mm L)

Acrow BT40-WER32-120 – WER Tapping Chuck (ER32, Ø2–20 mm Range, 120 mm L)

£0.00 £210.00

Acrow BT40-WER32-120 – WER Tapping Chuck (ER32, Ø2–20 mm Range, 120 mm L)

£0.00 £210.00

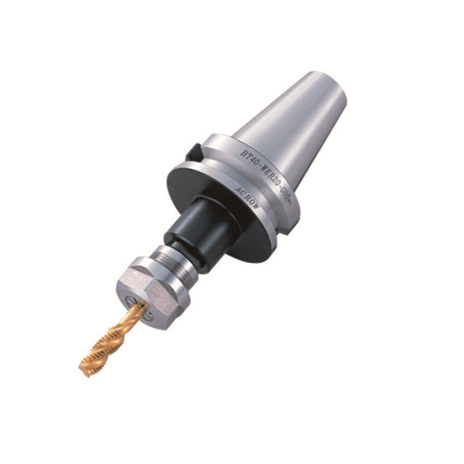

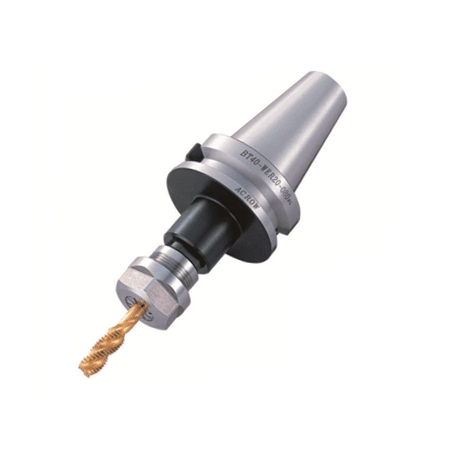

Acrow BT40-WER32-120 – CNC Tapping Chuck (ER32, Ø2–20 mm Capacity, 120 mm Projection)

The Acrow BT40-WER32-120 is a high-capacity CNC tapping chuck engineered for threading larger diameter taps with exceptional rigidity and accuracy. Featuring the ER32 collet system, it supports a wide Ø2–20 mm gripping range and covers tapping applications from M06 to M20. Its built-in axial compensation protects taps from excessive thrust or pull, improving thread quality and reducing tool breakage. With a 120 mm projection, this holder delivers excellent stability and reach for heavy-duty CNC tapping on BT40 spindle machining centers.

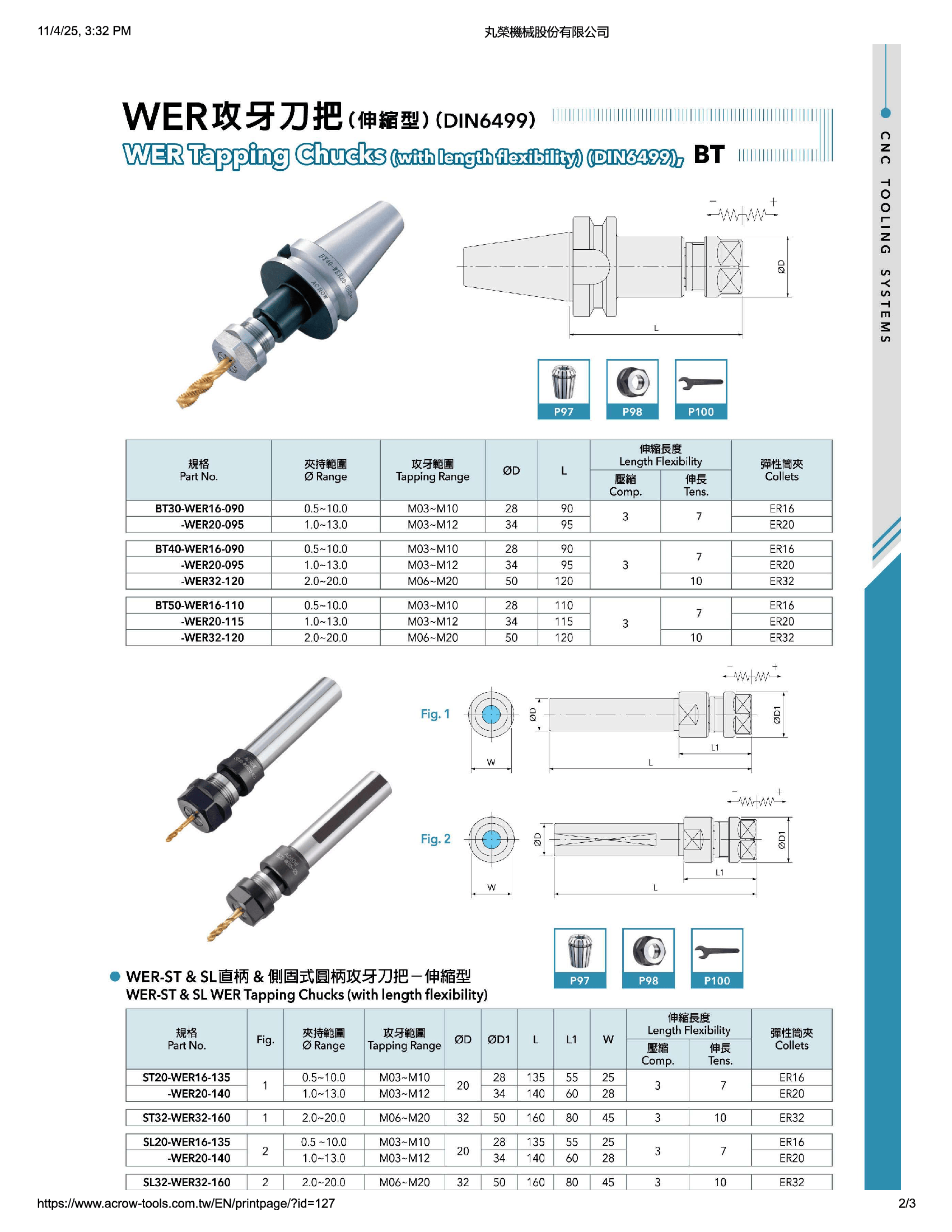

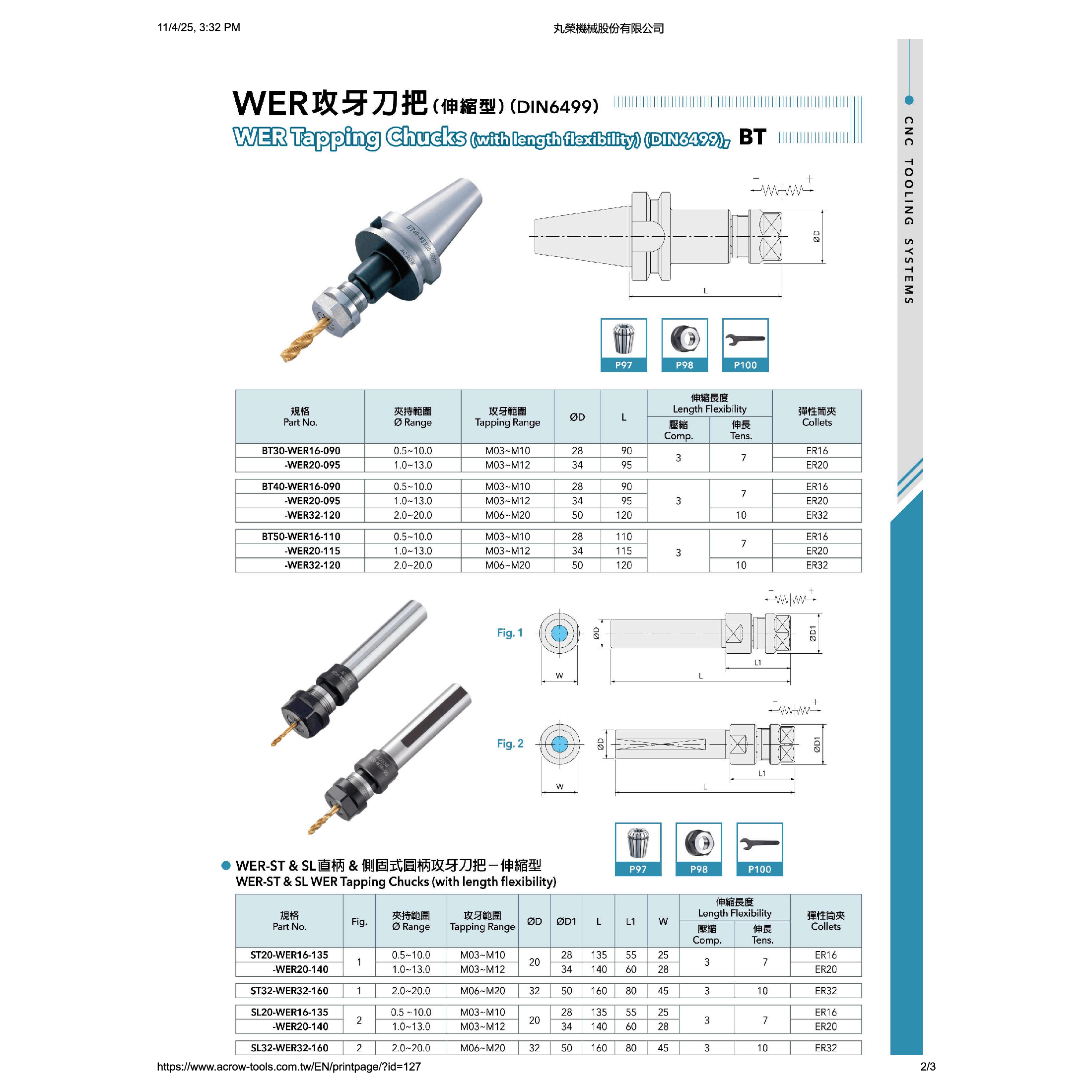

Specifications:

  • Brand: Acrow
  • Type: CNC Tapping Chuck
  • Model: BT40-WER32-120
  • Capacity (Ø Range): 2.0 – 20.0 mm
  • Tapping Range: M06 – M20
  • Collet System: ER32
  • Body Diameter (ØD): 50 mm
  • Length (L): 120 mm
  • Length Flexibility – Compression (Comp.): 5 mm
  • Length Flexibility – Tension (Tens.): 10 mm
  • Material: Hardened Alloy Steel
  • Surface Finish: Precision Ground
  • Run-out Accuracy: ≤ 0.01 mm
  • Application: Suitable for heavy-duty CNC tapping operations using ER32 collets, supporting M6–M20 threading on BT40 machining centers.
