Somta Series 526 - HSSE-V Gun Nose Tap BSW 7/8" (Standard)

Optimized for High-Performance Through Hole Tapping The Somta Series 526 HSSE-V Gun Nose Tap BSW 7/8" is a high-performance machine tap specifically designed for through hole applications. Featuring a spiral...
£103.00
£103.00
(-0%)
Vendor: SOMTA
SKU: 5262220
Availability: In Stock
Subtotal: £103.00
  SOMTA - HSS GUN NOSE TAP BSW (STANDARD)

Somta Series 526 - HSSE-V Gun Nose Tap BSW 7/8" (Standard)

£103.00

Somta Series 526 - HSSE-V Gun Nose Tap BSW 7/8" (Standard)

£103.00

Optimized for High-Performance Through Hole Tapping

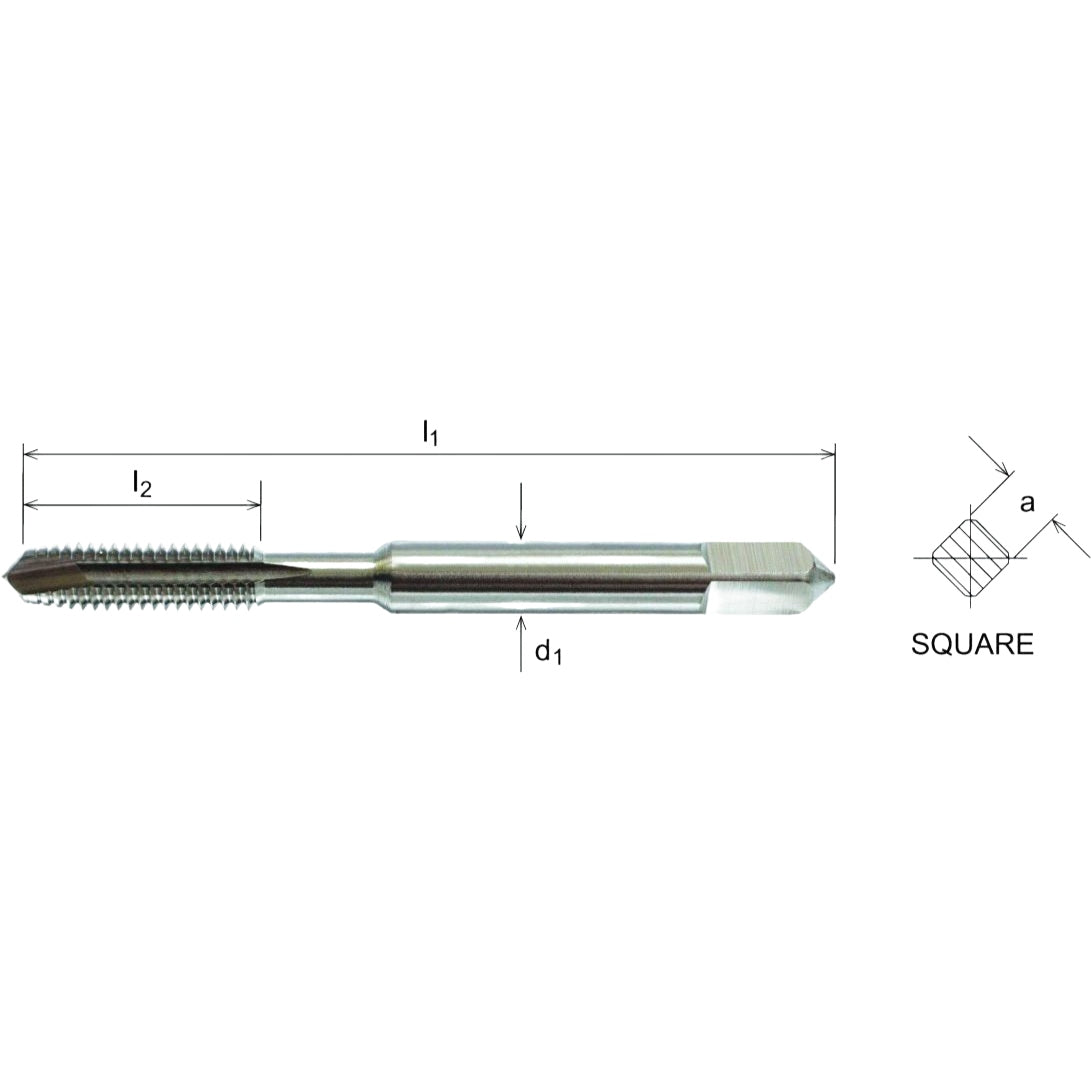

The Somta Series 526 HSSE-V Gun Nose Tap BSW 7/8" is a high-performance machine tap specifically designed for through hole applications. Featuring a spiral point (gun nose) design, this tap efficiently directs swarf forward, ensuring clean and precise threading in CNC and conventional machines.

Key Features & Benefits
Ideal for Through Holes – Gun nose spiral point design efficiently drives chips forward, preventing clogging and ensuring clean, continuous threading.
HSSE-V3 High-Speed Steel – Exceptional wear resistance and extended tool life for reliable performance in demanding applications.
55° Thread Flank Angle – Ensures strong, accurate, and consistent thread formation.
Right-Hand Cutting – Designed for standard British Standard Whitworth (BSW) threading applications.
ISO 529 Standard – Manufactured to industry-grade specifications for consistency and reliability.
Class 2 Tolerance – Ensures precise and secure thread fit.
Versatile General-Purpose Use – Suitable for a wide range of materials and machining operations.

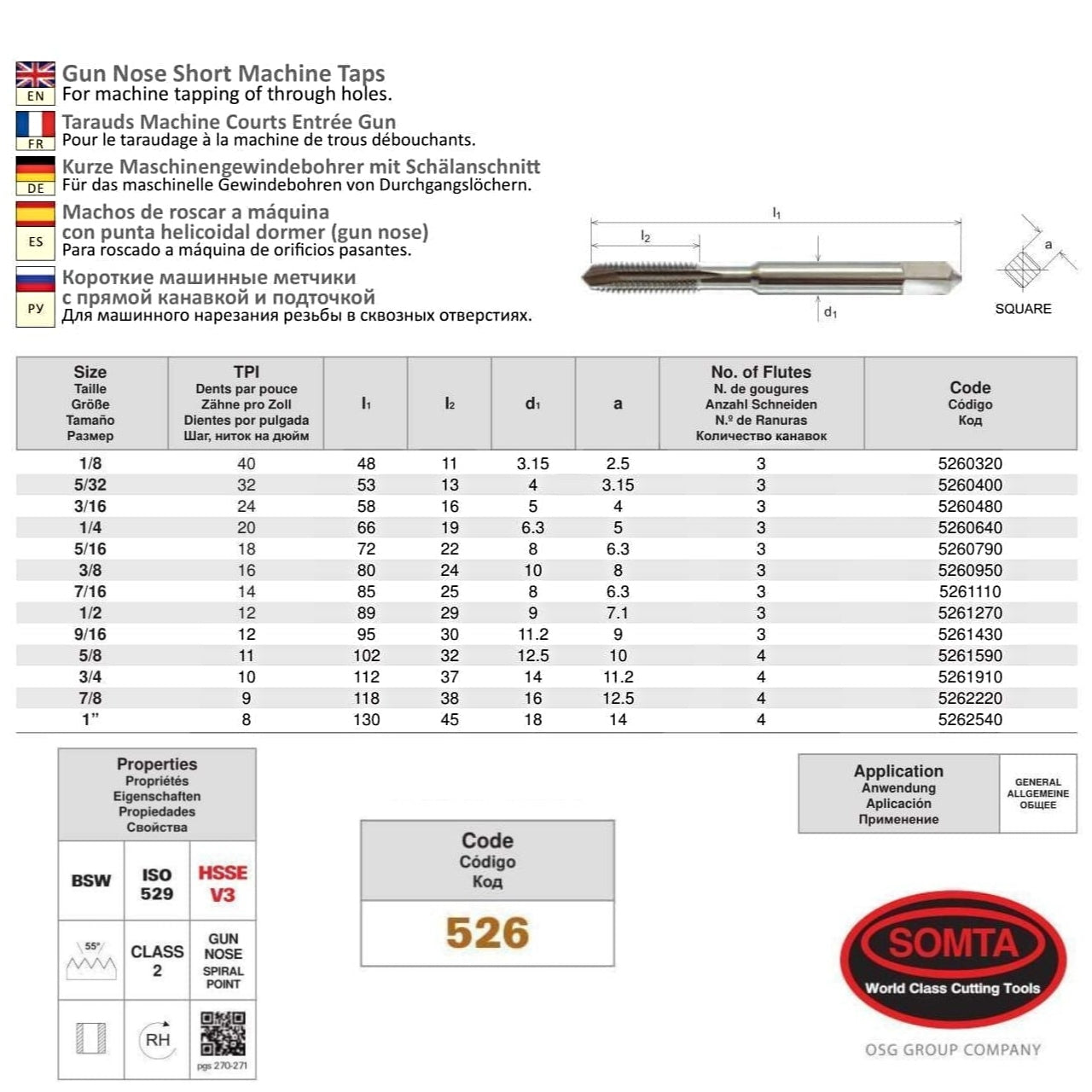

Technical Specifications
🔹 Thread Size: BSW 7/8"
🔹 Thread Standard: British Standard Whitworth (BSW)
🔹 Thread Tolerance Class: Class 2
🔹 Flank Angle: 55°
🔹 Tap Type: Gun Nose Spiral Point Short Machine Tap
🔹 Cutting Direction: Right-Hand
🔹 Application: General-Purpose Through Hole Tapping
🔹 Shank Standard: ISO 529
🔹 Material: HSSE-V3 (High-Speed Steel)
🔹 Hole Type: Through Hole

Why Choose the Somta Series 526 BSW 7/8" Gun Nose Tap?
Optimized for Through Hole Applications – Gun nose design ensures effective swarf evacuation for smooth and accurate threading.
Durable HSSE-V3 Material – High-speed steel with enhanced wear resistance for longer tool life.
Reliable & Consistent Performance – Class 2 tolerance ensures precise BSW threads every time.
Efficient Cutting Action – Spiral point directs chips forward, reducing resistance and improving cutting efficiency.

Achieve exceptional accuracy and efficiency with the Somta Series 526 HSSE-V Gun Nose Tap BSW 7/8" – the ideal tool for professional through hole tapping applications.
