10pc Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (General Purpose, DRZ Series)

Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (10 pcs General Purpose, DRZ Series) The Kyocera ZCMT12T306 PR1225 is a high-performance indexable drill insert designed for use with the Kyocera MagicDrill...
£102.00
£0.00
£102.00
(-0%)
SKU: ZCMT12T306PR1225-10
Availability: In Stock
Subtotal: £102.00
10pc Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (General Purpose, DRZ Series)

10pc Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (General Purpose, DRZ Series)

£0.00 £102.00

10pc Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (General Purpose, DRZ Series)

£0.00 £102.00

Kyocera ZCMT12T306 PR1225 – Indexable Drill Insert (10 pcs General Purpose, DRZ Series)

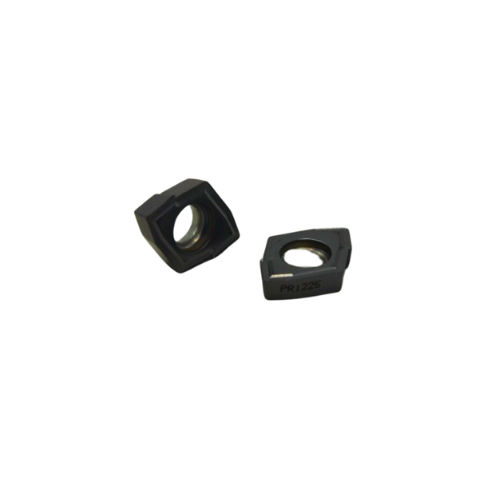

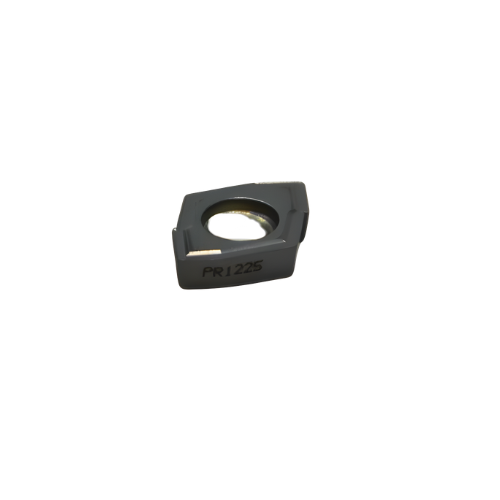

The Kyocera ZCMT12T306 PR1225 is a high-performance indexable drill insert designed for use with the Kyocera MagicDrill DRZ modular drilling system. It is optimized for general-purpose drilling across a wide range of materials including carbon steels, alloy steels, and stainless steels. The insert features a robust geometry for stable cutting, low cutting resistance, and efficient chip evacuation during deep-hole operations. Manufactured with Kyocera’s advanced PR1225 MEGACOAT NANO PVD-coated carbide grade, it provides an excellent balance of toughness and wear resistance, ensuring long tool life and consistent hole quality even under demanding production conditions.

Key Features & Benefits

  • PR1225 Grade – MEGACOAT NANO (PVD): Premium carbide grade providing outstanding wear resistance, heat stability, and edge strength for versatile drilling.
  • Optimized Geometry: Designed for reliable chip control and low cutting forces, enhancing hole accuracy and surface finish.
  • Stable Drilling Performance: Provides consistent entry and exit during through-hole and blind-hole operations.
  • Wide Material Applicability: Suitable for carbon steel, alloy steel, stainless steel, and cast iron.
  • Long Tool Life: PR1225 coating technology minimizes flank wear, extending insert service intervals and reducing downtime.

Technical Specifications

  • Designation / Order Code: ZCMT 12T306 PR1225
  • Insert Type: Indexable Drill Insert (for MagicDrill DRZ Series)
  • Insert Size: 12 mm Type – General Purpose
  • Inscribed Circle (INSL): 14.3 mm
  • Insert Width (W1): 12.8 mm
  • Thickness (S): 3.97 mm
  • Hole Diameter (D1): 5.6 mm
  • Corner Radius (RE): 0.6 mm
  • Relief Angle (AN):
  • Applicable Toolholders: S..-DRZ….-12 Series
  • Cutting Depth Range: 2D – 5D (drilling applications)
  • Recommended Use: General purpose drilling with internal coolant systems

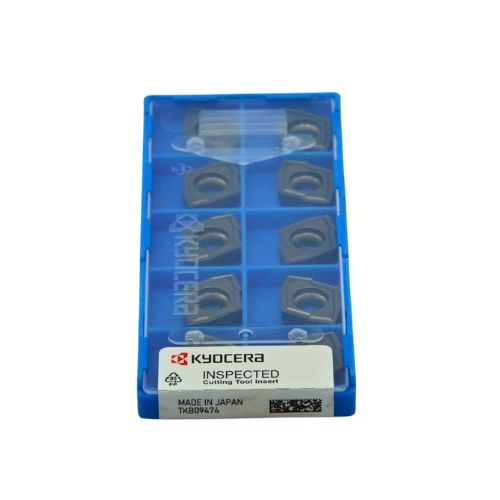

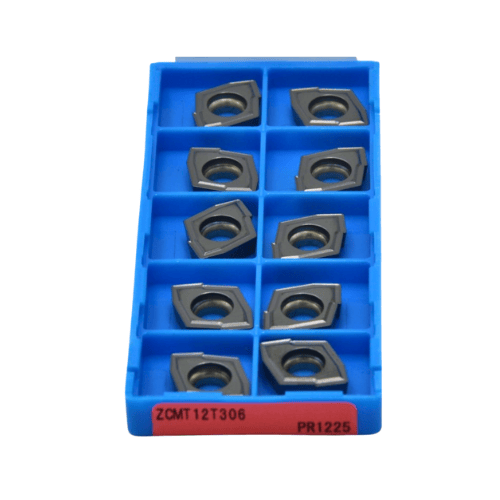

  • Pack Quantity: 10 pcs

About Kyocera PR1225:
Kyocera’s PR1225 MEGACOAT NANO grade employs a multilayer PVD coating that provides exceptional oxidation resistance and durability, ideal for modular drilling applications. It delivers a balanced combination of heat resistance, chip control, and edge toughness—enabling stable drilling across varied materials and conditions.
