10pc Kyocera TPMR160308 PR1535 – Turning Insert (General Purpose, M-Class Tolerance)

Kyocera TPMR160308 PR1535 – Turning Insert (10 pcs General Purpose, M-Class Tolerance) The Kyocera TPMR160308 PR1535 is a positive-type triangular turning insert designed for general-purpose machining of steel and stainless...
£70.00
£0.00
£70.00
(-0%)
SKU: TPMR160308PR1535-10
Availability: In Stock
Subtotal: £70.00
Kyocera TPMR160308 PR1535 – Turning Insert

10pc Kyocera TPMR160308 PR1535 – Turning Insert (General Purpose, M-Class Tolerance)

£0.00 £70.00

10pc Kyocera TPMR160308 PR1535 – Turning Insert (General Purpose, M-Class Tolerance)

£0.00 £70.00

Kyocera TPMR160308 PR1535 – Turning Insert (10 pcs General Purpose, M-Class Tolerance)

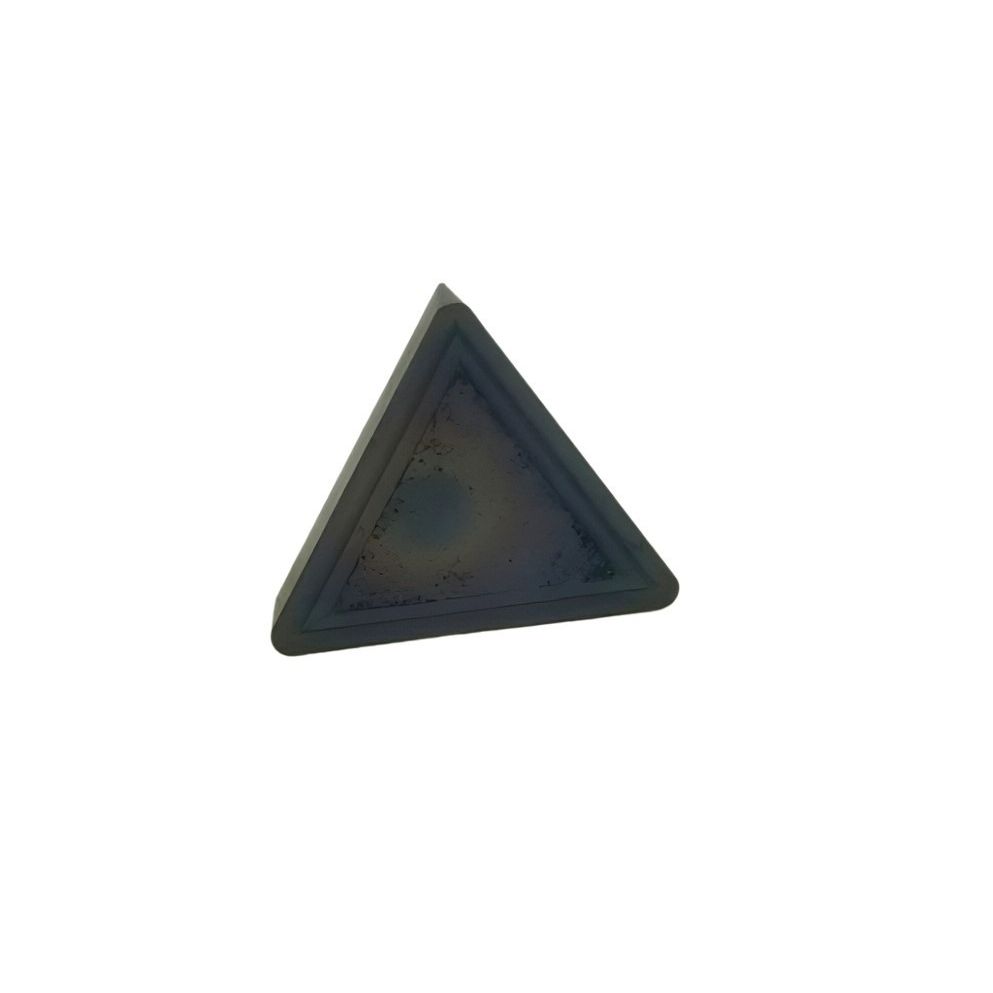

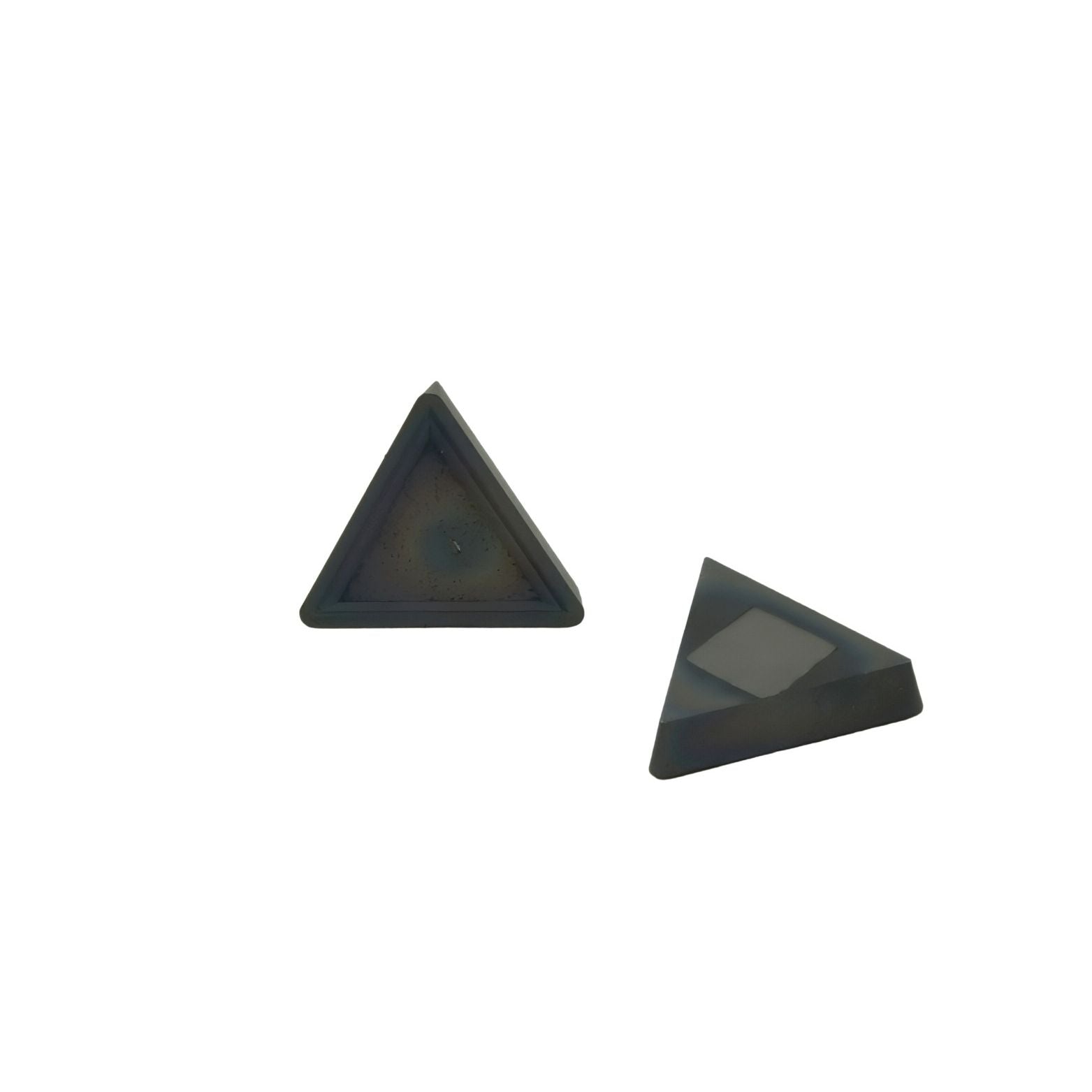

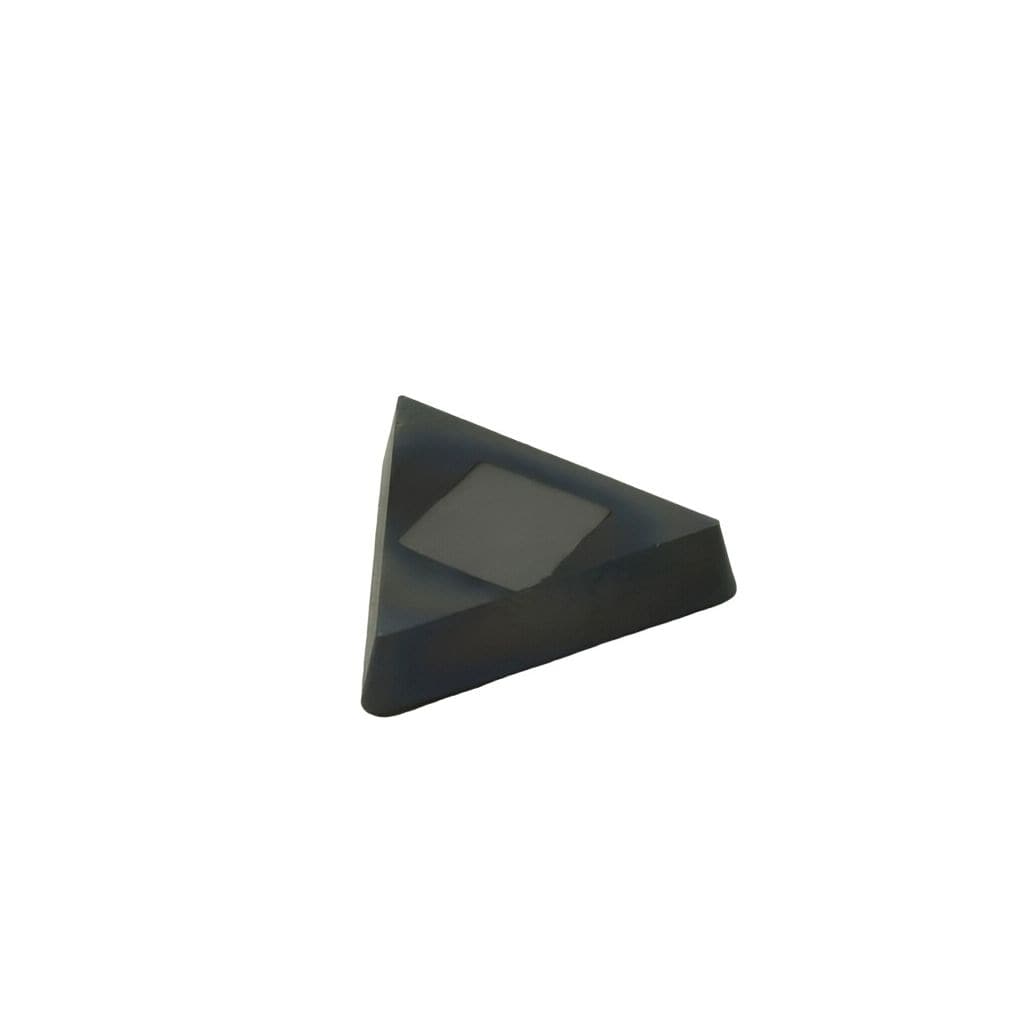

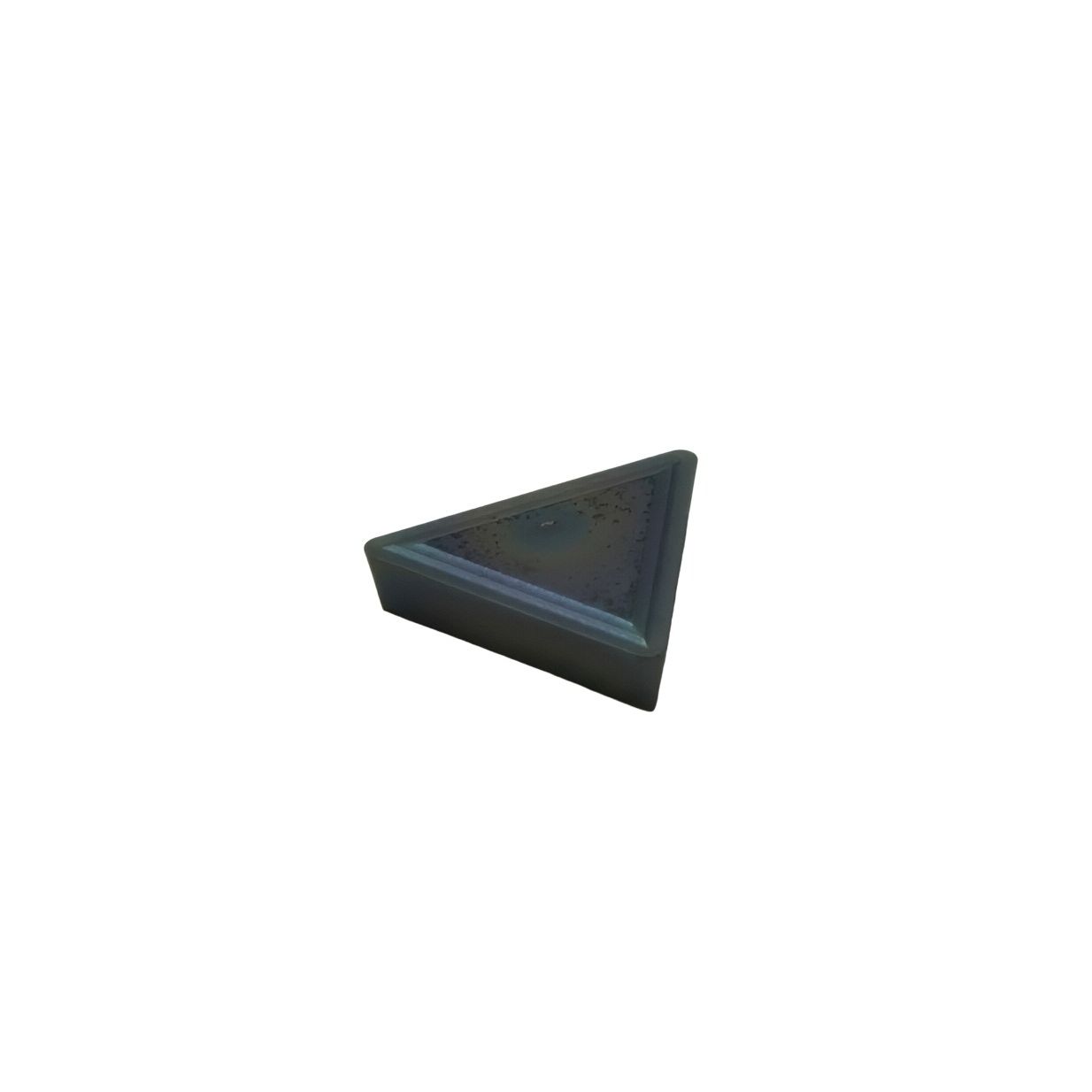

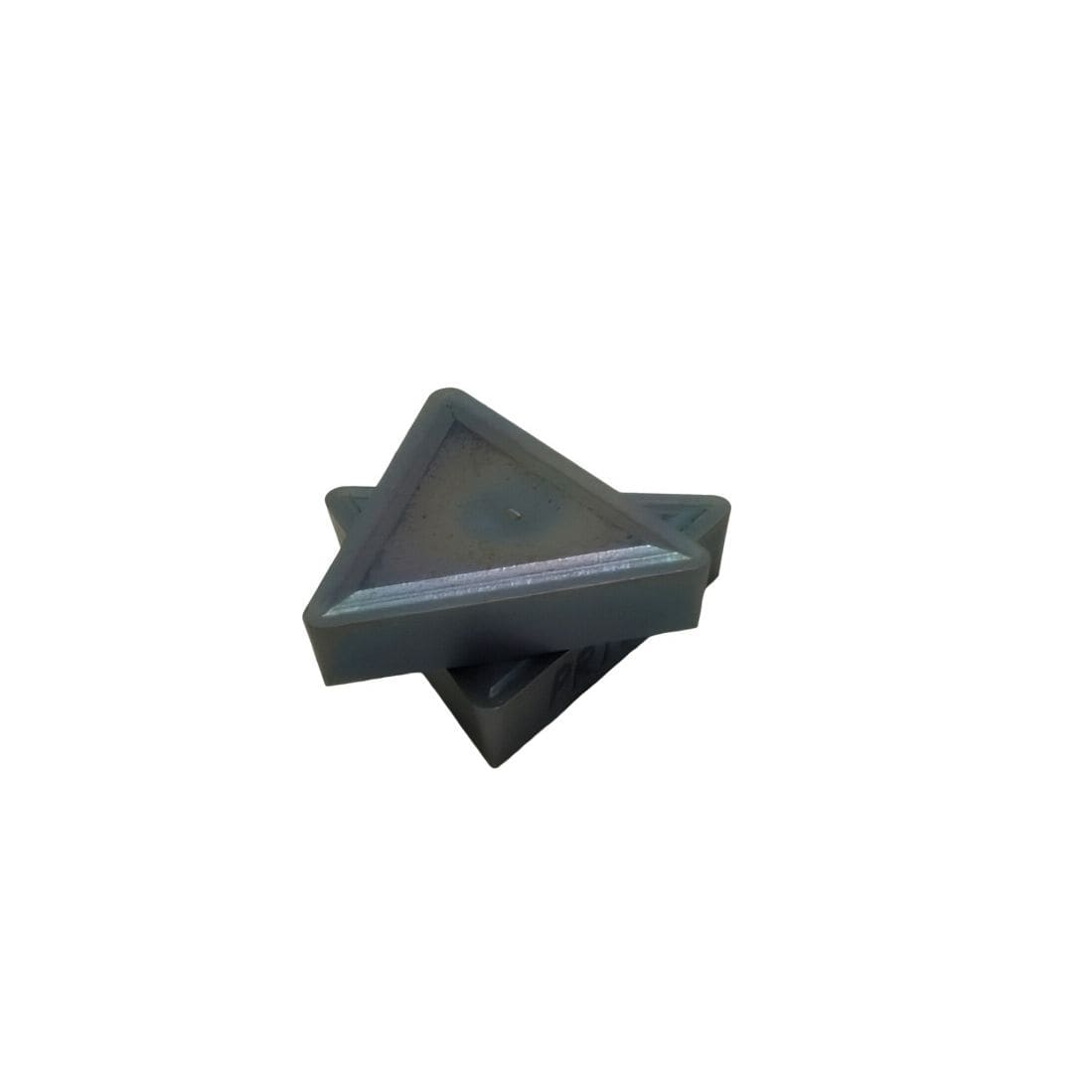

The Kyocera TPMR160308 PR1535 is a positive-type triangular turning insert designed for general-purpose machining of steel and stainless steel. It features Kyocera’s advanced PR1535 CVD-coated carbide grade, engineered with MEGACOAT NANO Plus technology to provide exceptional wear resistance, oxidation stability, and edge strength. The insert’s precision-ground positive geometry ensures reduced cutting forces, excellent chip control, and consistent surface quality in both continuous and light-interrupted cuts.

Key Features & Benefits

  • PR1535 Grade: CVD-coated carbide with MEGACOAT NANO Plus layer for improved wear and heat resistance.
  • Optimized Edge Strength: Tough substrate and coating adhesion for stable cutting under moderate conditions.
  • High Surface Quality: Positive rake design delivers smooth chip evacuation and excellent finish.
  • Versatile Application: Suitable for both steel and stainless steel turning under dry or wet conditions.
  • Extended Tool Life: Reliable performance in medium to high cutting speeds with reduced flank wear.

Technical Specifications

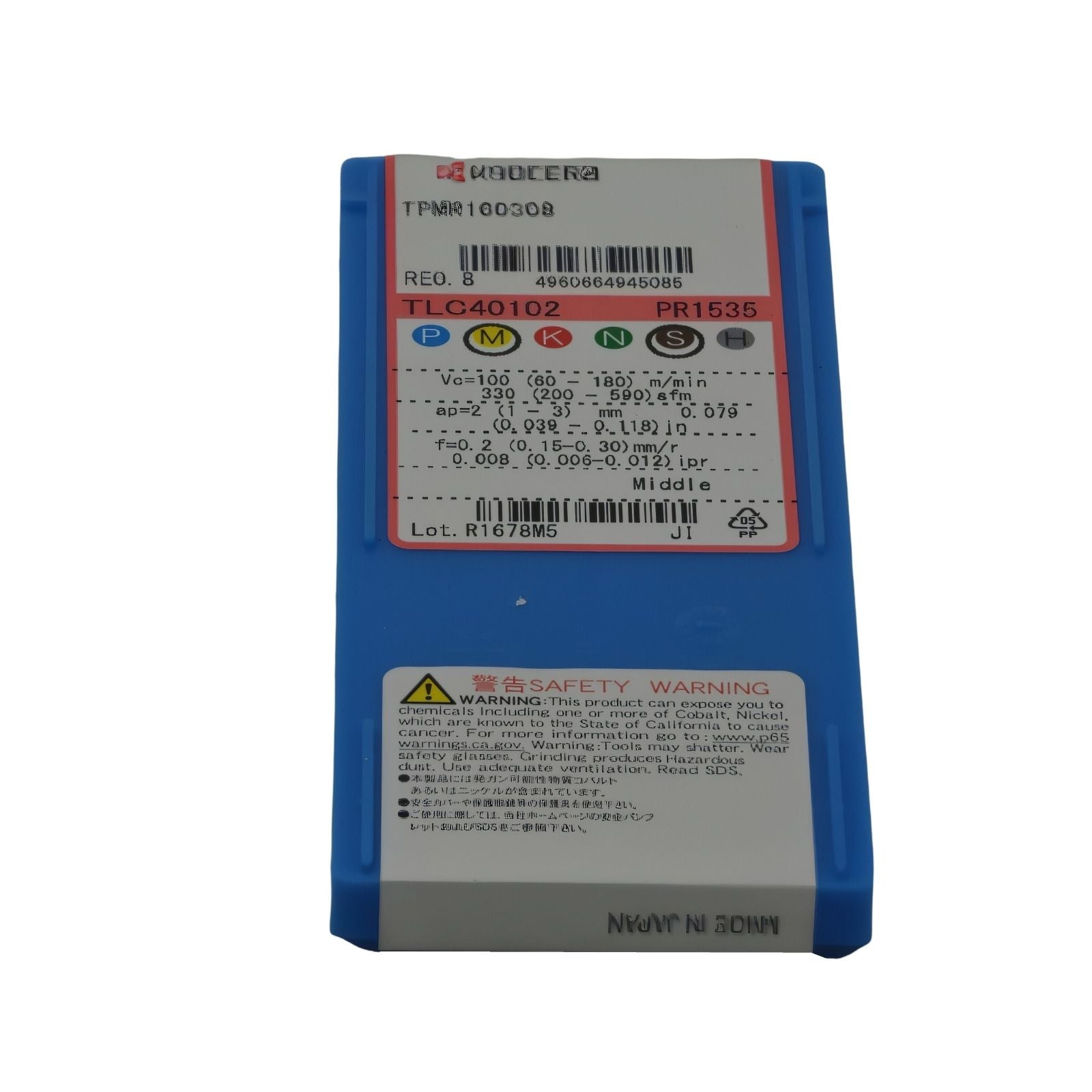

  • Designation / Order Code: TPMR160308 PR1535
  • Insert Type: Positive, 60° Triangular Insert
  • Grade: PR1535 (CVD-coated carbide)
  • Inscribed Circle (IC): 9.525 mm
  • Thickness: 3.18 mm
  • Corner Radius (RE): 0.8 mm
  • Relief Angle: 11° (Positive Type)

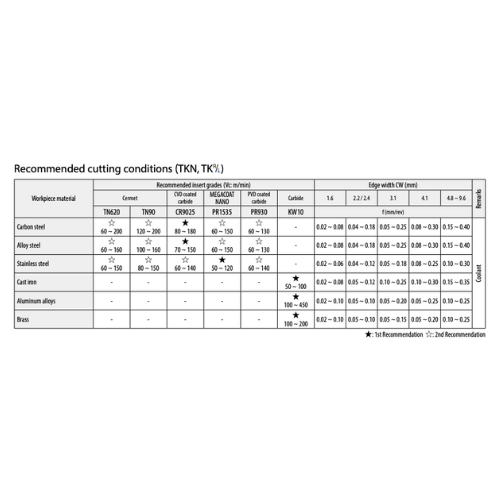

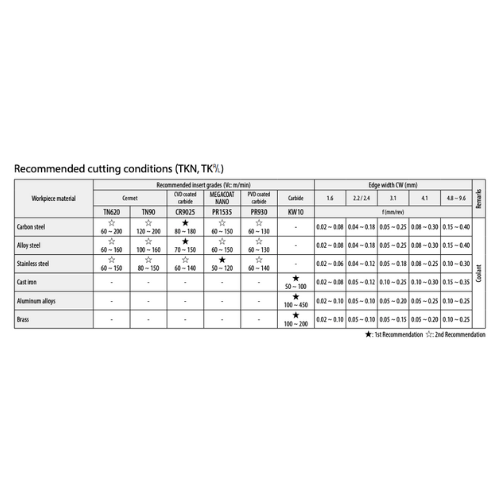

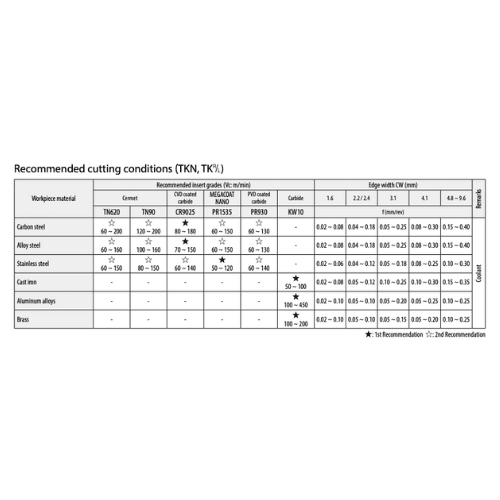

  • Cutting Speed (Vc): 80 – 250 m/min (steel, stainless steel)
  • Feed Rate (f): 0.05 – 0.30 mm/rev
  • Depth of Cut (ap): 0.2 – 3.0 mm

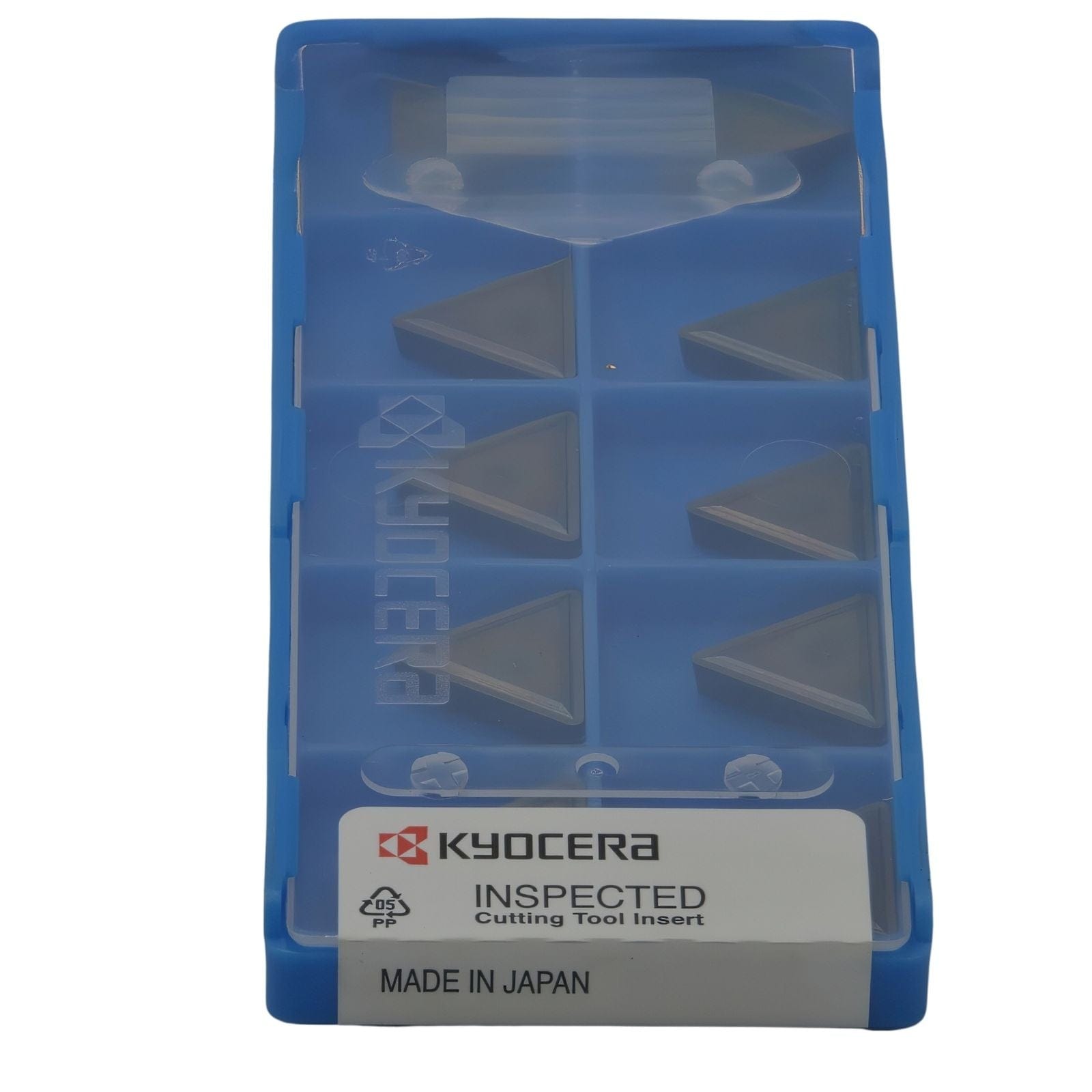

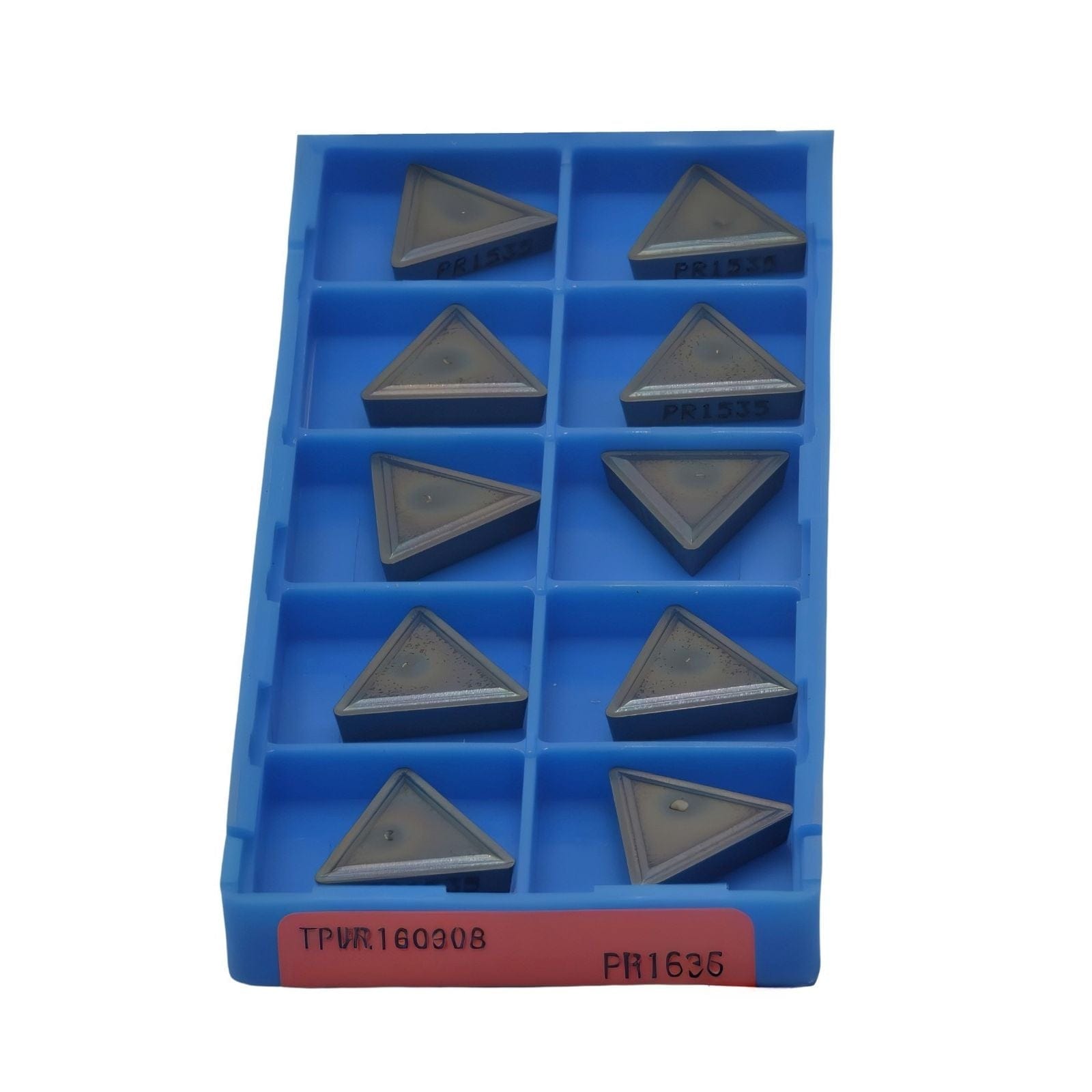

  • Pack Quantity: 10 pcs

About Kyocera PR1535:
Kyocera’s PR1535 is part of the MEGACOAT NANO Plus series, offering superior wear and heat resistance through its advanced multilayer coating. It provides consistent performance across a wide range of cutting conditions, delivering excellent balance between toughness and resistance to crater wear, ideal for general steel and stainless steel turning applications.
