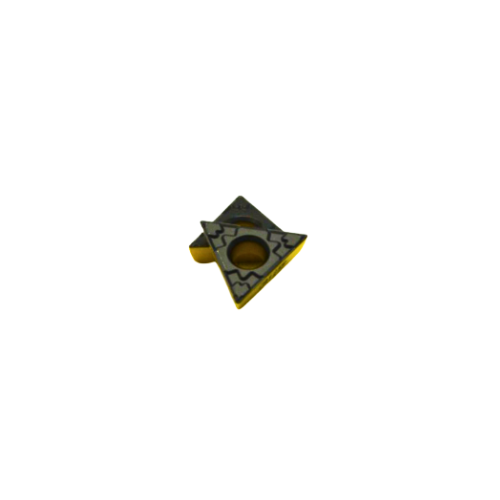

10 pc Kyocera TPMT160304GP CA125P – Turning Insert (Finishing, GP Chipbreaker)

Kyocera TPMT160304GP CA125P – Turning Insert (10 pcs Finishing, GP Chipbreaker) The Kyocera TPMT160304GP CA125P is a precision-engineered positive triangular turning insert designed for finishing operations in steel machining. It...
£80.00
£0.00
£80.00
(-0%)
SKU: TPMT160304GPCA125P-10
Availability: In Stock
Subtotal: £80.00
10 pc Kyocera TPMT160304GP CA125P – Turning Insert (Finishing, GP Chipbreaker)

10 pc Kyocera TPMT160304GP CA125P – Turning Insert (Finishing, GP Chipbreaker)

£0.00 £80.00

10 pc Kyocera TPMT160304GP CA125P – Turning Insert (Finishing, GP Chipbreaker)

£0.00 £80.00

Kyocera TPMT160304GP CA125P – Turning Insert (10 pcs Finishing, GP Chipbreaker)

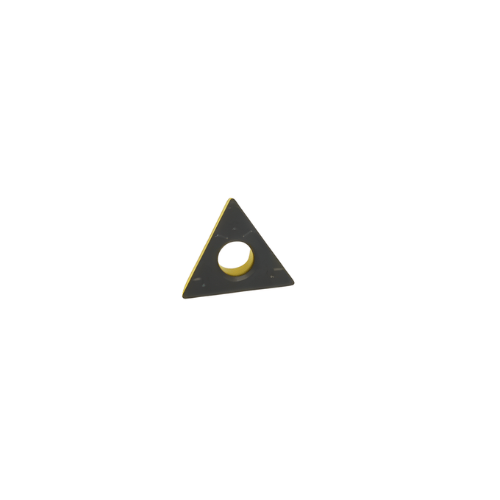

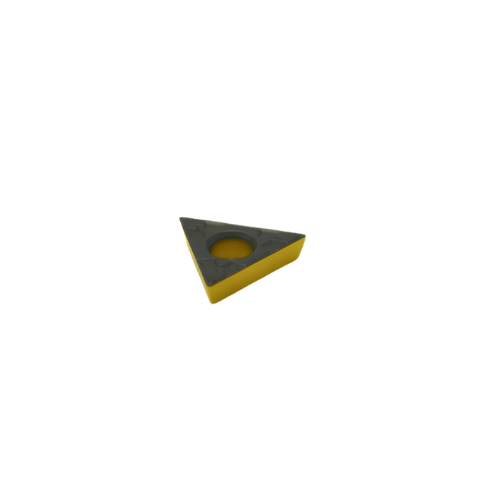

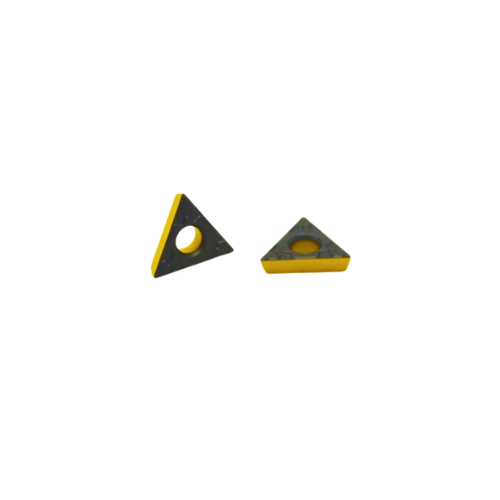

The Kyocera TPMT160304GP CA125P is a precision-engineered positive triangular turning insert designed for finishing operations in steel machining. It features Kyocera’s advanced CA125P CVD-coated carbide grade, providing a strong balance between wear resistance and toughness. The GP chipbreaker geometry delivers smooth chip evacuation and low cutting forces, achieving excellent surface finishes and stable performance under both wet and dry cutting conditions.

Key Features & Benefits

  • CA125P Grade: CVD-coated carbide with exceptional wear and fracture resistance for steel turning.
  • GP Chipbreaker: Finishing chipbreaker providing smooth chip flow and minimal cutting resistance.
  • Superior Surface Quality: Designed for accurate and fine finishing with excellent dimensional stability.
  • Stable Edge Strength: Combines sharp cutting edges with high chipping resistance.
  • Versatile Machining: Suitable for use in continuous to slightly interrupted steel cutting applications.

Technical Specifications

  • Designation / Order Code: TPMT160304GP CA125P
  • Insert Type: Positive 60° Triangular Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA125P – Finishing for steels
  • Chipbreaker: GP – Finishing
  • Inscribed Circle (IC): 9.525 mm
  • Thickness (S): 3.18 mm
  • Hole Diameter (D1): 4.4 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle (α): 11°

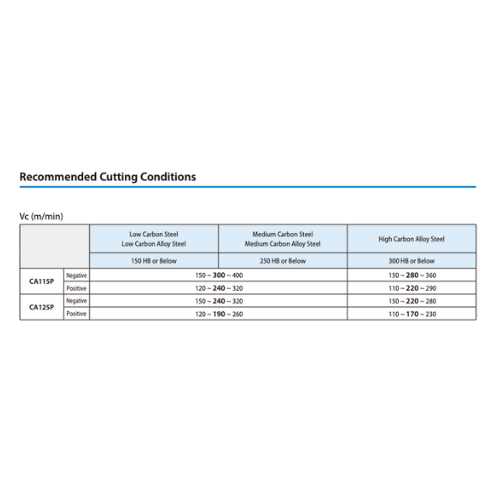

  • Cutting Speed (Vc): 150 – 350 m/min
  • Feed Rate (f): 0.05 – 0.25 mm/rev
  • Depth of Cut (ap): 0.1 – 2.0 mm
  • Coolant: Wet or Dry (Wet recommended for best finish)
  • Tolerance: ISO standard – ±0.05 mm (IC) / ±0.025 mm (Thickness)

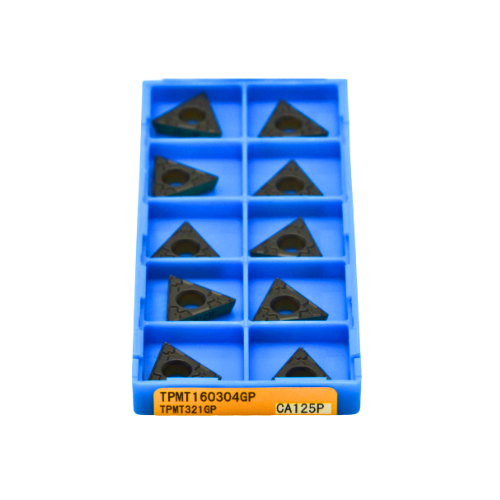

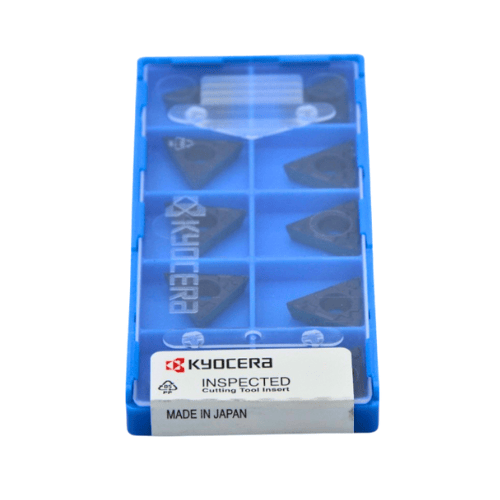

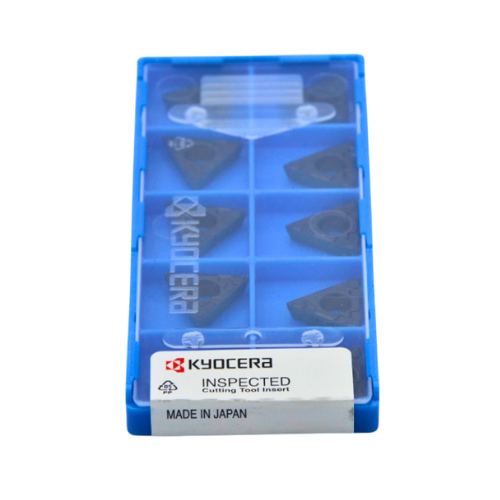

  • Pack Quantity: 10 pcs

About Kyocera CA125P:
Kyocera’s CA125P grade combines a new-generation CVD coating with a robust carbide substrate to deliver longer tool life and superior wear resistance. It performs exceptionally in steel turning operations ranging from continuous to heavy interrupted cuts, maintaining stable cutting edges and consistent surface quality.
